Spring AI Alibaba 项目源码学习（七）-Agent、BaseAgent、ReactAgent 分析

Agent、BaseAgent、ReactAgent 分析

请关注微信公众号：阿呆-bot

概述

本文档分析 Spring AI Alibaba Agent Framework 中的核心 Agent 类层次结构，包括 Agent 基类、BaseAgent 抽象类和 ReactAgent 具体实现，重点分析其关键方法、功能职责和类间关系。

入口类说明

Agent - 所有 Agent 的基类

Agent 是所有 Agent 实现的抽象基类，提供了 Agent 的通用能力和 Graph 管理功能。

核心职责：

• 管理 Agent 的名称和描述
• 提供 Graph 的初始化和编译
• 提供统一的调用接口（invoke、stream）
• 支持调度执行

关键代码：

public abstract class Agent {/** The agent's name. Must be a unique identifier within the graph. */protected String name;/*** One line description about the agent's capability. The system can use this for* decision-making when delegating control to different agents.*/protected String description;protected CompileConfig compileConfig;protected volatile CompiledGraph compiledGraph;protected volatile StateGraph graph;/*** Protected constructor for initializing all base agent properties.* @param name the unique name of the agent* @param description the description of the agent's capability*/protected Agent(String name, String description) throws GraphStateException {this.name = name;this.description = description;}/*** Default protected constructor for subclasses that need to initialize properties* differently.*/protected Agent() {// Allow subclasses to initialize properties through other means}/*** Gets the agent's unique name.* @return the unique name of the agent.*/public String name() {return name;}/*** Gets the one-line description of the agent's capability.* @return the description of the agent.*/public String description() {return description;}public StateGraph getGraph() {if (this.graph == null) {try {this.graph = initGraph();}catch (GraphStateException e) {throw new RuntimeException(e);}}return this.graph;}public synchronized CompiledGraph getAndCompileGraph() {if (compiledGraph != null) {return compiledGraph;}StateGraph graph = getGraph();try {if (this.compileConfig == null) {this.compiledGraph = graph.compile();}else {this.compiledGraph = graph.compile(this.compileConfig);}} catch (GraphStateException e) {throw new RuntimeException(e);}return this.compiledGraph;}

关键方法：

• initGraph()：抽象方法，子类实现以创建状态图
• getAndCompileGraph()：获取并编译 Graph（线程安全）
• invoke()：同步调用 Agent
• stream()：流式调用 Agent

BaseAgent - Agent 的抽象扩展

BaseAgent 继承自 Agent，提供了输入输出管理和节点转换能力。

核心职责：

• 管理输入输出 Schema 和类型
• 管理输出键和键策略
• 提供 asNode() 方法将 Agent 转换为 Graph 节点

关键代码：

public abstract class BaseAgent extends Agent {protected String inputSchema;protected Type inputType;protected String outputSchema;protected Class<?> outputType;/** The output key for the agent's result */protected String outputKey;protected KeyStrategy outputKeyStrategy;protected boolean includeContents;protected boolean returnReasoningContents;public BaseAgent(String name, String description, boolean includeContents, boolean returnReasoningContents, String outputKey,KeyStrategy outputKeyStrategy) throws GraphStateException {super(name, description);this.includeContents = includeContents;this.returnReasoningContents = returnReasoningContents;this.outputKey = outputKey;this.outputKeyStrategy = outputKeyStrategy;}public abstract Node asNode(boolean includeContents, boolean returnReasoningContents, String outputKeyToParent);public boolean isIncludeContents() {return includeContents;}public String getOutputKey() {return outputKey;}public void setOutputKey(String outputKey) {this.outputKey = outputKey;}public KeyStrategy getOutputKeyStrategy() {return outputKeyStrategy;}public void setOutputKeyStrategy(KeyStrategy outputKeyStrategy) {this.outputKeyStrategy = outputKeyStrategy;}String getInputSchema() {return inputSchema;}void setInputSchema(String inputSchema) {this.inputSchema = inputSchema;}Type getInputType() {return inputType;}void setInputType(Type inputType) {this.inputType = inputType;}String getOutputSchema() {return outputSchema;}void setOutputSchema(String outputSchema) {this.outputSchema = outputSchema;}void setIncludeContents(boolean includeContents) {this.includeContents = includeContents;}public boolean isReturnReasoningContents() {return returnReasoningContents;}public void setReturnReasoningContents(boolean returnReasoningContents) {this.returnReasoningContents = returnReasoningContents;}
}

关键方法：

• asNode()：抽象方法，将 Agent 转换为 Graph 节点，用于嵌套 Agent

ReactAgent - ReAct 模式实现

ReactAgent 是 BaseAgent 的具体实现，实现了经典的 ReAct（Reasoning + Acting）模式。

核心职责：

• 实现 ReAct 循环：推理 → 行动 → 观察
• 管理 LLM 节点和工具节点
• 支持 Hook 和 Interceptor 扩展
• 控制最大迭代次数

关键代码：

public class ReactAgent extends BaseAgent {private static final int DEFAULT_MAX_ITERATIONS = 10;private final AgentLlmNode llmNode;private final AgentToolNode toolNode;private CompiledGraph compiledGraph;private List<Hook> hooks;private List<ModelInterceptor> modelInterceptors;private List<ToolInterceptor> toolInterceptors;private int maxIterations;private int iterations = 0;private String instruction;private Function<OverAllState, Boolean> shouldContinueFunc;public ReactAgent(AgentLlmNode llmNode, AgentToolNode toolNode, CompileConfig compileConfig, Builder builder) throws GraphStateException {super(builder.name, builder.description, builder.includeContents, builder.returnReasoningContents, builder.outputKey, builder.outputKeyStrategy);this.instruction = builder.instruction;this.llmNode = llmNode;this.toolNode = toolNode;this.compileConfig = compileConfig;this.shouldContinueFunc = builder.shouldContinueFunc;this.hooks = builder.hooks;this.modelInterceptors = builder.modelInterceptors;this.toolInterceptors = builder.toolInterceptors;this.includeContents = builder.includeContents;this.inputSchema = builder.inputSchema;this.inputType = builder.inputType;this.outputSchema = builder.outputSchema;this.outputType = builder.outputType;this.maxIterations = builder.maxIterations <= 0 ? DEFAULT_MAX_ITERATIONS : builder.maxIterations;// Set interceptors to nodesif (this.modelInterceptors != null && !this.modelInterceptors.isEmpty()) {this.llmNode.setModelInterceptors(this.modelInterceptors);}if (this.toolInterceptors != null && !this.toolInterceptors.isEmpty()) {this.toolNode.setToolInterceptors(this.toolInterceptors);}}

Graph 初始化：

@Overrideprotected StateGraph initGraph() throws GraphStateException {KeyStrategyFactory keyStrategyFactory = buildMessagesKeyStrategyFactory();if (hooks == null) {hooks = new ArrayList<>();}// Validate hook uniquenessSet<String> hookNames = new HashSet<>();for (Hook hook : hooks) {if (!hookNames.add(hook.getName())) {throw new IllegalArgumentException("Duplicate hook instances found");}}// Create graphStateGraph graph = new StateGraph(name, keyStrategyFactory);graph.addNode("model", node_async(this.llmNode));graph.addNode("tool", node_async(this.toolNode));// some hooks may need tools so they can do some initialization/cleanup on start/end of agent loopsetupToolsForHooks(hooks, toolNode);// Add hook nodesfor (Hook hook : hooks) {if (hook instanceof AgentHook agentHook) {graph.addNode(hook.getName() + ".before", agentHook::beforeAgent);graph.addNode(hook.getName() + ".after", agentHook::afterAgent);} else if (hook instanceof ModelHook modelHook) {graph.addNode(hook.getName() + ".beforeModel", modelHook::beforeModel);if (modelHook instanceof HumanInTheLoopHook humanInTheLoopHook) {graph.addNode(hook.getName() + ".afterModel", humanInTheLoopHook);} else {graph.addNode(hook.getName() + ".afterModel", modelHook::afterModel);}}else {throw new UnsupportedOperationException("Unsupported hook type: " + hook.getClass().getName());}}// Categorize hooks by positionList<Hook> beforeAgentHooks = filterHooksByPosition(hooks, HookPosition.BEFORE_AGENT);List<Hook> afterAgentHooks = filterHooksByPosition(hooks, HookPosition.AFTER_AGENT);List<Hook> beforeModelHooks = filterHooksByPosition(hooks, HookPosition.BEFORE_MODEL);List<Hook> afterModelHooks = filterHooksByPosition(hooks, HookPosition.AFTER_MODEL);// Determine node flowString entryNode = determineEntryNode(beforeAgentHooks, beforeModelHooks);String loopEntryNode = determineLoopEntryNode(beforeModelHooks);String loopExitNode = determineLoopExitNode(afterModelHooks);String exitNode = determineExitNode(afterAgentHooks);// Set up edgesgraph.addEdge(START, entryNode);setupHookEdges(graph, beforeAgentHooks, afterAgentHooks, beforeModelHooks, afterModelHooks,entryNode, loopEntryNode, loopExitNode, exitNode, true, this);return graph;}

关键类关系

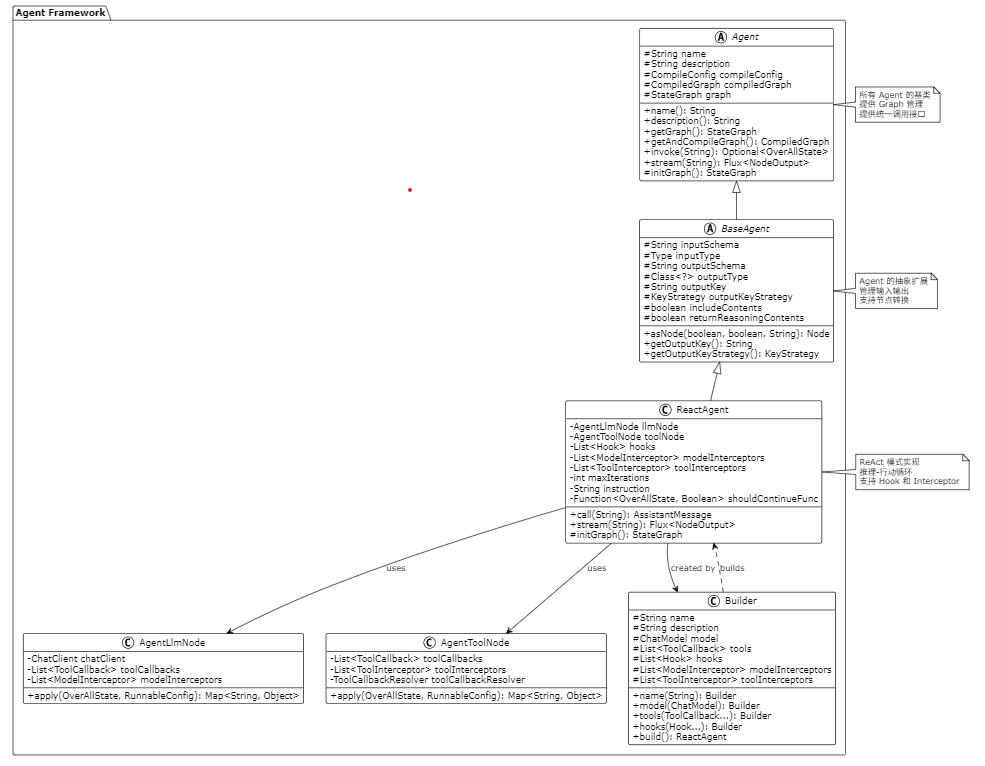

以下 PlantUML 类图展示了 Agent 类层次结构：

关键流程

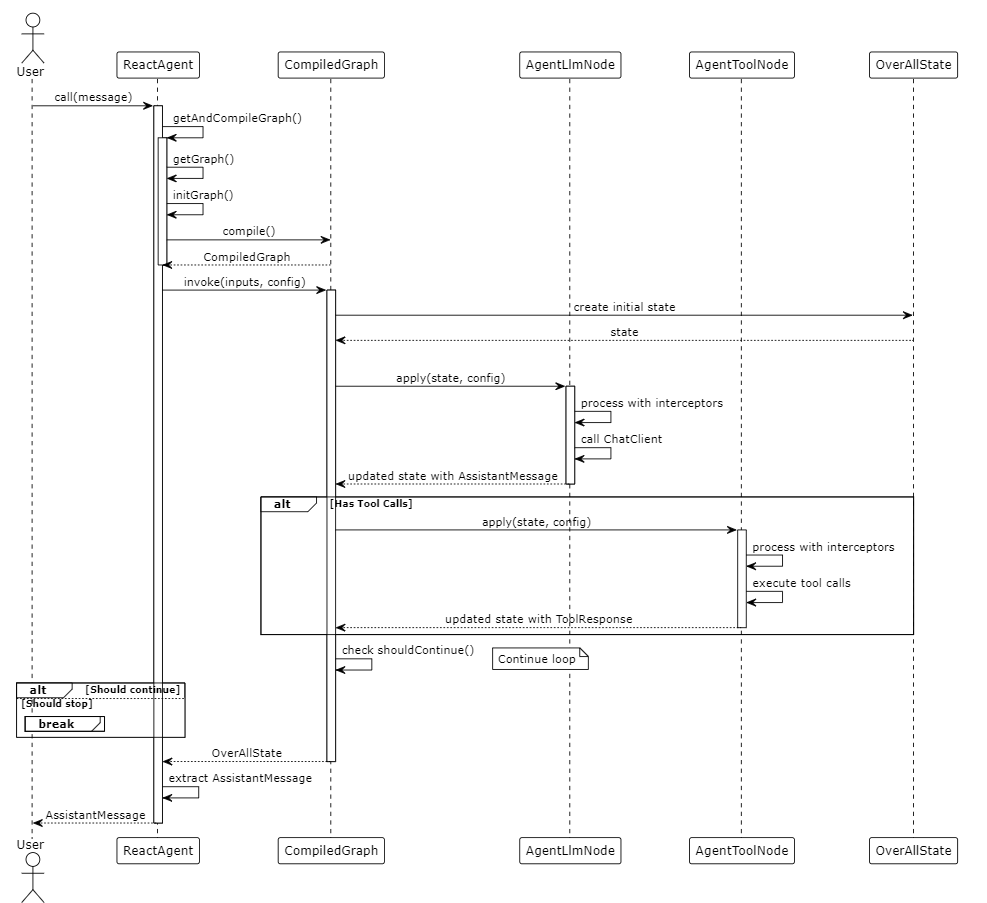

以下 PlantUML 时序图展示了 ReactAgent 的执行流程：

实现关键点说明

1. 模板方法模式

Agent 使用模板方法模式：

• initGraph() 是抽象方法，子类实现具体的图构建逻辑
• getAndCompileGraph() 是模板方法，定义了 Graph 的获取和编译流程

2. Builder 模式

ReactAgent 使用 Builder 模式构建：

• Builder 类提供流畅的 API
• 支持链式调用配置各种参数
• 在 build() 时创建 ReactAgent 实例

3. ReAct 循环实现

ReactAgent 通过 Graph 实现 ReAct 循环：

• model 节点：LLM 推理，决定下一步行动
• tool 节点：执行工具调用
• 条件边：根据 LLM 输出决定是否继续循环

4. Hook 集成机制

Hook 被集成到 Graph 中：

• AgentHook：在 Agent 执行前后插入节点
• ModelHook：在模型调用前后插入节点
• 通过 HookPosition 控制执行时机

5. Interceptor 链式调用

Interceptor 通过链式调用实现：

• ModelInterceptor：拦截模型调用请求和响应
• ToolInterceptor：拦截工具调用请求和响应
• 支持请求修改和响应处理

6. 状态管理

使用 OverAllState 管理状态：

• messages 键存储对话历史
• input 键存储用户输入
• 支持键策略控制状态更新方式

总结说明

核心设计理念

1. 分层抽象：Agent → BaseAgent → ReactAgent 三层设计，职责清晰
2. ReAct 模式：通过 Graph 实现推理-行动循环
3. 可扩展性：通过 Hook 和 Interceptor 机制支持扩展
4. 状态驱动：基于状态图的状态驱动执行

关键优势

• 灵活性：支持多种调用方式（同步、异步、流式）
• 可扩展性：Hook 和 Interceptor 机制支持功能扩展
• 可组合性：通过 asNode() 方法支持 Agent 嵌套
• 类型安全：支持输入输出 Schema 和类型定义

使用场景

• 单 Agent 应用：直接使用 ReactAgent 构建单 Agent 应用
• 多 Agent 编排：通过 asNode() 方法将 ReactAgent 转换为节点，用于 FlowAgent 编排
• 嵌套 Agent：支持 Agent 嵌套，实现复杂的 Agent 层次结构

关键方法说明

Agent 基类方法

• initGraph()：抽象方法，子类必须实现，用于创建状态图
• getAndCompileGraph()：获取并编译 Graph，使用双重检查锁定确保线程安全
• invoke()：同步调用 Agent，返回 Optional<OverAllState>
• stream()：流式调用 Agent，返回 Flux<NodeOutput>

BaseAgent 方法

• asNode()：抽象方法，将 Agent 转换为 Graph 节点，用于嵌套场景
• getOutputKey()：获取输出键，用于从状态中提取结果
• getOutputKeyStrategy()：获取输出键策略，控制状态更新方式

ReactAgent 方法

• call()：同步调用，返回 AssistantMessage
• initGraph()：创建 ReAct 循环的状态图
• setupToolsForHooks()：为 Hook 注入工具
• filterHooksByPosition()：根据位置过滤 Hook

Agent Framework 通过这种层次化的设计，实现了灵活、可扩展的 Agent 开发框架，为构建智能应用提供了坚实的基础。
