部署Dashboard（Web UI）
* dashboard-deployment.yaml // 部署Pod，提供Web服务
* dashboard-rbac.yaml // 授权访问apiserver获取信息
* dashboard-service.yaml // 发布服务，提供对外访问
创建一个目录
[root@k8s-master ~]# mkdir webui
[root@k8s-master ~]# cd webui/
[root@k8s-master webui]# cat dashboard-deployment.yaml
apiVersion: apps/v1beta2
kind: Deployment
metadata:name: kubernetes-dashboardnamespace: kube-systemlabels:k8s-app: kubernetes-dashboardkubernetes.io/cluster-service: "true"addonmanager.kubernetes.io/mode: Reconcile
spec:selector:matchLabels:k8s-app: kubernetes-dashboardtemplate:metadata:labels:k8s-app: kubernetes-dashboardannotations:scheduler.alpha.kubernetes.io/critical-pod: ''spec:serviceAccountName: kubernetes-dashboardcontainers:- name: kubernetes-dashboardimage: registry.cn-hangzhou.aliyuncs.com/kube_containers/kubernetes-dashboard-amd64:v1.8.1 resources:limits:cpu: 100mmemory: 300Mirequests:cpu: 100mmemory: 100Miports:- containerPort: 9090protocol: TCPlivenessProbe:httpGet:scheme: HTTPpath: /port: 9090initialDelaySeconds: 30timeoutSeconds: 30tolerations:- key: "CriticalAddonsOnly"operator: "Exists"[root@k8s-master webui]# cat dashboard-rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:labels:k8s-app: kubernetes-dashboardaddonmanager.kubernetes.io/mode: Reconcilename: kubernetes-dashboardnamespace: kube-system
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:name: kubernetes-dashboard-minimalnamespace: kube-systemlabels:k8s-app: kubernetes-dashboardaddonmanager.kubernetes.io/mode: Reconcile
roleRef:apiGroup: rbac.authorization.k8s.iokind: ClusterRolename: cluster-admin
subjects:- kind: ServiceAccountname: kubernetes-dashboardnamespace: kube-system
[root@k8s-master webui]# cat dashboard-service.yaml
apiVersion: v1
kind: Service
metadata:name: kubernetes-dashboardnamespace: kube-systemlabels:k8s-app: kubernetes-dashboardkubernetes.io/cluster-service: "true"addonmanager.kubernetes.io/mode: Reconcile
spec:type: NodePortselector:k8s-app: kubernetes-dashboardports:- port: 80targetPort: 9090[root@k8s-master webui]# /opt/kubernetes/bin/kubectl create -f dashboard-rbac.yaml
[root@k8s-master webui]# /opt/kubernetes/bin/kubectl create -f dashboard-deployment.yaml
[root@k8s-master webui]# /opt/kubernetes/bin/kubectl create -f dashboard-service.yaml
等待数分钟，查看资源状态：
查看名称空间：
[root@k8s-master webui]# /opt/kubernetes/bin/kubectl get all -n kube-system
NAME READY STATUS RESTARTS AGE
pod/kubernetes-dashboard-d9545b947-442ft 1/1 Running 0 21m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes-dashboard NodePort 10.0.0.143 <none> 80:47520/TCP 21m
NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE
deployment.apps/kubernetes-dashboard 1 1 1 1 21m
NAME DESIRED CURRENT READY AGE
replicaset.apps/kubernetes-dashboard-d9545b947 1 1 1 21m

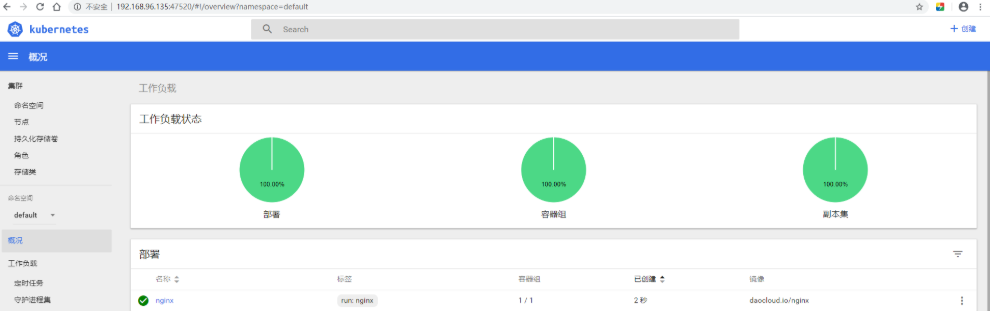

查看访问端口：
查看指定命名空间的服务
[root@k8s-master webui]# /opt/kubernetes/bin/kubectl get svc -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes-dashboard NodePort 10.0.0.143 <none> 80:47520/TCP 22m
测试
==========================================================
运行一个测试示例--在master节点先安装docker服务
创建一个Nginx Web，判断集群是否正常工
# /opt/kubernetes/bin/kubectl run nginx --image=daocloud.io/nginx --replicas=3
# /opt/kubernetes/bin/kubectl expose deployment nginx --port=88 --target-port=80 --type=NodePort
在master上面查看：
查看Pod，Service：
# /opt/kubernetes/bin/kubectl get pods #需要等一会
NAME READY STATUS RESTARTS AGE
nginx-64f497f8fd-fjgt2 1/1 Running 3 28d
nginx-64f497f8fd-gmstq 1/1 Running 3 28d
nginx-64f497f8fd-q6wk9 1/1 Running 3 28d
查看pod详细信息：
# /opt/kubernetes/bin/kubectl describe pod nginx-64f497f8fd-fjgt2
# /opt/kubernetes/bin/kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.0.0.1 <none> 443/TCP 28d
nginx NodePort 10.0.0.175 <none> 88:38696/TCP 28d
访问nodeip加端口
打开浏览器输入：http://192.168.246.164:38696•
恭喜你，集群部署成功！
============================
