102302142罗伟钊第三次作业

作业①:
– 要求：指定一个网站，爬取这个网站中的所有的所有图片，例如中国气象网（http://www.weather.com.cn）。实现单线程和多线程的方式爬取。

1）代码内容：

SingleThreadImageDownloader.py

--------------------------------------------------

点击查看代码

import requests
from bs4 import BeautifulSoup
import os
import time
from urllib.parse import urljoin, urlparseclass SingleThreadImageDownloader:def __init__(self, base_url, download_dir="images"):self.base_url = base_urlself.download_dir = download_dirself.session = requests.Session()self.session.headers.update({'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.124 Safari/537.36'})def create_download_directory(self):"""创建下载目录"""if not os.path.exists(self.download_dir):os.makedirs(self.download_dir)print(f"创建目录: {self.download_dir}")def is_valid_image_url(self, url):"""检查是否为有效的图片URL"""if not url or url.startswith('data:'):return False# 检查文件扩展名valid_extensions = ['.jpg', '.jpeg', '.png', '.gif', '.bmp', '.webp']parsed_url = urlparse(url)path = parsed_url.path.lower()return any(path.endswith(ext) for ext in valid_extensions)def download_image(self, img_url, filename):"""下载单个图片"""try:response = self.session.get(img_url, stream=True, timeout=10)response.raise_for_status()filepath = os.path.join(self.download_dir, filename)with open(filepath, 'wb') as f:for chunk in response.iter_content(chunk_size=8192):if chunk:f.write(chunk)print(f"✓ 下载成功: {img_url} -> {filepath}")return Trueexcept Exception as e:print(f"✗ 下载失败: {img_url} - 错误: {str(e)}")return Falsedef extract_image_urls(self, url):"""从网页中提取图片URL"""try:response = self.session.get(url, timeout=10)response.raise_for_status()response.encoding = 'utf-8'soup = BeautifulSoup(response.text, 'html.parser')img_tags = soup.find_all('img')image_urls = []for img in img_tags:src = img.get('src') or img.get('data-src')if src:# 转换为绝对URLfull_url = urljoin(url, src)if self.is_valid_image_url(full_url):image_urls.append(full_url)return list(set(image_urls))  # 去重except Exception as e:print(f"提取图片URL失败: {str(e)}")return []def run(self):"""运行单线程下载"""print("=" * 60)print("开始单线程图片下载")print("=" * 60)self.create_download_directory()image_urls = self.extract_image_urls(self.base_url)print(f"找到 {len(image_urls)} 张图片")print("-" * 60)success_count = 0start_time = time.time()for i, img_url in enumerate(image_urls, 1):# 生成文件名filename = f"image_{i}_{hash(img_url) % 10000:04d}.jpg"# 下载图片if self.download_image(img_url, filename):success_count += 1end_time = time.time()elapsed_time = end_time - start_timeprint("-" * 60)print(f"单线程下载完成!")print(f"总图片数: {len(image_urls)}")print(f"成功下载: {success_count}")print(f"失败: {len(image_urls) - success_count}")print(f"耗时: {elapsed_time:.2f} 秒")print(f"图片保存位置: {os.path.abspath(self.download_dir)}")return success_count

--------------------------------------------------

MultiThreadImageDownloader.py

--------------------------------------------------

点击查看代码

import threading
from concurrent.futures import ThreadPoolExecutor, as_completed
import queue
from SingleThreadImageDownloader import SingleThreadImageDownloader
import time
import osclass MultiThreadImageDownloader(SingleThreadImageDownloader):def __init__(self, base_url, download_dir="images", max_workers=5):super().__init__(base_url, download_dir)self.max_workers = max_workersself.downloaded_count = 0self.lock = threading.Lock()def download_image_thread(self, args):"""多线程下载图片的包装函数"""img_url, filename = argsresult = self.download_image(img_url, filename)with self.lock:if result:self.downloaded_count += 1return resultdef run(self):"""运行多线程下载"""print("=" * 60)print("开始多线程图片下载")print("=" * 60)self.create_download_directory()image_urls = self.extract_image_urls(self.base_url)print(f"找到 {len(image_urls)} 张图片")print(f"使用 {self.max_workers} 个线程")print("-" * 60)self.downloaded_count = 0start_time = time.time()# 准备任务参数tasks = []for i, img_url in enumerate(image_urls, 1):filename = f"image_{i}_{hash(img_url) % 10000:04d}.jpg"tasks.append((img_url, filename))# 使用线程池执行下载任务with ThreadPoolExecutor(max_workers=self.max_workers) as executor:future_to_task = {executor.submit(self.download_image_thread, task): taskfor task in tasks}# 等待所有任务完成for future in as_completed(future_to_task):try:future.result()except Exception as e:print(f"任务执行异常: {e}")end_time = time.time()elapsed_time = end_time - start_timeprint("-" * 60)print(f"多线程下载完成!")print(f"总图片数: {len(image_urls)}")print(f"成功下载: {self.downloaded_count}")print(f"失败: {len(image_urls) - self.downloaded_count}")print(f"耗时: {elapsed_time:.2f} 秒")print(f"图片保存位置: {os.path.abspath(self.download_dir)}")return self.downloaded_count

--------------------------------------------------

image_downloader.py

--------------------------------------------------

点击查看代码

from SingleThreadImageDownloader import SingleThreadImageDownloader
from MultiThreadImageDownloader import MultiThreadImageDownloaderdef main():# 目标网站base_url = "http://www.weather.com.cn"print("中国气象网图片爬虫")print("目标网站:", base_url)print()# 单线程下载single_downloader = SingleThreadImageDownloader(base_url, "images_single")single_success = single_downloader.run()print("\n" + "=" * 80 + "\n")# 多线程下载multi_downloader = MultiThreadImageDownloader(base_url, "images_multi", max_workers=5)multi_success = multi_downloader.run()print("\n" + "=" * 80)print("下载总结:")print(f"单线程: 成功下载 {single_success} 张图片")print(f"多线程: 成功下载 {multi_success} 张图片")print("=" * 80)if __name__ == "__main__":main()

--------------------------------------------------

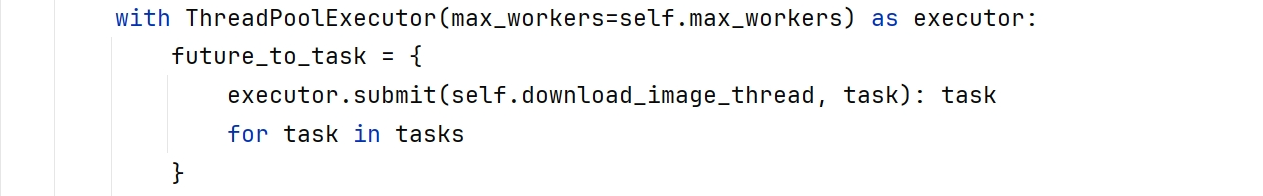

多线程代码使用了线程池执行下载任务，系统不会为每张图片都创建一个新线程，具有复用性。

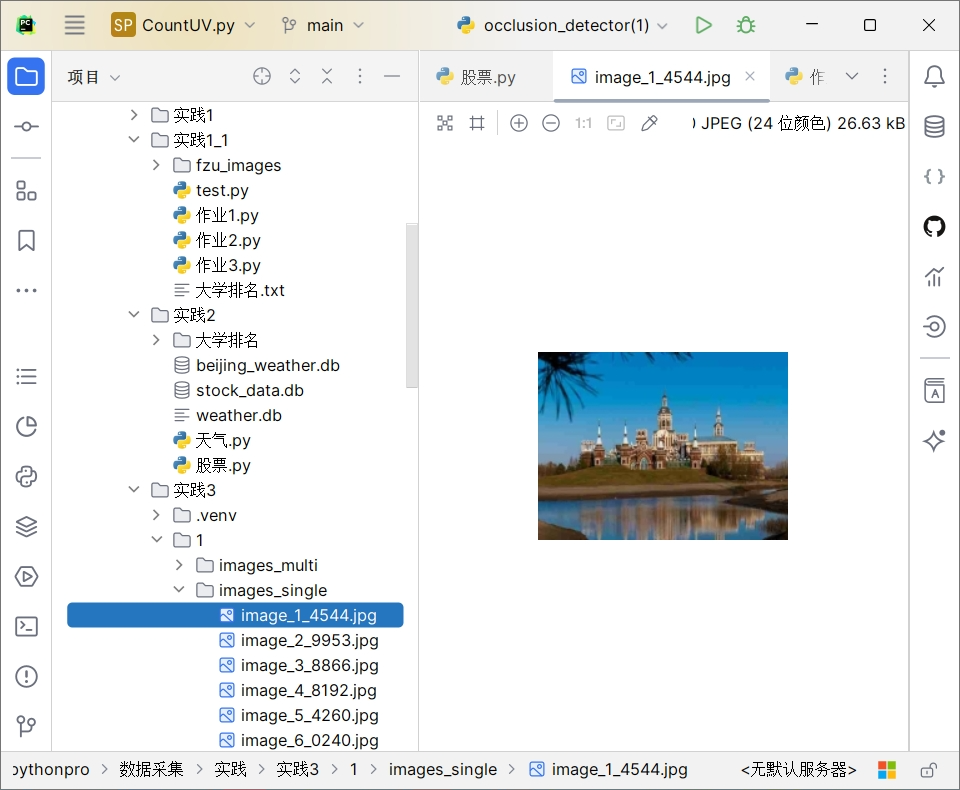

输出结果：

2）心得体会：
在单线程中，图片一定是从第1张下载到最后一张。但在多线程中，完成顺序是不确定的。

作业②:
– 要求：熟练掌握 scrapy中Item, Pipeline 数据的序列化输出方法; Scrapy+Xpath+MySQL数据库存储技术路线爬取股票相关信息。
– 网站：东方财富网：https://www.eastmoney.com/

1）代码内容：

eastmoney.py

--------------------------------------------------

点击查看代码

import scrapy
import json
from stock_scrapy.items import StockItemclass EastmoneySpider(scrapy.Spider):name = 'eastmoney'allowed_domains = ['eastmoney.com']# Base URL without the callback parameter to get pure JSON if possible, # or we handle the jQuery wrapper.# Removing 'cb' usually returns pure JSON.base_url = "https://push2.eastmoney.com/api/qt/clist/get"def start_requests(self):# Crawl first 5 pages as an examplefor page in range(1, 6):params = {'fid': 'f3','po': '1','pz': '20','pn': str(page),'np': '1','fltt': '2','invt': '2','ut': 'fa5fd1943c7b386f172d6893dbfba10b','fs': 'm:0 t:6,m:0 t:80,m:1 t:2,m:1 t:23','fields': 'f12,f13,f14,f1,f2,f4,f3,f152,f5,f6,f7,f15,f18,f16,f17,f10,f8,f9,f23',}# Construct URL with parametersimport urllib.parseurl = f"{self.base_url}?{urllib.parse.urlencode(params)}"yield scrapy.Request(url=url, callback=self.parse)def parse(self, response):try:data = json.loads(response.text)if data.get('data') and data['data'].get('diff'):items = data['data']['diff']# diff can be a list or a dict depending on the page/api version, # usually list for this endpoint but let's handle both as in the reference codeif isinstance(items, dict):items = items.values()for item_data in items:item = StockItem()item['bStockNo'] = item_data.get('f12')item['bStockName'] = item_data.get('f14')item['latest_price'] = item_data.get('f2')# Format percentagef3 = item_data.get('f3')item['change_percent'] = f"{f3}%" if f3 is not None else "-"item['change_amount'] = item_data.get('f4')# Format volume (万/亿) - keeping raw number or formatting?# The prompt image shows "26.13万", "7.6亿".# I will implement a helper to format it similar to the prompt.item['volume'] = self.format_number(item_data.get('f5'))item['turnover'] = self.format_number(item_data.get('f6'), is_currency=True)item['amplitude'] = f"{item_data.get('f7')}%" if item_data.get('f7') is not None else "-"item['high'] = item_data.get('f15')item['low'] = item_data.get('f16')item['open'] = item_data.get('f17')item['prev_close'] = item_data.get('f18')yield itemexcept json.JSONDecodeError:self.logger.error(f"Failed to decode JSON from {response.url}")def format_number(self, num, is_currency=False):if num is None:return "0"try:num = float(num)if is_currency:# Turnover usually in Yuanif num > 100000000:return f"{num/100000000:.2f}亿"elif num > 10000:return f"{num/10000:.2f}万"return f"{num:.2f}"else:# Volume usually in Hands (100 shares) or just number# The API returns volume in 'hands' usually for stocks? # Or raw shares? f5 is usually volume in hands.# Let's assume the API returns raw count or hands.# Based on reference code: f"{x / 10000:.2f}万手"if num > 10000:return f"{num/10000:.2f}万"return str(num)except:return str(num)

--------------------------------------------------

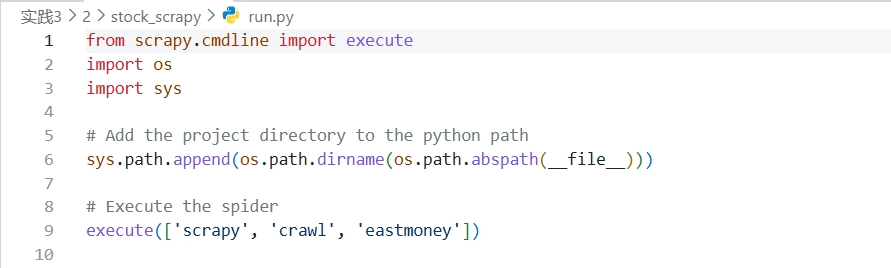

以上为run.py文件，这段代码是一个启动脚本，它的主要作用是通过运行一个 Python 文件来启动 Scrapy 爬虫。

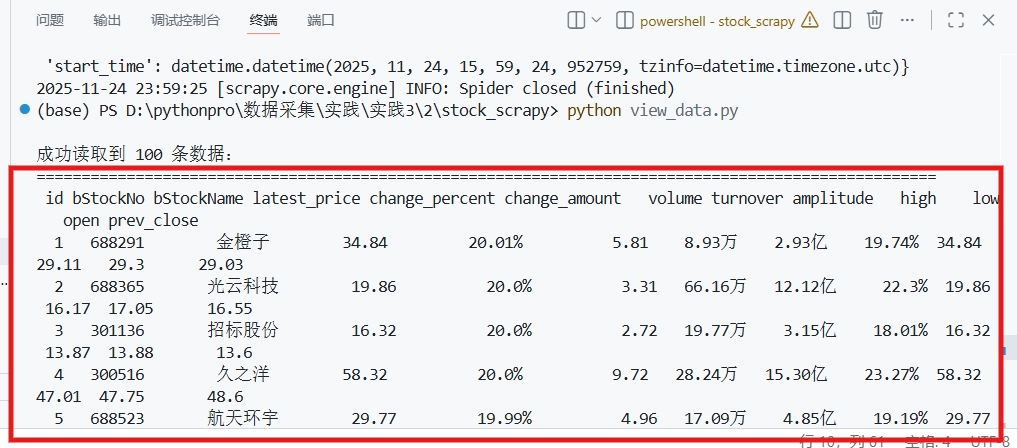

输出结果：

2）心得体会：

在本次针对东方财富网的股票数据采集实践中，我深入理解了 Scrapy 框架的运行机制，并重点掌握了从数据抓取到持久化存储的完整流程。

作业③:

– 要求：：熟练掌握 scrapy中Item, Pipeline 数据的序列化输出方法; 采用 Scrapy 框架、XPath 以及 MySQL 数据库存储技术路线，对外汇网站进行爬取操作。
– 候选网站:招商银行网: https://www.boc.cn/sourcedb/whpj/

1）代码内容：

boc.py

--------------------------------------------------

点击查看代码

import scrapy
from currency_scrapy.items import CurrencyItemclass BocSpider(scrapy.Spider):name = 'boc'allowed_domains = ['boc.cn']start_urls = ['https://www.boc.cn/sourcedb/whpj/']def parse(self, response):# The table is usually inside a div with class 'publish' or just the main table# Let's try to find the table rows.# Structure: <table> <tr> <th>...</th> </tr> <tr> <td>...</td> </tr> ... </table># Using XPath to select rows, skipping the header row (usually the first one)# The table is often the second table in the publish div or just identified by structure.# Let's look for rows that have <td> elements.rows = response.xpath('//div[@class="publish"]//table//tr')# If the class "publish" is not found, try a more generic table searchif not rows:rows = response.xpath('//table//tr')for row in rows:# Check if it's a data row (has td)tds = row.xpath('./td')if len(tds) < 6:continueitem = CurrencyItem()# Extract text and strip whitespace# Column 1: Currency Nameitem['currency'] = tds[0].xpath('string(.)').get().strip()# Column 2: TBP (现汇买入价)item['tbp'] = tds[1].xpath('string(.)').get().strip()# Column 3: CBP (现钞买入价)item['cbp'] = tds[2].xpath('string(.)').get().strip()# Column 4: TSP (现汇卖出价)item['tsp'] = tds[3].xpath('string(.)').get().strip()# Column 5: CSP (现钞卖出价)item['csp'] = tds[4].xpath('string(.)').get().strip()# Column 7 or 8: Time# Usually: Currency, TBP, CBP, TSP, CSP, Middle, PubDate, PubTime# Let's check the number of columns.# If 8 columns: 0=Name, 1=TBP, 2=CBP, 3=TSP, 4=CSP, 5=Middle, 6=Date, 7=Timeif len(tds) >= 8:pub_time = tds[7].xpath('string(.)').get().strip()# Sometimes we might want date too, but the requirement says "Time" and shows "11:27:14"item['time'] = pub_timeelif len(tds) >= 7:# Maybe combined or different structureitem['time'] = tds[-1].xpath('string(.)').get().strip()else:item['time'] = ""# Filter out empty rows or header rows that might have slipped throughif item['currency'] and item['currency'] != "货币名称":yield item

--------------------------------------------------

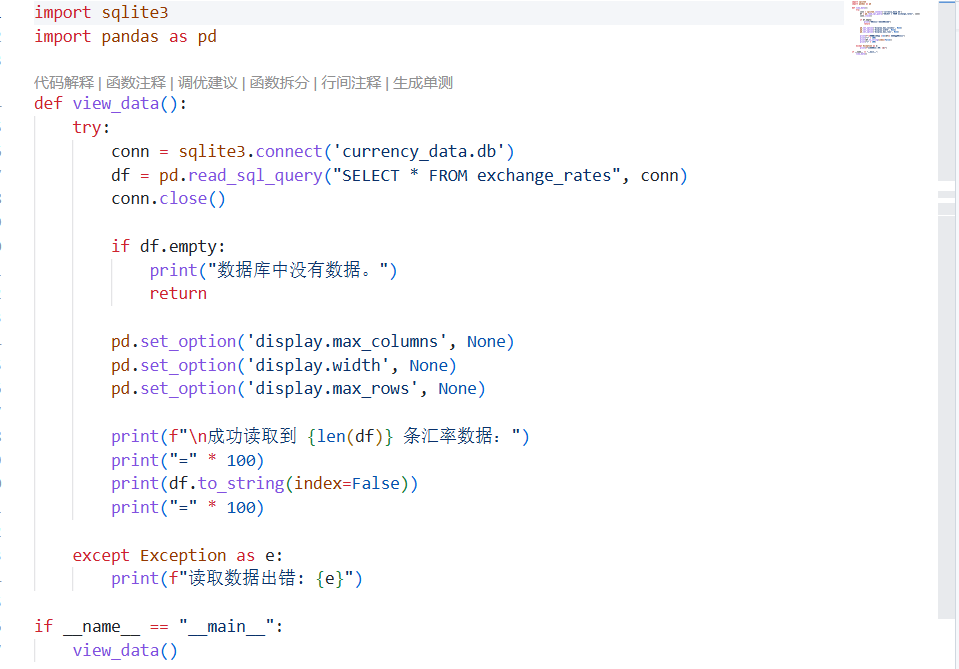

以上为可视化的代码，对数据库的内容进行输出

输出结果：

2）心得体会：

在本次针对中国银行外汇牌价数据的采集实践中，我深刻体会到了 Scrapy 框架结合 XPath 解析的强大之处。通过使用 XPath 选择器，我能够精准地定位到表格中的每一行数据，并利用相对路径提取出货币名称、现汇买入价、现钞买入价等具体字段，这让我意识到在处理非结构化网页数据时，掌握 XPath 语法是多么重要且高效。

代码路径：https://gitee.com/sui123feng/20251015/tree/master/102302142罗伟钊_实践3
