tomcat(15)Digester库

【0】README

0.1）本文部分文字描述转自 “how tomcat works”，旨在学习 “tomcat(15)Digester库” 的基础知识；

2）problem+solution：

2.1）problem：如下面的代码，Bootstrap类实例化连接器，servlet容器，Wrapper容器和其它组件，如设置连接器的关联顶层容器，通过set方法将它们联系起来；如监听器组件通过addLifecycleListener来设置等等。这种配置应用程序的方法有一个明显的缺点：即所有的配置都必须硬编码。调整组件配置或属性值都必须要重新编译Bootstrap类。

2.2）solution：Tomcat使用了一种更加优雅的配置方式，即使用一个名为server.xml 的XML 文档来对应用程序进行配置。server.xml文件中的每个元素都会转换为一个java 对象，元素的属性会用于设置java对象的属性。这样，就可以通过简单地编辑 server.xml文件来修改tomcat的配置了；

看个荔枝）如server.xml文件中的 Context元素表示一个Context实例：<context/>；若要为 Context实例设置path属性和 docBase属性，使用这样的配置：

<context docBase="myApp" path="/myApp" />

Attention）

A1）tomcat使用了开源库Digester来将XML 文档中的元素转换成 java 对象；（干货——开源库Digester的作用）

A2）用来配置web 应用程序的XML 文件的名称是 web.xml，该文件位于web 应用程序的WEB-INF 目录下；（干货——引入了大家熟悉的web.xml）

public final class Bootstrap1 {public static void main(String[] args) {//invoke: http://localhost:8080/app1/Primitive or http://localhost:8080/app1/ModernSystem.setProperty("catalina.base", System.getProperty("user.dir"));Connector connector = new HttpConnector();Wrapper wrapper1 = new StandardWrapper();wrapper1.setName("Primitive");//wrapper1.setServletClass("servlet.PrimitiveServlet");wrapper1.setServletClass("PrimitiveServlet");Wrapper wrapper2 = new StandardWrapper();wrapper2.setName("Modern");//wrapper2.setServletClass("servlet.ModernServlet");wrapper2.setServletClass("ModernServlet");Context context = new StandardContext();// StandardContext's start method adds a default mappercontext.setPath("/app1");context.setDocBase("app1");context.addChild(wrapper1);context.addChild(wrapper2);LifecycleListener listener = new SimpleContextConfig();((Lifecycle) context).addLifecycleListener(listener);Host host = new StandardHost();host.addChild(context);host.setName("localhost");host.setAppBase("webapps");Loader loader = new WebappLoader();context.setLoader(loader);// context.addServletMapping(pattern, name);context.addServletMapping("/Primitive", "Primitive");context.addServletMapping("/Modern", "Modern");connector.setContainer(host);try {connector.initialize();((Lifecycle) connector).start();((Lifecycle) host).start(); // 与以往的Bootstrap.java不同的是，这里是host.start() 而不是 context.start()// make the application wait until we press a key.System.in.read();((Lifecycle) host).stop();}catch (Exception e) {e.printStackTrace();}}
}

【1】Digester库

1）intro：Digester是 Apache 下Jakarta项目下的子项目Commons项目下的一个开源项目；

2）Digester API包含3个包：三者都被打包到 commons-digester.jar 文件中；（package list）

package1）org.apache.commons.digester：该包提供了基于规则的，可处理任意XML 文档的类；

package2）org.apache.commons.digester.rss：该包包含一些可以用来解析与很多新闻源使用的RSS（Rich Site Summary，富站点摘要）格式兼容的XML文档的例子；

package3）org.apache.commons.digester.xmlrules：该包为 Digester库提供了一些基于XML规则的定义；

【1.1】Digester类

1）intro：Digester类可用于解析XML 文档；对于XMl 文档中的每个元素，Digester对象都会检查它是否要做事先预定义的事件。在调用Digester.parse()方法之前，需要先定义好Digester对象执行哪些动作；

2）如何定义在Digester对象遇到某个XMl 元素时它应该执行什么动作呢？—— 程序员先定义好模式，然后将每个模式与一条或多条规则相关联。XML 文档中根元素的模式与元素的名字相同。（干货——引入了模式，且XML 文档中根元素的模式与元素的名字相同）

3）看个荔枝：考虑下面的 XML文档：(example.xml)

<?xml version=1.0" encoding="ISO-8859-1">
<employee firstName="pacoson" lastName="xiao"><office><address streetName="Wellington Street" streetNumber="110" /></office>
</employee>

对上述代码的分析（Analysis）：

A1）该XML文档中的根元素是 employee，employee元素有一个模式，名为 employee；

A2）office元素是 employee元素的子元素，子元素的模式是由该元素的父元素的模式再加上 “/” 符号，以及该元素名称拼接而成的，所以office元素的模式是 employee/office；（干货——我们这就了解了如何从XML 文档中推导出元素的模式）

4）下面讨论一下规则（rules）：（干货——规则的定义，非常重要）

rule1）一条规则指明了当Digester 对象遇到了某个特殊的模式时要执行的一个或多个动作；规则是 org.apache.commons.digester.Rule 类；Digester类可以包含0个或多个对象；

rule2）Rule类有begin()方法和 end() 方法。在开始标签调用start()方法，结束标签调用 end() 方法；

5）自定义自己的规则：包括创建对象和设置属性值等的规则；（干货——自定义规则包括创建对象+设置属性+调用方法+创建对象间的关系+验证 XML 文档）

5.1）创建对象：若想要Digester对象在遇到某个特殊字符时创建对象，则需要调用其 addObjectCreate()方法，该方法有4个重载版本；（干货——引入addObjectCreate()方法）

public void addObjectCreate(String pattern, String className) {addRule(pattern,  new ObjectCreateRule(className));
}
public void addObjectCreate(String pattern, Class clazz) {addRule(pattern, new ObjectCreateRule(clazz));
}
public void addObjectCreate(String pattern, String className,  String attributeName) { addRule(pattern,  new ObjectCreateRule(className, attributeName));
}
public void addObjectCreate(String pattern,  String attributeName, Class clazz) { addRule(pattern,  new ObjectCreateRule(attributeName, clazz));
}

对上述代码的分析（Analysis）：

A1）需要传入一个模式和一个Class对象或类名来调用该方法；

看个荔枝） 如我们想让Digester对象在遇到模式employee 时，创建一个 mydiy.Employee 对象，则使用下面的代码来调用 addObjectCreate()方法：

digester.addObjectCreate("employee", "mydiy.Employee.class")；
或者
digester.addObjectCreate("employee", "mydiy.Employee")；
A2）addObjecdtCreate()方法的最后两个重载版本允许在xml 文档中定义类的名字，而无须将其作为参数传入，这使得类名可以在运行时决定；在上述最后两个重载方法中，参数 attributeName参数指明了 XML 元素的属性的名字，该属性包含了将要实例化的类的名字；

看个荔枝）

step1）添加创建对象的一条规则：digester.addObjectCreate("employee",null,"className")；（属性名是 className）；

step2）传入XML 元素中的类名： <employee firstName="pacoson" lastName="xiao" className="mydiy.employee">；如果employee元素包含 className属性，那么该属性指定的值会用来作为待实例化的类的名字，如果没有包含 className属性，则会使用默认的类名；（干货——显然意思是说Emplyee类需要依赖名为className的类对象）

Attention）addObjectCreate()方法创建的对象会被压入到一个内部栈中；

5.2）设置属性：addSetProperties()方法，该方法可以使用Digester对象为创建的对象设置属性。该方法的重载版本有：（干货——引入addSetProperties()方法）

 public void addSetProperties(String pattern) {addRule(pattern,  new SetPropertiesRule()); }public void addSetProperties( String pattern, String attributeName, String propertyName) { addRule(pattern, new SetPropertiesRule(attributeName, propertyName)); }public void addSetProperties(String pattern, String [] attributeNames, String [] propertyNames) { addRule(pattern,  new SetPropertiesRule(attributeNames, propertyNames)); }

看个荔枝）考虑下面的代码：

digester.addObjectCreate("employee", "mydiy.Employee");
digester.addSetProperties("employee");

对以上代码的分析（Analysis）：

A1）上面的Digester有两个Rule 对象，分别用来创建对象和设置属性，他们都是通过employee模式触发的。而Rule对象按照其添加到Digester实例中的顺序逐个执行。

A2）对于下面XMl 文档中的employee 元素（该元素匹配 employee模式）： <employee firstName="pacoson", lastName="Xiao">；依据Digester的第一条rule，会创建 diy.Employee类的一个实例，依据第二条Rule，调用已经实例化的Employee.setFirstName() and Employee.setLastName()，分别传入pacoson 和 Xiao 来设置属性；

5.3）调用方法：Digetser类允许通过添加一条Rule，使Digester 在遇到与该规则相关联的模式时调用内部栈最顶端对象的某个方法。这需要用到 addCallMethod()方法，重载版本如下：（干货——引入addCallMethod()方法）

public void addCallMethod(String pattern, String methodName) {addRule( pattern,  new CallMethodRule(methodName)); }public void addCallMethod(String pattern, String methodName, int paramCount) { addRule(pattern, new CallMethodRule(methodName, paramCount)); }public void addCallMethod(String pattern, String methodName, int paramCount, String paramTypes[]) { addRule(pattern, new CallMethodRule( methodName,paramCount,paramTypes));}public void addCallMethod(String pattern, String methodName,int paramCount, Class paramTypes[]) {addRule(pattern,new CallMethodRule(methodName,paramCount,paramTypes));}

5.4）创建对象之间的关系（干货——Digester实例有一个内部栈，用于临时存储创建的对象）（干货——引入addSetNext()方法）

5.4.1）addSetNext()方法：若栈中有两个对象，那么该方法会调用第1个对象的指定方法并将第2个对象作为参数传入该方法来创建第1个对象和第2个对象的关系；
public void addSetNext(String pattern, String methodName) {addRule(pattern,new SetNextRule(methodName));}public void addSetNext(String pattern, String methodName,String paramType) {addRule(pattern,new SetNextRule(methodName, paramType));}
对以上代码的分析（Analysis）：参数pattern 指明了触发该规则的具体模式，参数methodName 是将要调用的第1个对象的方法的名称。模式是如下格式：firstObject/secondObject；

看个荔枝）如何创建对象间的关系：

step1）创建两个对象；
digester.addObjectCreate("employee", "mydiy.Employee");
digester.addObjectCreate("employee/office", "mydiy.Office");
step2）创建对象间的关系：需要另外定义一条规则，使用 addSetNext()方法来建立关系（调用addOffice()方法建立关系）：
digetster.addSetNext("employee/office", 'addOffice')；

5.5）验证XML文档：Digester.validating属性指明了是否要对 XML 文档进行有效性验证。默认case下，其为false；setValidating()方法可以设置其值；（干货——引入setValidating()方法）

【1.2】Digester库荔枝1（如何使用 Digester库动态地创建对象，并设置相应的属性）

1）源代码

public class Test01 {public static void main(String[] args) {String path = System.getProperty("user.dir") + File.separator + "src";File file = new File(path, "employee1.xml");Digester digester = new Digester();// add rules （为模式 employee 添加3条规则）digester.addObjectCreate("employee","com.tomcat.chapter15.digestertest.Employee");digester.addSetProperties("employee");digester.addCallMethod("employee", "printName");try {Employee employee = (Employee) digester.parse(file);System.out.println("First name : " + employee.getFirstName());System.out.println("Last name : " + employee.getLastName());} catch (Exception e) {e.printStackTrace();}}
}

<?xml version="1.0" encoding="ISO-8859-1"?>
<employee firstName="Brian" lastName="May">
</employee>

2）console info

Creating Employee
Setting firstName : Brian
Setting lastName : May
My name is Brian May
First name : Brian
Last name : May

3）info analysis：当调用parse()方法时，它会打开指定的xml 文档，开始解析它；（干货——当调用parse()方法时，它会打开指定的xml 文档，开始解析它，只需要parse方法就可以创建根元素（模式）的相应对象和其关联对象）

step1）Digester类查看 employee 元素的开始标签，这会触发与 employee模式关联的3条规则，按照其被添加到 Digester 对象中的顺序逐个执行；

step2）第一条规则用于创建Employee对象，调用构造函数，打印Creating Employee；

step3）第二条规则设置 Employee对象的属性，在employee 元素中包含两个属性：分别是 firstName 和 lastName，这会调用调用的set方法，打印 Setting firstName : Brian Setting lastName : May；

step4）第三条规则调用 Employee.printName（）方法，打印M y name is Brian May；

【1.3】Digester库荔枝2（如何创建两个对象，并建立他们的关系）

1）源代码

public class Test02 {public static void main(String[] args) {String path = System.getProperty("user.dir") + File.separator + "src";File file = new File(path, "employee2.xml");Digester digester = new Digester();// add rules，添加规则(key)digester.addObjectCreate("employee","com.tomcat.chapter15.digestertest.Employee");digester.addSetProperties("employee");digester.addObjectCreate("employee/office","com.tomcat.chapter15.digestertest.Office");digester.addSetProperties("employee/office");digester.addSetNext("employee/office", "addOffice");digester.addObjectCreate("employee/office/address","com.tomcat.chapter15.digestertest.Address");digester.addSetProperties("employee/office/address");digester.addSetNext("employee/office/address", "setAddress");try {Employee employee = (Employee) digester.parse(file);ArrayList offices = employee.getOffices();Iterator iterator = offices.iterator();System.out.println("-------------------------------------------------");while (iterator.hasNext()) {Office office = (Office) iterator.next();Address address = office.getAddress();System.out.println(office.getDescription());System.out.println("Address : " + address.getStreetNumber()+ " " + address.getStreetName());System.out.println("--------------------------------");}} catch (Exception e) {e.printStackTrace();}}
}

<?xml version="1.0" encoding="ISO-8859-1"?>
<employee firstName="Freddie" lastName="Mercury"><office description="Headquarters"><address streetName="Wellington Avenue" streetNumber="223"/></office><office description="Client site"><address streetName="Downing Street" streetNumber="10"/></office>
</employee>

2）console info

Creating Employee
Setting firstName : Freddie
Setting lastName : Mercury
..Creating Office
..Setting office description : Headquarters
....Creating Address
....Setting streetName : Wellington Avenue
....Setting streetNumber : 223
..Setting office address : ....223 Wellington Avenue
Adding Office to this employee
..Creating Office
..Setting office description : Client site
....Creating Address
....Setting streetName : Downing Street
....Setting streetNumber : 10
..Setting office address : ....10 Downing Street
Adding Office to this employee
-------------------------------------------------
Headquarters
Address : 223 Wellington Avenue
--------------------------------
Client site
Address : 10 Downing Street
--------------------------------

Attention）本文不对荔枝2的实例程序进行分析了，结合荔枝1的分析，理解这个不难；

【1.4】org.apache.commons.digester.Rule类（最重要的方法start() + end()）
1）intro to begin() ：当Digester实例遇到某个XML 元素的开始标签时，会调用它所包含的匹配Rule 对象的begin()方法：

public void begin(Attributes attributes) throws Exception {;  // The default implementation does nothing}  public void begin(String namespace, String name, Attributes attributes)throws Exception {begin(attributes);}

2）intro to end()：当Digester实例遇到某个XML 元素的结束标签时，会调用它所包含的匹配Rule 对象的end()方法：

public void end() throws Exception {;  // The default implementation does nothing}  public void end(String namespace, String name)throws Exception {end();}

3）Digester对象是如何完成这些工作的？当调用Digester.addObjectCreate()方法，addCallMethod()方法,addSetNext()方法或其他方法时，都会间接地调用 Digester.addRule()方法；

 public void addRule(String pattern, Rule rule) {rule.setDigester(this);getRules().add(pattern, rule);}

4）再次review Digester.addObjectCreate()方法的重载version：

public void addObjectCreate(String pattern, String className) {addRule(pattern,  new ObjectCreateRule(className));
}
public void addObjectCreate(String pattern, Class clazz) {addRule(pattern, new ObjectCreateRule(clazz));
}
public void addObjectCreate(String pattern, String className,  String attributeName) { addRule(pattern,  new ObjectCreateRule(className, attributeName));
}
public void addObjectCreate(String pattern,  String attributeName, Class clazz) { addRule(pattern,  new ObjectCreateRule(attributeName, clazz));
}

对以上代码的分析（Analysis）：

A1）这4个重载方法都调用了addRule（）方法，ObjectCreateRule类是 Rule 类的子类，该类的实例都作为 addRule()方法的参数；

A2）ObjectCreateRule.start()方法和 ObjectCreateRule.end()方法的实现如下：
 public void begin(Attributes attributes) throws Exception { //org.apache.commons.digester.ObjectCreateRule.begin().// Identify the name of the class to instantiateString realClassName = className;if (attributeName != null) {String value = attributes.getValue(attributeName);if (value != null) {realClassName = value;}}if (digester.log.isDebugEnabled()) {digester.log.debug("[ObjectCreateRule]{" + digester.match +"}New " + realClassName);}// Instantiate the new object and push it on the context stackClass clazz = digester.getClassLoader().loadClass(realClassName);Object instance = clazz.newInstance();digester.push(instance); //highlight line.}public void end() throws Exception {Object top = digester.pop(); //highlight line.if (digester.log.isDebugEnabled()) {digester.log.debug("[ObjectCreateRule]{" + digester.match +"} Pop " + top.getClass().getName());}}
对以上代码的分析（Analysis）：begin()方法的最后三行会创建Digester对象的一个实例，并将其压入到 Digester对象的内部栈中。end()方法会将内部站的栈顶元素弹出；

【1.5】Digester库荔枝3：使用RuleSet（org.apache.commons.digester.RuleSet）

1）要向Digester实例添加 Rule对象，还可以调用其 addRuleSet()方法；

2）Rule对象集合是 org.apache.commons.digester.RuleSet接口的实例，该接口定义了两个方法，分别是 addRuleInstance()方法和 getNamespaceURI()方法；

2.1）addRuleInstance方法：将在当前RuleSet 中的Rule对象的集合作为该方法的参数添加到 Digester实例中；

2.2）getNamespaceURI方法：返回将要应用在 RuleSet中所有Rule 对象的命名空间的URI；

3）RuleSetBase implements RuleSet。RuleSetBase 是一个抽象类，提供了getNamespaceURI的实现，你只需要提供addRuleInstances（）方法的实现就可以了；

public abstract class RuleSetBase implements RuleSet {   protected String namespaceURI = null;    public String getNamespaceURI() {return (this.namespaceURI);}    public abstract void addRuleInstances(Digester digester);
}

4）测试用例

public class Test03 {public static void main(String[] args) {String path = System.getProperty("user.dir") + File.separator + "src";File file = new File(path, "employee2.xml");Digester digester = new Digester();digester.addRuleSet(new EmployeeRuleSet());try {Employee employee = (Employee) digester.parse(file);ArrayList offices = employee.getOffices();Iterator iterator = offices.iterator();System.out.println("-------------------------------------------------");while (iterator.hasNext()) {Office office = (Office) iterator.next();Address address = office.getAddress();System.out.println(office.getDescription());System.out.println("Address : " + address.getStreetNumber()+ " " + address.getStreetName());System.out.println("--------------------------------");}} catch (Exception e) {e.printStackTrace();}}
}

public class EmployeeRuleSet extends RuleSetBase {public void addRuleInstances(Digester digester) {// add rulesdigester.addObjectCreate("employee","com.tomcat.chapter15.digestertest.Employee");digester.addSetProperties("employee");digester.addObjectCreate("employee/office","com.tomcat.chapter15.digestertest.Office");digester.addSetProperties("employee/office");digester.addSetNext("employee/office", "addOffice");digester.addObjectCreate("employee/office/address","com.tomcat.chapter15.digestertest.Address");digester.addSetProperties("employee/office/address");digester.addSetNext("employee/office/address", "setAddress");}
}

Attention）参考前面做的分析，应该不难；

【2】ContextConfig类

1）在前面章节中，我们使用了 SimpleContextConfig 作为 StandardContext的监听器：其唯一用途是设置configure变量，这样StandardContext.start()方法才能继续执行；

public class SimpleContextConfig implements LifecycleListener {public void lifecycleEvent(LifecycleEvent event) {if (Lifecycle.START_EVENT.equals(event.getType())) {Context context = (Context) event.getLifecycle();context.setConfigured(true);}}
}

2）而tomcat 的标准监听器：是 org.apache.catalina.startup.ContextConfig类的实例；（干货——Tomcat标准监听器）

3）ContextConfig会执行很多对 StandardContext实例来说必不可少的任务。如，与某个 StandardContext实例关联的 ContextConfig 实例会安装一个验证器阀到 StandardContext的管道中。它还会添加一个许可阀（org.apache.catalina.valves.CertificateValve）到管道对象中；

4）更重要的是：ContextConfig类的实例还要读取和解析默认的 web.xml 文件和应用程序自定义的web.xml文件，并将xml 元素转换为 java 对象；（干货——引入了默认的和自定义的web.xml文件）

4.1）默认的web.xml：位于 CATALINA_HOME/conf 目录中，其中定义并映射了很多默认的 servlet，配置了很多 MIME类型文件的映射，定义了默认的session超时时间，以及定义了欢迎文件的列表；

4.2）应用程序的web.xml文件：位于 WEB-INF 目录中；

5）以上两个文件都不是必须的，即使这两个文件没有找到， ContextConfig 实例仍然会继续执行；

6）ContextConfig实例：会为每个 servlet元素创建一个 StandardWrapper类；（干货——ContextConfig的作用）

7）在BootStrap程序中，需要实例化一个 ContextConfig类，并调用 addLifecycleListener方法；

LifecycleListener listener = new ContextConfig();((Lifecycle) context).addLifecycleListener(listener);

7.1)在启动 StandardContext实例时，会触发以下事件（events）：

event1）BEFORE_START_EVENT;

event2）START_EVENT;

event3）AFTER_START_EVENT;

7.2）当程序停止时，会触发以下事件：

event1）BEFORE_STOP_EVENT;

event2）STOP_EVENT;

event3）AFTER_STOP_EVENT;

8）ContextConfig 实例会对两种事情做出相应：分别是START_EVENT and STOP_EVENT。每次 StandardContext实例触发事件时，会调用 ContextConfig.lifecycleEvent()方法；

public void lifecycleEvent(LifecycleEvent event) { //org.apache.catalina.startup.ContextConfig.lifecycleEvent().// Identify the context we are associated withtry {context = (Context) event.getLifecycle();if (context instanceof StandardContext) {int contextDebug = ((StandardContext) context).getDebug();if (contextDebug > this.debug)this.debug = contextDebug;}} catch (ClassCastException e) {log(sm.getString("contextConfig.cce", event.getLifecycle()), e);return;}// Process the event that has occurredif (event.getType().equals(Lifecycle.START_EVENT))start(); //highlight line.else if (event.getType().equals(Lifecycle.STOP_EVENT))stop(); //highlight line.}

8.1）start（）方法

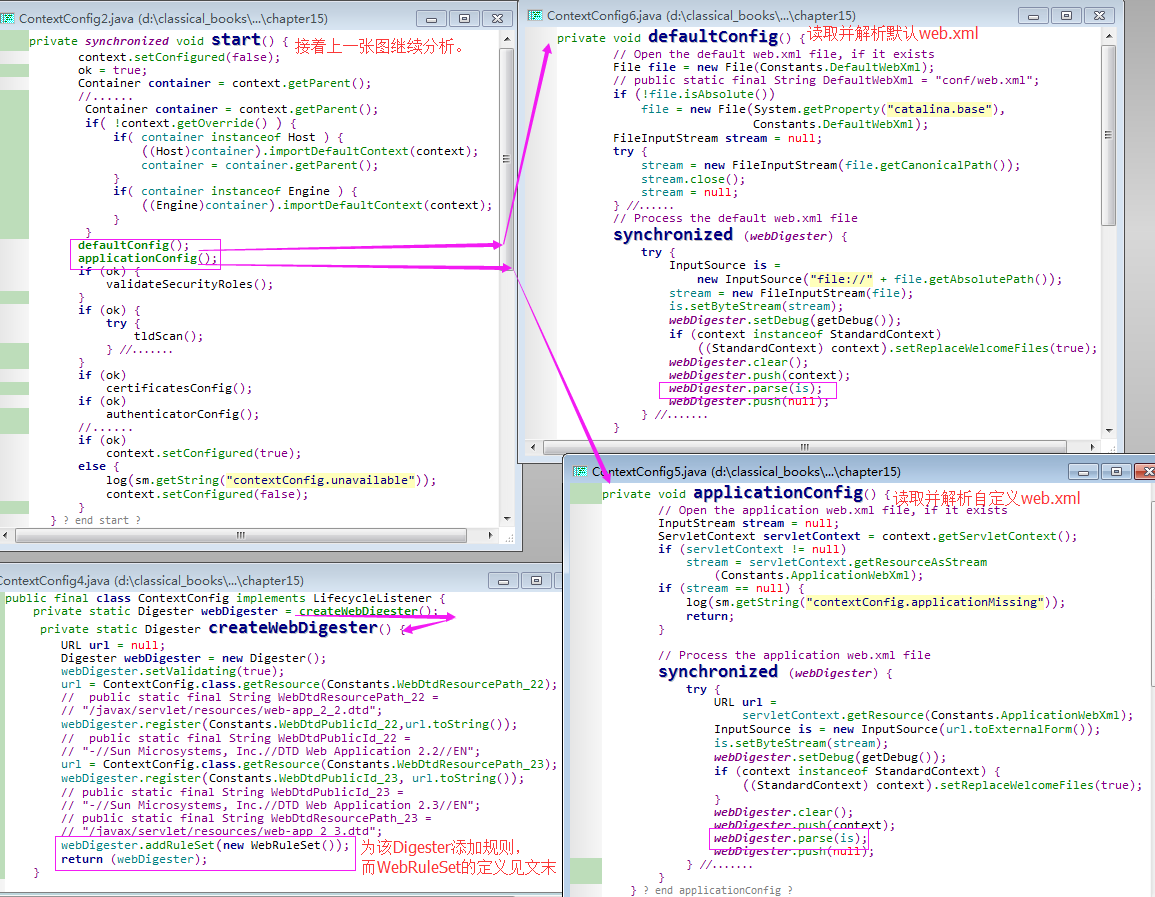

（干货——start方法会调用 defaultConfig() and applicationConfig()方法，两者分别用于读取和解析默认的web.xml 和应用程序自定义的 web.xml）

private synchronized void start() {  //org.apache.catalina.startup.ContextConfig.start().if (debug > 0)log(sm.getString("contextConfig.start"));context.setConfigured(false);ok = true;// Set properties based on DefaultContextContainer container = context.getParent();if( !context.getOverride() ) {if( container instanceof Host ) {((Host)container).importDefaultContext(context);container = container.getParent();}if( container instanceof Engine ) {((Engine)container).importDefaultContext(context);}}// Process the default and application web.xml filesdefaultConfig(); // highlight line.applicationConfig(); // highlight line.if (ok) {validateSecurityRoles();}// Scan tag library descriptor files for additional listener classesif (ok) {try {tldScan();} catch (Exception e) {log(e.getMessage(), e);ok = false;}}// Configure a certificates exposer valve, if requiredif (ok)certificatesConfig();// Configure an authenticator if we need oneif (ok)authenticatorConfig();// Dump the contents of this pipeline if requestedif ((debug >= 1) && (context instanceof ContainerBase)) {log("Pipline Configuration:");Pipeline pipeline = ((ContainerBase) context).getPipeline();Valve valves[] = null;if (pipeline != null)valves = pipeline.getValves();if (valves != null) {for (int i = 0; i < valves.length; i++) {log("  " + valves[i].getInfo());}}log("======================");}// Make our application available if no problems were encounteredif (ok)context.setConfigured(true);else {log(sm.getString("contextConfig.unavailable"));context.setConfigured(false);}}

【2.1】 defaultConfig()方法

1）intro： 该方法负责读取并解析位于 CATALINA_HOME/conf目录下的默认web.xml 文件；

 private void defaultConfig() {  //org.apache.catalina.startup.ContextConfig.defaultConfig().// Open the default web.xml file, if it existsFile file = new File(Constants.DefaultWebXml);// public static final String DefaultWebXml = "conf/web.xml";if (!file.isAbsolute())file = new File(System.getProperty("catalina.base"),Constants.DefaultWebXml);FileInputStream stream = null;try {stream = new FileInputStream(file.getCanonicalPath());stream.close();stream = null;} catch (FileNotFoundException e) {log(sm.getString("contextConfig.defaultMissing"));return;} catch (IOException e) {log(sm.getString("contextConfig.defaultMissing"), e);return;}// Process the default web.xml file （锁定webDigester变量，并解析默认的 web.xml 文件）synchronized (webDigester) {try {InputSource is =new InputSource("file://" + file.getAbsolutePath());stream = new FileInputStream(file);is.setByteStream(stream);webDigester.setDebug(getDebug());if (context instanceof StandardContext)((StandardContext) context).setReplaceWelcomeFiles(true);webDigester.clear();webDigester.push(context);webDigester.parse(is);webDigester.push(null); // 解析结束.} catch (SAXParseException e) {log(sm.getString("contextConfig.defaultParse"), e);log(sm.getString("contextConfig.defaultPosition","" + e.getLineNumber(),"" + e.getColumnNumber()));ok = false;} catch (Exception e) {log(sm.getString("contextConfig.defaultParse"), e);ok = false;} finally {try {if (stream != null) {stream.close();}} catch (IOException e) {log(sm.getString("contextConfig.defaultClose"), e);}}}}

【2.2】applicationConfig()方法

1）intro：该方法处理的是应用程序自定义的web.xml，位于 WEB-INF 目录中；

private void applicationConfig() {  //org.apache.catalina.startup.ContextConfig.applicationConfig().// Open the application web.xml file, if it existsInputStream stream = null;ServletContext servletContext = context.getServletContext();if (servletContext != null)stream = servletContext.getResourceAsStream(Constants.ApplicationWebXml); //  public static final String ApplicationWebXml = "/WEB-INF/web.xml";if (stream == null) {log(sm.getString("contextConfig.applicationMissing"));return;}// Process the application web.xml filesynchronized (webDigester) {try {URL url =servletContext.getResource(Constants.ApplicationWebXml);InputSource is = new InputSource(url.toExternalForm());is.setByteStream(stream);webDigester.setDebug(getDebug());if (context instanceof StandardContext) {((StandardContext) context).setReplaceWelcomeFiles(true);}webDigester.clear();webDigester.push(context);webDigester.parse(is);webDigester.push(null);} catch (SAXParseException e) {log(sm.getString("contextConfig.applicationParse"), e);log(sm.getString("contextConfig.applicationPosition","" + e.getLineNumber(),"" + e.getColumnNumber()));ok = false;} catch (Exception e) {log(sm.getString("contextConfig.applicationParse"), e);ok = false;} finally {try {if (stream != null) {stream.close();}} catch (IOException e) {log(sm.getString("contextConfig.applicationClose"), e);}}}}

【2.3】创建 Web Digester

1）在ContextConfig 类中，使用变量 webDigester来引用一个 Digester类型的对象；

private static Digester webDigester = createWebDigester();private static Digester createWebDigester() {  //org.apache.catalina.startup.ContextConfig.createWebDigester().URL url = null;Digester webDigester = new Digester();webDigester.setValidating(true);url = ContextConfig.class.getResource(Constants.WebDtdResourcePath_22);webDigester.register(Constants.WebDtdPublicId_22,url.toString());url = ContextConfig.class.getResource(Constants.WebDtdResourcePath_23);webDigester.register(Constants.WebDtdPublicId_23,url.toString());webDigester.addRuleSet(new WebRuleSet()); // highlight line.return (webDigester);}

2）这个Digester对象用来解析默认的 web.xml 文件和应用程序自定义的 web.xml 文件。在调用了 createWebDigester() 方法时会添加用来处理 web.xml 文件的规则；（干货——在调用了 createWebDigester() 方法时会添加用来处理 web.xml 文件的规则，什么是规则，你懂的，前面已经详细介绍了Rule）

Attention）

A1）createWebDigester()方法调用了变量webDigester的 addRuleSet()方法，传入了一个 org.apache.catalina.startup.WebRuleSet 类型的对象作为参数；

A2）WebRuleSet 类是 org.apache.commons.digester.RuleSetBase的子类；
public class WebRuleSet extends RuleSetBase { //org.apache.catalina.startup.WebRuleSet
A3）org.apache.catalina.startup.WebRuleSet的定义代码见文末，特别要注意其addRuleInstances()方法，其添加了很多规则集合；（干货——addRuleInstances()方法添加了很多规则集合）

【3】应用程序（本测试用例重在说明如何使用ContextConfig实例作为一个监听器来配置StandardContext对象）

Attention）通过以下实例，你会发现，这与之前的Bootstrap 测试用例大有不同，以前是显式地创建StandardWrapper（创建具体的servlet实例），而下面的测试用例采用Digester从 xml 中读取 servlet的配置信息创建servlet实例，这就是为什么本文之前讲那么多 Digester库的原因；

1）测试用例

public final class Bootstrap {// invoke: http://localhost:8080/app1/Modern or // http://localhost:8080/app2/Primitive// note that we don't instantiate a Wrapper here,// ContextConfig reads the WEB-INF/classes dir and loads all servlets.public static void main(String[] args) {System.setProperty("catalina.base", System.getProperty("user.dir"));Connector connector = new HttpConnector();Context context = new StandardContext();// StandardContext's start method adds a default mappercontext.setPath("/app1");context.setDocBase("app1");LifecycleListener listener = new ContextConfig();((Lifecycle) context).addLifecycleListener(listener);Host host = new StandardHost();host.addChild(context);host.setName("localhost");host.setAppBase("webapps");Loader loader = new WebappLoader();context.setLoader(loader);connector.setContainer(host);try {connector.initialize();((Lifecycle) connector).start();((Lifecycle) host).start();Container[] c = context.findChildren();int length = c.length;for (int i=0; i<length; i++) {Container child = c[i];System.out.println(child.getName());}// make the application wait until we press a key.System.in.read();((Lifecycle) host).stop();}catch (Exception e) {e.printStackTrace();}}
}

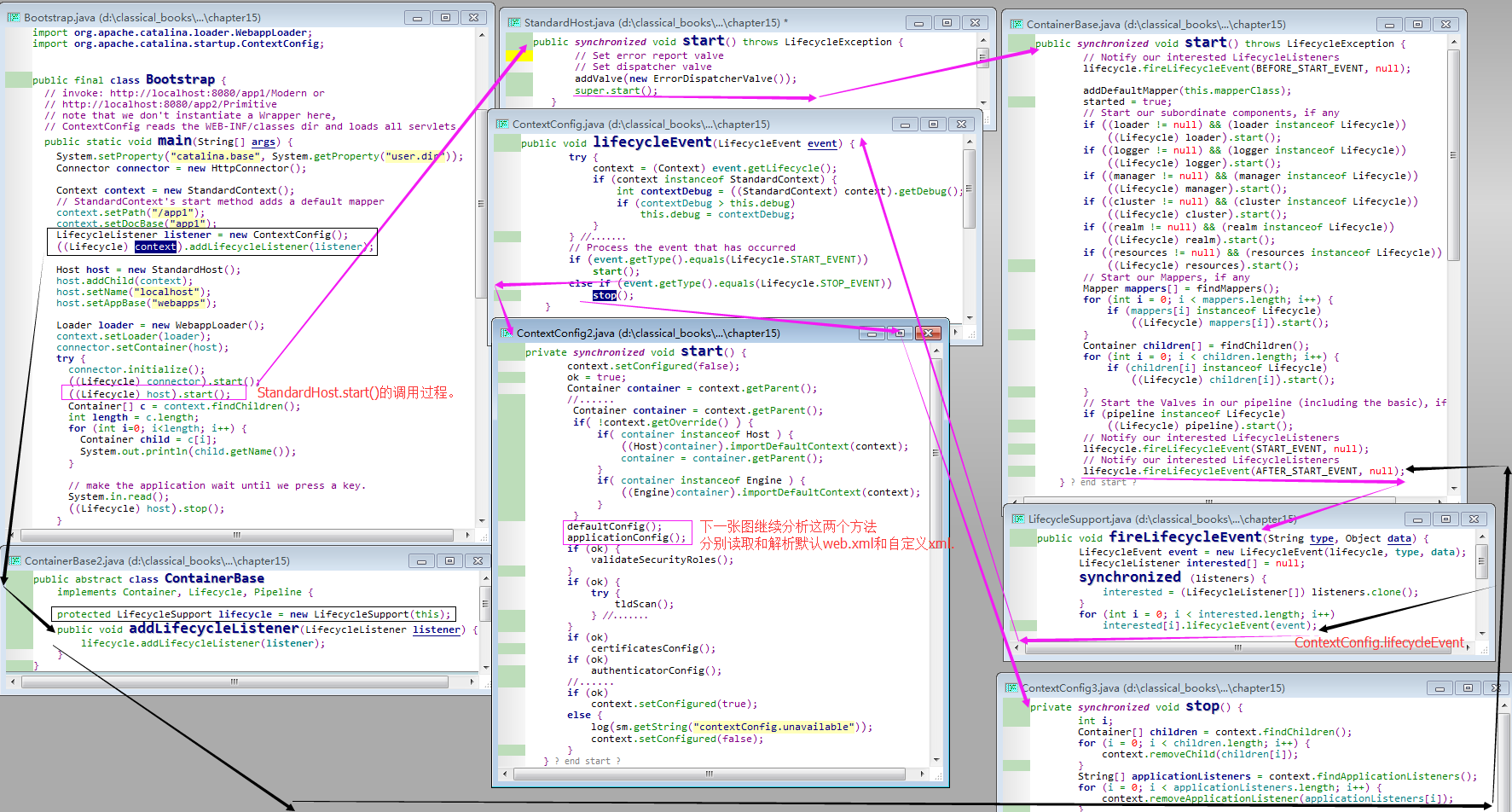

Supplement）本文习惯性地总结了上述测试用例的调用过程，如下：

S0）上述调用过程涉及到的变量ApplicationWebXml 和 DefaultWebXml，其值为：

 public static final String ApplicationWebXml = "/WEB-INF/web.xml";public static final String DefaultWebXml = "conf/web.xml"; // both of them are defined in org.apache.catalina.startup.Constant;

S1）自定义的web.xml如下所示：该文件的文件路径为 System.getProperty("user.dir")\webapps\app1\WEB-INF;

S2）（tomcat使用了开源库Digester来将XML 文档中的元素转换成 java 对象，触发相应规则如调用设置器来配置StandardContext的子容器（StandardWrapper包装了servlet））（干货——具体的规则包含在 WebRuleSet类中，见文末）

<?xml version="1.0" encoding="ISO-8859-1"?><!DOCTYPE web-appPUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN""http://java.sun.com/dtd/web-app_2_3.dtd"><web-app><servlet><servlet-name>Modern</servlet-name><servlet-class>ModernServlet</servlet-class></servlet><servlet><servlet-name>Primitive</servlet-name><servlet-class>PrimitiveServlet</servlet-class></servlet><servlet-mapping><servlet-name>Modern</servlet-name><url-pattern>/Modern</url-pattern></servlet-mapping><servlet-mapping><servlet-name>Primitive</servlet-name><url-pattern>/Primitive</url-pattern></servlet-mapping>
</web-app>

2）console info

E:\bench-cluster\cloud-data-preprocess\HowTomcatWorks\src>java -cp .;lib/servlet.jar;lib/catalina_4_1_24.jar;lib/catalina-5.5.4.jar;lib/naming-common.
jar;lib/commons-collections.jar;lib/naming-resources.jar;lib/commons-digester.jar;lib/catalina.jar;lib/commons-logging.jar;lib/commons-beanutils.jar;E
:\bench-cluster\cloud-data-preprocess\HowTomcatWoks\webroot com.tomcat.chapter15.startup.Bootstrap
HttpConnector Opening server socket on all host IP addresses
HttpConnector[8080] Starting background thread
WebappLoader[/app1]: Deploying class repositories to work directory E:\bench-cluster\cloud-data-preprocess\HowTomcatWorks\src\work\_\localhost\app1
WebappLoader[/app1]: Deploy class files /WEB-INF/classes to E:\bench-cluster\cloud-data-preprocess\HowTomcatWorks\src\webapps\app1\WEB-INF\classes
ContextConfig[/app1]: Missing default web.xml, using application web.xml only
StandardManager[/app1]: Seeding random number generator class java.security.SecureRandom
StandardManager[/app1]: Seeding of random number generator has been completed
Primitive
Modern
StandardHost[localhost]: MAPPING configuration error for request URI /Modern/app1/Modern
StandardHost[localhost]: MAPPING configuration error for request URI /favicon.ico
ModernServlet -- init
StandardHost[localhost]: MAPPING configuration error for request URI /favicon.ico

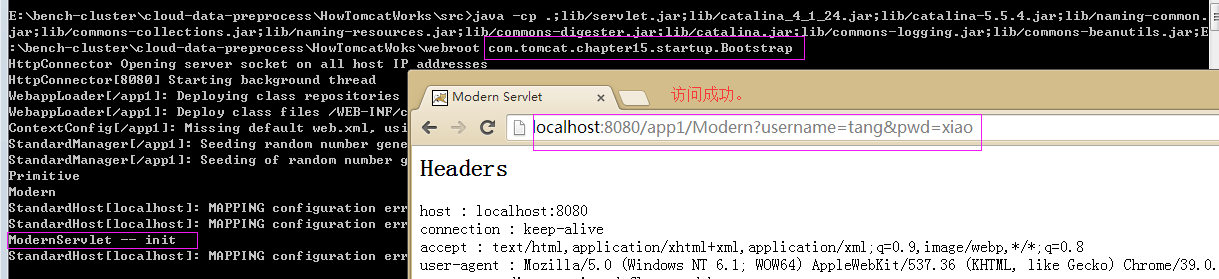

3）访问结果

public class WebRuleSet extends RuleSetBase { //org.apache.catalina.startup.WebRuleSetprotected String prefix = null;  public WebRuleSet() {  this("");}  public WebRuleSet(String prefix) {super();this.namespaceURI = null;this.prefix = prefix;}  public void addRuleInstances(Digester digester) { // highlight.digester.addRule(prefix + "web-app",new SetPublicIdRule(digester, "setPublicId"));digester.addCallMethod(prefix + "web-app/context-param","addParameter", 2);digester.addCallParam(prefix + "web-app/context-param/param-name", 0);digester.addCallParam(prefix + "web-app/context-param/param-value", 1);digester.addCallMethod(prefix + "web-app/display-name","setDisplayName", 0);digester.addRule(prefix + "web-app/distributable",new SetDistributableRule(digester));digester.addObjectCreate(prefix + "web-app/ejb-local-ref","org.apache.catalina.deploy.ContextLocalEjb");digester.addSetNext(prefix + "web-app/ejb-local-ref","addLocalEjb","org.apache.catalina.deploy.ContextLocalEjb");digester.addCallMethod(prefix + "web-app/ejb-local-ref/description","setDescription", 0);digester.addCallMethod(prefix + "web-app/ejb-local-ref/ejb-link","setLink", 0);digester.addCallMethod(prefix + "web-app/ejb-local-ref/ejb-ref-name","setName", 0);digester.addCallMethod(prefix + "web-app/ejb-local-ref/ejb-ref-type","setType", 0);digester.addCallMethod(prefix + "web-app/ejb-local-ref/local","setLocal", 0);digester.addCallMethod(prefix + "web-app/ejb-local-ref/local-home","setHome", 0);digester.addObjectCreate(prefix + "web-app/ejb-ref","org.apache.catalina.deploy.ContextEjb");digester.addSetNext(prefix + "web-app/ejb-ref","addEjb","org.apache.catalina.deploy.ContextEjb");digester.addCallMethod(prefix + "web-app/ejb-ref/description","setDescription", 0);digester.addCallMethod(prefix + "web-app/ejb-ref/ejb-link","setLink", 0);digester.addCallMethod(prefix + "web-app/ejb-ref/ejb-ref-name","setName", 0);digester.addCallMethod(prefix + "web-app/ejb-ref/ejb-ref-type","setType", 0);digester.addCallMethod(prefix + "web-app/ejb-ref/home","setHome", 0);digester.addCallMethod(prefix + "web-app/ejb-ref/remote","setRemote", 0);digester.addObjectCreate(prefix + "web-app/env-entry","org.apache.catalina.deploy.ContextEnvironment");digester.addSetNext(prefix + "web-app/env-entry","addEnvironment","org.apache.catalina.deploy.ContextEnvironment");digester.addCallMethod(prefix + "web-app/env-entry/description","setDescription", 0);digester.addCallMethod(prefix + "web-app/env-entry/env-entry-name","setName", 0);digester.addCallMethod(prefix + "web-app/env-entry/env-entry-type","setType", 0);digester.addCallMethod(prefix + "web-app/env-entry/env-entry-value","setValue", 0);digester.addObjectCreate(prefix + "web-app/error-page","org.apache.catalina.deploy.ErrorPage");digester.addSetNext(prefix + "web-app/error-page","addErrorPage","org.apache.catalina.deploy.ErrorPage");digester.addCallMethod(prefix + "web-app/error-page/error-code","setErrorCode", 0);digester.addCallMethod(prefix + "web-app/error-page/exception-type","setExceptionType", 0);digester.addCallMethod(prefix + "web-app/error-page/location","setLocation", 0);digester.addObjectCreate(prefix + "web-app/filter","org.apache.catalina.deploy.FilterDef");digester.addSetNext(prefix + "web-app/filter","addFilterDef","org.apache.catalina.deploy.FilterDef");digester.addCallMethod(prefix + "web-app/filter/description","setDescription", 0);digester.addCallMethod(prefix + "web-app/filter/display-name","setDisplayName", 0);digester.addCallMethod(prefix + "web-app/filter/filter-class","setFilterClass", 0);digester.addCallMethod(prefix + "web-app/filter/filter-name","setFilterName", 0);digester.addCallMethod(prefix + "web-app/filter/large-icon","setLargeIcon", 0);digester.addCallMethod(prefix + "web-app/filter/small-icon","setSmallIcon", 0);digester.addCallMethod(prefix + "web-app/filter/init-param","addInitParameter", 2);digester.addCallParam(prefix + "web-app/filter/init-param/param-name",0);digester.addCallParam(prefix + "web-app/filter/init-param/param-value",1);digester.addObjectCreate(prefix + "web-app/filter-mapping","org.apache.catalina.deploy.FilterMap");digester.addSetNext(prefix + "web-app/filter-mapping","addFilterMap","org.apache.catalina.deploy.FilterMap");digester.addCallMethod(prefix + "web-app/filter-mapping/filter-name","setFilterName", 0);digester.addCallMethod(prefix + "web-app/filter-mapping/servlet-name","setServletName", 0);digester.addCallMethod(prefix + "web-app/filter-mapping/url-pattern","setURLPattern", 0);digester.addCallMethod(prefix + "web-app/listener/listener-class","addApplicationListener", 0);digester.addObjectCreate(prefix + "web-app/login-config","org.apache.catalina.deploy.LoginConfig");digester.addSetNext(prefix + "web-app/login-config","setLoginConfig","org.apache.catalina.deploy.LoginConfig");digester.addCallMethod(prefix + "web-app/login-config/auth-method","setAuthMethod", 0);digester.addCallMethod(prefix + "web-app/login-config/realm-name","setRealmName", 0);digester.addCallMethod(prefix + "web-app/login-config/form-login-config/form-error-page","setErrorPage", 0);digester.addCallMethod(prefix + "web-app/login-config/form-login-config/form-login-page","setLoginPage", 0);digester.addCallMethod(prefix + "web-app/mime-mapping","addMimeMapping", 2);digester.addCallParam(prefix + "web-app/mime-mapping/extension", 0);digester.addCallParam(prefix + "web-app/mime-mapping/mime-type", 1);digester.addCallMethod(prefix + "web-app/resource-env-ref","addResourceEnvRef", 2);digester.addCallParam(prefix + "web-app/resource-env-ref/resource-env-ref-name", 0);digester.addCallParam(prefix + "web-app/resource-env-ref/resource-env-ref-type", 1);digester.addObjectCreate(prefix + "web-app/resource-ref","org.apache.catalina.deploy.ContextResource");digester.addSetNext(prefix + "web-app/resource-ref","addResource","org.apache.catalina.deploy.ContextResource");digester.addCallMethod(prefix + "web-app/resource-ref/description","setDescription", 0);digester.addCallMethod(prefix + "web-app/resource-ref/res-auth","setAuth", 0);digester.addCallMethod(prefix + "web-app/resource-ref/res-ref-name","setName", 0);digester.addCallMethod(prefix + "web-app/resource-ref/res-sharing-scope","setScope", 0);digester.addCallMethod(prefix + "web-app/resource-ref/res-type","setType", 0);digester.addObjectCreate(prefix + "web-app/security-constraint","org.apache.catalina.deploy.SecurityConstraint");digester.addSetNext(prefix + "web-app/security-constraint","addConstraint","org.apache.catalina.deploy.SecurityConstraint");digester.addRule(prefix + "web-app/security-constraint/auth-constraint",new SetAuthConstraintRule(digester));digester.addCallMethod(prefix + "web-app/security-constraint/auth-constraint/role-name","addAuthRole", 0);digester.addCallMethod(prefix + "web-app/security-constraint/display-name","setDisplayName", 0);digester.addCallMethod(prefix + "web-app/security-constraint/user-data-constraint/transport-guarantee","setUserConstraint", 0);digester.addObjectCreate(prefix + "web-app/security-constraint/web-resource-collection","org.apache.catalina.deploy.SecurityCollection");digester.addSetNext(prefix + "web-app/security-constraint/web-resource-collection","addCollection","org.apache.catalina.deploy.SecurityCollection");digester.addCallMethod(prefix + "web-app/security-constraint/web-resource-collection/http-method","addMethod", 0);digester.addCallMethod(prefix + "web-app/security-constraint/web-resource-collection/url-pattern","addPattern", 0);digester.addCallMethod(prefix + "web-app/security-constraint/web-resource-collection/web-resource-name","setName", 0);digester.addCallMethod(prefix + "web-app/security-role/role-name","addSecurityRole", 0);digester.addRule(prefix + "web-app/servlet",new WrapperCreateRule(digester));digester.addSetNext(prefix + "web-app/servlet","addChild","org.apache.catalina.Container");digester.addCallMethod(prefix + "web-app/servlet/init-param","addInitParameter", 2);digester.addCallParam(prefix + "web-app/servlet/init-param/param-name",0);digester.addCallParam(prefix + "web-app/servlet/init-param/param-value",1);digester.addCallMethod(prefix + "web-app/servlet/jsp-file","setJspFile", 0);digester.addCallMethod(prefix + "web-app/servlet/load-on-startup","setLoadOnStartupString", 0);digester.addCallMethod(prefix + "web-app/servlet/run-as/role-name","setRunAs", 0);digester.addCallMethod(prefix + "web-app/servlet/security-role-ref","addSecurityReference", 2);digester.addCallParam(prefix + "web-app/servlet/security-role-ref/role-link", 1);digester.addCallParam(prefix + "web-app/servlet/security-role-ref/role-name", 0);digester.addCallMethod(prefix + "web-app/servlet/servlet-class","setServletClass", 0);digester.addCallMethod(prefix + "web-app/servlet/servlet-name","setName", 0);digester.addCallMethod(prefix + "web-app/servlet-mapping","addServletMapping", 2);digester.addCallParam(prefix + "web-app/servlet-mapping/servlet-name", 1);digester.addCallParam(prefix + "web-app/servlet-mapping/url-pattern", 0);digester.addCallMethod(prefix + "web-app/session-config/session-timeout","setSessionTimeout", 1,new Class[] { Integer.TYPE });digester.addCallParam(prefix + "web-app/session-config/session-timeout", 0);digester.addCallMethod(prefix + "web-app/taglib","addTaglib", 2);digester.addCallParam(prefix + "web-app/taglib/taglib-location", 1);digester.addCallParam(prefix + "web-app/taglib/taglib-uri", 0);digester.addCallMethod(prefix + "web-app/welcome-file-list/welcome-file","addWelcomeFile", 0);}}// ----------------------------------------------------------- Private Classes/*** A Rule that calls the <code>setAuthConstraint(true)</code> method of* the top item on the stack, which must be of type* <code>org.apache.catalina.deploy.SecurityConstraint</code>.*/final class SetAuthConstraintRule extends Rule {public SetAuthConstraintRule(Digester digester) {super(digester);}public void begin(Attributes attributes) throws Exception {SecurityConstraint securityConstraint =(SecurityConstraint) digester.peek();securityConstraint.setAuthConstraint(true);if (digester.getDebug() > 0)digester.log("Calling SecurityConstraint.setAuthConstraint(true)");}}/*** Class that calls <code>setDistributable(true)</code> for the top object* on the stack, which must be a <code>org.apache.catalina.Context</code>.*/final class SetDistributableRule extends Rule {public SetDistributableRule(Digester digester) {super(digester);}public void begin(Attributes attributes) throws Exception {Context context = (Context) digester.peek();context.setDistributable(true);if (digester.getDebug() > 0)digester.log(context.getClass().getName() +".setDistributable( true)");}}/*** Class that calls a property setter for the top object on the stack,* passing the public ID of the entity we are currently processing.*/final class SetPublicIdRule extends Rule {public SetPublicIdRule(Digester digester, String method) {super(digester);this.method = method;}private String method = null;public void begin(Attributes attributes) throws Exception {Context context = (Context) digester.peek(digester.getCount() - 1);Object top = digester.peek();Class paramClasses[] = new Class[1];paramClasses[0] = "String".getClass();String paramValues[] = new String[1];paramValues[0] = digester.getPublicId();Method m = null;try {m = top.getClass().getMethod(method, paramClasses);} catch (NoSuchMethodException e) {digester.log("Can't find method " + method + " in " + top +" CLASS " + top.getClass());return;}m.invoke(top, paramValues);if (digester.getDebug() >= 1)digester.log("" + top.getClass().getName() + "." + method +"(" + paramValues[0] + ")");}}/*** A Rule that calls the factory method on the specified Context to* create the object that is to be added to the stack.*/final class WrapperCreateRule extends Rule {public WrapperCreateRule(Digester digester) {super(digester);}public void begin(Attributes attributes) throws Exception {Context context =(Context) digester.peek(digester.getCount() - 1);Wrapper wrapper = context.createWrapper();digester.push(wrapper);if (digester.getDebug() > 0)digester.log("new " + wrapper.getClass().getName());}public void end() throws Exception {Wrapper wrapper = (Wrapper) digester.pop();if (digester.getDebug() > 0)digester.log("pop " + wrapper.getClass().getName());}
}
