3-8 基于SpringBoot连接数据库与配置MyBatis实操创建表sql

11 13-8 基于SpringBoot连接数据库与配置MyBatis实操

springSecurity提供了现成的基于内存管理的类

shiro则必须自己设计这样的类需要自己设计用户权限这样的体系

这里基于RBAC简单的设计一套

-- 权限表 --
CREATE TABLE permission (pid int(11) NOT NULL AUTO_INCREMENT,name VARCHAR(255) NOT NULL DEFAULT '',url VARCHAR(255) DEFAULT '',PRIMARY KEY (pid)
) ENGINE = InnoDB DEFAULT CHARSET = utf8;INSERT INTO permission VALUES ('1', 'add', '');
INSERT INTO permission VALUES ('2', 'delete', '');
INSERT INTO permission VALUES ('3', 'edit', '');
INSERT INTO permission VALUES ('4', 'query', '');-- 用户表 --
CREATE TABLE user(uid int(11) NOT NULL AUTO_INCREMENT,username VARCHAR(255) NOT NULL DEFAULT '',password VARCHAR(255) NOT NULL DEFAULT '',PRIMARY KEY (uid)
) ENGINE = InnoDB DEFAULT CHARSET = utf8;INSERT INTO user VALUES ('1', 'admin', '123');
INSERT INTO user VALUES ('2', 'demo', '123');-- 角色表 --
CREATE TABLE role(rid int(11) NOT NULL AUTO_INCREMENT,rname VARCHAR(255) NOT NULL DEFAULT '',PRIMARY KEY (rid)
) ENGINE = InnoDB DEFAULT CHARSET = utf8;INSERT INTO role VALUES ('1', 'admin');
INSERT INTO role VALUES ('2', 'customer');-- 权限角色关系表 --
CREATE TABLE permission_role (rid int(11) NOT NULL ,pid int(11) NOT NULL ,KEY idx_rid (rid),KEY idx_pid (pid)
) ENGINE = InnoDB DEFAULT CHARSET = utf8;INSERT INTO permission_role VALUES ('1', '1');
INSERT INTO permission_role VALUES ('1', '2');
INSERT INTO permission_role VALUES ('1', '3');
INSERT INTO permission_role VALUES ('1', '4');
INSERT INTO permission_role VALUES ('2', '1');
INSERT INTO permission_role VALUES ('2', '4');-- 用户角色关系表 --
CREATE TABLE user_role (uid int(11) NOT NULL ,rid int(11) NOT NULL ,KEY idx_uid (uid),KEY idx_rid (rid)
) ENGINE = InnoDB DEFAULT CHARSET = utf8;INSERT INTO user_role VALUES (1, 1);
INSERT INTO user_role VALUES (2, 2);

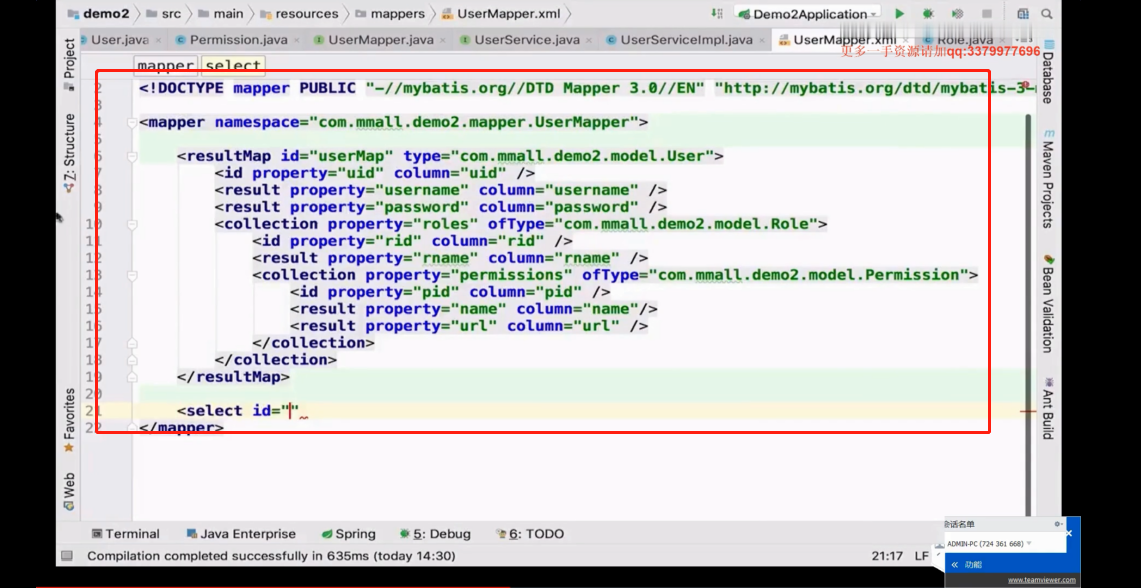

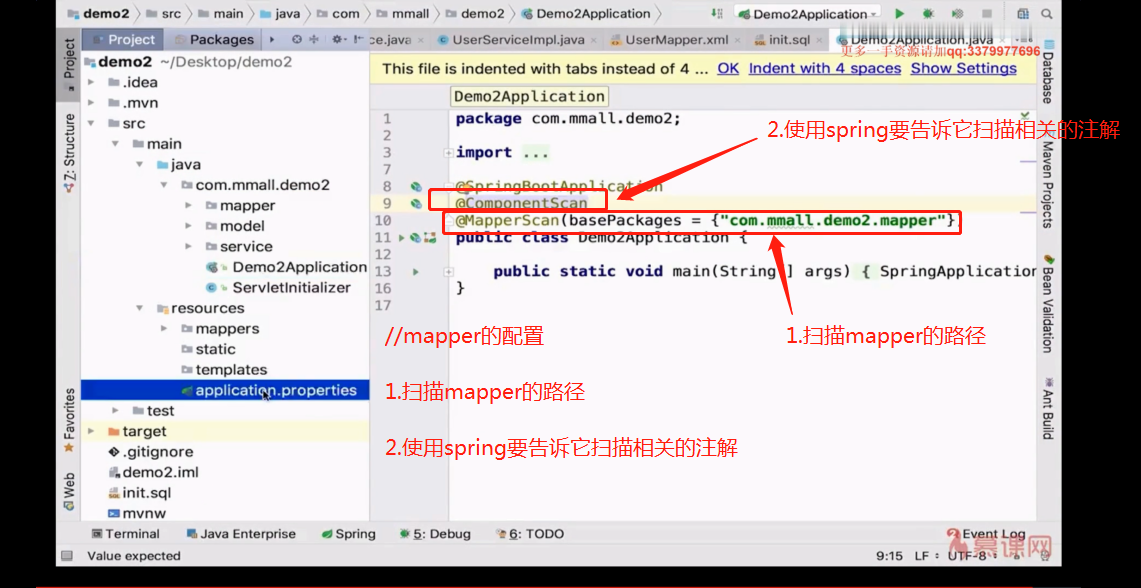

//mapper的配置

1.扫描mapper的路径

2.使用spring要告诉它扫描相关的注解

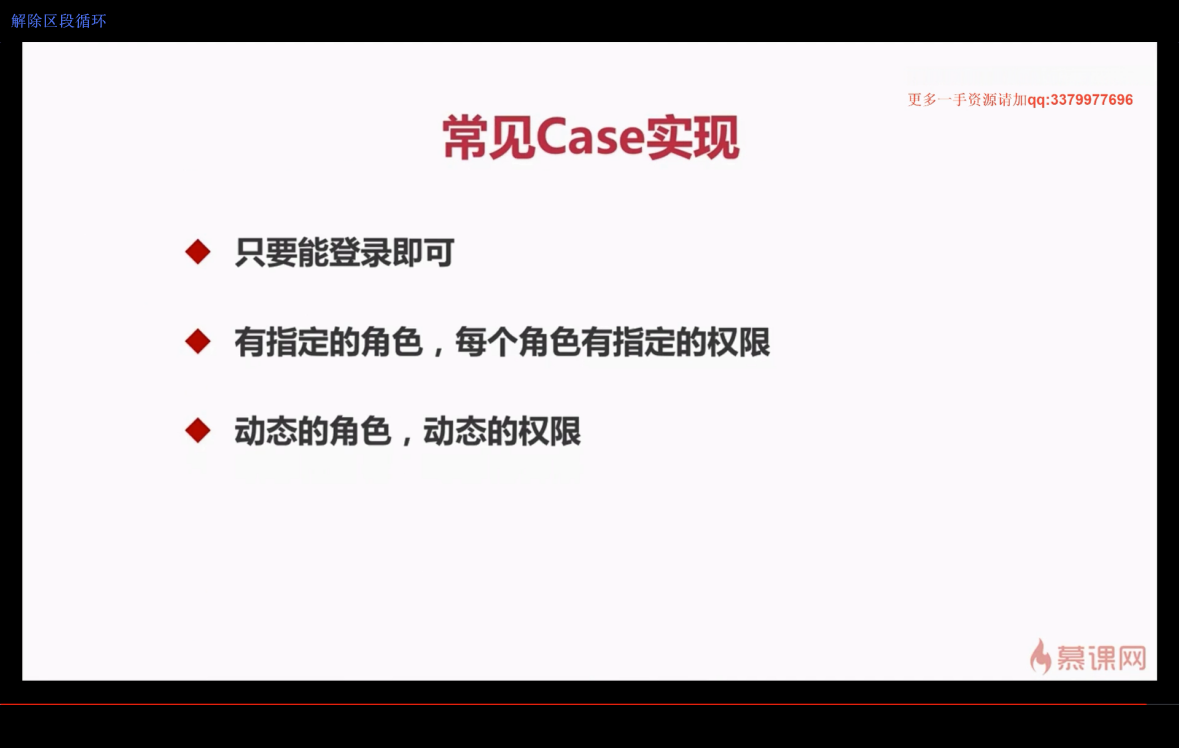

现在写几个case 需要些几个realm shiro的授权和登录需要实现相关的认证和授权核心是自定义的realm

********************************************************************************************************************************************

package com.mmall.demo2;import com.mmall.demo2.model.Permission;

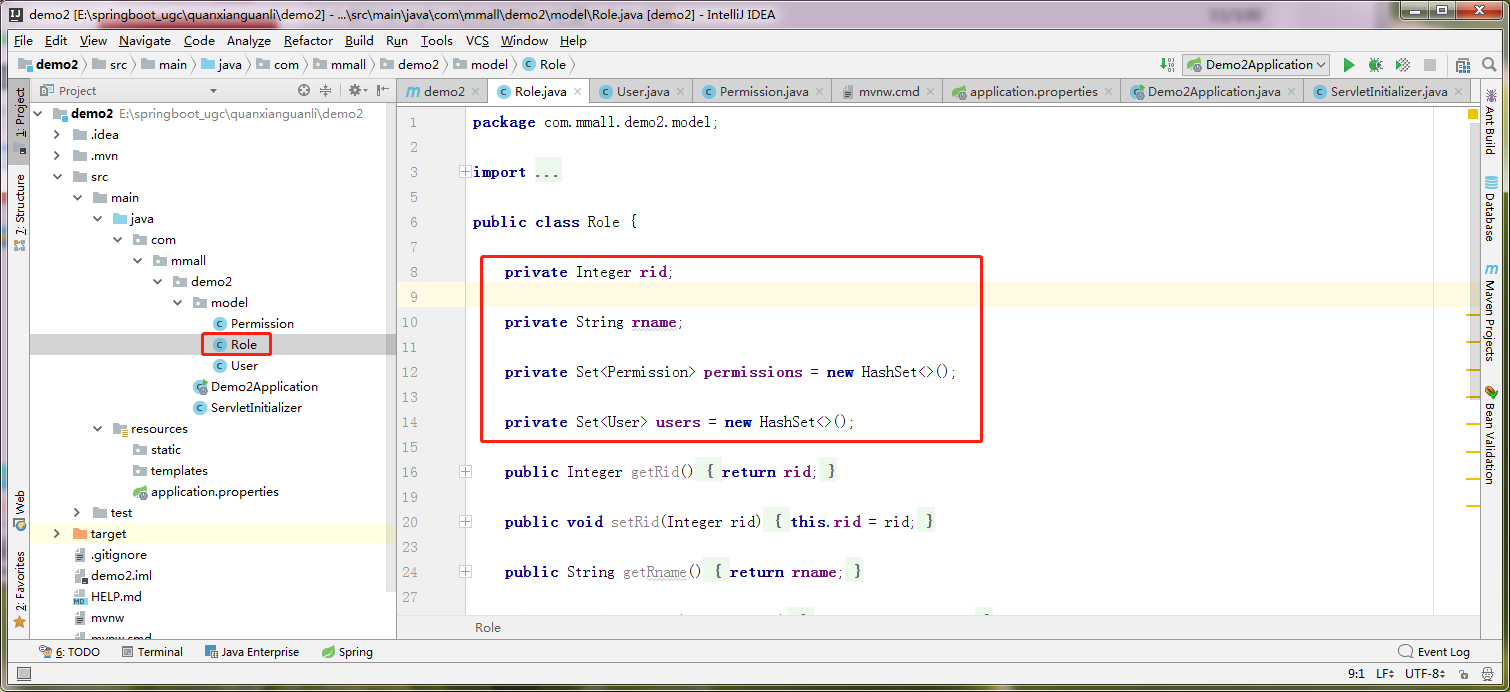

import com.mmall.demo2.model.Role;
import com.mmall.demo2.model.User;

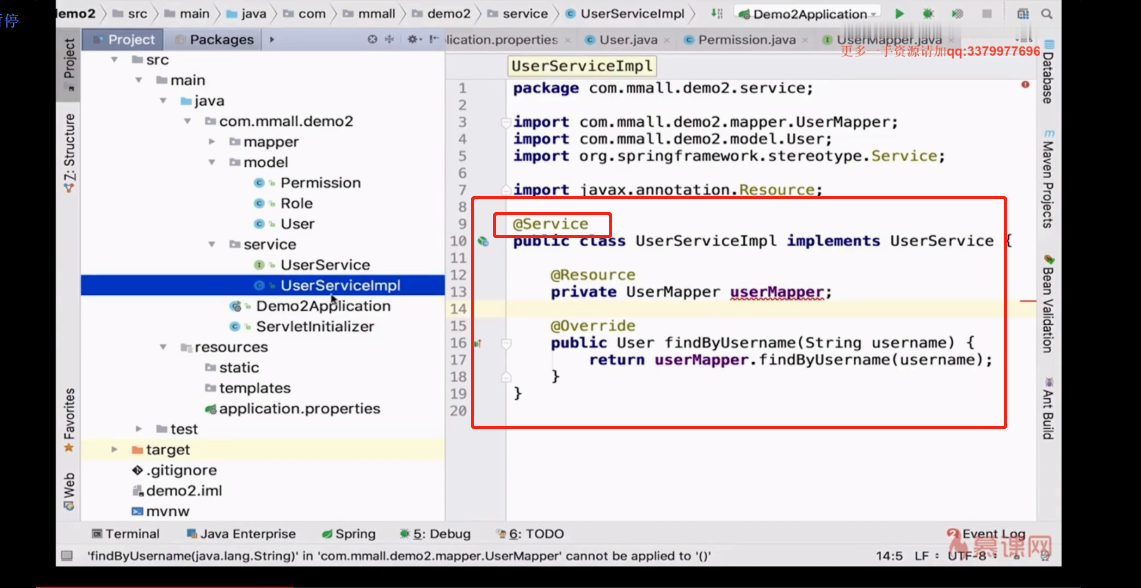

import com.mmall.demo2.service.UserService;
import org.apache.commons.collections.CollectionUtils;
import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authc.SimpleAuthenticationInfo;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.springframework.beans.factory.annotation.Autowired;import java.util.ArrayList;
import java.util.List;
import java.util.Set;//需要实现  AuthorizingRealm
public class AuthRealm extends AuthorizingRealm {//需要注入user的serviece@Autowiredprivate UserService userService;// 2、授权@Overrideprotected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {//授权是在验证登录成功之后进行的   在认证登录之后我们会将user这个对象放到session 中//s所以我们先从session 中取出这个对象//通过这个方法可以取出session 中的对象     相当于从session中获取用户User user = (User) principals.fromRealm(this.getClass().getName()).iterator().next();List<String> permissionList = new ArrayList<>();//一个角色有多个权限List<String> roleNameList = new ArrayList<>();//一个用户有多个角色Set<Role> roleSet = user.getRoles();//用户所有的角色if (CollectionUtils.isNotEmpty(roleSet)) {//用户的角色不为空  遍历用户所有的角色//这里只有一个循环  不是2个循环 看清楚了for(Role role : roleSet) {// 角色roleNameList.add(role.getRname());//存储用户名下的角色名称Set<Permission> permissionSet = role.getPermissions();//角色有可能重复权限这里使用set 可以去重复if (CollectionUtils.isNotEmpty(permissionSet)) {//如果该角色下面有权限for (Permission permission : permissionSet) {permissionList.add(permission.getName());//每个角色的权限 都加进去  set可以去重复}}}}SimpleAuthorizationInfo info = new SimpleAuthorizationInfo();info.addStringPermissions(permissionList);info.addRoles(roleNameList);return info;}// 1、首先先写   认证登录@Overrideprotected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException    {//首先先写   传入的token  转换为 UsernamePasswordToken    强行转换就可以了UsernamePasswordToken usernamePasswordToken = (UsernamePasswordToken) token;String username = usernamePasswordToken.getUsername();User user = userService.findByUsername(username);//获取用户// 完成了认证登录的部分    参数       用户对象      认证器就是密码             当前类名return new SimpleAuthenticationInfo(user, user.getPassword(), this.getClass().getName());// 上面是转换为AuthenticationInfo这个对象         1、这就完成认证登录功能     2、接下来写授权}//上面  1,2 完成  就需要 校验user.getPassword(),是否是我们要求的规则  实现一个接口传入即可//CredentialMatcher  //public class CredentialMatcher extends SimpleCredentialsMatcher {}******************************************************************************************************

package com.mmall.demo2;import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.authc.credential.SimpleCredentialsMatcher;public class CredentialMatcher extends SimpleCredentialsMatcher {// 完成了简单的密码校验的重写@Overridepublic boolean doCredentialsMatch(AuthenticationToken token, AuthenticationInfo info) {//首先token强转UsernamePasswordToken usernamePasswordToken = (UsernamePasswordToken) token;//强转后获取password   得到是数组强转String   这个是user对象中的password字段String password = new String(usernamePasswordToken.getPassword());//获取数据库密码   其实就是我们刚刚传入的值String dbPassword = (String) info.getCredentials();//强转//验证规则  自己定义就好了   这里就写是否相等就好了return this.equals(password, dbPassword);}//完成 shiro的认证和授权    和密码校验规则之后//我们需要将他们注入到我们这个shiro的配置中//public class ShiroConfiguration {

******************************************************************************************************

package com.mmall.demo2;import org.apache.shiro.cache.MemoryConstrainedCacheManager;
import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;import java.util.LinkedHashMap;//这个类是shrio的核心配置
//在springboot中用@Configuration  作为标识   在项目启动时自动配置这个类
@Configuration

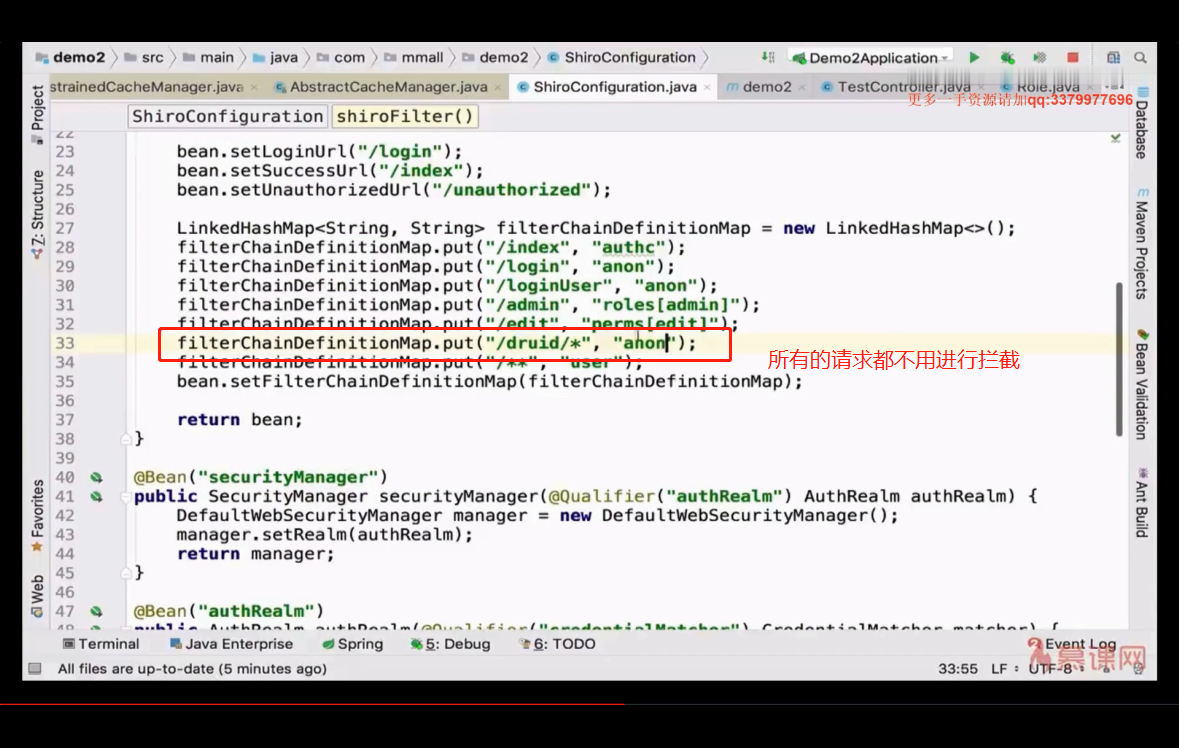

public class ShiroConfiguration {//1、首先写密码和自定义规则   定义自己的类@Bean("credentialMatcher")public CredentialMatcher credentialMatcher() {return new CredentialMatcher();//直接声明这个实例即可   拿到这个bean就可以拿到校验规则}//2.自定义authRealm 完成@Bean("authRealm")                 // 用上下文的bean   这里从spring中取出来 就上bean的名字public AuthRealm authRealm(@Qualifier("credentialMatcher") CredentialMatcher matcher) {AuthRealm authRealm = new AuthRealm();//定义real的实例authRealm.setCacheManager(new MemoryConstrainedCacheManager());authRealm.setCredentialsMatcher(matcher);//实例中给出自己的密码比较器return authRealm;}//3、realm的上一层是securityManager     注入的是上一步中的realm@Bean("securityManager")public SecurityManager securityManager(@Qualifier("authRealm") AuthRealm authRealm) {//这里使用DefaultWebSecurityManagerDefaultWebSecurityManager manager = new DefaultWebSecurityManager();//把第二步定义的authRealm放进去manager.setRealm(authRealm);return manager;}//4.shiroFilter   注入上一步的securityManager   这里返回值是ShiroFilter的工厂Bean@Bean("shiroFilter")public ShiroFilterFactoryBean shiroFilter(@Qualifier("securityManager") SecurityManager manager) {//首先声明实例   把securityManager 先注入进去ShiroFilterFactoryBean bean = new ShiroFilterFactoryBean();bean.setSecurityManager(manager);//定义登录的urlbean.setLoginUrl("/login");//定义登录成功后跳转的urlbean.setSuccessUrl("/index");//定义没有权限访问的urlbean.setUnauthorizedUrl("/unauthorized");//定义最核心的 某系请求怎么拦截      定义权限配置LinkedHashMap<String, String> filterChainDefinitionMap = new LinkedHashMap<>();//第一个参数是我们访问的请求   第二个参数是我们使用的是什么样的拦截器filterChainDefinitionMap.put("/index", "authc");//主页必须登录  authcfilterChainDefinitionMap.put("/login", "anon");//登录不用校验filterChainDefinitionMap.put("/loginUser", "anon");filterChainDefinitionMap.put("/admin", "roles[admin]");filterChainDefinitionMap.put("/edit", "perms[edit]");filterChainDefinitionMap.put("/druid/**", "anon");filterChainDefinitionMap.put("/**", "user");bean.setFilterChainDefinitionMap(filterChainDefinitionMap);//设置进filter//authc是什么含义？？  含义是前面的url使用authc的拦截器进行验证//在enum DefaultFilter中//常用的就这几个return bean;}//  这样当项目启动的时候  shirofiler首先初始化  会依次初始化下去//  一层一层的就会初始化下去////下面的2个类  使得shiro和spring关联是我们自己定制的//配置一下shiro和spring之间的几个类    参数传入securityManager@Beanpublic AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor(@Qualifier("securityManager") SecurityManager securityManager) {//给一个实例AuthorizationAttributeSourceAdvisor advisor = new AuthorizationAttributeSourceAdvisor();//设置securityManageradvisor.setSecurityManager(securityManager);return advisor;//这样spring对securityManager使用就是我们自定义的securityManager}//z这个不用配置  只要出入shrio的管理就好了@Beanpublic DefaultAdvisorAutoProxyCreator defaultAdvisorAutoProxyCreator() {DefaultAdvisorAutoProxyCreator creator = new DefaultAdvisorAutoProxyCreator();creator.setProxyTargetClass(true);//默认是falsereturn creator;}//shrio的整个流程全部讲解完毕了
}

******************************************************************************************************

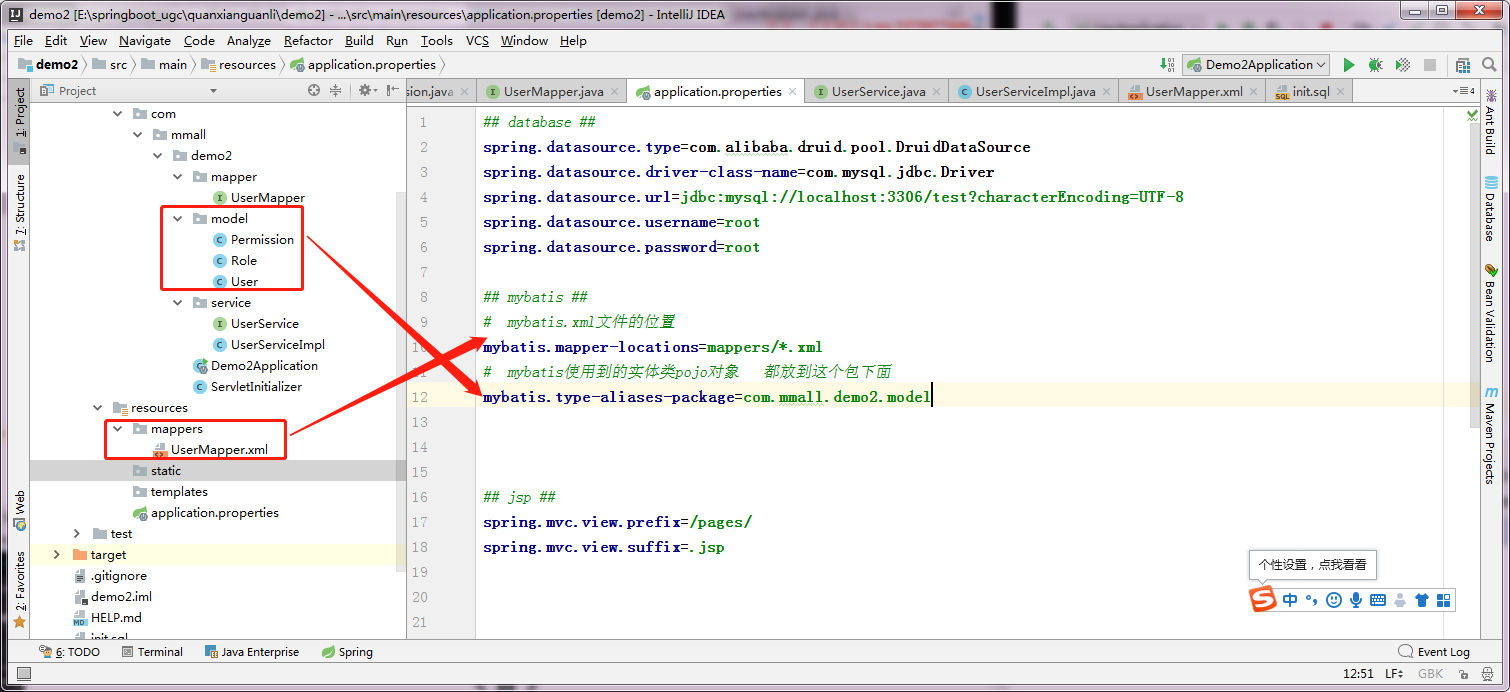

## database ##

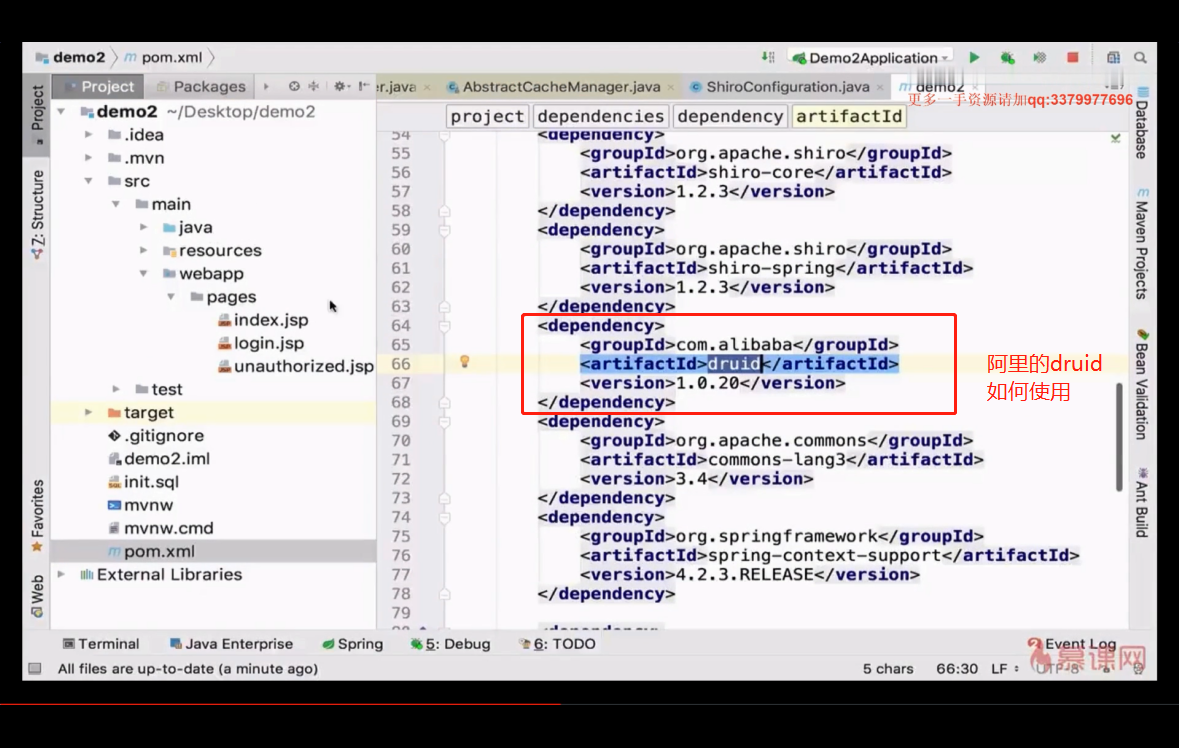

spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/test?characterEncoding=UTF-8
spring.datasource.username=root
spring.datasource.password=root## mybatis ##
#  mybatis.xml文件的位置
mybatis.mapper-locations=mappers/*.xml
#  mybatis使用到的实体类pojo对象   都放到这个包下面
mybatis.type-aliases-package=com.mmall.demo2.model## jsp ##    定义页面的位置   jsp放置在pages目录下面
spring.mvc.view.prefix=/pages/
spring.mvc.view.suffix=.jsp

******************************************************************************************************

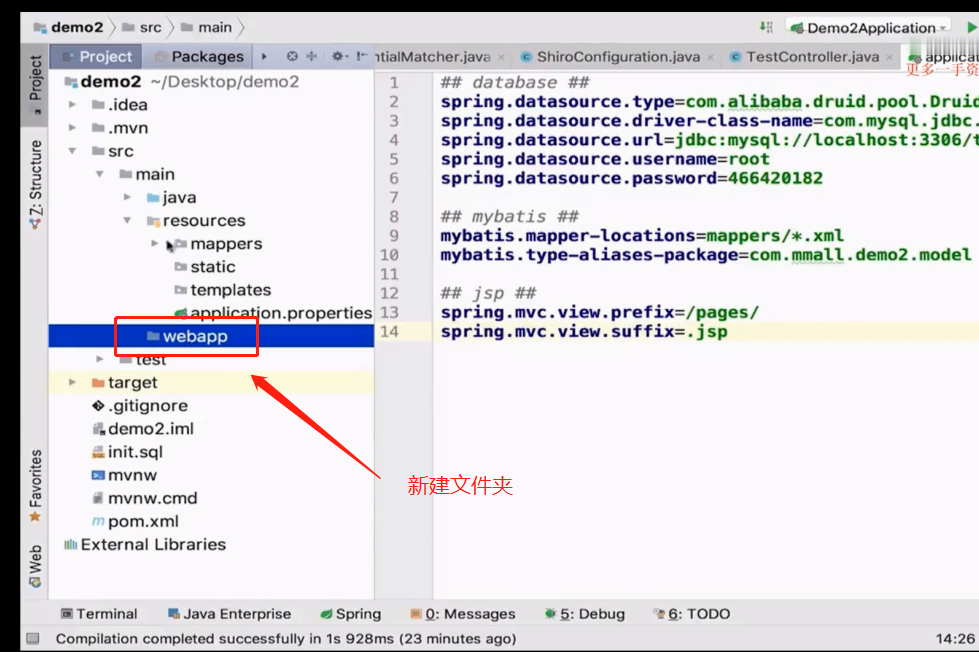

在main文件夹中新加webapp文件夹，springboot默认将页面放在webapp下面我们配置了jsp前缀为pages文件夹下面

******************************************************************************************************

package com.mmall.demo2;import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.jdbc.DataSourceBuilder;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.dao.annotation.PersistenceExceptionTranslationPostProcessor;import javax.sql.DataSource;//@Configuration  加上这个注解在项目启动时就配置
@Configuration
public class DruidConfiguration {@Beanpublic ServletRegistrationBean statViewServlet() {ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean(new StatViewServlet(), "/druid/*");//白名单：     设置允许访问的beanservletRegistrationBean.addInitParameter("allow", "127.0.0.1");//设置不允许访问的ip//IP黑名单 (存在共同时，deny优先于allow) : 如果满足deny的即提示:Sorry, you are not permitted to view this page.servletRegistrationBean.addInitParameter("deny", "192.168.1.100");//登录查看信息的账号密码.          查看druid登录信息的用户名和密码servletRegistrationBean.addInitParameter("loginUsername", "druid");servletRegistrationBean.addInitParameter("loginPassword", "12345678");//是否能够重置数据.servletRegistrationBean.addInitParameter("resetEnable", "false");return servletRegistrationBean;}@Beanpublic FilterRegistrationBean statFilter() {FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean(new WebStatFilter());//添加过滤规则.      拦截那些请求filterRegistrationBean.addUrlPatterns("/*");//添加不需要忽略的格式信息.     过滤那些请求filterRegistrationBean.addInitParameter("exclusions", "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*");return filterRegistrationBean;}@BeanPersistenceExceptionTranslationPostProcessor persistenceExceptionTranslationPostProcessor() {return new PersistenceExceptionTranslationPostProcessor();}//配置数据库的基本链接信息   信息也是是从application.properties文件中读取@Bean(name = "dataSource")@Primary@ConfigurationProperties(prefix = "spring.datasource")    //可以在application.properties中直接导入public DataSource dataSource() {return DataSourceBuilder.create().type(com.alibaba.druid.pool.DruidDataSource.class).build();}@Beanpublic SqlSessionFactoryBean sqlSessionFactory(@Qualifier("dataSource") DataSource dataSource) throws Exception {SqlSessionFactoryBean bean = new SqlSessionFactoryBean();bean.setDataSource(dataSource);PathMatchingResourcePatternResolver resolver = new PathMatchingResourcePatternResolver();//最后指定mapper文件  有了这些就可以轻松的监控数据库的请求bean.setMapperLocations(resolver.getResources("classpath:/mappers/*.xml"));return bean;}
}

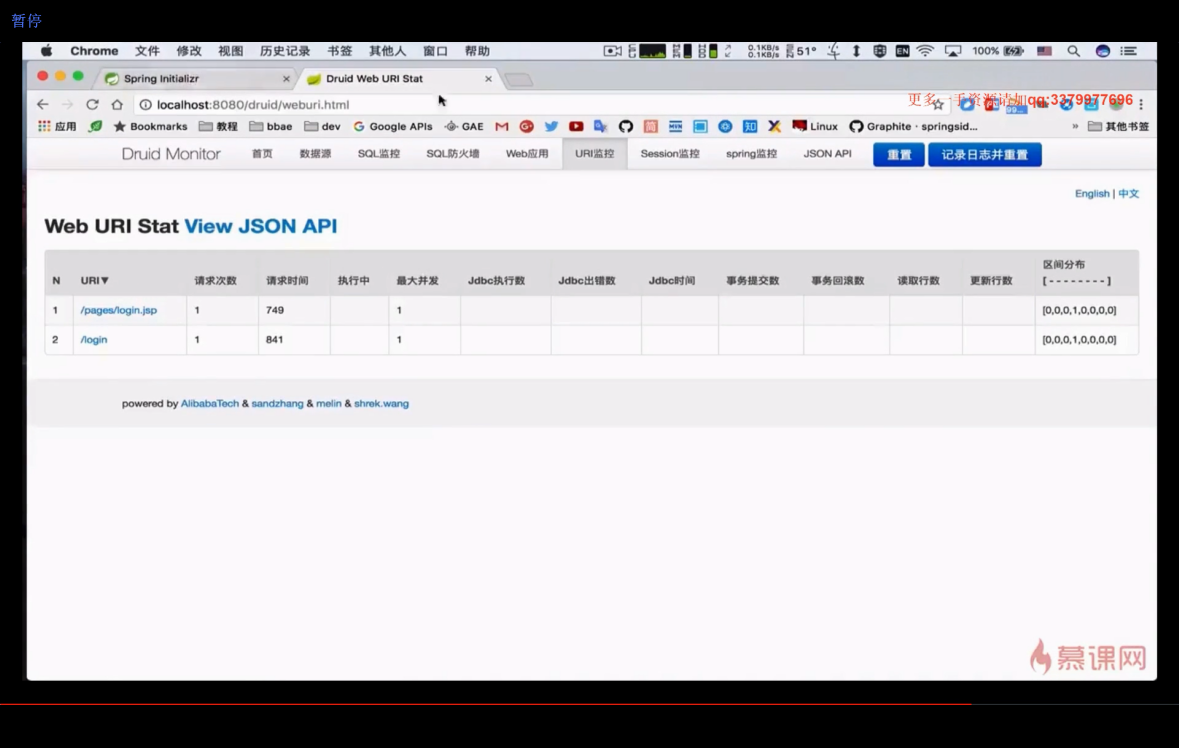

//访问http://localhost:8080/druid/index.html   用户名是上定义的druid 12345678
//可以对数据库进行监控
