使用PocketFlowSharp创建一个Human

使用PocketFlowSharp创建一个Human_Evaluation示例

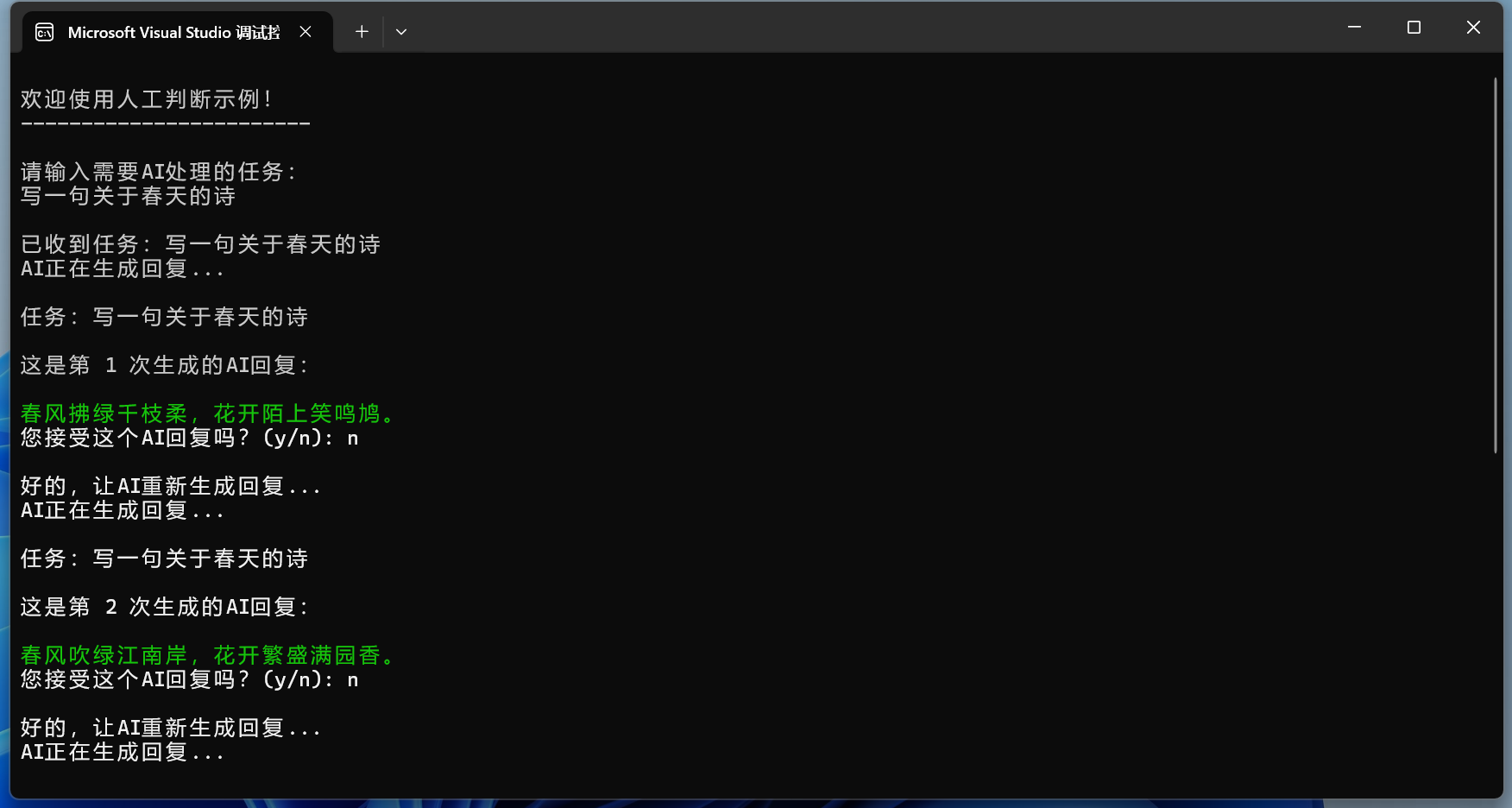

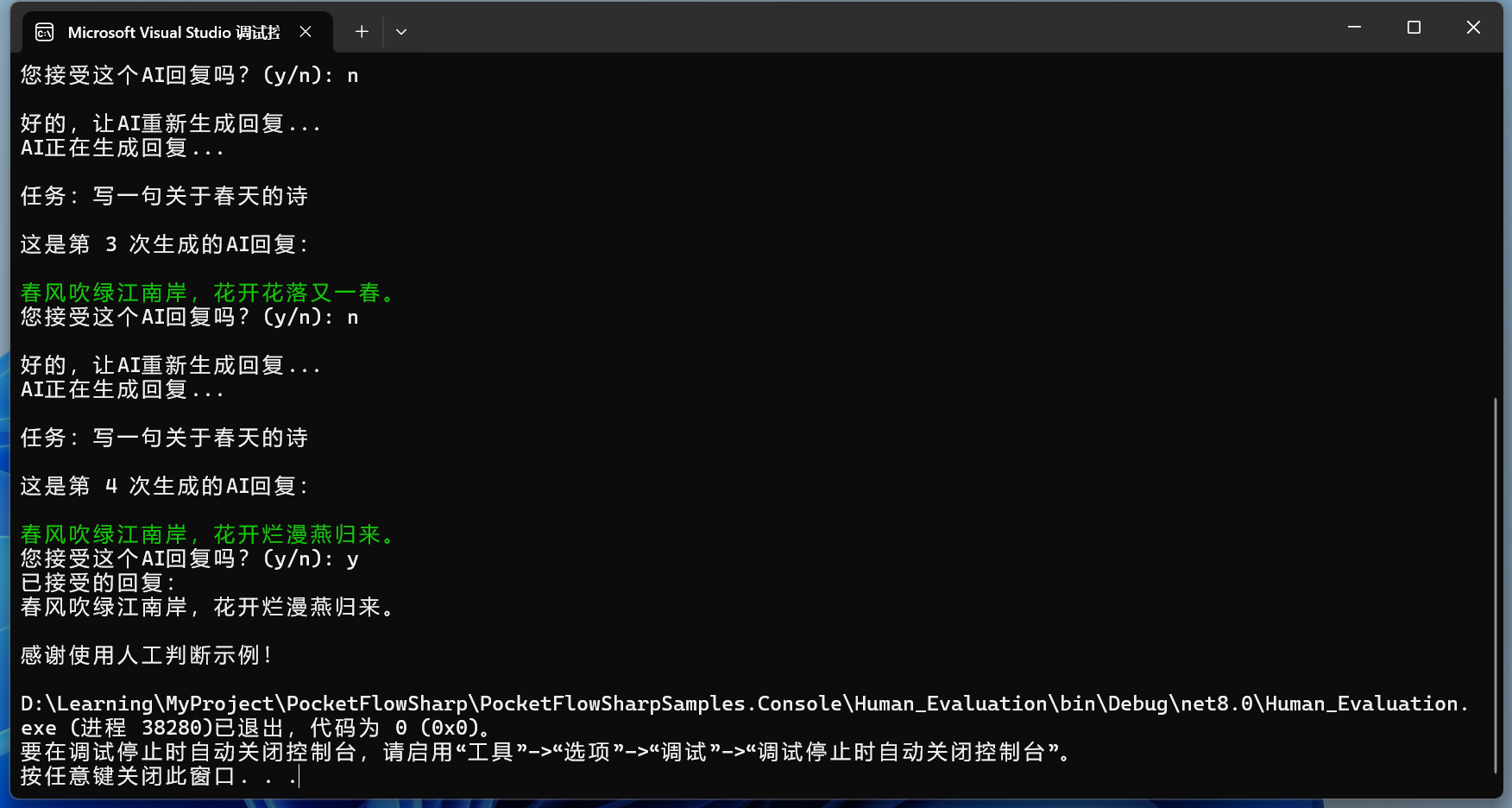

效果

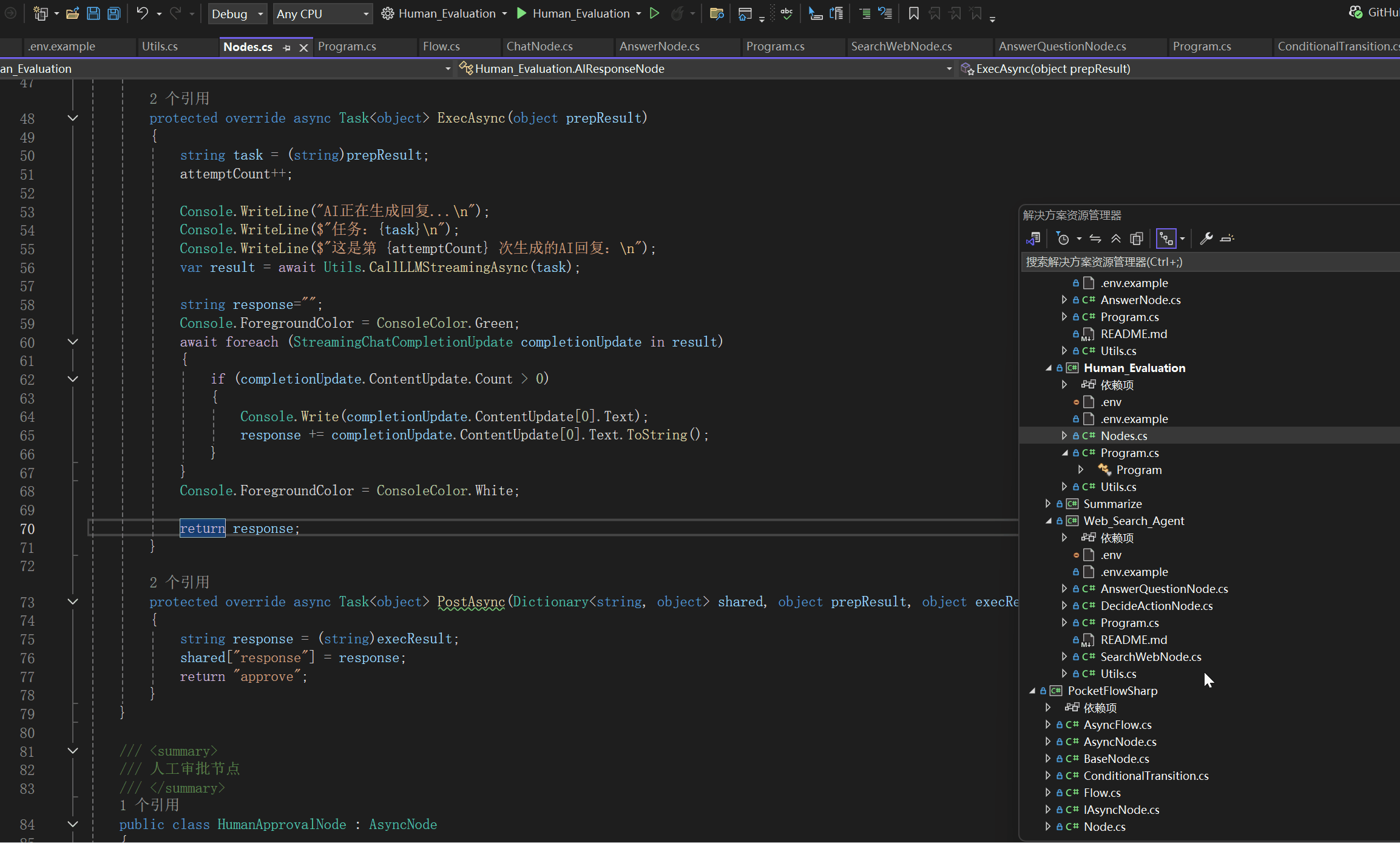

实践

有时候AI生成的结果我们并不满意在进入下一步之前，我们需要对AI生成的结果进行人工审核，同意了才能进入下一个流程。

Human_Evaluation就是人工判断的一个简单示例。

 internal class Program{static async Task Main(string[] args){// Load .env fileDotEnv.Load();// Get environment variables from .env filevar envVars = DotEnv.Read();string ModelName = envVars["ModelName"];string EndPoint = envVars["EndPoint"];string ApiKey = envVars["ApiKey"];Utils.ModelName = ModelName;Utils.EndPoint = EndPoint;Utils.ApiKey = ApiKey;// 创建共享数据字典var shared = new Dictionary<string, object>();// 创建并运行流程var humanEvalFlow = CreateFlow();Console.WriteLine("\n欢迎使用人工判断示例！");Console.WriteLine("------------------------");await humanEvalFlow.RunAsync(shared);Console.WriteLine("\n感谢使用人工判断示例！");}static AsyncFlow CreateFlow(){// 创建节点实例var inputNode = new TaskInputNode();var aiResponseNode = new AIResponseNode();var humanApprovalNode = new HumanApprovalNode();var endNode = new NoOpNode();// 创建从输入节点开始的流程var flow = new AsyncFlow(inputNode);// 连接节点_ = inputNode - "generate" - aiResponseNode;_ = aiResponseNode - "approve" - humanApprovalNode;_ = humanApprovalNode - "retry" - aiResponseNode;     // 不接受时重新生成_ = humanApprovalNode - "accept" - endNode;          // 接受时结束流程return flow;}}

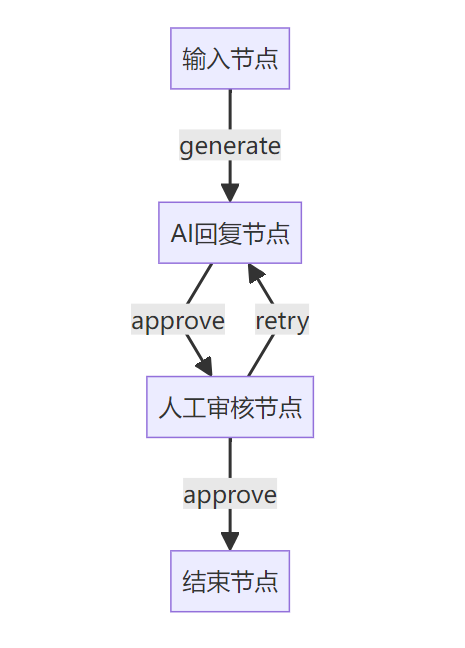

看一下整体的流程图：

输入节点：

 public class TaskInputNode : AsyncNode{protected override async Task<object> PrepAsync(Dictionary<string, object> shared){Console.WriteLine("\n请输入需要AI处理的任务：");string task = Console.ReadLine();return task;}protected override async Task<object> ExecAsync(object prepResult){string task = (string)prepResult;Console.WriteLine($"\n已收到任务：{task}");return task;}protected override async Task<object> PostAsync(Dictionary<string, object> shared, object prepResult, object execResult){string task = (string)execResult;shared["task"] = task;return "generate";}}

AI回复节点：

public class AIResponseNode : AsyncNode
{private static int attemptCount = 0;protected override async Task<object> PrepAsync(Dictionary<string, object> shared){return shared["task"];}protected override async Task<object> ExecAsync(object prepResult){string task = (string)prepResult;attemptCount++;Console.WriteLine("AI正在生成回复...\n");Console.WriteLine($"任务：{task}\n");Console.WriteLine($"这是第 {attemptCount} 次生成的AI回复：\n");var result = await Utils.CallLLMStreamingAsync(task);string response="";Console.ForegroundColor = ConsoleColor.Green;await foreach (StreamingChatCompletionUpdate completionUpdate in result){if (completionUpdate.ContentUpdate.Count > 0){Console.Write(completionUpdate.ContentUpdate[0].Text);response += completionUpdate.ContentUpdate[0].Text.ToString();}}Console.ForegroundColor = ConsoleColor.White;return response;}protected override async Task<object> PostAsync(Dictionary<string, object> shared, object prepResult, object execResult){string response = (string)execResult;shared["response"] = response;return "approve";}
}

人工审核节点：

 public class HumanApprovalNode : AsyncNode{protected override async Task<object> PrepAsync(Dictionary<string, object> shared){return shared["response"];}protected override async Task<object> ExecAsync(object prepResult){Console.Write("\n您接受这个AI回复吗？(y/n): ");string answer = Console.ReadLine()?.ToLower() ?? "n";return answer;}protected override async Task<object> PostAsync(Dictionary<string, object> shared, object prepResult, object execResult){string answer = (string)execResult;if (answer == "y"){Console.WriteLine($"已接受的回复：\n{shared["response"]}");return "accept";}else{Console.WriteLine("\n好的，让AI重新生成回复...");return "retry";}}}

结束节点：

 public class NoOpNode : AsyncNode{protected override async Task<object> PrepAsync(Dictionary<string, object> shared) => null;protected override async Task<object> ExecAsync(object prepResult) => null;protected override async Task<object> PostAsync(Dictionary<string, object> shared, object prepResult, object execResult) => null;}

帮助类：

 public static class Utils{public static string ModelName { get; set; }public static string EndPoint { get; set; }public static string ApiKey { get; set; }public static async Task<string> CallLLMAsync(string prompt){ApiKeyCredential apiKeyCredential = new ApiKeyCredential(ApiKey);OpenAIClientOptions openAIClientOptions = new OpenAIClientOptions();openAIClientOptions.Endpoint = new Uri(EndPoint);ChatClient client = new(model: ModelName, apiKeyCredential, openAIClientOptions);ChatCompletion completion = await client.CompleteChatAsync(prompt);return completion.Content[0].Text;}public static async Task<AsyncCollectionResult<StreamingChatCompletionUpdate>> CallLLMStreamingAsync(string prompt){ApiKeyCredential apiKeyCredential = new ApiKeyCredential(ApiKey);OpenAIClientOptions openAIClientOptions = new OpenAIClientOptions();openAIClientOptions.Endpoint = new Uri(EndPoint);ChatClient client = new(model: ModelName, apiKeyCredential, openAIClientOptions);var completion = client.CompleteChatStreamingAsync(prompt);return completion;}}
