OSA快速上手

我第一次接触OSA，第一感觉就是庞杂，相关的文档和资料基本都是英文，运行下示例场景，效果和效率确实很香。本文仅针对初次接触OSA、望而却步的朋友们进行快速运用的引导。

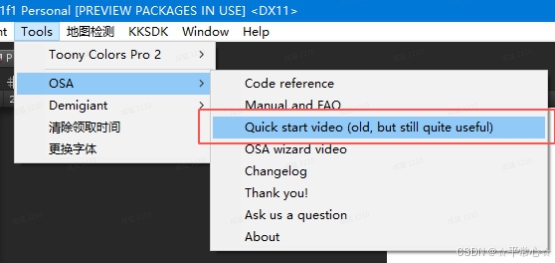

首先，找个安装包，导入项目后，观看视频（看不懂？也要看）；

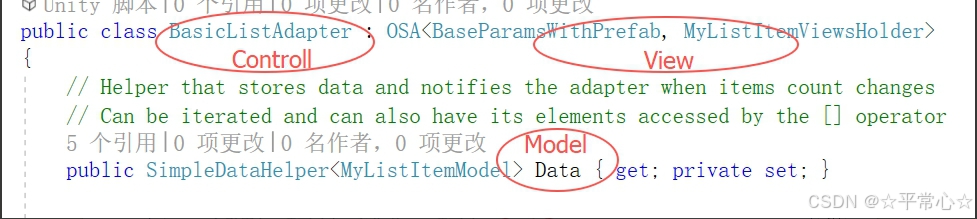

好了，整个视频其实你只需要搞懂⼀开始的那张MVC结构图。简单来说，OSA是基于MVC架构封装的，适⽤于UGUI的列表组件（这⾥UGUI的ScrollView问题不再赘述）。OSA基本的⼯作流程就是，将列表单元格的数据封装成ItemModel（可以是⼀个JsonObject，很⽅便从json配表中取值封

装），通过ItemViewAdapter创建、复⽤预设并显⽰到Content中，⽽ItemViewsHolder则控制单元

格的显⽰效果。下⾯，我们来个实战：

1、创建⼀个新场景

2、添加Canvas

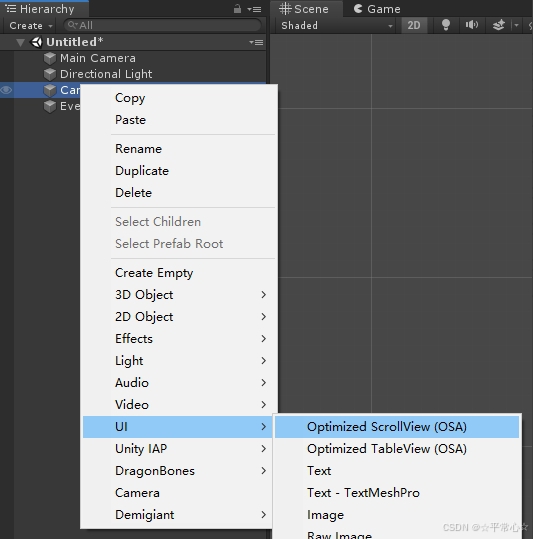

3、给Canvas添加OSA

4、选择布局

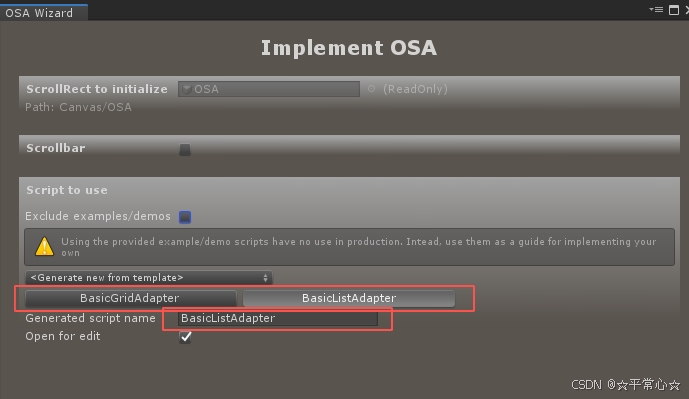

5、选择列表是Grid还是List

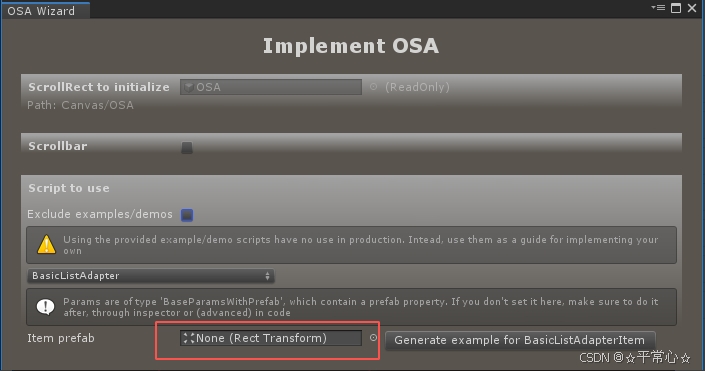

6、脚本创建完成后，会有⼀个要求添加预设的弹框

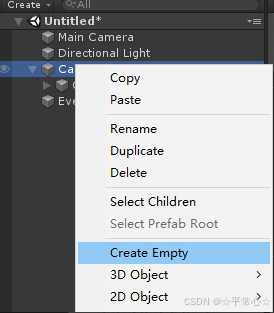

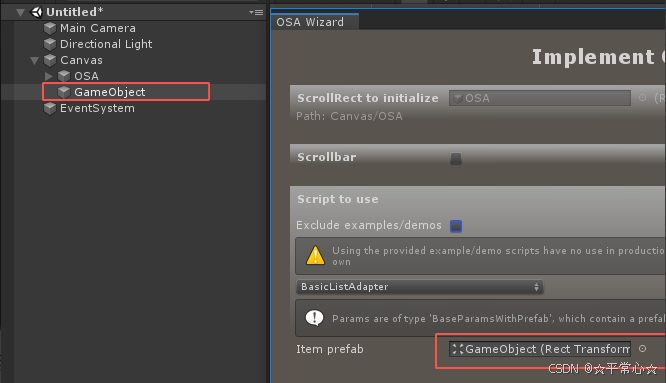

7、在Canvas下创建⼀个空对象，拖⾄ItemPrefab

8、打开刚才创建的Adapter脚本BasicListAdapter

9、修改Adapter脚本

a、打开Start中的数据填充函数RetrieveDataAndUpdate；

protected override void Start()
{Data = new SimpleDataHelper<MyListItemModel>(this);// Calling this initializes internal data and prepares the adapter to handle item count changesbase.Start();// Retrieve the models from your data source and set the items countRetrieveDataAndUpdate(500);
}

b、修改异步添加model数据函数FetchMoreItemsFromDataSourceAndUpdate；

1 IEnumerator FetchMoreItemsFromDataSourceAndUpdate(int count)
2 {
3 // Simulating data retrieving delay
4 yield return new WaitForSeconds(.5f);
5 var newItems = new MyListItemModel[count];
6 // Retrieve your data here
7 for (int i = 0; i < count; ++i)
8 {
9 var model = new MyListItemModel()
10 {
11 title = "Random item " + i,
12 color = new Color(
13 UnityEngine.Random.Range(0f, 1f),
14 UnityEngine.Random.Range(0f, 1f),
15 UnityEngine.Random.Range(0f, 1f),
16 UnityEngine.Random.Range(0f, 1f)
17 )
18 };
19 newItems[i] = model;
20 }
21 OnDataRetrieved(newItems);
22 }

c、打开数据刷新函数UpdateViewsHolder，通过model数据刷新view

1 protected override void UpdateViewsHolder(MyListItemViewsHolder newOrRecycled)
2 {
3 // In this callback, "newOrRecycled.ItemIndex" is guaranteed to always
reflect the
4 // index of item that should be represented by this views holder. You'll use
this index
5 // to retrieve the model from your data set
6 MyListItemModel model = Data[newOrRecycled.ItemIndex];
7 newOrRecycled.backgroundImage.color = model.color;
8 newOrRecycled.titleText.text = model.title + " #" + newOrRecycled.ItemIndex;
9 }

d、打开model结构定义

1 public class MyListItemModel
2 {
3 public string title;
4 public Color color;
5 }

e、获取view的组件

1 public override void CollectViews()
2 {
3 base.CollectViews();
4 // GetComponentAtPath is a handy extension method from
frame8.Logic.Misc.Other.Extensions
5 // which infers the variable's component from its type, so you won't need to
specify it yourself
6 root.GetComponentAtPath("Text", out titleText);
7 backgroundImage = root.GetComponent<Image>();
8 }

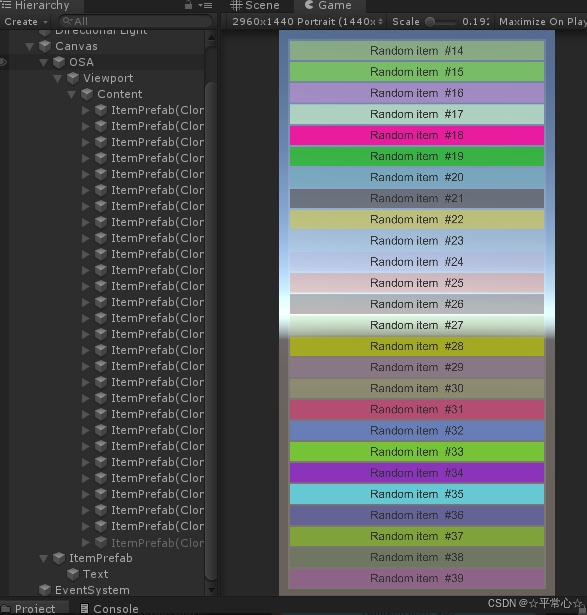

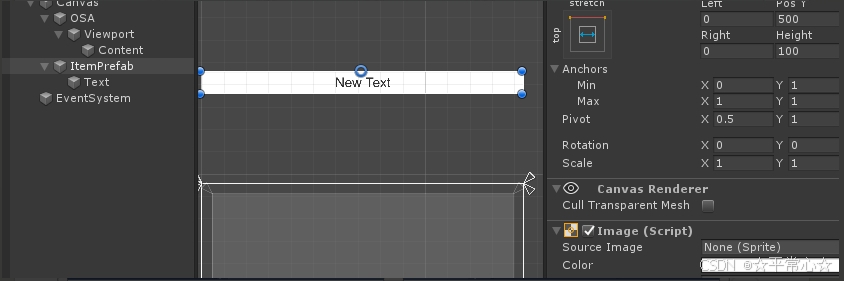

10、修改ItemPrefab
