MyBatis-Flex配置Druid（德鲁伊数据库连接池）：Spring Boot 3 集成 MyBatis-Flex 配置 Druid 连接池指南

Spring Boot 3 集成 MyBatis-Flex 配置 Druid 连接池指南

前言

本文详细讲解在 Spring Boot 3 项目中集成 MyBatis-Flex 框架后，如何正确配置 Druid 数据库连接池。针对开发者常见的配置缺失导致启动失败的场景，提供完整的解决方案和原理分析。

前置知识：
MyBatis-Flex 基础整合步骤请参考《MyBatis-Flex 快速开始（Spring Boot 3 整合 MyBatis-Flex）》

一、核心配置步骤

1. 添加依赖

在 pom.xml 中新增 Druid 官方 Starter 依赖：

<dependency><groupId>com.alibaba</groupId><artifactId>druid-spring-boot-starter</artifactId><version>1.2.24</version>
</dependency>

2. 配置数据源类型（关键！）

在 application.yml 中必须显式声明数据源类型：

spring:datasource:type: com.alibaba.druid.pool.DruidDataSource

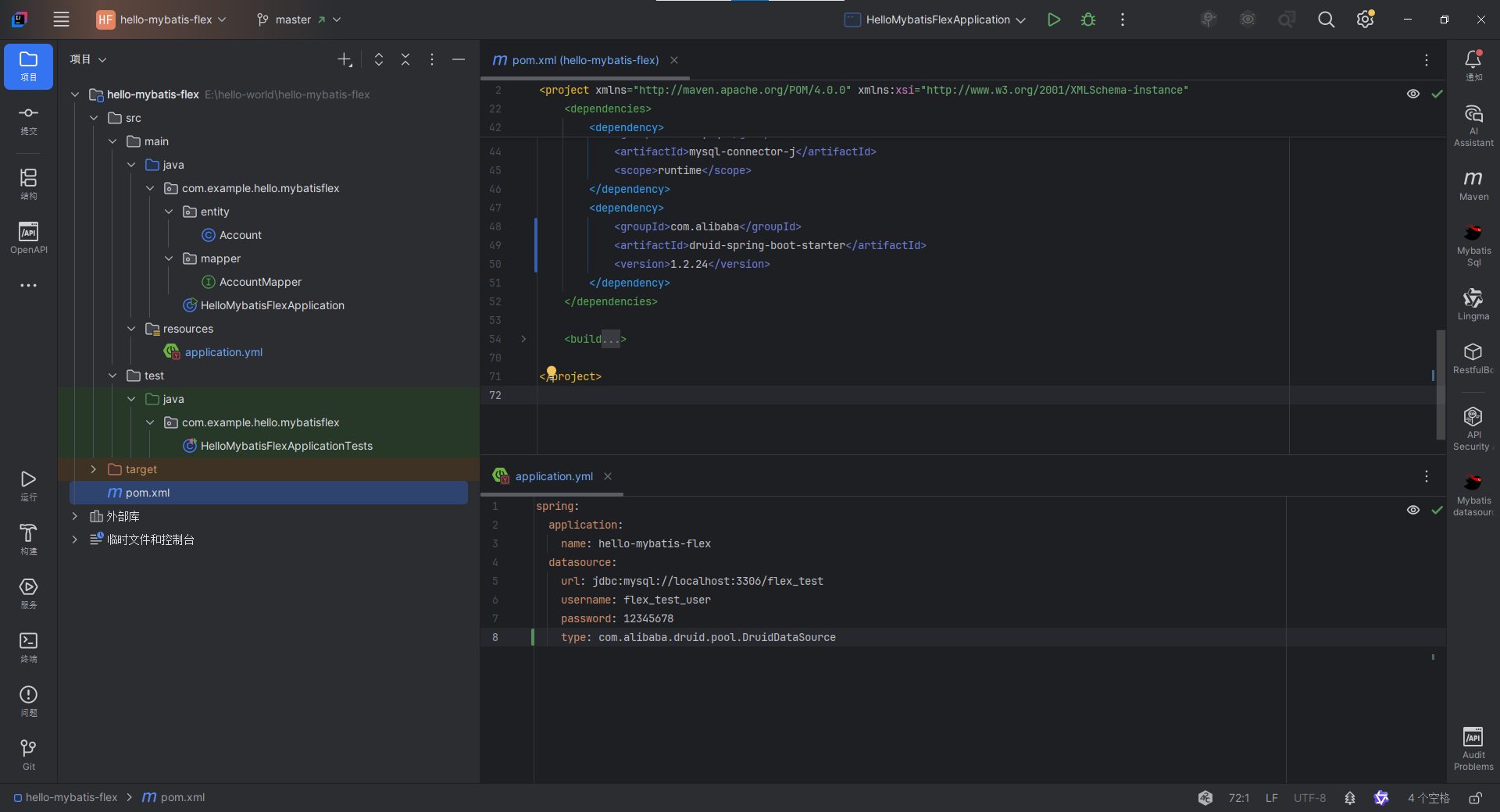

二、完整配置示例

1. 完整 POM 依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-parent</artifactId><version>3.4.5</version><relativePath/></parent><groupId>com.example</groupId><artifactId>hello-mybatis-flex</artifactId><version>0.0.1-SNAPSHOT</version><name>hello-mybatis-flex</name><description>Spring Boot 集成 MyBatis-Flex</description><properties><java.version>21</java.version></properties><dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter</artifactId></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency><dependency><groupId>com.mybatis-flex</groupId><artifactId>mybatis-flex-spring-boot3-starter</artifactId><version>1.10.9</version></dependency><dependency><groupId>com.mysql</groupId><artifactId>mysql-connector-j</artifactId><scope>runtime</scope></dependency><dependency><groupId>com.alibaba</groupId><artifactId>druid-spring-boot-starter</artifactId><version>1.2.24</version></dependency></dependencies><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId><configuration><excludes><exclude><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId></exclude></excludes></configuration></plugin></plugins></build></project>

2. 完整 YAML 配置

spring:application:name: hello-mybatis-flexdatasource:url: jdbc:mysql://localhost:3306/flex_testusername: flex_test_userpassword: 12345678# 必须显式指定 Druid 类型type: com.alibaba.druid.pool.DruidDataSource

三、官网Druid 数据源无法启动解析

使用 Druid 数据源后，SpringBoot项目无法启动，原因是在数据源的配置中，未添加 type 字段的配置。

这个并非是 MyBaits-Flex 的问题，而是 Spring 没有内置对 Druid 数据源类型的主动发现机制。若使用 hikariCP 数据源，则可以不配置 type 内容。

若把数据源配置到 mybatis-flex.datasource 下，使用 mybatis-flex 的数据源发现机制，使用 druid 则可以不用配置 type，更多文档参考：多数据源章节。

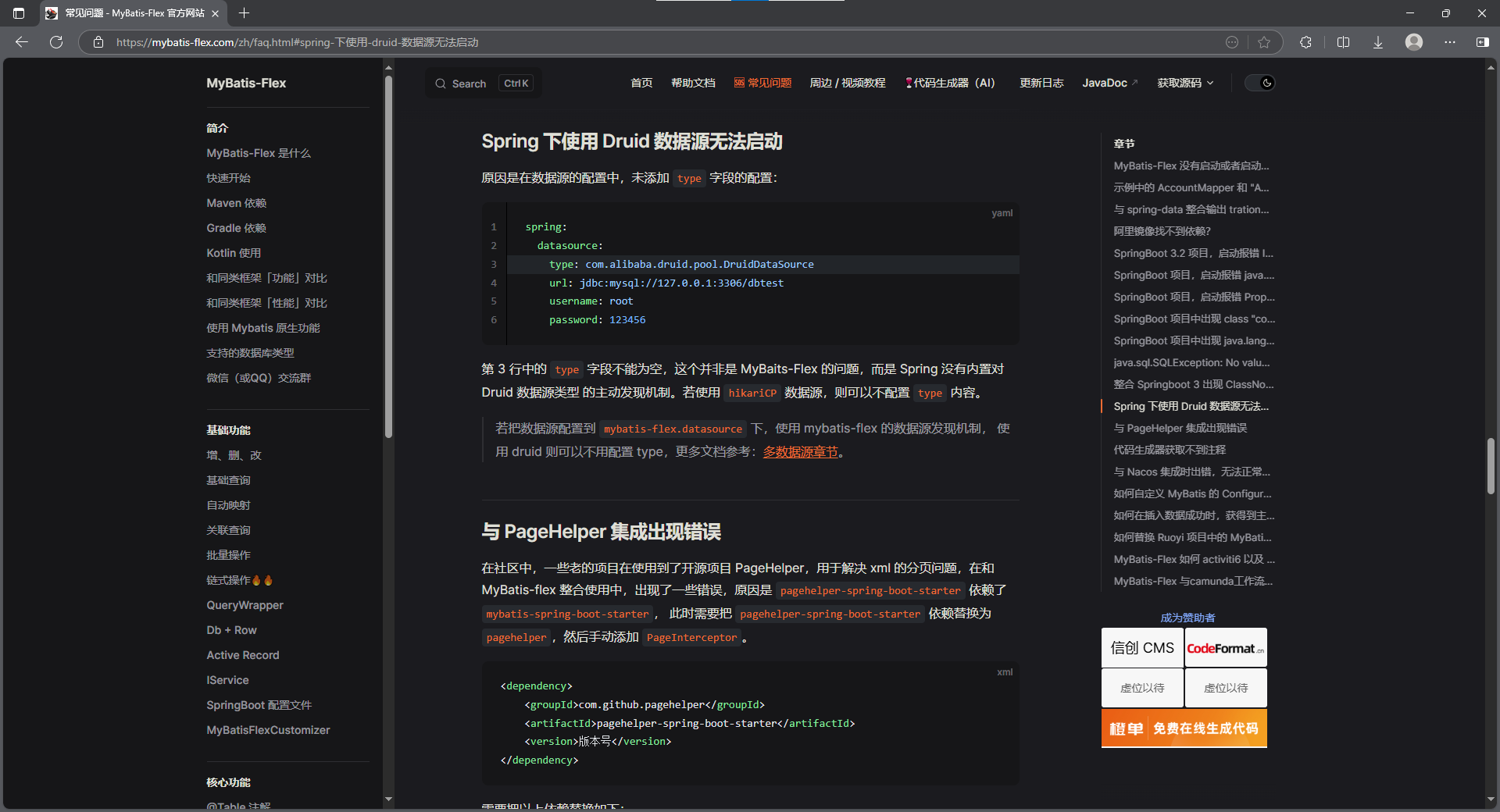

官方文档参考：
https://mybatis-flex.com/zh/faq.html#spring-下使用-druid-数据源无法启动

如果使用的是 druid 数据库连接池，则需要添加数据源类型的配置 spring.datasource.type=com.alibaba.druid.pool.DruidDataSource。

官方文档参考：
https://mybatis-flex.com/zh/faq.html#springboot-项目-启动报错-property-sqlsessionfactory-or-sqlsessiontemplate-are-required

四、原理剖析

Spring Boot 数据源加载机制

自动配置流程：
Druid 的特殊性：
由于 Druid 不是 Spring Boot 官方默认连接池，必须通过 type 参数显式指定实现类。

MyBatis-Flex 依赖关系

当数据源初始化失败时，整个 MyBatis 体系无法构建，导致 Mapper 接口未被注册为 Spring Bean。

错误现象

启动时出现以下异常：

No qualifying bean of type 'xxxMapper' available
Field xxxMapper in xxxService required a bean of type 'xxxMapper ' that could not be found.

根本原因

Spring Boot 未内置 Druid 的自动发现机制，若未通过 spring.datasource.type 指定数据源类型，将导致：

数据源无法正确初始化
MyBatis 的 Mapper 接口未被扫描注册

对比其他连接池

连接池类型	是否需要声明 type
HikariCP	否（Spring Boot 默认支持）
Druid	必须显式声明

五、报错记录

运行单元测试报错

单元测试：

package com.example.hello.mybatisflex;import com.example.hello.mybatisflex.entity.Account;
import com.example.hello.mybatisflex.mapper.AccountMapper;
import com.mybatisflex.core.query.QueryWrapper;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;import static com.example.hello.mybatisflex.entity.table.AccountTableDef.ACCOUNT;@SpringBootTest
class HelloMybatisFlexApplicationTests {@Autowiredprivate AccountMapper accountMapper;@Testvoid contextLoads() {QueryWrapper queryWrapper = QueryWrapper.create().select().where(ACCOUNT.AGE.eq(18));Account account = accountMapper.selectOneByQuery(queryWrapper);System.out.println(account);}}

单元测试报错信息：

22:29:17.899 [main] INFO org.springframework.test.context.support.AnnotationConfigContextLoaderUtils -- Could not detect default configuration classes for test class [com.example.hello.mybatisflex.HelloMybatisFlexApplicationTests]: HelloMybatisFlexApplicationTests does not declare any static, non-private, non-final, nested classes annotated with @Configuration.
22:29:18.409 [main] INFO org.springframework.boot.test.context.SpringBootTestContextBootstrapper -- Found @SpringBootConfiguration com.example.hello.mybatisflex.HelloMybatisFlexApplication for test class com.example.hello.mybatisflex.HelloMybatisFlexApplicationTests.   ____          _            __ _ _/\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \\\/  ___)| |_)| | | | | || (_| |  ) ) ) )'  |____| .__|_| |_|_| |_\__, | / / / /=========|_|==============|___/=/_/_/_/:: Spring Boot ::                (v3.4.5)2025-05-12T22:29:20.571+08:00  INFO 4944 --- [hello-mybatis-flex] [           main] c.e.h.m.HelloMybatisFlexApplicationTests : Starting HelloMybatisFlexApplicationTests using Java 21.0.1 with PID 4944 (started by SongGuanxun in E:\hello-world\hello-mybatis-flex)
2025-05-12T22:29:20.576+08:00  INFO 4944 --- [hello-mybatis-flex] [           main] c.e.h.m.HelloMybatisFlexApplicationTests : No active profile set, falling back to 1 default profile: "default"
2025-05-12T22:29:22.868+08:00  INFO 4944 --- [hello-mybatis-flex] [           main] c.e.h.m.HelloMybatisFlexApplicationTests : Started HelloMybatisFlexApplicationTests in 3.712 seconds (process running for 8.68)
2025-05-12T22:29:22.911+08:00  WARN 4944 --- [hello-mybatis-flex] [           main] o.s.test.context.TestContextManager      : Caught exception while allowing TestExecutionListener [org.springframework.test.context.support.DependencyInjectionTestExecutionListener] to prepare test instance [com.example.hello.mybatisflex.HelloMybatisFlexApplicationTests@68d651f2]org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'com.example.hello.mybatisflex.HelloMybatisFlexApplicationTests': Unsatisfied dependency expressed through field 'accountMapper': No qualifying bean of type 'com.example.hello.mybatisflex.mapper.AccountMapper' available: expected at least 1 bean which qualifies as autowire candidate. Dependency annotations: {@org.springframework.beans.factory.annotation.Autowired(required=true)}at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.resolveFieldValue(AutowiredAnnotationBeanPostProcessor.java:788) ~[spring-beans-6.2.6.jar:6.2.6]at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:768) ~[spring-beans-6.2.6.jar:6.2.6]at org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:146) ~[spring-beans-6.2.6.jar:6.2.6]at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.postProcessProperties(AutowiredAnnotationBeanPostProcessor.java:509) ~[spring-beans-6.2.6.jar:6.2.6]at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1451) ~[spring-beans-6.2.6.jar:6.2.6]at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.autowireBeanProperties(AbstractAutowireCapableBeanFactory.java:405) ~[spring-beans-6.2.6.jar:6.2.6]at org.springframework.test.context.support.DependencyInjectionTestExecutionListener.injectDependencies(DependencyInjectionTestExecutionListener.java:156) ~[spring-test-6.2.6.jar:6.2.6]at org.springframework.test.context.support.DependencyInjectionTestExecutionListener.prepareTestInstance(DependencyInjectionTestExecutionListener.java:111) ~[spring-test-6.2.6.jar:6.2.6]at org.springframework.test.context.TestContextManager.prepareTestInstance(TestContextManager.java:260) ~[spring-test-6.2.6.jar:6.2.6]at org.springframework.test.context.junit.jupiter.SpringExtension.postProcessTestInstance(SpringExtension.java:159) ~[spring-test-6.2.6.jar:6.2.6]at org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor.lambda$invokeTestInstancePostProcessors$11(ClassBasedTestDescriptor.java:378) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor.executeAndMaskThrowable(ClassBasedTestDescriptor.java:383) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor.lambda$invokeTestInstancePostProcessors$12(ClassBasedTestDescriptor.java:378) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at java.base/java.util.stream.ForEachOps$ForEachOp$OfRef.accept(ForEachOps.java:184) ~[na:na]at java.base/java.util.stream.ReferencePipeline$3$1.accept(ReferencePipeline.java:197) ~[na:na]at java.base/java.util.stream.ReferencePipeline$2$1.accept(ReferencePipeline.java:179) ~[na:na]at java.base/java.util.stream.ReferencePipeline$3$1.accept(ReferencePipeline.java:197) ~[na:na]at java.base/java.util.ArrayList$ArrayListSpliterator.forEachRemaining(ArrayList.java:1708) ~[na:na]at java.base/java.util.stream.AbstractPipeline.copyInto(AbstractPipeline.java:509) ~[na:na]at java.base/java.util.stream.AbstractPipeline.wrapAndCopyInto(AbstractPipeline.java:499) ~[na:na]at java.base/java.util.stream.ForEachOps$ForEachOp.evaluateSequential(ForEachOps.java:151) ~[na:na]at java.base/java.util.stream.ForEachOps$ForEachOp$OfRef.evaluateSequential(ForEachOps.java:174) ~[na:na]at java.base/java.util.stream.AbstractPipeline.evaluate(AbstractPipeline.java:234) ~[na:na]at java.base/java.util.stream.ReferencePipeline.forEach(ReferencePipeline.java:596) ~[na:na]at org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor.invokeTestInstancePostProcessors(ClassBasedTestDescriptor.java:377) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor.lambda$instantiateAndPostProcessTestInstance$7(ClassBasedTestDescriptor.java:290) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor.instantiateAndPostProcessTestInstance(ClassBasedTestDescriptor.java:289) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor.lambda$testInstancesProvider$5(ClassBasedTestDescriptor.java:279) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at java.base/java.util.Optional.orElseGet(Optional.java:364) ~[na:na]at org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor.lambda$testInstancesProvider$6(ClassBasedTestDescriptor.java:278) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at org.junit.jupiter.engine.execution.TestInstancesProvider.getTestInstances(TestInstancesProvider.java:31) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor.lambda$prepare$1(TestMethodTestDescriptor.java:105) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor.prepare(TestMethodTestDescriptor.java:104) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor.prepare(TestMethodTestDescriptor.java:68) ~[junit-jupiter-engine-5.11.4.jar:5.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$prepare$2(NodeTestTask.java:128) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.prepare(NodeTestTask.java:128) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.execute(NodeTestTask.java:95) ~[junit-platform-engine-1.11.4.jar:1.11.4]at java.base/java.util.ArrayList.forEach(ArrayList.java:1596) ~[na:na]at org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService.invokeAll(SameThreadHierarchicalTestExecutorService.java:41) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$6(NodeTestTask.java:160) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$8(NodeTestTask.java:146) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.Node.around(Node.java:137) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$9(NodeTestTask.java:144) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.executeRecursively(NodeTestTask.java:143) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.execute(NodeTestTask.java:100) ~[junit-platform-engine-1.11.4.jar:1.11.4]at java.base/java.util.ArrayList.forEach(ArrayList.java:1596) ~[na:na]at org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService.invokeAll(SameThreadHierarchicalTestExecutorService.java:41) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$6(NodeTestTask.java:160) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$8(NodeTestTask.java:146) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.Node.around(Node.java:137) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$9(NodeTestTask.java:144) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.executeRecursively(NodeTestTask.java:143) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.NodeTestTask.execute(NodeTestTask.java:100) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService.submit(SameThreadHierarchicalTestExecutorService.java:35) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.HierarchicalTestExecutor.execute(HierarchicalTestExecutor.java:57) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.engine.support.hierarchical.HierarchicalTestEngine.execute(HierarchicalTestEngine.java:54) ~[junit-platform-engine-1.11.4.jar:1.11.4]at org.junit.platform.launcher.core.EngineExecutionOrchestrator.execute(EngineExecutionOrchestrator.java:198) ~[junit-platform-launcher-1.11.4.jar:1.11.4]at org.junit.platform.launcher.core.EngineExecutionOrchestrator.execute(EngineExecutionOrchestrator.java:169) ~[junit-platform-launcher-1.11.4.jar:1.11.4]at org.junit.platform.launcher.core.EngineExecutionOrchestrator.execute(EngineExecutionOrchestrator.java:93) ~[junit-platform-launcher-1.11.4.jar:1.11.4]at org.junit.platform.launcher.core.EngineExecutionOrchestrator.lambda$execute$0(EngineExecutionOrchestrator.java:58) ~[junit-platform-launcher-1.11.4.jar:1.11.4]at org.junit.platform.launcher.core.EngineExecutionOrchestrator.withInterceptedStreams(EngineExecutionOrchestrator.java:141) ~[junit-platform-launcher-1.11.4.jar:1.11.4]at org.junit.platform.launcher.core.EngineExecutionOrchestrator.execute(EngineExecutionOrchestrator.java:57) ~[junit-platform-launcher-1.11.4.jar:1.11.4]at org.junit.platform.launcher.core.DefaultLauncher.execute(DefaultLauncher.java:103) ~[junit-platform-launcher-1.11.4.jar:1.11.4]at org.junit.platform.launcher.core.DefaultLauncher.execute(DefaultLauncher.java:85) ~[junit-platform-launcher-1.11.4.jar:1.11.4]at org.junit.platform.launcher.core.DelegatingLauncher.execute(DelegatingLauncher.java:47) ~[junit-platform-launcher-1.11.4.jar:1.11.4]at org.junit.platform.launcher.core.SessionPerRequestLauncher.execute(SessionPerRequestLauncher.java:63) ~[junit-platform-launcher-1.11.4.jar:1.11.4]at com.intellij.junit5.JUnit5IdeaTestRunner.startRunnerWithArgs(JUnit5IdeaTestRunner.java:57) ~[junit5-rt.jar:na]at com.intellij.rt.junit.IdeaTestRunner$Repeater$1.execute(IdeaTestRunner.java:38) ~[junit-rt.jar:na]at com.intellij.rt.execution.junit.TestsRepeater.repeat(TestsRepeater.java:11) ~[idea_rt.jar:na]at com.intellij.rt.junit.IdeaTestRunner$Repeater.startRunnerWithArgs(IdeaTestRunner.java:35) ~[junit-rt.jar:na]at com.intellij.rt.junit.JUnitStarter.prepareStreamsAndStart(JUnitStarter.java:231) ~[junit-rt.jar:na]at com.intellij.rt.junit.JUnitStarter.main(JUnitStarter.java:55) ~[junit-rt.jar:na]
Caused by: org.springframework.beans.factory.NoSuchBeanDefinitionException: No qualifying bean of type 'com.example.hello.mybatisflex.mapper.AccountMapper' available: expected at least 1 bean which qualifies as autowire candidate. Dependency annotations: {@org.springframework.beans.factory.annotation.Autowired(required=true)}at org.springframework.beans.factory.support.DefaultListableBeanFactory.raiseNoMatchingBeanFound(DefaultListableBeanFactory.java:2279) ~[spring-beans-6.2.6.jar:6.2.6]at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1702) ~[spring-beans-6.2.6.jar:6.2.6]at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1627) ~[spring-beans-6.2.6.jar:6.2.6]at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.resolveFieldValue(AutowiredAnnotationBeanPostProcessor.java:785) ~[spring-beans-6.2.6.jar:6.2.6]... 78 common frames omittedorg.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'com.example.hello.mybatisflex.HelloMybatisFlexApplicationTests': Unsatisfied dependency expressed through field 'accountMapper': No qualifying bean of type 'com.example.hello.mybatisflex.mapper.AccountMapper' available: expected at least 1 bean which qualifies as autowire candidate. Dependency annotations: {@org.springframework.beans.factory.annotation.Autowired(required=true)}at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.resolveFieldValue(AutowiredAnnotationBeanPostProcessor.java:788)at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:768)at org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:146)at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.postProcessProperties(AutowiredAnnotationBeanPostProcessor.java:509)at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1451)at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.autowireBeanProperties(AbstractAutowireCapableBeanFactory.java:405)at org.springframework.test.context.support.DependencyInjectionTestExecutionListener.injectDependencies(DependencyInjectionTestExecutionListener.java:156)at org.springframework.test.context.support.DependencyInjectionTestExecutionListener.prepareTestInstance(DependencyInjectionTestExecutionListener.java:111)at org.springframework.test.context.TestContextManager.prepareTestInstance(TestContextManager.java:260)at org.springframework.test.context.junit.jupiter.SpringExtension.postProcessTestInstance(SpringExtension.java:159)at java.base/java.util.stream.ForEachOps$ForEachOp$OfRef.accept(ForEachOps.java:184)at java.base/java.util.stream.ReferencePipeline$3$1.accept(ReferencePipeline.java:197)at java.base/java.util.stream.ReferencePipeline$2$1.accept(ReferencePipeline.java:179)at java.base/java.util.stream.ReferencePipeline$3$1.accept(ReferencePipeline.java:197)at java.base/java.util.ArrayList$ArrayListSpliterator.forEachRemaining(ArrayList.java:1708)at java.base/java.util.stream.AbstractPipeline.copyInto(AbstractPipeline.java:509)at java.base/java.util.stream.AbstractPipeline.wrapAndCopyInto(AbstractPipeline.java:499)at java.base/java.util.stream.ForEachOps$ForEachOp.evaluateSequential(ForEachOps.java:151)at java.base/java.util.stream.ForEachOps$ForEachOp$OfRef.evaluateSequential(ForEachOps.java:174)at java.base/java.util.stream.AbstractPipeline.evaluate(AbstractPipeline.java:234)at java.base/java.util.stream.ReferencePipeline.forEach(ReferencePipeline.java:596)at java.base/java.util.Optional.orElseGet(Optional.java:364)at java.base/java.util.ArrayList.forEach(ArrayList.java:1596)at java.base/java.util.ArrayList.forEach(ArrayList.java:1596)
Caused by: org.springframework.beans.factory.NoSuchBeanDefinitionException: No qualifying bean of type 'com.example.hello.mybatisflex.mapper.AccountMapper' available: expected at least 1 bean which qualifies as autowire candidate. Dependency annotations: {@org.springframework.beans.factory.annotation.Autowired(required=true)}at org.springframework.beans.factory.support.DefaultListableBeanFactory.raiseNoMatchingBeanFound(DefaultListableBeanFactory.java:2279)at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1702)at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1627)at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.resolveFieldValue(AutowiredAnnotationBeanPostProcessor.java:785)... 23 more进程已结束，退出代码为 -1

运行应用失败

当Mapper接口被依赖注入到其他组件中（比如Service中）时，会启动失败。

下面是依赖注入Service的代码示例：

package com.example.hello.mybatisflex.service;import com.example.hello.mybatisflex.entity.Account;
import com.example.hello.mybatisflex.mapper.AccountMapper;
import com.mybatisflex.core.query.QueryWrapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;import static com.example.hello.mybatisflex.entity.table.AccountTableDef.ACCOUNT;@Service
public class AccountService {@Autowiredprivate AccountMapper accountMapper;public void test() {QueryWrapper queryWrapper = QueryWrapper.create().select().where(ACCOUNT.AGE.eq(18));Account account = accountMapper.selectOneByQuery(queryWrapper);System.out.println(account);}}

启动失败，报错如下：

.   ____          _            __ _ _/\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \\\/  ___)| |_)| | | | | || (_| |  ) ) ) )'  |____| .__|_| |_|_| |_\__, | / / / /=========|_|==============|___/=/_/_/_/:: Spring Boot ::                (v3.4.5)2025-05-12T22:51:15.777+08:00  INFO 13200 --- [hello-mybatis-flex] [           main] c.e.h.m.HelloMybatisFlexApplication      : Starting HelloMybatisFlexApplication using Java 21.0.1 with PID 13200 (E:\hello-world\hello-mybatis-flex\target\classes started by SongGuanxun in E:\hello-world\hello-mybatis-flex)
2025-05-12T22:51:15.785+08:00  INFO 13200 --- [hello-mybatis-flex] [           main] c.e.h.m.HelloMybatisFlexApplication      : No active profile set, falling back to 1 default profile: "default"
2025-05-12T22:51:17.561+08:00  WARN 13200 --- [hello-mybatis-flex] [           main] s.c.a.AnnotationConfigApplicationContext : Exception encountered during context initialization - cancelling refresh attempt: org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'accountService': Unsatisfied dependency expressed through field 'accountMapper': No qualifying bean of type 'com.example.hello.mybatisflex.mapper.AccountMapper' available: expected at least 1 bean which qualifies as autowire candidate. Dependency annotations: {@org.springframework.beans.factory.annotation.Autowired(required=true)}
2025-05-12T22:51:17.586+08:00  INFO 13200 --- [hello-mybatis-flex] [           main] .s.b.a.l.ConditionEvaluationReportLogger : Error starting ApplicationContext. To display the condition evaluation report re-run your application with 'debug' enabled.
2025-05-12T22:51:17.699+08:00 ERROR 13200 --- [hello-mybatis-flex] [           main] o.s.b.d.LoggingFailureAnalysisReporter   : ***************************
APPLICATION FAILED TO START
***************************Description:Field accountMapper in com.example.hello.mybatisflex.service.AccountService required a bean of type 'com.example.hello.mybatisflex.mapper.AccountMapper' that could not be found.The injection point has the following annotations:- @org.springframework.beans.factory.annotation.Autowired(required=true)Action:Consider defining a bean of type 'com.example.hello.mybatisflex.mapper.AccountMapper' in your configuration.进程已结束，退出代码为 1
