如何使用 vxe-gantt table 甘特图来实现多个维度视图展示，支持切换年视图、月视图、周视图等，通过 task-view-config 来配置日期轴。
https://gantt.vxeui.com

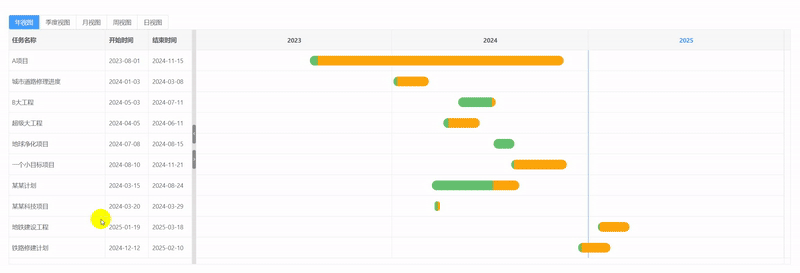

效果
代码
通过 task-view-config.scales 可以灵活的切换显示模式
<template><div><vxe-radio-group v-model="viewMode" @change="changeViewEvent"><vxe-radio-button label="1" content="年视图"></vxe-radio-button><vxe-radio-button label="2" content="季度视图"></vxe-radio-button><vxe-radio-button label="3" content="月视图"></vxe-radio-button><vxe-radio-button label="4" content="周视图"></vxe-radio-button><vxe-radio-button label="5" content="日视图"></vxe-radio-button></vxe-radio-group><vxe-gantt v-bind="ganttOptions"></vxe-gantt></div>
</template><script setup>
import { reactive, ref } from 'vue'const viewMode = ref('1')const taskViewConfig = reactive({scales: ['year']
})const ganttOptions = reactive({border: true,taskBarConfig: {showProgress: true,barStyle: {round: true,bgColor: '#fca60b',completedBgColor: '#65c16f'}},taskViewConfig,columns: [{ field: 'name', title: '任务名称' },{ field: 'start', title: '开始时间', width: 100 },{ field: 'end', title: '结束时间', width: 100 }],data: [{ id: 10001, name: 'A项目', start: '2023-08-01', end: '2024-11-15', progress: 3 },{ id: 10002, name: '城市道路修理进度', start: '2024-01-03', end: '2024-03-08', progress: 10 },{ id: 10003, name: 'B大工程', start: '2024-05-03', end: '2024-07-11', progress: 90 },{ id: 10004, name: '超级大工程', start: '2024-04-05', end: '2024-06-11', progress: 15 },{ id: 10005, name: '地球净化项目', start: '2024-07-08', end: '2024-08-15', progress: 100 },{ id: 10006, name: '一个小目标项目', start: '2024-08-10', end: '2024-11-21', progress: 5 },{ id: 10007, name: '某某计划', start: '2024-03-15', end: '2024-08-24', progress: 70 },{ id: 10008, name: '某某科技项目', start: '2024-03-20', end: '2024-03-29', progress: 50 },{ id: 10009, name: '地铁建设工程', start: '2025-01-19', end: '2025-03-18', progress: 5 },{ id: 10010, name: '铁路修建计划', start: '2024-12-12', end: '2025-02-10', progress: 10 }]
})const changeViewEvent = () => {switch (viewMode.value) {case '1':taskViewConfig.scales = ['year']breakcase '2':taskViewConfig.scales = ['year', 'quarter']breakcase '3':taskViewConfig.scales = ['year', 'month']breakcase '4':taskViewConfig.scales = ['year', 'week']breakcase '5':taskViewConfig.scales = ['month', 'day', 'date']break}
}
</script>
https://gitee.com/x-extends/vxe-gantt
