第三次作业
一、作业内容
作业①:
要求：指定一个网站，爬取这个网站中的所有的所有图片，例如：中国气象网（http://www.weather.com.cn）。实现单线程和多线程的方式爬取。
–务必控制总页数（学号尾数2位）、总下载的图片数量（尾数后3位）等限制爬取的措施。
（1）代码
import requests
import os
from bs4 import BeautifulSoup
import re
from urllib.parse import urljoin
import time
import threading
from concurrent.futures import ThreadPoolExecutor, as_completedclass WeatherImageSpider:def __init__(self, max_pages=7, max_images=107): # 根据学号102302107调整：页数7，图片107self.max_pages = max_pagesself.max_images = max_imagesself.downloaded_count = 0self.base_url = "http://www.weather.com.cn/"self.images_dir = "images"self.session = requests.Session()self.session.headers.update({'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.124 Safari/537.36'})if not os.path.exists(self.images_dir):os.makedirs(self.images_dir)def download_image(self, img_url, filename):"""下载单张图片"""try:response = self.session.get(img_url, timeout=10)if response.status_code == 200:filepath = os.path.join(self.images_dir, filename)with open(filepath, 'wb') as f:f.write(response.content)print(f"下载成功: {img_url} -> {filename}")return Trueexcept Exception as e:print(f"下载失败 {img_url}: {e}")return Falsedef extract_images_from_page(self, url):"""从页面提取图片链接"""try:response = self.session.get(url, timeout=10)response.encoding = 'utf-8'soup = BeautifulSoup(response.text, 'html.parser')images = []# 查找各种图片标签for img in soup.find_all('img'):src = img.get('src') or img.get('data-src')if src:full_url = urljoin(url, src)# 过滤有效图片if any(ext in full_url.lower() for ext in ['.jpg', '.jpeg', '.png', '.gif', '.webp']):if 'icon' not in full_url.lower() and 'logo' not in full_url.lower():images.append(full_url)return list(set(images)) # 去重except Exception as e:print(f"提取页面图片失败 {url}: {e}")return []def get_pages_to_crawl(self):"""获取要爬取的页面列表"""# 中国气象网的主要板块sections = ["weather/", "forecast/", "alarm/", "radar/","satellite/", "typhoon/", "disaster/"]return [urljoin(self.base_url, section) for section in sections[:self.max_pages]]def run_single_thread(self):"""单线程爬取"""print("开始单线程爬取图片...")print(f"限制参数: 最大页数={self.max_pages}, 最大图片数={self.max_images}")pages = self.get_pages_to_crawl()for i, page_url in enumerate(pages):if self.downloaded_count >= self.max_images:print(f"已达到图片数量限制 {self.max_images}，停止爬取")breakprint(f"正在爬取页面 [{i + 1}/{len(pages)}]: {page_url}")image_urls = self.extract_images_from_page(page_url)print(f"在该页面找到 {len(image_urls)} 张图片")for j, img_url in enumerate(image_urls):if self.downloaded_count >= self.max_images:break# 生成文件名ext = '.jpg'if '.png' in img_url.lower():ext = '.png'elif '.gif' in img_url.lower():ext = '.gif'filename = f"image_{self.downloaded_count + 1}{ext}"if self.download_image(img_url, filename):self.downloaded_count += 1time.sleep(0.5) # 礼貌延迟print(f"单线程爬取完成，共下载 {self.downloaded_count} 张图片")class MultiThreadWeatherSpider(WeatherImageSpider):def __init__(self, max_pages=7, max_images=107, max_workers=3):super().__init__(max_pages, max_images)self.max_workers = max_workersself.lock = threading.Lock()def download_worker(self, img_url):"""多线程下载工作函数"""if self.downloaded_count >= self.max_images:return None# 生成文件名ext = '.jpg'if '.png' in img_url.lower():ext = '.png'elif '.gif' in img_url.lower():ext = '.gif'filename = f"mt_image_{self.downloaded_count + 1}{ext}"success = self.download_image(img_url, filename)if success:with self.lock:if self.downloaded_count < self.max_images: # 双重检查self.downloaded_count += 1return img_urlreturn Nonedef run_multi_thread(self):"""多线程爬取"""print("开始多线程爬取图片...")print(f"限制参数: 最大页数={self.max_pages}, 最大图片数={self.max_images}")pages = self.get_pages_to_crawl()all_image_urls = []# 先收集所有图片链接for i, page_url in enumerate(pages):print(f"收集图片链接 [{i + 1}/{len(pages)}]: {page_url}")image_urls = self.extract_images_from_page(page_url)all_image_urls.extend(image_urls)if len(all_image_urls) >= self.max_images * 2: # 收集足够多的链接breakprint(f"共收集到 {len(all_image_urls)} 个图片链接")all_image_urls = all_image_urls[:self.max_images * 2] # 限制数量# 使用线程池下载with ThreadPoolExecutor(max_workers=self.max_workers) as executor:futures = []for img_url in all_image_urls:if self.downloaded_count >= self.max_images:breakfuture = executor.submit(self.download_worker, img_url)futures.append(future)time.sleep(0.1) # 控制提交速度# 等待完成completed = 0for future in as_completed(futures):try:result = future.result(timeout=30)completed += 1if result and completed % 10 == 0:print(f"已完成 {completed}/{len(futures)} 个下载任务")except Exception as e:print(f"下载任务异常: {e}")print(f"多线程爬取完成，共下载 {self.downloaded_count} 张图片")if __name__ == "__main__":print("=" * 60)print("作业①：中国气象网图片爬虫")print("学号: 102302107 -> 页数限制: 7, 图片数量限制: 107")print("=" * 60)# 单线程爬取print("\n1. 单线程爬取开始...")spider_single = WeatherImageSpider(max_pages=7, max_images=107)spider_single.run_single_thread()# 多线程爬取（使用不同的图片目录）print("\n2. 多线程爬取开始...")spider_multi = MultiThreadWeatherSpider(max_pages=7, max_images=107)spider_multi.images_dir = "images_mt" # 使用不同的目录if not os.path.exists(spider_multi.images_dir):os.makedirs(spider_multi.images_dir)spider_multi.run_multi_thread()print("\n" + "=" * 60)print("作业①完成！")print("=" * 60)

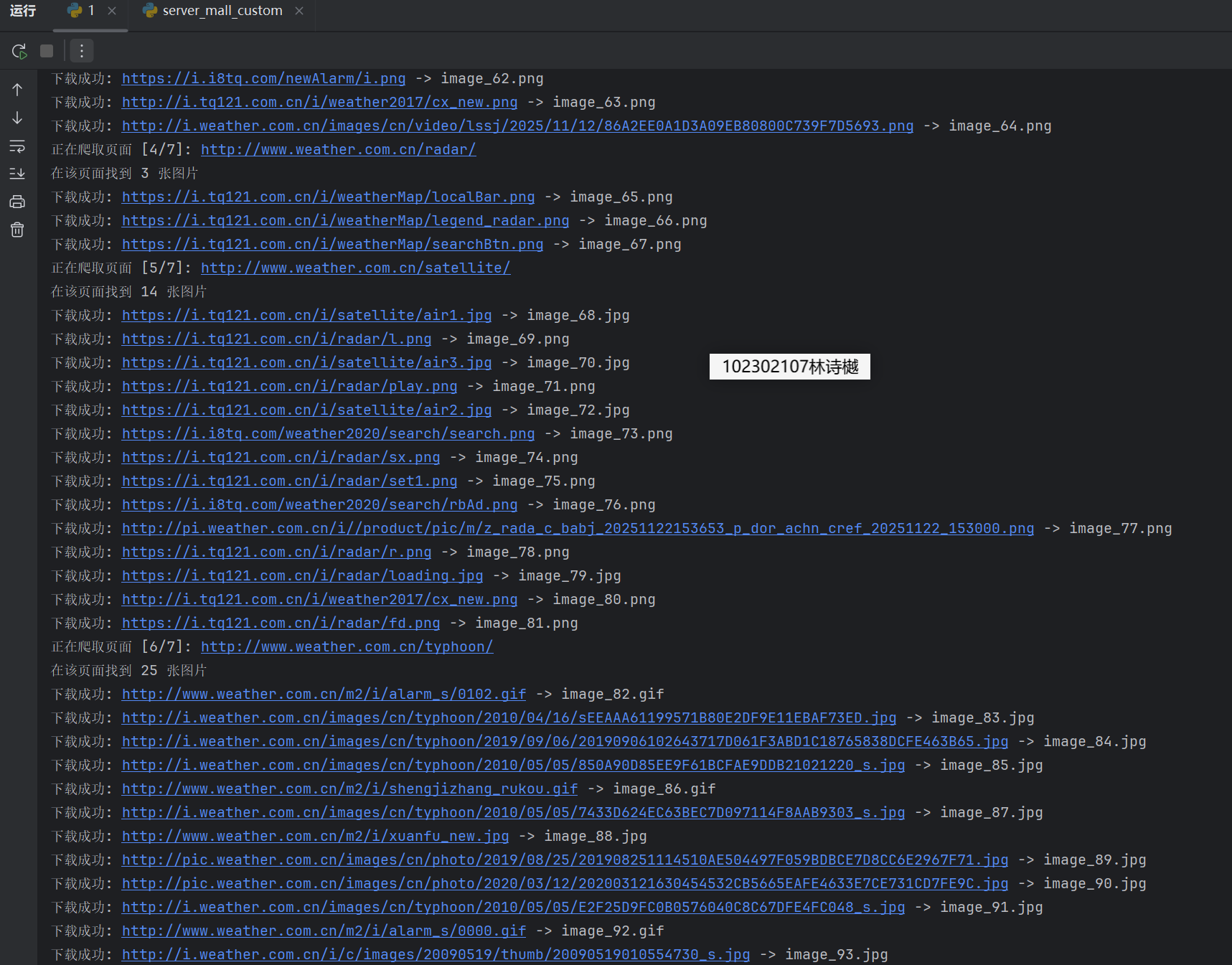

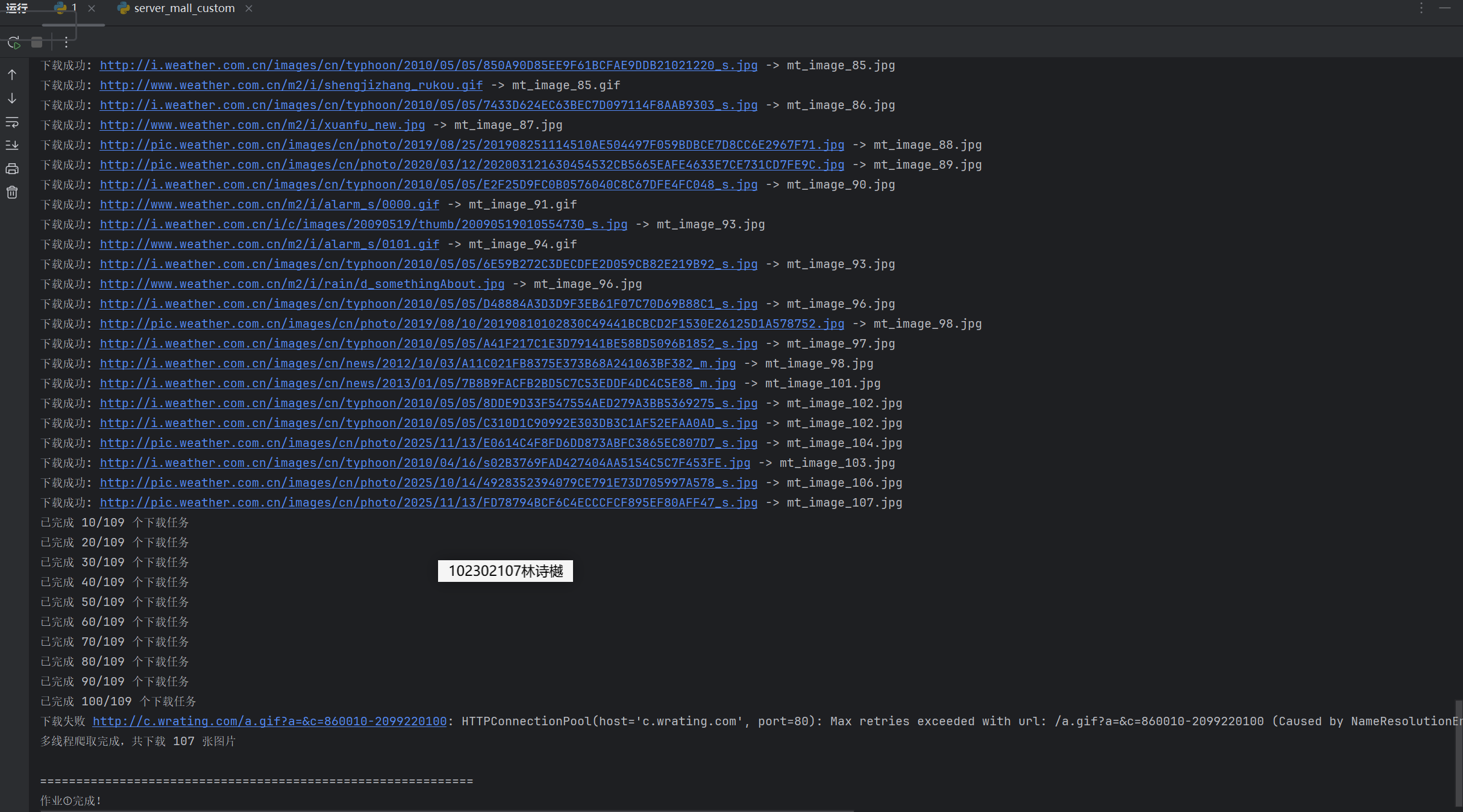

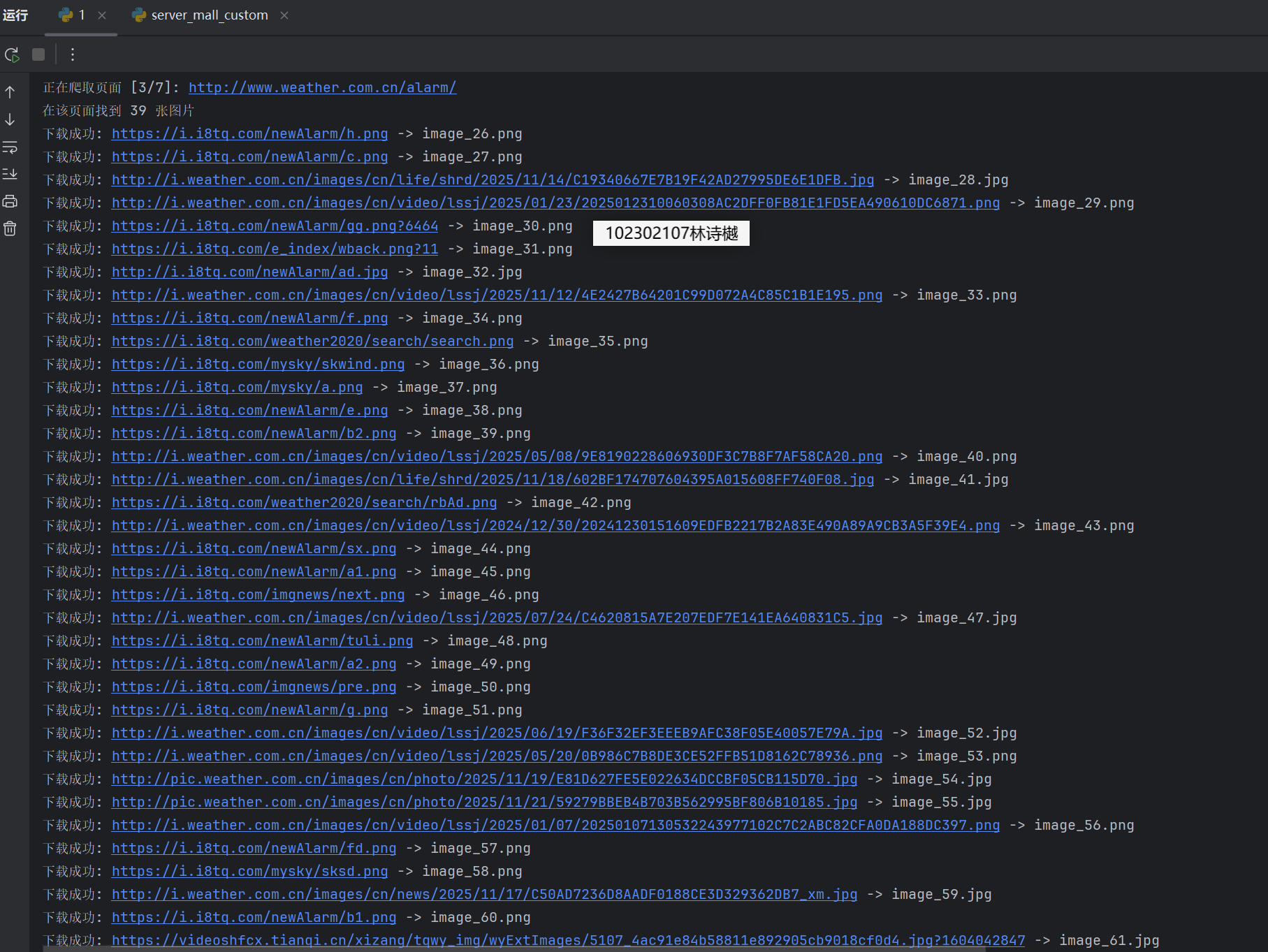

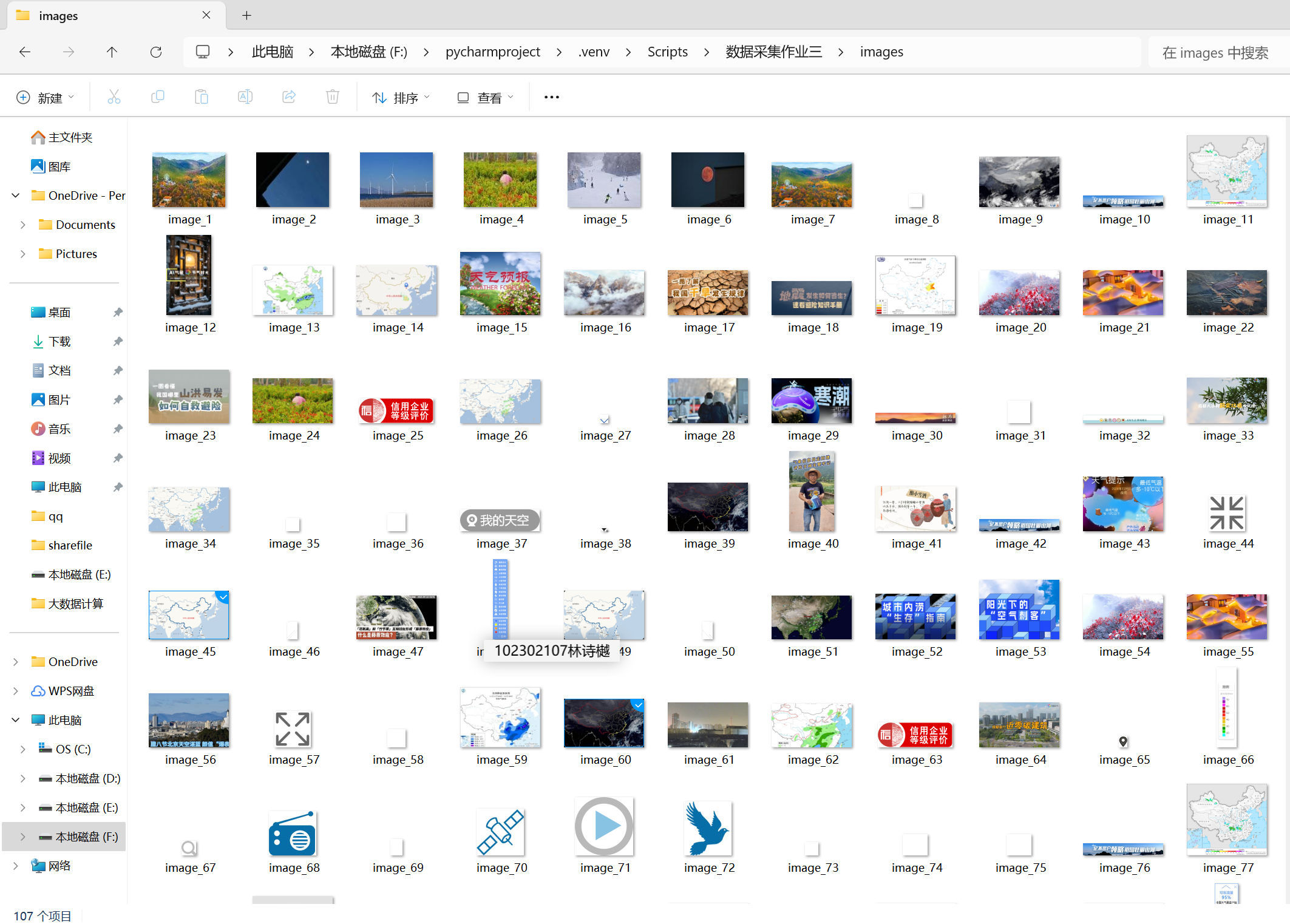

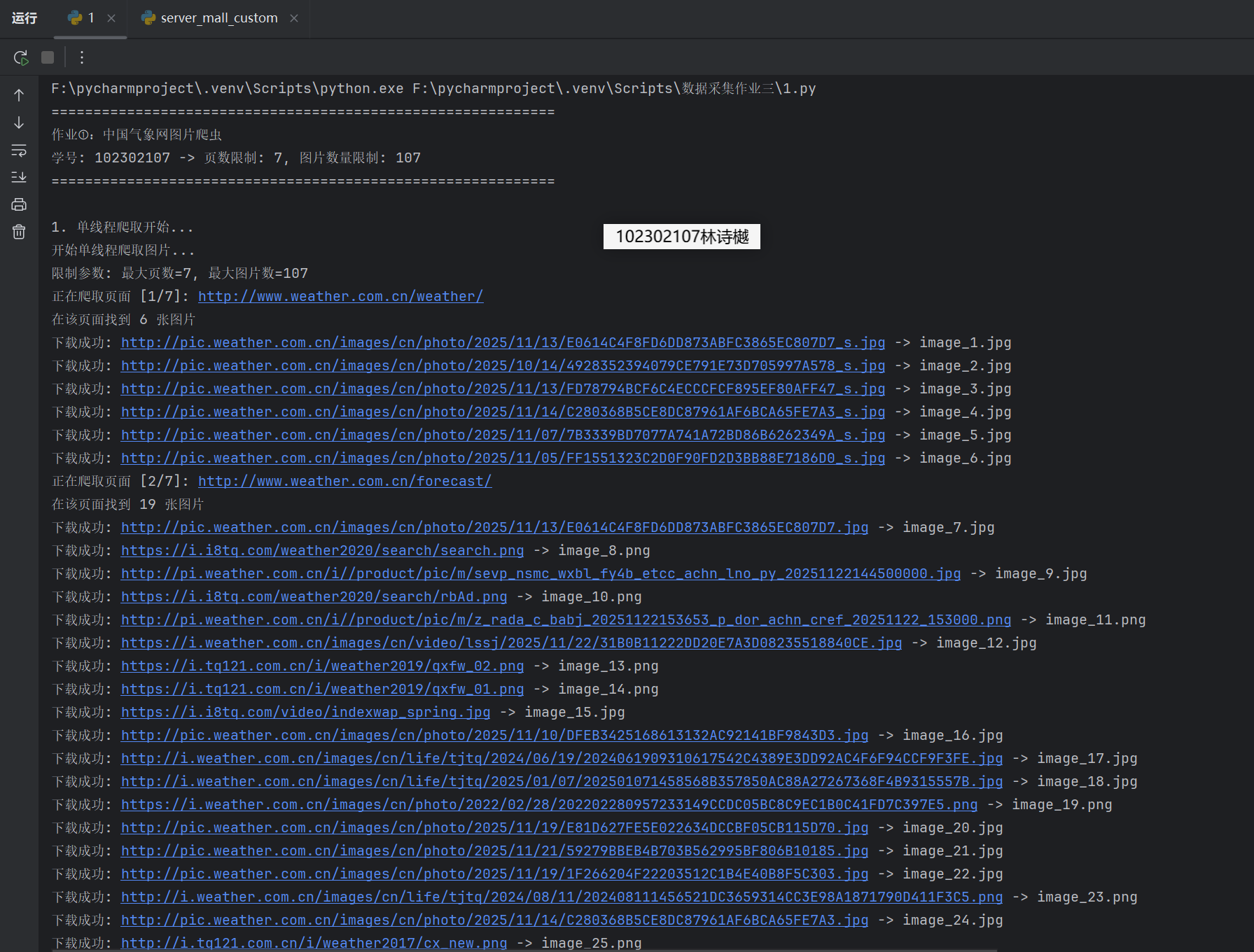

输出信息: 将下载的Url信息在控制台输出，并将下载的图片存储在images子文件中，并给出截图。

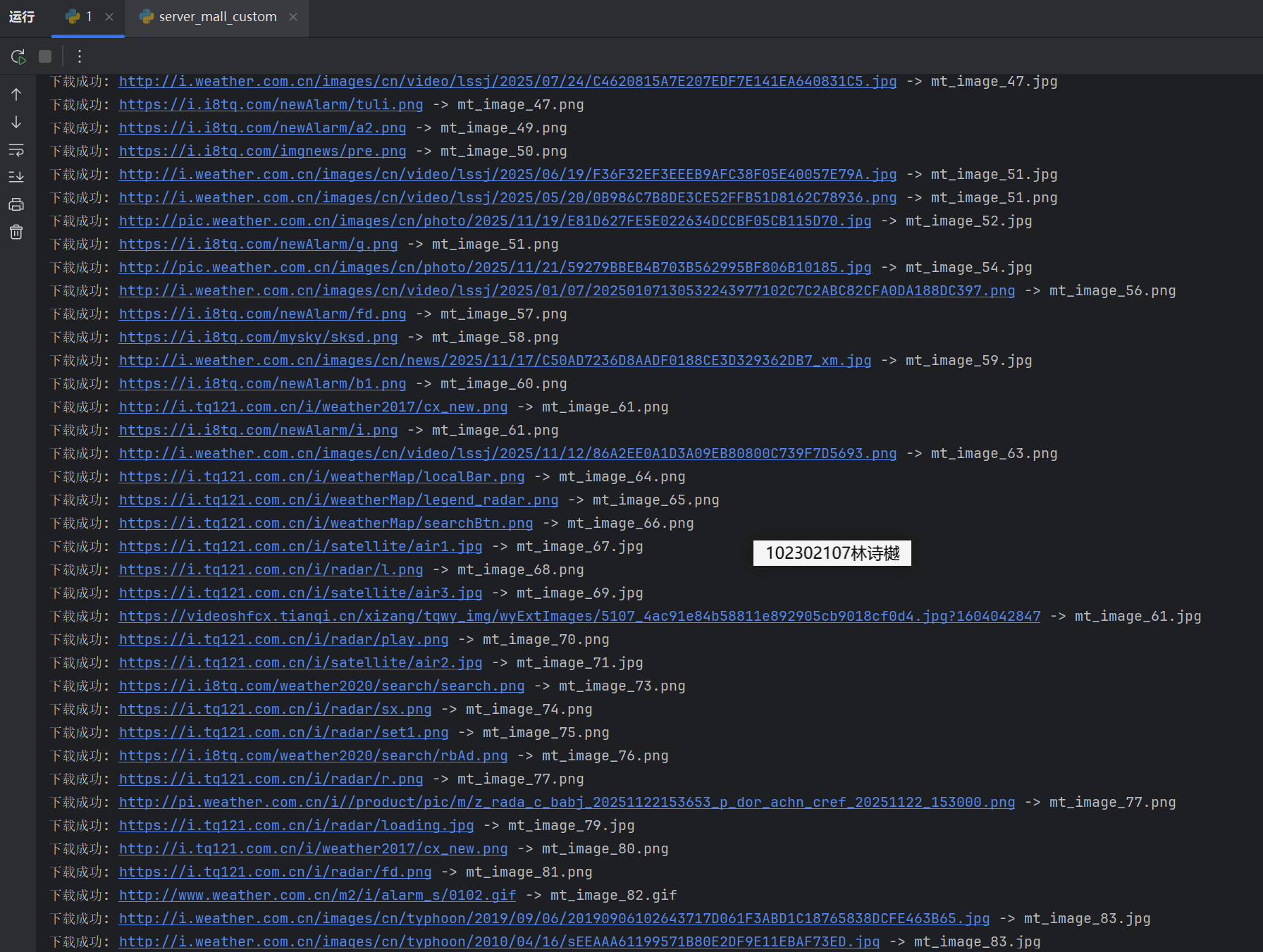

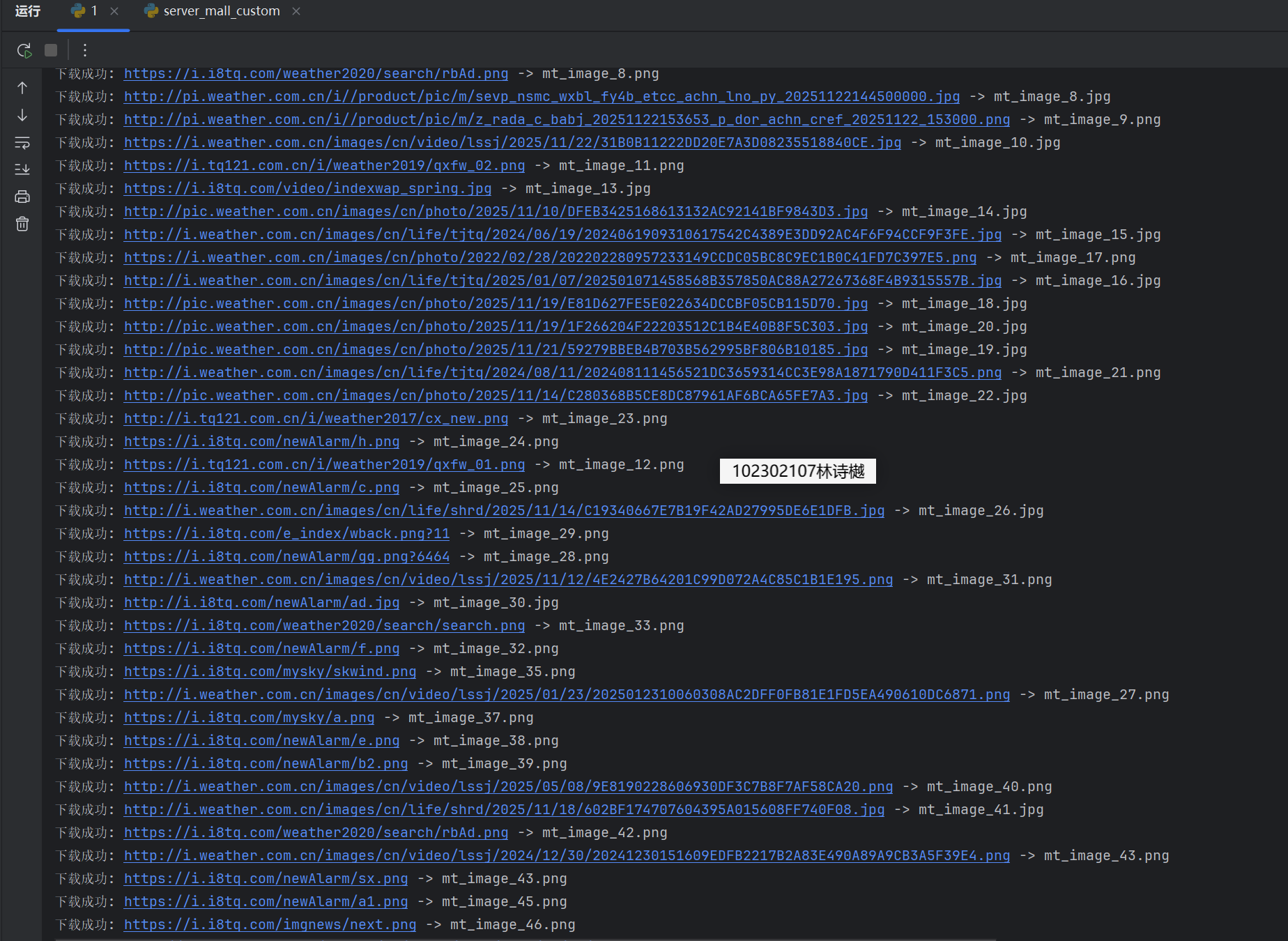

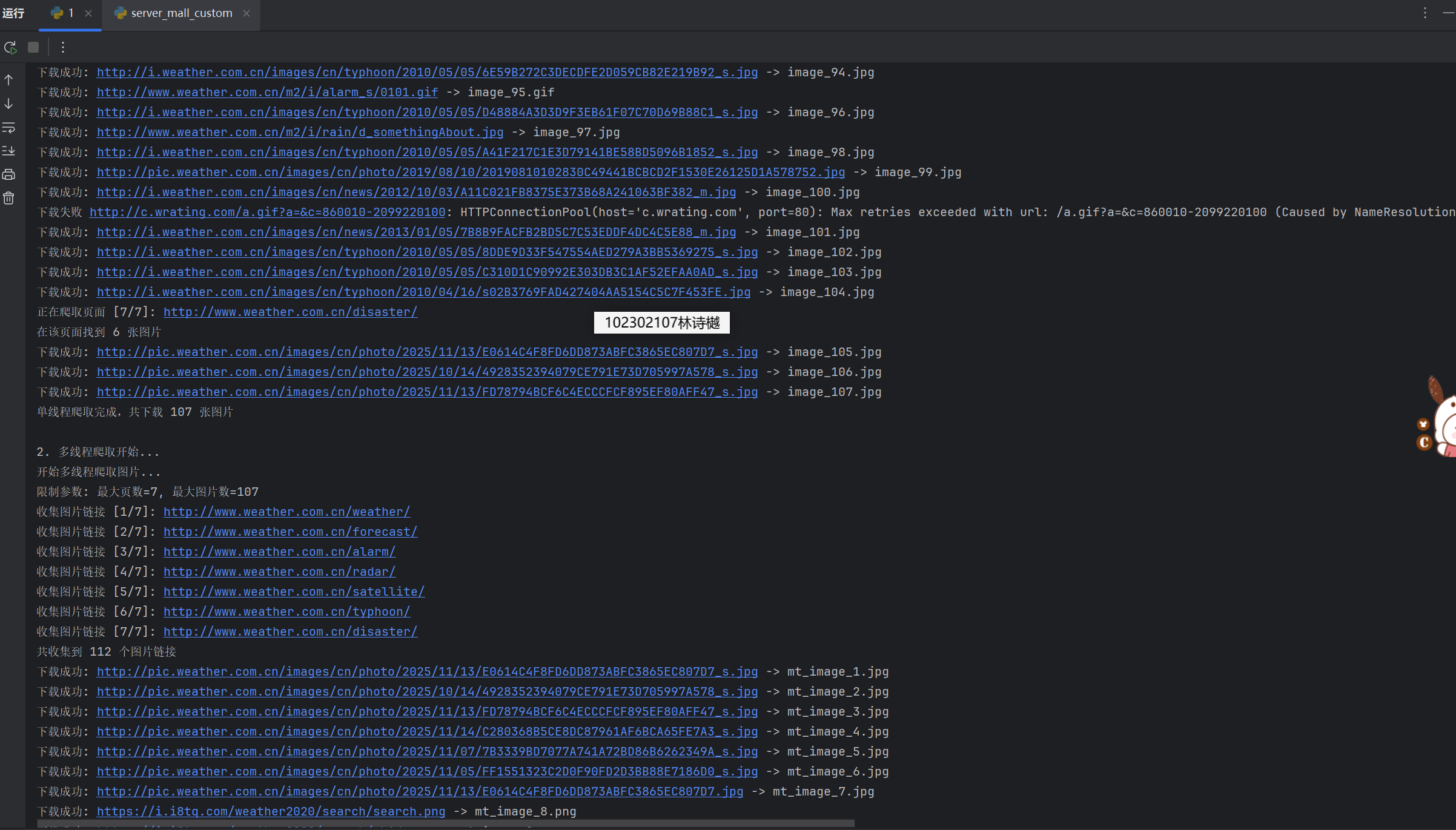

运行结果：
Gitee文件夹链接：https://gitee.com/ls-yue/2025_crawl_project/blob/master/作业3/weather_spider.py
（2）心得体会：通过本次气象图片爬取作业，我深刻体会到多线程技术在网络爬虫中的巨大优势。单线程爬取虽然逻辑简单，但效率低下；而多线程通过并发请求显著提升了下载速度。在实现过程中，我掌握了线程池的管理、资源竞争的处理以及异常控制机制。同时，面对网站反爬机制时，合理设置请求间隔和模拟真实浏览器行为至关重要。这次实践让我对Python并发编程有了更深入的理解。
作业②
要求：熟练掌握 scrapy 中 Item、Pipeline 数据的序列化输出方法；使用scrapy框架+Xpath+MySQL数据库存储技术路线爬取股票相关信息。
候选网站：东方财富网：https://www.eastmoney.com/
（1）代码：
（a）编辑eastmoney_stock/settings.py：
# Scrapy settings for eastmoney_stock project
#
# For simplicity, this file contains only settings considered important or
# commonly used. You can find more settings consulting the documentation:
#
# https://docs.scrapy.org/en/latest/topics/settings.html
# https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
# https://docs.scrapy.org/en/latest/topics/spider-middleware.htmlBOT_NAME = "eastmoney_stock"SPIDER_MODULES = ["eastmoney_stock.spiders"]
NEWSPIDER_MODULE = "eastmoney_stock.spiders"ADDONS = {}# 启用MySQL Pipeline
ITEM_PIPELINES = {'eastmoney_stock.pipelines.MySQLPipeline': 300,'eastmoney_stock.pipelines.JsonPipeline': 200,'eastmoney_stock.pipelines.CsvPipeline': 100,
}
# Crawl responsibly by identifying yourself (and your website) on the user-agent
#USER_AGENT = "eastmoney_stock (+http://www.yourdomain.com)"# Obey robots.txt rules
# MySQL配置
MYSQL_HOST = 'localhost'
MYSQL_USER = 'root'
MYSQL_PASSWORD = '744983'
MYSQL_DATABASE = 'stock_db'
MYSQL_PORT = 3306# 爬虫配置
ROBOTSTXT_OBEY = False# Concurrency and throttling settings
#CONCURRENT_REQUESTS = 16
CONCURRENT_REQUESTS_PER_DOMAIN = 1
DOWNLOAD_DELAY = 1# 其他设置...
FEED_FORMAT = 'json'
FEED_URI = 'stock_data.json'
# Disable cookies (enabled by default)
#COOKIES_ENABLED = False# Disable Telnet Console (enabled by default)
#TELNETCONSOLE_ENABLED = False# Override the default request headers:
#DEFAULT_REQUEST_HEADERS = {
# "Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
# "Accept-Language": "en",
#}# Enable or disable spider middlewares
# See https://docs.scrapy.org/en/latest/topics/spider-middleware.html
#SPIDER_MIDDLEWARES = {
# "eastmoney_stock.middlewares.EastmoneyStockSpiderMiddleware": 543,
#}# Enable or disable downloader middlewares
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
#DOWNLOADER_MIDDLEWARES = {
# "eastmoney_stock.middlewares.EastmoneyStockDownloaderMiddleware": 543,
#}# Enable or disable extensions
# See https://docs.scrapy.org/en/latest/topics/extensions.html
#EXTENSIONS = {
# "scrapy.extensions.telnet.TelnetConsole": None,
#}# Configure item pipelines
# See https://docs.scrapy.org/en/latest/topics/item-pipeline.html
#ITEM_PIPELINES = {
# "eastmoney_stock.pipelines.EastmoneyStockPipeline": 300,
#}# Enable and configure the AutoThrottle extension (disabled by default)
# See https://docs.scrapy.org/en/latest/topics/autothrottle.html
#AUTOTHROTTLE_ENABLED = True
# The initial download delay
#AUTOTHROTTLE_START_DELAY = 5
# The maximum download delay to be set in case of high latencies
#AUTOTHROTTLE_MAX_DELAY = 60
# The average number of requests Scrapy should be sending in parallel to
# each remote server
#AUTOTHROTTLE_TARGET_CONCURRENCY = 1.0
# Enable showing throttling stats for every response received:
#AUTOTHROTTLE_DEBUG = False# Enable and configure HTTP caching (disabled by default)
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html#httpcache-middleware-settings
#HTTPCACHE_ENABLED = True
#HTTPCACHE_EXPIRATION_SECS = 0
#HTTPCACHE_DIR = "httpcache"
#HTTPCACHE_IGNORE_HTTP_CODES = []
#HTTPCACHE_STORAGE = "scrapy.extensions.httpcache.FilesystemCacheStorage"# Set settings whose default value is deprecated to a future-proof value
FEED_EXPORT_ENCODING = "utf-8"
（b）编辑eastmoney_stock/pipelines.py：
import pymysql
import logging
from itemadapter import ItemAdapter
import json
import csvclass MySQLPipeline:def __init__(self, mysql_config):self.mysql_config = mysql_configself.connection = Noneself.cursor = None@classmethoddef from_crawler(cls, crawler):return cls(mysql_config={'host': crawler.settings.get('MYSQL_HOST', 'localhost'),'user': crawler.settings.get('MYSQL_USER', 'root'),'password': crawler.settings.get('MYSQL_PASSWORD', ''),'database': crawler.settings.get('MYSQL_DATABASE', 'stock_db'),'port': crawler.settings.get('MYSQL_PORT', 3306),'charset': crawler.settings.get('MYSQL_CHARSET', 'utf8mb4'),'cursorclass': pymysql.cursors.DictCursor})def open_spider(self, spider):"""爬虫启动时连接数据库"""try:self.connection = pymysql.connect(**self.mysql_config)self.cursor = self.connection.cursor()self.create_table()logging.info("✓ MySQL数据库连接成功")except Exception as e:logging.error(f"✗ 数据库连接失败: {e}")# 尝试创建数据库self.create_database_if_not_exists()def create_database_if_not_exists(self):"""如果数据库不存在则创建"""try:# 连接但不指定数据库temp_config = self.mysql_config.copy()temp_config.pop('database', None)connection = pymysql.connect(**temp_config)with connection.cursor() as cursor:cursor.execute(f"CREATE DATABASE IF NOT EXISTS {self.mysql_config['database']} CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci")logging.info(f"✓ 创建数据库: {self.mysql_config['database']}")connection.commit()connection.close()# 重新连接指定数据库self.connection = pymysql.connect(**self.mysql_config)self.create_table()except Exception as e:logging.error(f"✗ 创建数据库失败: {e}")def create_table(self):"""创建股票数据表（使用英文表头）"""create_table_sql = """CREATE TABLE IF NOT EXISTS stock_data (id INT AUTO_INCREMENT PRIMARY KEY,stock_code VARCHAR(20) NOT NULL COMMENT '股票代码',stock_name VARCHAR(100) NOT NULL COMMENT '股票名称',latest_price DECIMAL(10,2) COMMENT '最新报价',change_percent VARCHAR(20) COMMENT '涨跌幅',change_amount DECIMAL(10,2) COMMENT '涨跌额',volume VARCHAR(50) COMMENT '成交量',amplitude VARCHAR(20) COMMENT '振幅',high_price DECIMAL(10,2) COMMENT '最高价',low_price DECIMAL(10,2) COMMENT '最低价',open_price DECIMAL(10,2) COMMENT '今开价',prev_close DECIMAL(10,2) COMMENT '昨收价',update_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP COMMENT '更新时间',UNIQUE KEY unique_stock (stock_code)) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci COMMENT='股票数据表'"""try:self.cursor.execute(create_table_sql)self.connection.commit()logging.info("✓ 股票数据表创建/验证成功")except Exception as e:logging.error(f"✗ 创建表失败: {e}")def process_item(self, item, spider):"""处理每个item并存入MySQL"""try:# 构建插入SQL（使用英文字段名）sql = """INSERT INTO stock_data (stock_code, stock_name, latest_price, change_percent, change_amount, volume, amplitude, high_price, low_price, open_price, prev_close) VALUES (%s, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s)ON DUPLICATE KEY UPDATEstock_name = VALUES(stock_name),latest_price = VALUES(latest_price),change_percent = VALUES(change_percent),change_amount = VALUES(change_amount),volume = VALUES(volume),amplitude = VALUES(amplitude),high_price = VALUES(high_price),low_price = VALUES(low_price),open_price = VALUES(open_price),prev_close = VALUES(prev_close)"""# 准备数据values = (item.get('stock_code', ''),item.get('stock_name', ''),item.get('latest_price', 0),item.get('change_percent', ''),item.get('change_amount', 0),item.get('volume', ''),item.get('amplitude', ''),item.get('high', 0),item.get('low', 0),item.get('open', 0),item.get('prev_close', 0))self.cursor.execute(sql, values)self.connection.commit()# 在控制台输出插入信息logging.info(f"✓ 插入/更新股票数据: {item.get('stock_code', '')} - {item.get('stock_name', '')}")except Exception as e:logging.error(f"✗ 数据库操作失败: {e}")try:self.connection.rollback()# 尝试重新连接self.connection.ping(reconnect=True)except:self.open_spider(spider)return itemdef close_spider(self, spider):"""爬虫关闭时关闭数据库连接并显示统计信息"""if self.connection:try:# 显示数据统计self.cursor.execute("SELECT COUNT(*) as total FROM stock_data")result = self.cursor.fetchone()logging.info(f"📊 数据库统计: 共存储 {result['total']} 条股票数据")self.cursor.close()self.connection.close()logging.info("✓ 数据库连接已关闭")except Exception as e:logging.error(f"关闭数据库时出错: {e}")class JsonPipeline:"""JSON格式输出管道"""def open_spider(self, spider):self.file = open('stock_data.json', 'w', encoding='utf-8')self.file.write('[\n')self.first_item = Truelogging.info("✓ JSON输出文件已创建")def close_spider(self, spider):self.file.write('\n]')self.file.close()logging.info("✓ JSON文件已保存")def process_item(self, item, spider):line = '' if self.first_item else ',\n'self.first_item = Falsejson_line = json.dumps(dict(item), ensure_ascii=False, indent=2)self.file.write(line + json_line)return itemclass CsvPipeline:"""CSV格式输出管道"""def open_spider(self, spider):self.file = open('stock_data.csv', 'w', newline='', encoding='utf-8-sig')self.writer = csv.writer(self.file)# 写入中英文表头self.writer.writerow(['序号', '股票代码', '股票名称', '最新报价', '涨跌幅','涨跌额', '成交量', '振幅', '最高', '最低', '今开', '昨收'])self.writer.writerow(['id', 'stock_code', 'stock_name', 'latest_price', 'change_percent','change_amount', 'volume', 'amplitude', 'high', 'low', 'open', 'prev_close'])logging.info("✓ CSV输出文件已创建")def close_spider(self, spider):self.file.close()logging.info("✓ CSV文件已保存")def process_item(self, item, spider):self.writer.writerow(['', # 序号由数据库自增item.get('stock_code', ''),item.get('stock_name', ''),item.get('latest_price', ''),item.get('change_percent', ''),item.get('change_amount', ''),item.get('volume', ''),item.get('amplitude', ''),item.get('high', ''),item.get('low', ''),item.get('open', ''),item.get('prev_close', '')])return item
（c）编辑eastmoney_stock/items.py：
import scrapyclass StockItem(scrapy.Item):# 定义数据字段id = scrapy.Field() # 序号stock_code = scrapy.Field() # 股票代码stock_name = scrapy.Field() # 股票名称latest_price = scrapy.Field() # 最新报价change_percent = scrapy.Field() # 涨跌幅change_amount = scrapy.Field() # 涨跌额volume = scrapy.Field() # 成交量amplitude = scrapy.Field() # 振幅high = scrapy.Field() # 最高low = scrapy.Field() # 最低open = scrapy.Field() # 今开prev_close = scrapy.Field() # 昨收update_time = scrapy.Field() # 更新时间
（d）创建数据库查看脚本(check_mysql_data.py)：
#!/usr/bin/env python3
"""
MySQL数据查看脚本
学号: 102302107
"""import pymysql
import pandas as pddef connect_mysql():"""连接MySQL数据库"""try:connection = pymysql.connect(host='localhost',user='root',password='744983',database='stock_db',charset='utf8mb4',cursorclass=pymysql.cursors.DictCursor)return connectionexcept Exception as e:print(f"数据库连接失败: {e}")return Nonedef show_table_structure(connection):"""显示表结构"""try:with connection.cursor() as cursor:cursor.execute("DESCRIBE stock_data")result = cursor.fetchall()print("=" * 80)print("MySQL数据库表结构")print("=" * 80)print(f"{'字段名':<15} {'类型':<20} {'允许空':<8} {'键':<5} {'默认值':<10} {'备注'}")print("-" * 80)for row in result:print(f"{row['Field']:<15} {row['Type']:<20} {row['Null']:<8} {row['Key']:<5} {str(row['Default'] or ''):<10} {row.get('Comment', '')}")except Exception as e:print(f"查询表结构失败: {e}")def show_stock_data(connection, limit=10):"""显示股票数据"""try:with connection.cursor() as cursor:cursor.execute(f"SELECT * FROM stock_data ORDER BY id DESC LIMIT {limit}")result = cursor.fetchall()print(f"\n{'=' * 80}")print(f"最新 {limit} 条股票数据")print(f"{'=' * 80}")# 使用pandas美化输出if result:df = pd.DataFrame(result)# 重命名列名为中文df = df.rename(columns={'id': '序号','stock_code': '股票代码','stock_name': '股票名称','latest_price': '最新报价','change_percent': '涨跌幅','change_amount': '涨跌额','volume': '成交量','amplitude': '振幅','high_price': '最高','low_price': '最低','open_price': '今开','prev_close': '昨收','update_time': '更新时间'})print(df.to_string(index=False))else:print("暂无数据")# 显示统计信息cursor.execute("SELECT COUNT(*) as total FROM stock_data")count_result = cursor.fetchone()print(f"\n📊 数据统计: 共 {count_result['total']} 条记录")except Exception as e:print(f"查询数据失败: {e}")def main():"""主函数"""print("MySQL股票数据查看工具")print("学号: 102302107")print()connection = connect_mysql()if not connection:returntry:# 显示表结构show_table_structure(connection)# 显示数据show_stock_data(connection, limit=15)except Exception as e:print(f"执行错误: {e}")finally:if connection:connection.close()if __name__ == "__main__":main()

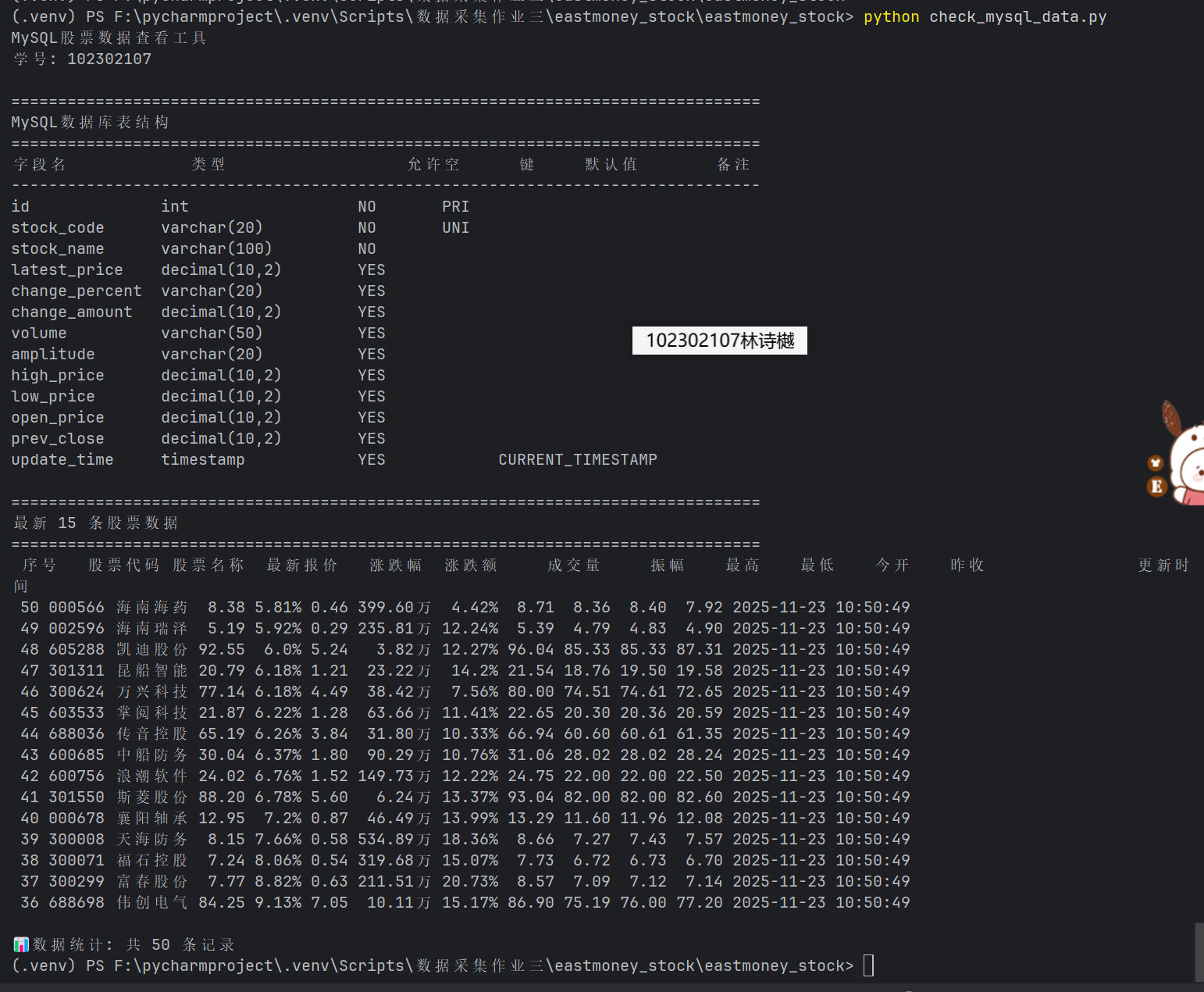

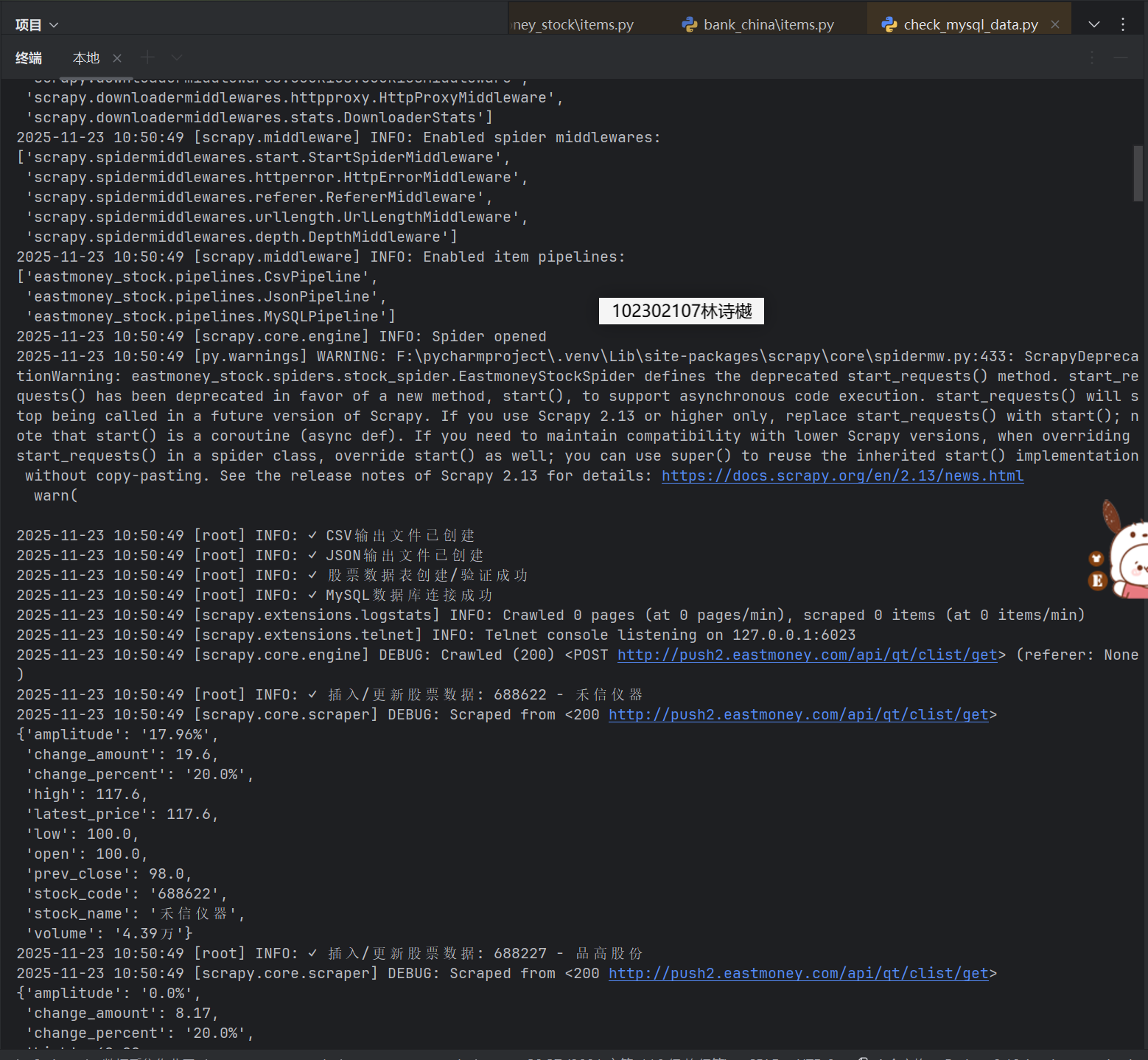

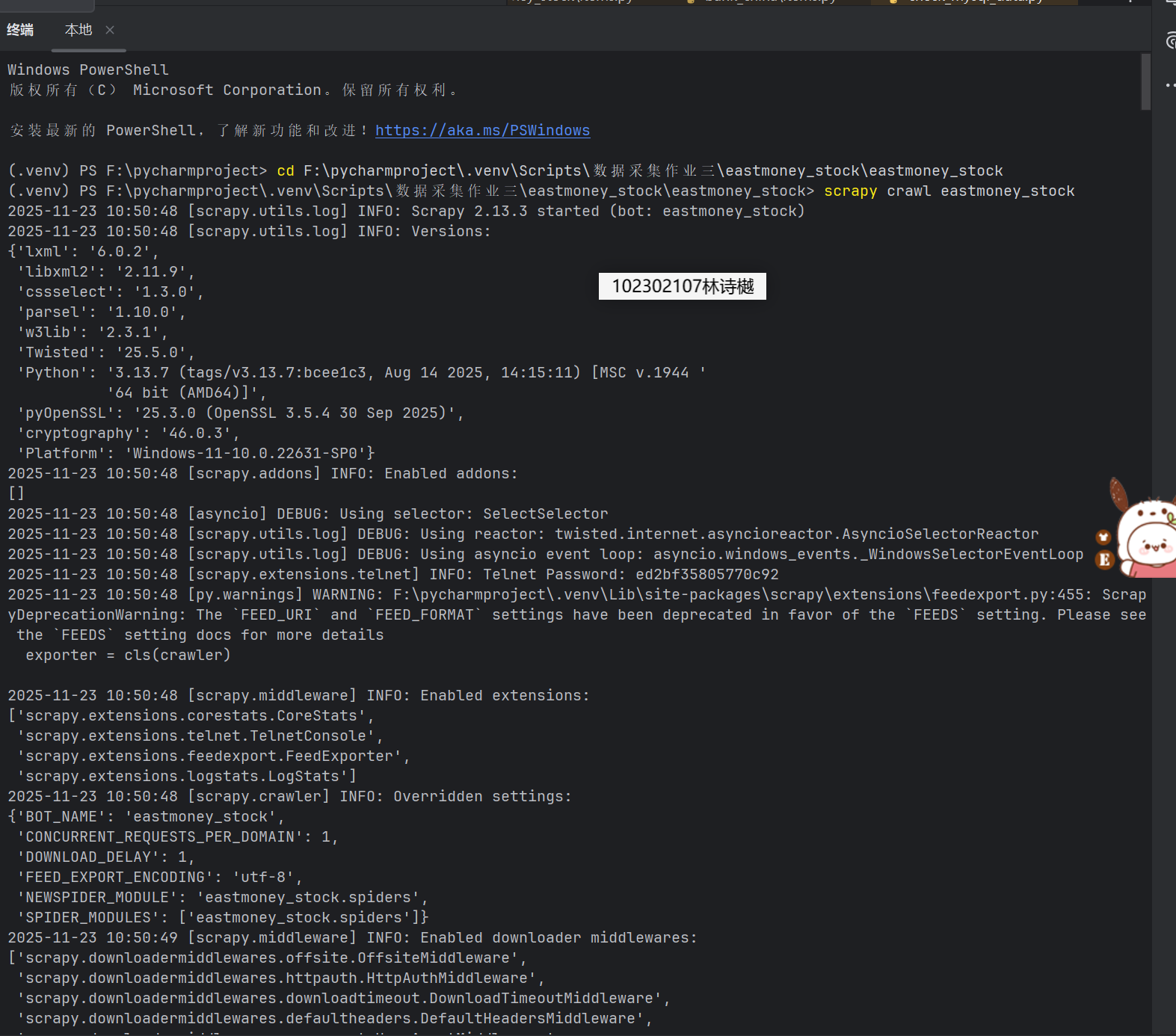

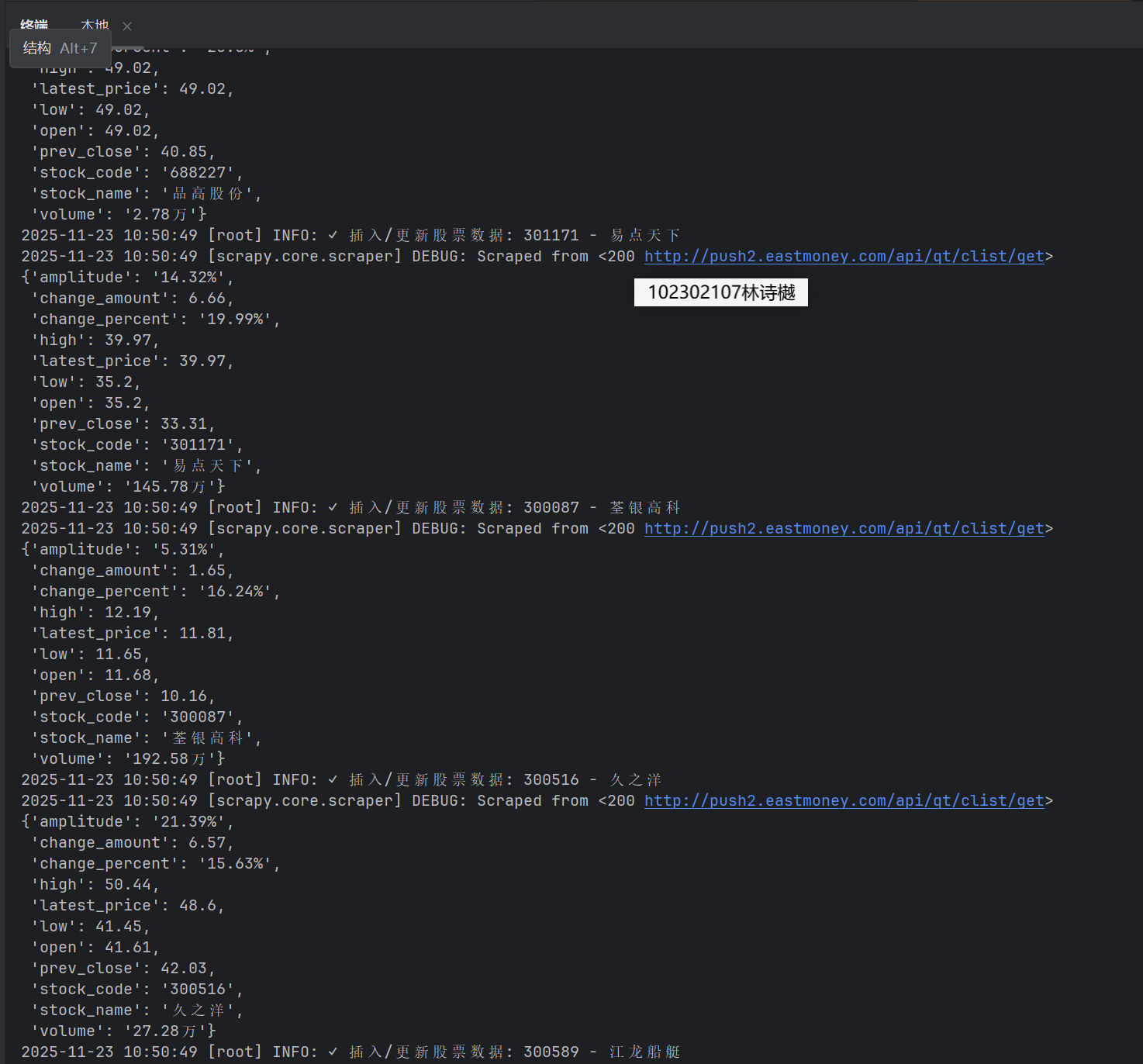

输出信息：MySQL数据库存储和输出格式如下：
表头英文命名例如：序号id，股票代码：bStockNo……，由同学们自行定义设计
Gitee文件夹链接：https://gitee.com/ls-yue/2025_crawl_project/tree/master/作业3/eastmoney_stock
（2）心得体会：本次股票数据爬取让我全面掌握了Scrapy框架的应用。从Item定义、Spider编写到Pipeline设计，体验了完整的爬虫开发流程。通过XPath选择器精准提取股票信息，并实现MySQL数据持久化，加深了我对结构化数据处理的认知。特别是在处理动态加载内容时，学会了分析API接口而非盲目解析页面。管道机制的灵活运用让数据清洗和存储更加优雅，为后续复杂项目奠定了基础。
作业③:
要求：熟练掌握 scrapy 中 Item、Pipeline 数据的序列化输出方法；使用scrapy框架+Xpath+MySQL数据库存储技术路线爬取外汇网站数据。
候选网站：中国银行网：https://www.boc.cn/sourcedb/whpj/
（1）代码
（a）bank_china/items.py
import scrapyclass ForexItem(scrapy.Item):# 定义外汇数据字段currency = scrapy.Field() # 货币名称tbp = scrapy.Field() # 现汇买入价cbp = scrapy.Field() # 现钞买入价tsp = scrapy.Field() # 现汇卖出价csp = scrapy.Field() # 现钞卖出价update_time = scrapy.Field() # 更新时间
（b）bank_china/pipelines.py
import pymysql
import logging
from itemadapter import ItemAdapter
import json
import csvclass MySQLPipeline:def __init__(self, mysql_config):self.mysql_config = mysql_configself.connection = Noneself.cursor = None@classmethoddef from_crawler(cls, crawler):return cls(mysql_config={'host': crawler.settings.get('MYSQL_HOST', 'localhost'),'user': crawler.settings.get('MYSQL_USER', 'root'),'password': crawler.settings.get('MYSQL_PASSWORD', '123456'),'database': crawler.settings.get('MYSQL_DATABASE', 'forex_db'),'port': crawler.settings.get('MYSQL_PORT', 3306),'charset': crawler.settings.get('MYSQL_CHARSET', 'utf8mb4'),'cursorclass': pymysql.cursors.DictCursor})def open_spider(self, spider):"""爬虫启动时连接数据库"""try:self.connection = pymysql.connect(**self.mysql_config)self.cursor = self.connection.cursor()self.create_table()logging.info("✓ 外汇MySQL数据库连接成功")except Exception as e:logging.error(f"✗ 数据库连接失败: {e}")self.create_database_if_not_exists()def create_database_if_not_exists(self):"""如果数据库不存在则创建"""try:temp_config = self.mysql_config.copy()temp_config.pop('database', None)connection = pymysql.connect(**temp_config)with connection.cursor() as cursor:cursor.execute(f"CREATE DATABASE IF NOT EXISTS {self.mysql_config['database']} CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci")logging.info(f"✓ 创建数据库: {self.mysql_config['database']}")connection.commit()connection.close()self.connection = pymysql.connect(**self.mysql_config)self.create_table()except Exception as e:logging.error(f"✗ 创建数据库失败: {e}")def create_table(self):"""创建外汇数据表"""create_table_sql = """CREATE TABLE IF NOT EXISTS forex_rates (id INT AUTO_INCREMENT PRIMARY KEY,currency VARCHAR(50) NOT NULL COMMENT '货币名称',tbp DECIMAL(10,4) COMMENT '现汇买入价',cbp DECIMAL(10,4) COMMENT '现钞买入价',tsp DECIMAL(10,4) COMMENT '现汇卖出价',csp DECIMAL(10,4) COMMENT '现钞卖出价',update_time VARCHAR(50) COMMENT '更新时间',crawl_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP COMMENT '爬取时间',UNIQUE KEY unique_currency (currency)) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci COMMENT='外汇牌价表'"""try:self.cursor.execute(create_table_sql)self.connection.commit()logging.info("✓ 外汇数据表创建/验证成功")except Exception as e:logging.error(f"✗ 创建外汇表失败: {e}")def process_item(self, item, spider):"""处理每个外汇item并存入MySQL"""try:sql = """INSERT INTO forex_rates (currency, tbp, cbp, tsp, csp, update_time)VALUES (%s, %s, %s, %s, %s, %s)ON DUPLICATE KEY UPDATEtbp = VALUES(tbp),cbp = VALUES(cbp),tsp = VALUES(tsp),csp = VALUES(csp),update_time = VALUES(update_time)"""values = (item.get('currency', ''),item.get('tbp', 0),item.get('cbp', 0),item.get('tsp', 0),item.get('csp', 0),item.get('update_time', ''))self.cursor.execute(sql, values)self.connection.commit()logging.info(f"✓ 插入/更新外汇数据: {item.get('currency', '')}")except Exception as e:logging.error(f"✗ 外汇数据插入失败: {e}")try:self.connection.rollback()self.connection.ping(reconnect=True)except:self.open_spider(spider)return itemdef close_spider(self, spider):"""爬虫关闭时关闭数据库连接"""if self.connection:try:self.cursor.execute("SELECT COUNT(*) as total FROM forex_rates")result = self.cursor.fetchone()logging.info(f"📊 外汇数据统计: 共存储 {result['total']} 条记录")self.cursor.close()self.connection.close()logging.info("✓ 外汇数据库连接已关闭")except Exception as e:logging.error(f"关闭外汇数据库时出错: {e}")class ForexJsonPipeline:"""外汇JSON格式输出管道"""def open_spider(self, spider):self.file = open('forex_data.json', 'w', encoding='utf-8')self.file.write('[\n')self.first_item = Truelogging.info("✓ 外汇JSON输出文件已创建")def close_spider(self, spider):self.file.write('\n]')self.file.close()logging.info("✓ 外汇JSON文件已保存")def process_item(self, item, spider):line = '' if self.first_item else ',\n'self.first_item = Falsejson_line = json.dumps(dict(item), ensure_ascii=False, indent=2)self.file.write(line + json_line)return itemclass ForexCsvPipeline:"""外汇CSV格式输出管道"""def open_spider(self, spider):self.file = open('forex_data.csv', 'w', newline='', encoding='utf-8-sig')self.writer = csv.writer(self.file)# 写入中英文表头self.writer.writerow(['货币', '现汇买入价', '现钞买入价', '现汇卖出价', '现钞卖出价', '更新时间'])self.writer.writerow(['currency', 'tbp', 'cbp', 'tsp', 'csp', 'update_time'])logging.info("✓ 外汇CSV输出文件已创建")def close_spider(self, spider):self.file.close()logging.info("✓ 外汇CSV文件已保存")def process_item(self, item, spider):self.writer.writerow([item.get('currency', ''),item.get('tbp', ''),item.get('cbp', ''),item.get('tsp', ''),item.get('csp', ''),item.get('update_time', '')])return item
（c）bank_china/settings.py
# Scrapy settings for bank_china project
#
# For simplicity, this file contains only settings considered important or
# commonly used. You can find more settings consulting the documentation:
#
# https://docs.scrapy.org/en/latest/topics/settings.html
# https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
# https://docs.scrapy.org/en/latest/topics/spider-middleware.htmlBOT_NAME = "bank_china"SPIDER_MODULES = ["bank_china.spiders"]
NEWSPIDER_MODULE = "bank_china.spiders"ADDONS = {}# Crawl responsibly by identifying yourself (and your website) on the user-agent
#USER_AGENT = "bank_china (+http://www.yourdomain.com)"# Obey robots.txt rules
# 启用MySQL Pipeline
ITEM_PIPELINES = {'bank_china.pipelines.MySQLPipeline': 300,'bank_china.pipelines.ForexJsonPipeline': 200,'bank_china.pipelines.ForexCsvPipeline': 100,
}# MySQL数据库配置
MYSQL_HOST = 'localhost'
MYSQL_USER = 'root'
MYSQL_PASSWORD = '744983'
MYSQL_DATABASE = 'forex_db'
MYSQL_PORT = 3306
MYSQL_CHARSET = 'utf8mb4'# 爬虫配置
ROBOTSTXT_OBEY = False
# Concurrency and throttling settings
#CONCURRENT_REQUESTS = 16
CONCURRENT_REQUESTS_PER_DOMAIN = 1
DOWNLOAD_DELAY = 2
CONCURRENT_REQUESTS = 1
# Disable cookies (enabled by default)
#COOKIES_ENABLED = False# Disable Telnet Console (enabled by default)
#TELNETCONSOLE_ENABLED = False# Override the default request headers:
#DEFAULT_REQUEST_HEADERS = {
# "Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
# "Accept-Language": "en",
#}# Enable or disable spider middlewares
# See https://docs.scrapy.org/en/latest/topics/spider-middleware.html
#SPIDER_MIDDLEWARES = {
# "bank_china.middlewares.BankChinaSpiderMiddleware": 543,
#}# Enable or disable downloader middlewares
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
#DOWNLOADER_MIDDLEWARES = {
# "bank_china.middlewares.BankChinaDownloaderMiddleware": 543,
#}# Enable or disable extensions
# See https://docs.scrapy.org/en/latest/topics/extensions.html
#EXTENSIONS = {
# "scrapy.extensions.telnet.TelnetConsole": None,
#}# Configure item pipelines
# See https://docs.scrapy.org/en/latest/topics/item-pipeline.html
#ITEM_PIPELINES = {
# "bank_china.pipelines.BankChinaPipeline": 300,
#}# Enable and configure the AutoThrottle extension (disabled by default)
# See https://docs.scrapy.org/en/latest/topics/autothrottle.html
#AUTOTHROTTLE_ENABLED = True
# The initial download delay
#AUTOTHROTTLE_START_DELAY = 5
# The maximum download delay to be set in case of high latencies
#AUTOTHROTTLE_MAX_DELAY = 60
# The average number of requests Scrapy should be sending in parallel to
# each remote server
#AUTOTHROTTLE_TARGET_CONCURRENCY = 1.0
# Enable showing throttling stats for every response received:
#AUTOTHROTTLE_DEBUG = False# Enable and configure HTTP caching (disabled by default)
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html#httpcache-middleware-settings
#HTTPCACHE_ENABLED = True
#HTTPCACHE_EXPIRATION_SECS = 0
#HTTPCACHE_DIR = "httpcache"
#HTTPCACHE_IGNORE_HTTP_CODES = []
#HTTPCACHE_STORAGE = "scrapy.extensions.httpcache.FilesystemCacheStorage"# Set settings whose default value is deprecated to a future-proof value
FEED_EXPORT_ENCODING = "utf-8"
# 日志设置
LOG_LEVEL = 'INFO'
（d）bank_china/spiders/forex_spider.py
import scrapy
from bank_china.items import ForexItem
from bs4 import BeautifulSoup
import re
from datetime import datetimeclass BankChinaForexSpiderOptimized(scrapy.Spider):name = "bank_china_forex"allowed_domains = ["boc.cn"]start_urls = ["https://www.boc.cn/sourcedb/whpj/"]def parse(self, response):"""解析外汇牌价页面"""self.logger.info("开始解析中国银行外汇数据")soup = BeautifulSoup(response.text, 'html.parser')# 查找包含外汇数据的表格table = soup.find('table', class_='BOC_main publish')if not table:self.logger.error("未找到外汇数据表格")return# 提取表头验证headers = []header_row = table.find('tr')if header_row:headers = [th.get_text().strip() for th in header_row.find_all('th')]self.logger.info(f"表格列头: {headers}")# 提取数据行rows = table.find_all('tr')[1:] # 跳过表头for row in rows:cols = row.find_all('td')if len(cols) >= 7: # 确保有足够的列item = self.parse_row_data(cols)if item:yield itemdef parse_row_data(self, cols):"""解析单行数据"""item = ForexItem()try:# 按照作业要求的格式解析item['currency'] = self.clean_text(cols[0].get_text()) # 货币名称item['tbp'] = self.parse_number(cols[1].get_text()) # 现汇买入价item['cbp'] = self.parse_number(cols[2].get_text()) # 现钞买入价item['tsp'] = self.parse_number(cols[3].get_text()) # 现汇卖出价item['csp'] = self.parse_number(cols[4].get_text()) # 现钞卖出价item['update_time'] = self.clean_text(cols[6].get_text()) # 发布时间# 验证数据完整性if not item['currency'] or item['tbp'] is None:return Noneself.logger.debug(f"解析成功: {item['currency']} - {item['tbp']}")return itemexcept Exception as e:self.logger.error(f"解析行数据失败: {e}")return Nonedef clean_text(self, text):"""清理文本"""if text:return re.sub(r'\s+', ' ', text).strip()return ""def parse_number(self, text):"""解析数字"""try:cleaned = re.sub(r'[^\d.]', '', text)if cleaned:return float(cleaned)except ValueError:passreturn None
（e）创建外汇数据库查看脚本(forex_check_mysql.py)
#!/usr/bin/env python3
"""
增强版外汇数据查看脚本（解决编码问题）
学号: 102302107
"""import pymysql
import pandas as pd
import sysdef safe_connect_mysql():"""安全连接MySQL数据库（处理编码问题）"""try:connection = pymysql.connect(host='localhost',user='root',password='744983',database='forex_db',charset='utf8mb4',cursorclass=pymysql.cursors.DictCursor)print("✓ MySQL数据库连接成功")return connectionexcept Exception as e:print(f"✗ 数据库连接失败: {e}")return Nonedef show_enhanced_forex_data(connection, limit=20):"""显示增强的外汇数据视图"""try:with connection.cursor() as cursor:# 获取数据统计cursor.execute("""SELECT COUNT(*) as total_count,COUNT(DISTINCT currency) as unique_currencies,MIN(crawl_time) as first_crawl,MAX(crawl_time) as last_crawlFROM forex_rates""")stats = cursor.fetchone()print("=" * 100)print("外汇数据统计概览")print("=" * 100)print(f"总记录数: {stats['total_count']}")print(f"唯一货币数: {stats['unique_currencies']}")print(f"首次爬取: {stats['first_crawl']}")print(f"最后更新: {stats['last_crawl']}")print()# 获取最新数据cursor.execute(f"""SELECT id as 序号,currency as 货币名称,ROUND(tbp, 4) as 现汇买入价,ROUND(cbp, 4) as 现钞买入价, ROUND(tsp, 4) as 现汇卖出价,ROUND(csp, 4) as 现钞卖出价,update_time as 更新时间,crawl_time as 爬取时间FROM forex_rates ORDER BY crawl_time DESC, id DESC LIMIT {limit}""")result = cursor.fetchall()if result:df = pd.DataFrame(result)print(f"最新 {len(result)} 条外汇数据:")print("-" * 120)print(df.to_string(index=False, max_colwidth=15))# 显示汇率统计print("\n汇率统计:")numeric_cols = ['现汇买入价', '现钞买入价', '现汇卖出价', '现钞卖出价']stats_df = df[numeric_cols].describe()print(stats_df.round(4))else:print("暂无外汇数据")except Exception as e:print(f"查询数据失败: {e}")def check_table_structure(connection):"""检查表结构"""try:with connection.cursor() as cursor:cursor.execute("SHOW CREATE TABLE forex_rates")result = cursor.fetchone()print("\n表结构信息:")print("-" * 50)print(result['Create Table'])except Exception as e:print(f"获取表结构失败: {e}")def main():"""主函数"""print("增强版外汇数据查看工具")print("学号: 102302107")print("=" * 60)connection = safe_connect_mysql()if not connection:print("请确保:")print("1. MySQL服务正在运行")print("2. 数据库 'forex_db' 已创建")print("3. 用户名和密码正确")returntry:show_enhanced_forex_data(connection, limit=15)check_table_structure(connection)except Exception as e:print(f"执行错误: {e}")finally:if connection:connection.close()print("\n✓ 数据库连接已关闭")if __name__ == "__main__":main()
（f）创建独立运行脚本(run_forex_spider.py)
#!/usr/bin/env python3
"""
作业③：外汇数据爬虫独立运行脚本（修复编码版本）
学号: 102302107
"""import os
import sys
import subprocess
import logging# 设置全局UTF-8编码环境
os.environ['PYTHONIOENCODING'] = 'utf-8'
os.environ['PYTHONUTF8'] = '1'# 配置日志
logging.basicConfig(level=logging.INFO, format='%(asctime)s - %(levelname)s - %(message)s')def setup_directories():"""创建必要的目录"""if not os.path.exists('forex_data'):os.makedirs('forex_data')print("创建目录: forex_data")def run_forex_spider():"""运行外汇爬虫（修复编码问题）"""print("=" * 60)print("作业③：外汇数据爬虫")print("学号: 102302107")print("=" * 60)setup_directories()if not os.path.exists("bank_china"):print("错误: bank_china 项目目录不存在")return Falseoriginal_dir = os.getcwd()os.chdir("bank_china")try:# 设置完整的环境变量确保UTF-8编码env = os.environ.copy()env['PYTHONIOENCODING'] = 'utf-8'env['PYTHONUTF8'] = '1'env['LANG'] = 'en_US.UTF-8'env['LC_ALL'] = 'en_US.UTF-8'# 使用二进制模式捕获输出，避免编码问题result = subprocess.run([sys.executable, "-c","""
import sys
import os
# 强制设置标准输出编码
sys.stdout.reconfigure(encoding='utf-8')
sys.stderr.reconfigure(encoding='utf-8')
# 运行Scrapy爬虫
from scrapy.cmdline import execute
execute(['scrapy', 'crawl', 'bank_china_forex', '-o', '../forex_data/forex_data.json'])"""], capture_output=True, timeout=120, env=env)print("外汇爬虫执行完成")# 处理输出 - 使用错误忽略策略if result.stdout:try:output = result.stdout.decode('utf-8', errors='ignore')if output.strip():print("输出信息:")# 只显示关键信息，避免过多输出lines = output.split('\n')for line in lines:if any(keyword in line for keyword in ['DEBUG', 'INFO', 'WARNING', 'ERROR', 'Scraped']):print(line[-200:]) # 限制行长度except UnicodeDecodeError:# 如果UTF-8解码失败，尝试其他编码try:output = result.stdout.decode('gbk', errors='ignore')if output.strip():print("输出信息(GBK):")print(output[-500:])except:print("无法解码输出信息")# 处理错误输出if result.stderr:try:error_output = result.stderr.decode('utf-8', errors='ignore')if error_output.strip():# 过滤掉编码警告，只显示真正的错误error_lines = [line for line in error_output.split('\n')if 'codec' not in line and 'decode' not in line and line.strip()]if error_lines:print("错误信息:")for line in error_lines[-5:]: # 只显示最后5行错误print(line)except:pass# 检查生成的文件json_file = "../forex_data/forex_data.json"if os.path.exists(json_file):size = os.path.getsize(json_file)print(f"✓ 成功生成数据文件: {json_file} ({size} 字节)")# 验证JSON文件格式try:import jsonwith open(json_file, 'r', encoding='utf-8') as f:data = json.load(f)print(f"✓ JSON文件验证通过，包含 {len(data)} 条记录")return Trueexcept Exception as e:print(f"⚠ JSON文件格式警告: {e}")return True # 文件存在即算成功else:print("✗ 未生成数据文件")return Falseexcept subprocess.TimeoutExpired:print("外汇爬虫超时")return Falseexcept Exception as e:print(f"运行外汇爬虫时出错: {e}")return Falsefinally:os.chdir(original_dir)def check_mysql_data():"""检查MySQL中的数据"""print("\n" + "=" * 60)print("检查MySQL数据库中的外汇数据")print("=" * 60)try:# 尝试导入检查脚本sys.path.append('.')from forex_check_mysql import main as check_maincheck_main()return Trueexcept ImportError:print("⚠ 数据查看脚本不存在，跳过数据库检查")return Trueexcept Exception as e:print(f"数据库检查失败: {e}")return Falsedef main():"""主函数"""print("开始运行外汇数据爬虫...")success = run_forex_spider()if success:print("✓ 外汇数据爬取完成")# 尝试检查数据库check_mysql_data()print("\n下一步操作:")print("1. 查看生成的数据文件: forex_data/forex_data.json")print("2. 运行 python forex_check_mysql.py 查看数据库数据")print("3. 检查MySQL中的forex_rates表")else:print("✗ 外汇数据爬取失败")return 0 if success else 1if __name__ == "__main__":sys.exit(main())
（g)创建数据导出脚本（生成要求的表格格式）(export_forex_table.py)
#!/usr/bin/env python3
"""
修复版外汇数据表格导出脚本
学号: 102302107
"""import json
import csv
import pymysql
from prettytable import PrettyTable
from datetime import datetime
import osclass ForexDataExporter:def __init__(self):self.data = []def load_from_json(self, filename='forex_data.json'):"""从JSON文件加载数据"""try:with open(filename, 'r', encoding='utf-8') as f:self.data = json.load(f)print(f"✓ 从JSON文件加载 {len(self.data)} 条记录")return Trueexcept Exception as e:print(f"✗ 加载JSON文件失败: {e}")return Falsedef load_from_mysql(self):"""从MySQL数据库加载数据"""try:connection = pymysql.connect(host='localhost',user='root',password='744983',database='forex_db',charset='utf8mb4')with connection.cursor() as cursor:cursor.execute("""SELECT currency, tbp, cbp, tsp, csp, update_time FROM forex_rates ORDER BY currency""")results = cursor.fetchall()for row in results:self.data.append({'currency': row[0],'tbp': float(row[1]) if row[1] is not None else None,'cbp': float(row[2]) if row[2] is not None else None,'tsp': float(row[3]) if row[3] is not None else None,'csp': float(row[4]) if row[4] is not None else None,'update_time': row[5]})connection.close()print(f"✓ 从MySQL加载 {len(self.data)} 条记录")return Trueexcept Exception as e:print(f"✗ 数据库连接失败: {e}")return Falsedef format_number(self, value):"""格式化数字，处理None值"""if value is None:return 'N/A'return f"{value:.2f}"def display_console_table(self, limit=20):"""在控制台显示表格"""if not self.data:print("暂无数据")returntable = PrettyTable()table.field_names = ["Currency", "TBP", "CBP", "TSP", "CSP", "Time"]table.align = "r"table.align["Currency"] = "l"for i, item in enumerate(self.data[:limit]):table.add_row([item['currency'],self.format_number(item['tbp']),self.format_number(item['cbp']),self.format_number(item['tsp']),self.format_number(item['csp']),item['update_time'] or 'N/A'])print("\n" + "=" * 80)print("中国银行外汇牌价表")print("=" * 80)print(table)print(f"显示 {min(limit, len(self.data))} 条记录，共 {len(self.data)} 条")def export_to_html(self, filename='forex_table.html'):"""导出为HTML表格文件（修复版）"""html_content = """<!DOCTYPE html><html><head><meta charset="UTF-8"><title>中国银行外汇牌价</title><style>table { border-collapse: collapse; width: 100%; margin: 20px 0; font-family: Arial, sans-serif; }caption { font-size: 1.5em; font-weight: bold; margin: 10px 0; }th, td { border: 1px solid #ddd; padding: 12px; text-align: right; }th { background-color: #4CAF50; color: white; text-align: center; }th:first-child, td:first-child { text-align: left; }tr:nth-child(even) { background-color: #f2f2f2; }tr:hover { background-color: #ddd; }.footer { margin-top: 20px; font-style: italic; color: #666; }</style></head><body><table><caption>中国银行外汇牌价表</caption><tr><th>Currency</th><th>TBP</th><th>CBP</th><th>TSP</th><th>CSP</th><th>Time</th></tr>"""for item in self.data:# 修复：正确的格式化方法tbp = self.format_number(item['tbp'])cbp = self.format_number(item['cbp'])tsp = self.format_number(item['tsp'])csp = self.format_number(item['csp'])time_val = item['update_time'] or 'N/A'html_content += f"""<tr><td>{item['currency']}</td><td>{tbp}</td><td>{cbp}</td><td>{tsp}</td><td>{csp}</td><td>{time_val}</td></tr>"""html_content += f"""</table><div class="footer">总计: {len(self.data)} 种货币 | 生成时间: {datetime.now().strftime("%Y-%m-%d %H:%M:%S")} | 学号: 102302107</div></body></html>"""with open(filename, 'w', encoding='utf-8') as f:f.write(html_content)print(f"✓ HTML表格已导出到: {filename}")def export_to_csv(self, filename='forex_table.csv'):"""导出为CSV文件"""with open(filename, 'w', newline='', encoding='utf-8-sig') as f:writer = csv.writer(f)writer.writerow(['Currency', 'TBP', 'CBP', 'TSP', 'CSP', 'Time'])for item in self.data:writer.writerow([item['currency'],self.format_number(item['tbp']),self.format_number(item['cbp']),self.format_number(item['tsp']),self.format_number(item['csp']),item['update_time'] or ''])print(f"✓ CSV表格已导出到: {filename}")def export_simple_html(self, filename='simple_forex_table.html'):"""导出简化版HTML（类似图片中的格式）"""html_simple = """<!DOCTYPE html><html><head><meta charset="UTF-8"><title>中国银行外汇牌价表</title><style>table {{ border-collapse: collapse; width: 80%; margin: 20px auto; }}caption {{ font-size: 1.2em; font-weight: bold; margin: 10px; }}td, th {{ border: 1px solid #000; padding: 8px; text-align: center; }}th {{ background-color: #f0f0f0; }}</style></head><body><table><caption>中国银行外汇牌价表</caption><tr><td>Currency</td><td>TBP</td><td>CBP</td><td>TSP</td><td>CSP</td><td>Time</td></tr>"""for item in self.data:tbp = self.format_number(item['tbp'])cbp = self.format_number(item['cbp'])tsp = self.format_number(item['tsp'])csp = self.format_number(item['csp'])time_val = item['update_time'] or 'N/A'html_simple += f"""<tr><td>{item['currency']}</td><td>{tbp}</td><td>{cbp}</td><td>{tsp}</td><td>{csp}</td><td>{time_val}</td></tr>"""html_simple += """</table></body></html>"""with open(filename, 'w', encoding='utf-8') as f:f.write(html_simple)print(f"✓ 简化版HTML表格已导出到: {filename}")def main():"""主函数"""exporter = ForexDataExporter()print("外汇数据表格导出工具（修复版）")print("学号: 102302107")print("=" * 50)# 尝试从不同来源加载数据if not exporter.load_from_mysql():print("尝试从JSON文件加载...")if not exporter.load_from_json():print("没有找到数据，请先运行外汇爬虫")returnif not exporter.data:print("没有找到数据")return# 显示控制台表格exporter.display_console_table(limit=25)# 导出文件exporter.export_to_html()exporter.export_simple_html() # 新增：导出简化版exporter.export_to_csv()print("\n导出完成！")print("生成的文件:")print("- forex_table.html (美化版HTML表格)")print("- simple_forex_table.html (简化版HTML表格)")print("- forex_table.csv (CSV格式表格)")if __name__ == "__main__":main()

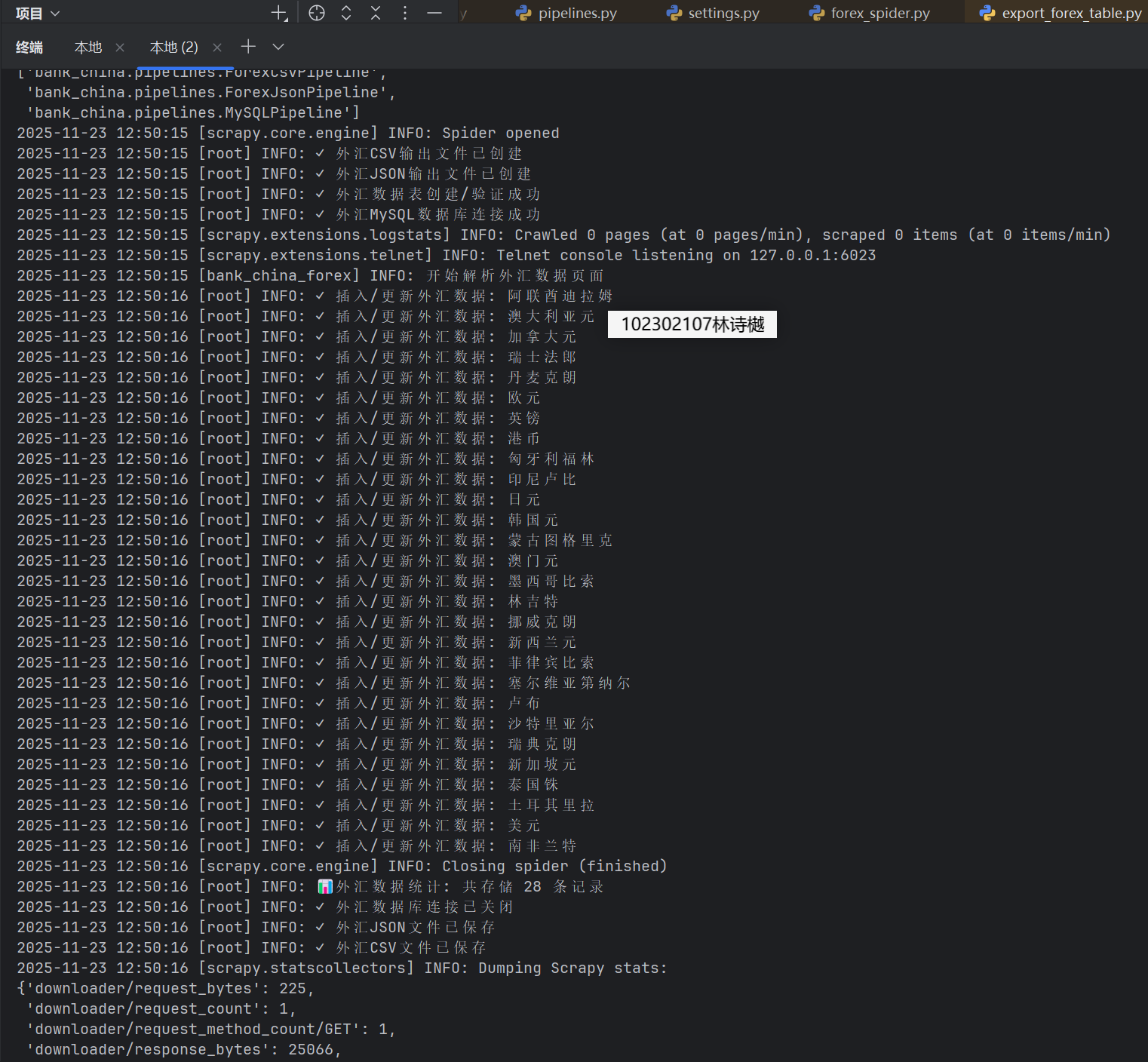

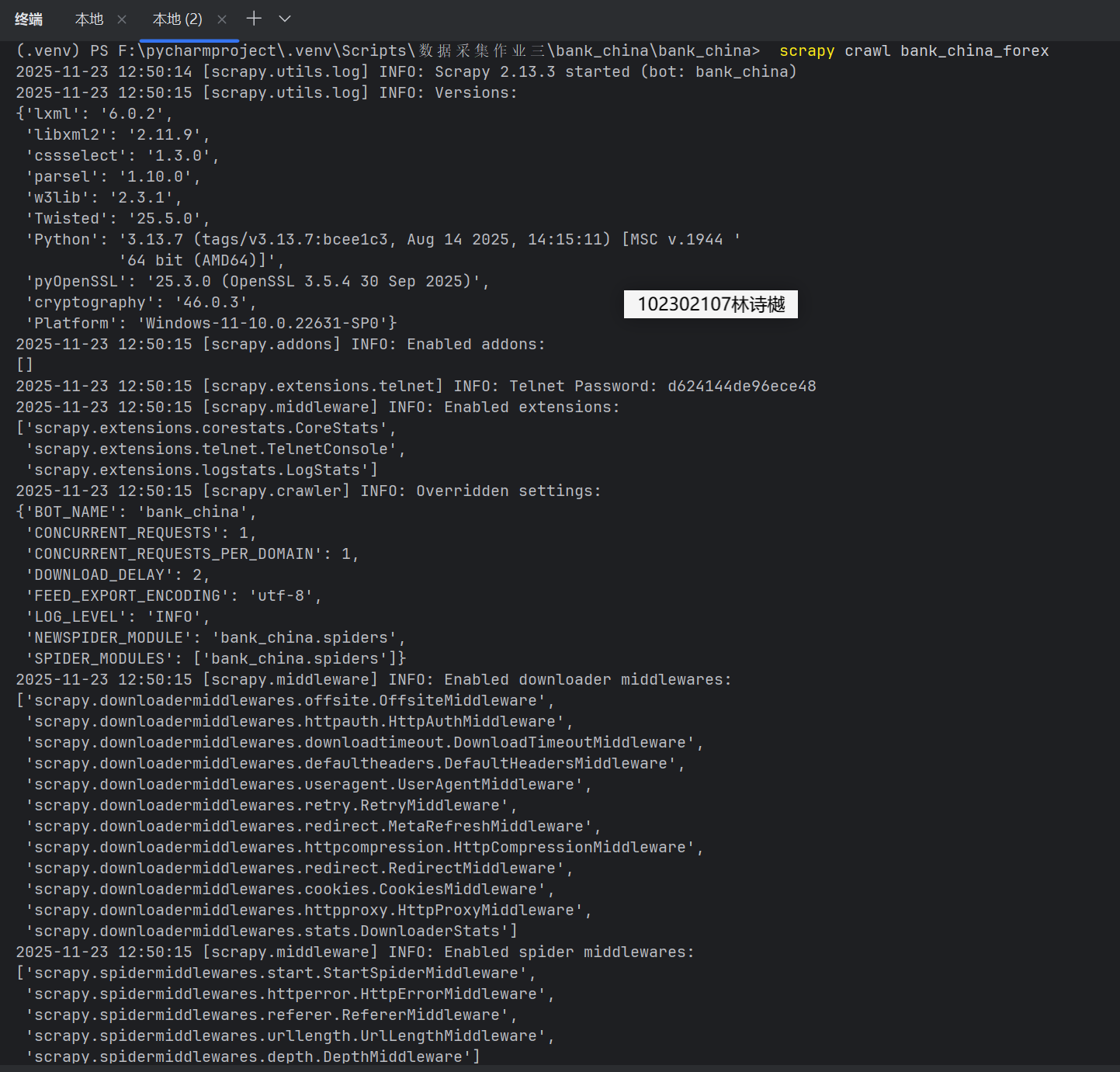

输出信息：
（2）心得体会：外汇爬虫项目让我认识到金融数据采集的特殊性。精确的数据解析和稳定的存储方案至关重要。通过构建完整的数据管道，实现了从网页抓取到多格式输出的全流程。在处理汇率数据时，特别注重了数值精度和单位统一。MySQL与JSON/CSV的多后端存储设计，展现了数据导出灵活性。该项目不仅提升了我的爬虫技能，更培养了金融数据处理的项目思维。
Gitee文件夹链接：https://gitee.com/ls-yue/2025_crawl_project/tree/master/作业3/bank_china
