背景概述
在一些小型的Java后端开发项目工程中集成Swagger生成接口文档是一个比较普遍的做法，默认情况下访问Swagger文档是没有限制的，任何人都可以访问并进行调试。这在某些场合下可能并不合适，特别是对于一些具备写数据的接口，随意暴露可能会被人恶意利用。因此，需要对访问接口的人进行一道认证拦截，只允许特定账户的人可以访问。
认证实现
只需要通过简单的配置即可实现对Swagger文档进行访问认证，如下阐述。
依赖配置：
<!-- 集成swagger -->
<dependency><groupId>io.springfox</groupId><artifactId>springfox-swagger2</artifactId><version>2.9.2</version>
</dependency><!-- swagger UI主题：swagger-ui-layer -->
<!-- 访问路径：/docs.html -->
<dependency><groupId>com.github.caspar-chen</groupId><artifactId>swagger-ui-layer</artifactId><version>1.1.3</version>
</dependency>
如下是一个未开启访问认证的Swagger配置示例（Spring Boot版本为2.6.13）：
@Configuration
@EnableSwagger2
public class SwaggerConfig {@Beanpublic Docket docket() {return new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo()).enable(true).select().apis(RequestHandlerSelectors.basePackage("com.xx.yy.controller")).paths(PathSelectors.any()).build();}/*** 用于定义API主界面的信息，比如可以声明所有的API的总标题、描述、版本*/private ApiInfo apiInfo() {Contact contact = new Contact("我是作者姓名", // 作者姓名"https://blog.csdn.net/", // 作者网址"123456789@163.com"); // 作者邮箱return new ApiInfoBuilder().title("XX项目") // 可以用来自定义API的主标题//.description("XX项目接口") // 可以用来描述整体的API//.termsOfServiceUrl("https://www.baidu.com") // 用于定义服务的域名（跳转链接）.version("1.0") // 可以用来定义版本//.license("Swagger-的使用教程")//.licenseUrl("https://blog.csdn.net")//.contact(contact).build(); //}// fix error: Failed to start bean 'documentationPluginsBootstrapper'; nested exception is java.lang.NullPointerException@Beanpublic static BeanPostProcessor springfoxHandlerProviderBeanPostProcessor() {return new BeanPostProcessor() {@Overridepublic Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {if (bean instanceof WebMvcRequestHandlerProvider) {customizeSpringfoxHandlerMappings(getHandlerMappings(bean));}return bean;}private <T extends RequestMappingInfoHandlerMapping> void customizeSpringfoxHandlerMappings(List<T> mappings) {List<T> copy = mappings.stream().filter(mapping -> mapping.getPatternParser() == null).collect(Collectors.toList());mappings.clear();mappings.addAll(copy);}@SuppressWarnings("unchecked")private List<RequestMappingInfoHandlerMapping> getHandlerMappings(Object bean) {try {Field field = ReflectionUtils.findField(bean.getClass(), "handlerMappings");field.setAccessible(true);return (List<RequestMappingInfoHandlerMapping>) field.get(bean);} catch (IllegalArgumentException | IllegalAccessException e) {throw new IllegalStateException(e);}}};}
}
如果要开启对Swagger文档的访问认证，需要在配置类SwaggerConfig上应用注解@EnableSwaggerBootstrapUI，如下：
@Configuration
@EnableSwagger2
@EnableSwaggerBootstrapUI
public class SwaggerConfig {
}
同时，在项目配置文件中添加Swagger认证信息：
# 启用Swagger文档
springfox:documentation:enabled: true# 开启swagger认证
swagger:production: false ## 在生产环境不开启Swagger文档basic: ## 配置Swagger访问认证信息enable: trueusername: adminpassword: 123456

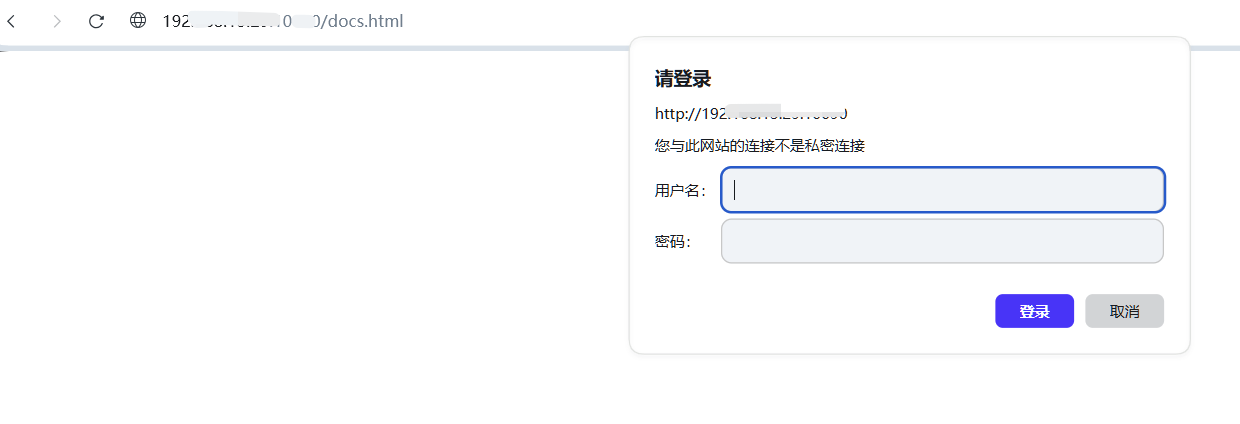

完成如上配置后即可开启Swagger访问认证，再次访问接口文档时会要求输入用户名和密码信息，如下图：
支持多个认证账户
在Swagger的默认认证实现中，只支持配置单个用户。如果需要给不同的人分配不同的认证账户，就需要自定义实现。
另外，通过自定义实现还可以在服务端日志中记录相应账户访问接口的信息。
要自定义Swagger访问认证，核心就是自定义一个新的@EnableSwaggerBootstrapUI注解，在如下示例中自定义一个名为MyEnableSwaggerBootstrapUI的注解。
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.TYPE})
@Documented
@Import({SwaggerBootstrapUIConfiguration.class, SwaggerSecurityConfiguration.class, MarkdownFileConfiguration.class})
public @interface MyEnableSwaggerBootstrapUI {
}
引入的配置类SwaggerSecurityConfiguration定义如下：
@Configuration
public class SwaggerSecurityConfiguration {private Logger logger= LoggerFactory.getLogger(SwaggerSecurityConfiguration.class);@Autowiredprivate Environment environment;@Beanpublic ProductionSecurityFilter productionSecurityFilter(){boolean prod=false;if (environment!=null){String prodStr=environment.getProperty("swagger.production");if (logger.isDebugEnabled()){logger.debug("swagger.production:{}",prodStr);}prod=Boolean.valueOf(prodStr);}ProductionSecurityFilter p=new ProductionSecurityFilter(prod);return p;}@Beanpublic SwaggerSecurityBasicAuthFilter securityBasicAuthFilter(){boolean enableSwaggerBasicAuth=false;Map<String, String> basicInfoMap = new HashMap<String, String>();if (environment!=null){String enableAuth=environment.getProperty("swagger.basic.enable");enableSwaggerBasicAuth=Boolean.valueOf(enableAuth);if (enableSwaggerBasicAuth){// 如果开启basic验证,从配置文件中获取用户名和密码// 在这里实现从配置文件中读取多个账户信息String pUser=environment.getProperty("swagger.basic.username");String pPass=environment.getProperty("swagger.basic.password");String[] pUserArr = pUser.split(",");String[] pPassArr = pPass.split(",");for (int i = 0; i < pUserArr.length; i++) {basicInfoMap.put(pUserArr[i], pPassArr[i]);}}}SwaggerSecurityBasicAuthFilter securityBasicAuthFilter= new SwaggerSecurityBasicAuthFilter(enableSwaggerBasicAuth, basicInfoMap);return securityBasicAuthFilter;}
}
核心的SwaggerSecurityBasicAuthFilter定义如下：
public class SwaggerSecurityBasicAuthFilter extends SwaggerBasicFilter implements Filter {private static final Logger logger = LoggerFactory.getLogger(SwaggerSecurityBasicAuthFilter.class);/**** 是否开启basic验证,默认不开启*/private boolean enableBasicAuth=false;/** 认证信息集合 */private Map<String, String> basicInfoMap = new HashMap<String, String>();@Overridepublic void init(FilterConfig filterConfig) throws ServletException {Enumeration<String> enumeration=filterConfig.getInitParameterNames();//SpringMVC环境中,由此init方法初始化此Filter,SpringBoot环境中则不同if (enumeration.hasMoreElements()){setEnableBasicAuth(Boolean.valueOf(filterConfig.getInitParameter("enableBasicAuth")));this.basicInfoMap.put(filterConfig.getInitParameter("userName"), filterConfig.getInitParameter("password"));}}@Overridepublic void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {HttpServletRequest servletRequest=(HttpServletRequest)request;HttpServletResponse httpServletResponse=(HttpServletResponse)response;//针对swagger资源请求过滤if (enableBasicAuth){if (match(servletRequest.getRequestURI())){//判断Session中是否存在Object swaggerSessionValue=servletRequest.getSession().getAttribute(SwaggerBootstrapUiBasicAuthSession);if (swaggerSessionValue!=null){chain.doFilter(request,response);}else{//匹配到,判断auth//获取请求头AuthorizationString auth=servletRequest.getHeader("Authorization");if (auth==null||"".equals(auth)){writeForbiddenCode(httpServletResponse);return;}String userAndPass=decodeBase64(auth.substring(6));String[] upArr=userAndPass.split(":");if (upArr.length!=2){writeForbiddenCode(httpServletResponse);}else{String iptUser=upArr[0];String iptPass=upArr[1];String basicPass = this.basicInfoMap.get(iptUser);if (basicPass == null){logger.error("basicUser not found:{}", iptUser);writeForbiddenCode(httpServletResponse);return;}//匹配服务端用户名及密码if (iptPass.equals(basicPass)){// 将认证信息保存到会话中servletRequest.getSession().setAttribute(SwaggerBootstrapUiBasicAuthSession,iptUser);chain.doFilter(request,response);}else{writeForbiddenCode(httpServletResponse);return;}}}}else{chain.doFilter(request,response);}}else{chain.doFilter(request,response);}}@Overridepublic void destroy() {}private void writeForbiddenCode(HttpServletResponse httpServletResponse) throws IOException {httpServletResponse.setStatus(401);httpServletResponse.setHeader("WWW-Authenticate","Basic realm=\"input Swagger Basic userName & password \"");httpServletResponse.getWriter().write("You do not have permission to access this resource");}// 通过参数basicInfoMap设置多个认证账户信息public SwaggerSecurityBasicAuthFilter(boolean enableBasicAuth, Map<String, String> basicInfoMap) {this.enableBasicAuth = enableBasicAuth;if (basicInfoMap != null){this.basicInfoMap.putAll(basicInfoMap);}}public SwaggerSecurityBasicAuthFilter(boolean enableBasicAuth) {this.enableBasicAuth = enableBasicAuth;}public SwaggerSecurityBasicAuthFilter() {}public boolean isEnableBasicAuth() {return enableBasicAuth;}public void setEnableBasicAuth(boolean enableBasicAuth) {this.enableBasicAuth = enableBasicAuth;}
}
SwaggerBasicFilter定义如下：
public class SwaggerBasicFilter implements Consts {private Logger logger= LoggerFactory.getLogger(BasicFilter.class);protected List<Pattern> urlFilters=null;public SwaggerBasicFilter(){urlFilters=new ArrayList<>();// 添加对swagger UI主题（swagger-ui-layer）的路径：/docs.html 拦截urlFilters.add(Pattern.compile(".*?/docs\\.html.*",Pattern.CASE_INSENSITIVE));urlFilters.add(Pattern.compile(".*?/doc\\.html.*",Pattern.CASE_INSENSITIVE));urlFilters.add(Pattern.compile(".*?/v2/api-docs.*",Pattern.CASE_INSENSITIVE));urlFilters.add(Pattern.compile(".*?/v2/api-docs-ext.*",Pattern.CASE_INSENSITIVE));urlFilters.add(Pattern.compile(".*?/swagger-resources.*",Pattern.CASE_INSENSITIVE));urlFilters.add(Pattern.compile(".*?/swagger-ui\\.html.*",Pattern.CASE_INSENSITIVE));urlFilters.add(Pattern.compile(".*?/swagger-resources/configuration/ui.*",Pattern.CASE_INSENSITIVE));urlFilters.add(Pattern.compile(".*?/swagger-resources/configuration/security.*",Pattern.CASE_INSENSITIVE));}protected boolean match(String uri){boolean match=false;if (uri!=null){for (Pattern pattern:getUrlFilters()){if (pattern.matcher(uri).matches()){match=true;break;}}}return match;}protected String decodeBase64(String source){String decodeStr = null;if (source!=null){//BASE64Decoder decoder=new BASE64Decoder();try {//byte[] bytes=decoder.decodeBuffer(source);byte[] bytes= Base64.getDecoder().decode(source);decodeStr=new String(bytes);} catch (Exception e) {logger.error(e.getMessage(),e);}}return decodeStr;}public List<Pattern> getUrlFilters() {return urlFilters;}
}
完成上述自定义组件准备后，将SwaggerConfig配置类中的EnableSwaggerBootstrapUI注解换成MyEnableSwaggerBootstrapUI即可，即：
@Configuration
@EnableSwagger2
@MyEnableSwaggerBootstrapUI
public class SwaggerConfig {
}
同时，还可以在项目配置文件中添加多个账户信息：
# 开启swagger认证
swagger:production: false ## 在生产环境不开启Swagger文档basic: ## 配置Swagger访问认证信息enable: trueusername: zhangsan,lisi # 多个账户用户名，用英文逗号分隔password: 123456,524163 # 多个账户密码，用英文逗号分隔
这样，就可以给不同访问Swagger接口文档的人分配相应的账户信息，也便于在服务端记录不同账户访问接口的情况。
【参考】
Springboot整合swagger，以及开启环境、账号权限验证访问
