下载后把压缩包解压出来，例如：D:\ndk，目录下的ndk-build.cmd就是用来编译的批处理命令。
这里以D:\ndk\samples\hello-jni为例，打开D:\ndk\samples\hello-jni\jni\hello-jni.c查看代码：
/** Copyright (C) 2009 The Android Open Source Project
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
*http://www.apache.org/licenses/LICENSE-2.0*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
**/
#include
#include
/*This is a trivial JNI example where we use a native method
* to return a new VM String. See the corresponding Java source
* file located at:
*
* apps/samples/hello-jni/project/src/com/example/hellojni/HelloJni.java*/
jstring
Java_com_example_hellojni_HelloJni_stringFromJNI( JNIEnv* env,
jobject thiz )
{
return (*env)->NewStringUTF(env, "Hello from JNI !");
}
因为我们是拿这个c源码文件来使用，如果迁就Java_com_example_hellojni_HelloJni_stringFromJNI
函数名的话，在我们的android工程中java类的声明就要是：com/example/hellojni/HelloJni.java。
反之，如果我们的android工程已经创建好，并且包名是com.example.hellojni，stringFromJNI函数我们写在了MainActivity.java类里，
那么这里的c函数就要修改为：Java_com_example_hellojni_MainActivity_stringFromJNI，否则在寻找函数时会找不到。

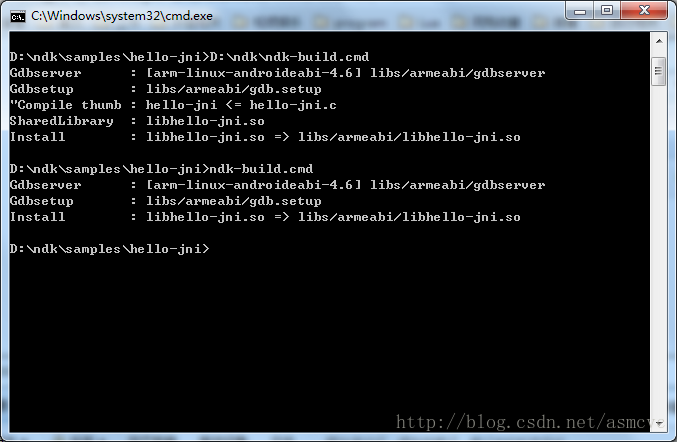

然后执行命令：D:\ndk\ndk-build.cmd(如果设置过环境变量则直接使用ndk-build.cmd)来编译hello-jni，如果没有错误会输出：
Gdbserver : [arm-linux-androideabi-4.6] libs/armeabi/gdbserver
Gdbsetup : libs/armeabi/gdb.setup"Compile thumb : hello-jni <= hello-jni.cSharedLibrary : libhello-jni.soInstall : libhello-jni.so => libs/armeabi/libhello-jni.so
编译成功会在D:\ndk\samples\hello-jni\libs\armeabi目录下生成libhello-jni.so文件。
三、创建android应用程序并使用so文件
打开eclipse创建一个android应用程序HelloJni，默认的com.example.hellojni包下面有一个MainActivity.java，
在此包下添加一个HelloJni.java，
package com.example.hellojni;
public class HelloJni {
public native String stringFromJNI();
/*This is another native method declaration that is *not*
* implemented by 'hello-jni'. This is simply to show that
* you can declare as many native methods in your Java code
* as you want, their implementation is searched in the
* currently loaded native libraries only the first time
* you call them.
*
* Trying to call this function will result in a
* java.lang.UnsatisfiedLinkError exception !*/
}
MainActivity.java修改为：
package com.example.hellojni;
import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.widget.TextView;
import android.util.Log;
public class MainActivity extends Activity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
//setContentView(R.layout.activity_main);
HelloJni jni = new HelloJni();
TextView tv = new TextView(this);
String str = jni.stringFromJNI();
Log.d("HelloJni", str);
tv.setText(str);
setContentView(tv);
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
//Inflate the menu; this adds items to the action bar if it is present. getMenuInflater().inflate(R.menu.main, menu);
return true;
}
static {
System.loadLibrary("hello-jni");
}
}
把编译生成的libhello-jni.so文件复制到F:\eclipse_workspace\HelloJni\libs\armeabi目录下(armeabi如果不存在则手动创建之)，然后编译运行，效果图如下：
参考资料：
