stomp 连接错误： Whoops! Lost connection to http://localhost:8080/spring13/stomp 的解决方法

【0】README

1）本文旨在给出 stomp 连接错误： Whoops! Lost connection to http://localhost:8080/spring13/stomp 的解决方法；you can also refer to this link http://stackoverflow.com/questions/29247956/whoops-lost-connection-to-undefined-connection-lost-just-after-the-connection.

2）解决问题后，文末给出了 STOMP client 的配置和 springmvc 支持STOMP 的配置；

【1】错误和解决方法

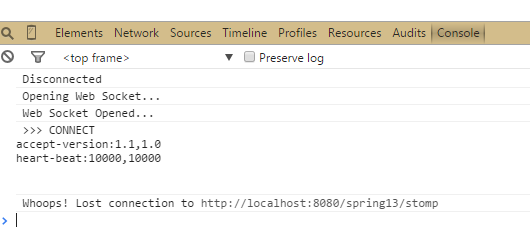

1）error info

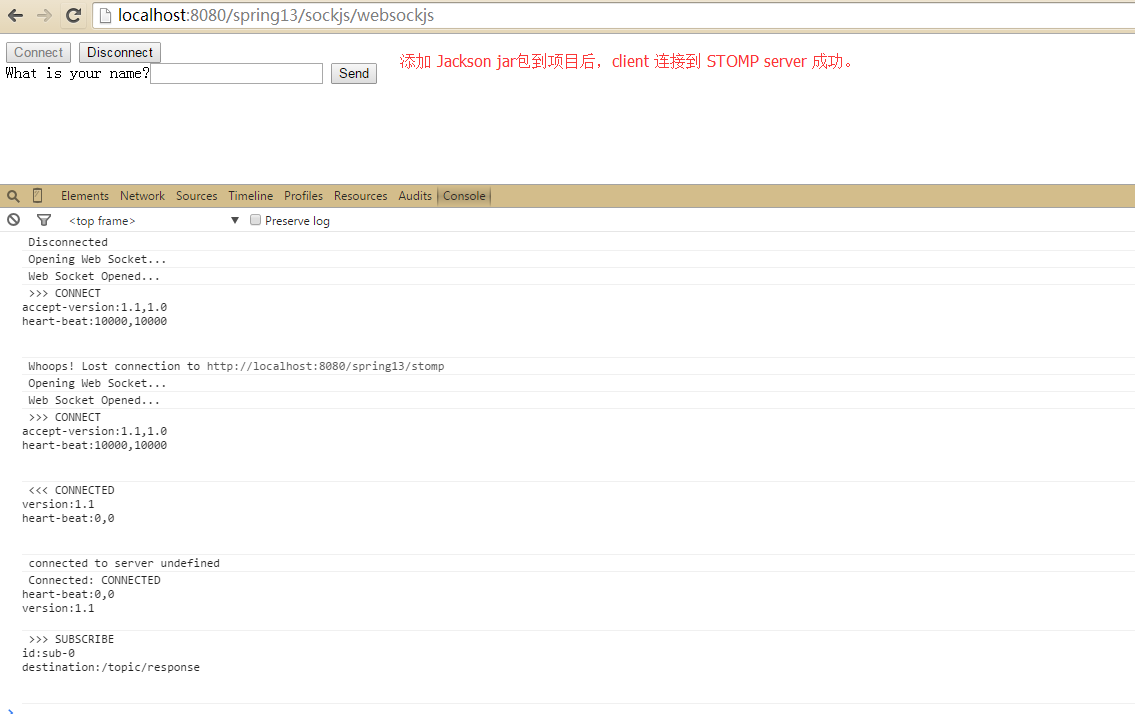

2）solution：添加 jackson 的jar 包到spring 项目中即可。

【2】STOMP client 和 STOMP server（springmvc 配置以支持STOMP）

【2.1】STOMP client（websockjs.jsp）

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ taglib uri="http://www.springframework.org/tags/form" prefix="sf"%><html lang="zh-CN">
<head><title>Hello WebSocket</title><script src="<c:url value="/resources/sockjs-1.1.1.js" />"></script><script src="<c:url value="/resources/stomp.js" />"></script><script type="text/javascript">var stompClient = null;function setConnected(connected) {document.getElementById('connect').disabled = connected;document.getElementById('disconnect').disabled = !connected;document.getElementById('conversationDiv').style.visibility = connected ? 'visible' : 'hidden';document.getElementById('response').innerHTML = '';}function connect() {var url = "<c:url value='/stomp' />";  var sock = new SockJS(url); // 创建 SockJS 连接；SockJS 可以接收相对url；  var stomp = Stomp.over(sock); // 创建 STOMP 客户端，显然，它们是一层一层封装的.  var payload = JSON.stringify({ 'name': 'tangrong' });  stomp.connect({}, function(frame) { // 连接 STOMP 端点；setConnected(true);console.log('Connected: ' + frame);stomp.subscribe('/topic/response', function(calResult){showResult(JSON.parse(calResult.body).content);});});  }function disconnect() {if (stompClient != null) {stompClient.disconnect();}setConnected(false);console.log("Disconnected");}function sendName() {var name = document.getElementById('name').value;stompClient.send("/app/stomp", {}, JSON.stringify({ 'name': name }));}function showGreeting(message) {var response = document.getElementById('response');var p = document.createElement('p');p.style.wordWrap = 'break-word';p.appendChild(document.createTextNode(message));response.appendChild(p);}</script>
</head>
<body οnlοad="disconnect()">
<noscript><h2 style="color: #ff0000">Seems your browser doesn't support Javascript! Websocket relies on Javascript being enabled. Please enableJavascript and reload this page!</h2>
</noscript>
<div><div><button id="connect" οnclick="connect();">Connect</button><button id="disconnect" disabled="disabled" οnclick="disconnect();">Disconnect</button></div><div id="conversationDiv"><label>What is your name?</label><input type="text" id="name" /><button id="sendName" οnclick="sendName();">Send</button><p id="response"></p></div>
</div>
</body>
</html>

【2.2】STOMP server（springmvc 配置以支持STOMP）

1）WebConfig.java

package com.spring.spittr.web;import java.io.IOException;import org.springframework.context.MessageSource;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.context.support.ResourceBundleMessageSource;
import org.springframework.core.io.FileSystemResource;
import org.springframework.web.multipart.MultipartResolver;
import org.springframework.web.multipart.commons.CommonsMultipartResolver;
import org.springframework.web.servlet.ViewResolver;
import org.springframework.web.servlet.config.annotation.DefaultServletHandlerConfigurer;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;
import org.springframework.web.servlet.view.InternalResourceViewResolver;
import org.springframework.web.servlet.view.tiles3.TilesConfigurer;
import org.springframework.web.servlet.view.tiles3.TilesViewResolver;@Configuration
@ComponentScan(basePackages = { "com.spring.spittr.web" })
@EnableWebMvc
@Import({WebSocketConfig.class}) // 引入 WebSocketConfig 的配置，下面声明了。
public class WebConfig extends WebMvcConfigurerAdapter {@Beanpublic TilesConfigurer tilesConfigurer() {TilesConfigurer tiles = new TilesConfigurer();tiles.setDefinitions(new String[] { "/WEB-INF/layout/tiles.xml" });tiles.setCheckRefresh(true);return tiles;}// config processing for static resources.@Overridepublic void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {configurer.enable();}// InternalResourceViewResolver @Beanpublic ViewResolver viewResolver1() {TilesViewResolver resolver = new TilesViewResolver();return resolver;}@Beanpublic ViewResolver viewResolver2() {InternalResourceViewResolver resolver = new InternalResourceViewResolver();resolver.setPrefix("/WEB-INF/views/");resolver.setSuffix(".jsp");resolver.setExposeContextBeansAsAttributes(true);resolver.setViewClass(org.springframework.web.servlet.view.JstlView.class);return resolver;}@Beanpublic MessageSource messageSource() {ResourceBundleMessageSource messageSource = new ResourceBundleMessageSource();messageSource.setBasename("messages"); return messageSource;}@Beanpublic MultipartResolver multipartResolver() throws IOException {CommonsMultipartResolver multipartResolver = new CommonsMultipartResolver();multipartResolver.setUploadTempDir(new FileSystemResource("/WEB-INF/tmp/spittr/uploads"));multipartResolver.setMaxUploadSize(2097152);multipartResolver.setMaxInMemorySize(0);return multipartResolver;}
}

2）WebSocketConfig.java

package com.spring.spittr.web;import org.springframework.context.annotation.Configuration;
import org.springframework.messaging.handler.annotation.MessageMapping;
import org.springframework.messaging.simp.config.MessageBrokerRegistry;
import org.springframework.web.socket.config.annotation.AbstractWebSocketMessageBrokerConfigurer;
import org.springframework.web.socket.config.annotation.EnableWebSocketMessageBroker;
import org.springframework.web.socket.config.annotation.StompEndpointRegistry;@Configuration
@EnableWebSocketMessageBroker
public class WebSocketConfig extends AbstractWebSocketMessageBrokerConfigurer {@Overridepublic void configureMessageBroker(MessageBrokerRegistry config) {config.enableSimpleBroker("/topic", "/queue");config.setApplicationDestinationPrefixes("/app");// 应用程序以 /app 为前缀，而 代理目的地以 /topic 为前缀.// js.url = "/spring13/app/hello" -> @MessageMapping("/hello") 注释的方法.}@Overridepublic void registerStompEndpoints(StompEndpointRegistry registry) {registry.addEndpoint("/stomp").withSockJS();// 在网页上我们就可以通过这个链接 /server/app/hello 来和服务器的WebSocket连接}
}

3）GreetingController.java

package com.spring.spittr.web;import org.springframework.messaging.handler.annotation.MessageMapping;
import org.springframework.messaging.handler.annotation.SendTo;
import org.springframework.stereotype.Controller;import com.spring.pojo.Greeting;
import com.spring.pojo.HelloMessage;@Controller
public class GreetingController {@MessageMapping("/stomp")@SendTo("/topic/response")public Greeting greeting(HelloMessage message) throws Exception {System.out.println("receiving " + message);System.out.println("connecting successfully.");return new Greeting("Hello, " + message.getName() + "!");}
}

4）SpitterWebInitializer.java

package com.spring.spittr.config;import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;import com.spring.spittr.web.WebConfig;
import com.spring.spittr.web.WebSocketConfig;public class SpitterWebInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {@Overrideprotected Class<?>[] getRootConfigClasses() {return new Class<?>[] { RootConfig.class };}@Overrideprotected Class<?>[] getServletConfigClasses() {return new Class<?>[] { WebConfig.class };}@Overrideprotected String[] getServletMappings() {return new String[] { "/", "*.js", "*.css", "*.jpg", "*.png", "/app/*", "*.map" };} // 特别注意，这里配置不拦截的url。特别是 "/app/*"
}
