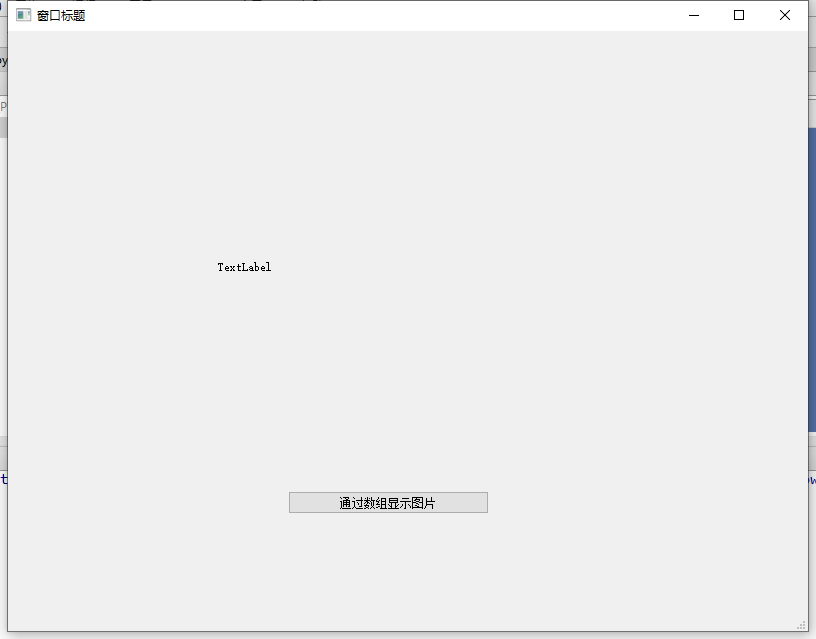

1、GUI界面（QT designer设计）

# -*- coding: utf-8 -*-# Form implementation generated from reading ui file 'ImshowImgWithMatGUI.ui'
#
# Created by: PyQt5 UI code generator 5.15.1
#
# WARNING: Any manual changes made to this file will be lost when pyuic5 is
# run again.  Do not edit this file unless you know what you are doing.from PyQt5 import QtCore, QtGui, QtWidgetsclass Ui_MainWindow(object):def setupUi(self, MainWindow):MainWindow.setObjectName("MainWindow")MainWindow.resize(800, 600)self.centralwidget = QtWidgets.QWidget(MainWindow)self.centralwidget.setObjectName("centralwidget")self.pushButton = QtWidgets.QPushButton(self.centralwidget)self.pushButton.setGeometry(QtCore.QRect(280, 460, 201, 23))self.pushButton.setObjectName("pushButton")self.label = QtWidgets.QLabel(self.centralwidget)self.label.setGeometry(QtCore.QRect(210, 90, 351, 291))self.label.setObjectName("label")MainWindow.setCentralWidget(self.centralwidget)self.menubar = QtWidgets.QMenuBar(MainWindow)self.menubar.setGeometry(QtCore.QRect(0, 0, 800, 23))self.menubar.setObjectName("menubar")MainWindow.setMenuBar(self.menubar)self.statusbar = QtWidgets.QStatusBar(MainWindow)self.statusbar.setObjectName("statusbar")MainWindow.setStatusBar(self.statusbar)self.retranslateUi(MainWindow)QtCore.QMetaObject.connectSlotsByName(MainWindow)def retranslateUi(self, MainWindow):_translate = QtCore.QCoreApplication.translateMainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))self.pushButton.setText(_translate("MainWindow", "通过数组显示图片"))self.label.setText(_translate("MainWindow", "TextLabel"))

2、逻辑函数（回调等）

import cv2 as cv
from PyQt5.QtGui import QImage,QPixmap
from PyQt5.QtWidgets import QApplication, QMainWindow
from ImshowImgWithMatGUI import Ui_MainWindow
import sysclass My_UI(QMainWindow, Ui_MainWindow):def __init__(self):QMainWindow.__init__(self)Ui_MainWindow.__init__(self)self.setupUi(self)self.setWindowTitle('窗口标题')def pushbuttonthing(self):# 读取彩色图片img_src = cv.imread(r"X:\4.jpg",)img_src = cv.cvtColor(img_src,cv.COLOR_BGR2RGB)# 读取label宽高label_width = self.label.width()label_height = self.label.height()# 将图片转换为QImagetemp_imgSrc = QImage(img_src, img_src.shape[1], img_src.shape[0],img_src.shape[1]*3, QImage.Format_RGB888)# 将图片转换为QPixmap方便显示pixmap_imgSrc = QPixmap.fromImage(temp_imgSrc).scaled(label_width, label_height)# 使用label进行显示self.label.setPixmap(pixmap_imgSrc)def run(self):self.pushButton.clicked.connect(self.pushbuttonthing)
if __name__ == '__main__':app = QApplication(sys.argv)# 显示窗口win = My_UI()win.show()win.run()sys.exit(app.exec_())

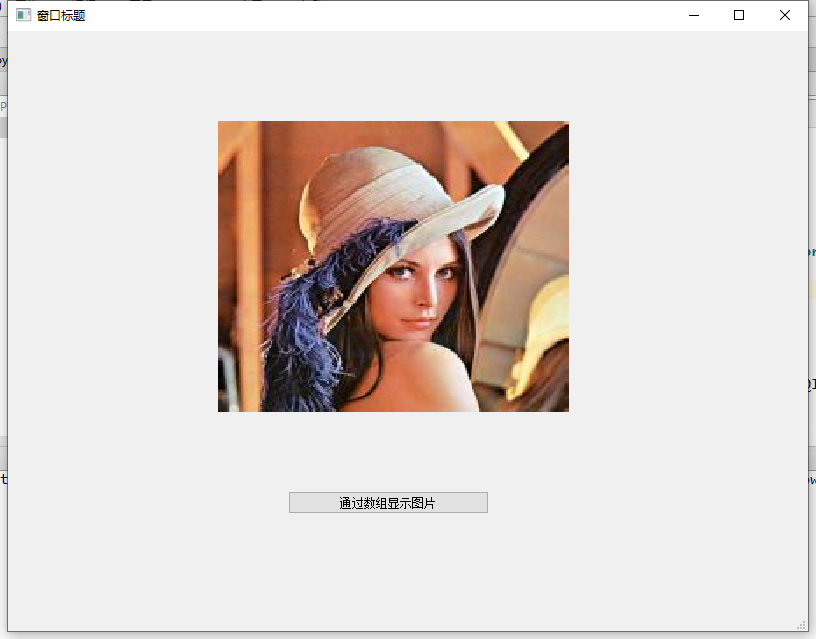

3、显示图片在label上

0）直接利用QPixmap显示图像

from PyQt5.QtGui import QPixmap

label.setScaledContents(True)  # 设置图像自适应控件大小
label.setPixmap(QPixmap("***.jpg"))

1）显示彩色图

img_src是通过imread读取的彩色图像

QImage.Format_RGB888

# 将图片转换为QImagetemp_imgSrc = QImage(img_src, img_src.shape[1], img_src.shape[0],img_src.shape[1]*3, QImage.Format_RGB888)# 将图片转换为QPixmap方便显示pixmap_imgSrc = QPixmap.fromImage(temp_imgSrc).scaled(label_width, label_height)# 使用label进行显示self.label.setPixmap(pixmap_imgSrc)

彩色图显示色调不正常——opencv（BGR）QT(RGB)需要进行转换

img_src = cv.cvtColor(img_src,cv.COLOR_BGR2RGB)

2）显示灰度图

显示灰度图像（其中灰度图像是由彩色直接通过）

QImage.Format_Format_Grayscale8

# 将图片转换为QImagetemp_imgSrc = QImage(img_src, img_src.shape[1], img_src.shape[0], QImage.Format_Format_Grayscale8)# 将图片转换为QPixmap方便显示pixmap_imgSrc = QPixmap.fromImage(temp_imgSrc).scaled(label_width, label_height)# 使用label进行显示self.label.setPixmap(pixmap_imgSrc)

4、显示图像在graphic views上

		img = cv2.imread("data\\1.jpg")  # 读取图像img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)  # 转换图像通道x = img.shape[1]  # 获取图像大小y = img.shape[0]self.zoomscale = 1  # 图片放缩尺度frame = QImage(img, x, y,x*3, QImage.Format_RGB888)pix = QPixmap.fromImage(frame)self.item = QGraphicsPixmapItem(pix)  # 创建像素图元# self.item.setScale(self.zoomscale)self.scene = QGraphicsScene()  # 创建场景self.scene.addItem(self.item)self.picshow.setScene(self.scene)  # 将场景添加至视图

实例

GUI界面代码：

#!/usr/bin/env python
# -*- coding: utf-8 -*-
# @Time    : 2021/11/15 21:01
# @Author  : @linlianqin
# @Site    :
# @File    : test2.py
# @Software: PyCharm
# @description:
from PyQt5 import QtCore, QtGui, QtWidgets
from PyQt5.QtCore import pyqtSlot
from PyQt5.QtWidgets import QMainWindow, QApplication, QGraphicsScene, QGraphicsPixmapItem
from PyQt5.QtGui import QImage, QPixmap
import cv2class Ui_MainWindow(object):def setupUi(self, MainWindow):MainWindow.setObjectName("MainWindow")MainWindow.resize(800, 600)self.centralWidget = QtWidgets.QWidget(MainWindow)self.centralWidget.setObjectName("centralWidget")self.horizontalLayout = QtWidgets.QHBoxLayout(self.centralWidget)self.horizontalLayout.setObjectName("horizontalLayout")self.gridLayout = QtWidgets.QGridLayout()self.gridLayout.setObjectName("gridLayout")self.picshow = QtWidgets.QGraphicsView(self.centralWidget)self.picshow.setObjectName("picshow")self.gridLayout.addWidget(self.picshow, 0, 1, 3, 1)self.zoomout = QtWidgets.QPushButton(self.centralWidget)self.zoomout.setObjectName("zoomout")self.gridLayout.addWidget(self.zoomout, 0, 0, 1, 1)self.zoomin = QtWidgets.QPushButton(self.centralWidget)self.zoomin.setObjectName("zoomin")self.gridLayout.addWidget(self.zoomin, 1, 0, 1, 1)self.horizontalLayout.addLayout(self.gridLayout)MainWindow.setCentralWidget(self.centralWidget)self.retranslateUi(MainWindow)QtCore.QMetaObject.connectSlotsByName(MainWindow)def retranslateUi(self, MainWindow):_translate = QtCore.QCoreApplication.translateMainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))self.zoomout.setText(_translate("MainWindow", "放大"))self.zoomin.setText(_translate("MainWindow", "缩小"))if __name__ == '__main__':import sysapp = QtWidgets.QApplication(sys.argv)MainWindow = QtWidgets.QMainWindow()ui = Ui_MainWindow()ui.setupUi(MainWindow)MainWindow.show()sys.exit(app.exec_())app.exec_()

逻辑业务代码

from PyQt5.QtCore import pyqtSlot
from PyQt5.QtWidgets import QMainWindow, QApplication, QGraphicsScene, QGraphicsPixmapItem
from PyQt5.QtGui import QImage, QPixmap
import cv2
from test2 import Ui_MainWindowclass picturezoom(QMainWindow, Ui_MainWindow):"""Class documentation goes here."""def __init__(self, parent=None):"""Constructor@param parent reference to the parent widget@type QWidget"""super(picturezoom, self).__init__(parent)self.setupUi(self)img = cv2.imread("data\\1.jpg")  # 读取图像img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)  # 转换图像通道x = img.shape[1]  # 获取图像大小y = img.shape[0]self.zoomscale = 1  # 图片放缩尺度frame = QImage(img, x, y,x*3, QImage.Format_RGB888)pix = QPixmap.fromImage(frame)self.item = QGraphicsPixmapItem(pix)  # 创建像素图元# self.item.setScale(self.zoomscale)self.scene = QGraphicsScene()  # 创建场景self.scene.addItem(self.item)self.picshow.setScene(self.scene)  # 将场景添加至视图@pyqtSlot()def on_zoomin_clicked(self):"""点击缩小图像"""# TODO: not implemented yetself.zoomscale = self.zoomscale - 0.05if self.zoomscale <= 0:self.zoomscale = 0.2self.item.setScale(self.zoomscale)  # 缩小图像@pyqtSlot()def on_zoomout_clicked(self):"""点击方法图像"""# TODO: not implemented yetself.zoomscale = self.zoomscale + 0.05if self.zoomscale >= 1.2:self.zoomscale = 1.2self.item.setScale(self.zoomscale)  # 放大图像def main():import sysapp = QApplication(sys.argv)piczoom = picturezoom()piczoom.show()app.exec_()if __name__ == '__main__':main()

# 图像自适应显示

self.graphicsView.fitInView(self.item)

# 缩放图像（self.zoomscale<1时缩小，self.zoomscale>1时放大）

self.item.setScale(self.zoomscale)
