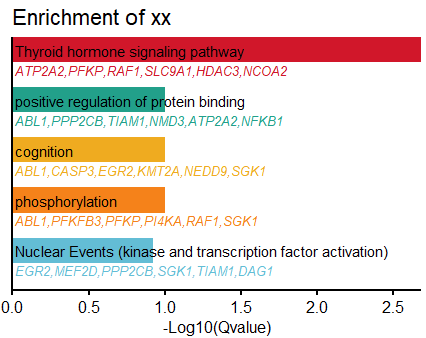

1. 效果图
2. 代码
数据是GO的输出结果，本文使用的是 metascape 输出的excel挑选的若干行。
# 1. 读取数据
dat=read.csv("E:\\research\\scPolyA-seq2\\GO-APA-Timepoint\\test.csv", sep="\t")
head(dat)# 2. 选择所需要的列
dat.use=dat[, c("LogQvalue", "Description", "GroupID", "Symbols")]
# 如果只有Qvalue，则ggplot2中使用x=log10(Qvalue);
# GroupID是分组，不是必须的。主要用于区分颜色，一个类可以有多个term。
查看中间数据：
> head(dat.use, 2)LogQvalue Description GroupID
1 -2.685 Thyroid hormone signaling pathway 1_Summary
2 -1.003 positive regulation of protein binding 10_SummarySymbols
1 ATP2A2,PFKP,RAF1,SLC9A1,HDAC3,NCOA2,MED13L,SIN3A,EGR2,NFKB1,THRAP3,CASP3,KMT2A,SLIT3,CCAR2,SLC9A3,MEF2D,TFAM,GBF1,BBS9,SGK1,TXN2,PI4KA,PEMT,PNPLA6,ACSL5
2 ABL1,PPP2CB,TIAM1,NMD3,ATP2A2,NFKB1,RAF1,OXSR1,NDFIP2,CCAR2,TAF3,UBLCP1,GBF1,DLC1,GLG1,STXBP3,SIN3A,JMJD1CSymbols2
1 ATP2A2,PFKP,RAF1,SLC9A1,HDAC3,NCOA2
2 ABL1,PPP2CB,TIAM1,NMD3,ATP2A2,NFKB1
继续：
# set y order
#dat.use$Description=factor(dat.use$Description)# 3.选择所需要的行 select rows to draw
cols=c("#D51F26","#00A08A","#F2AD00","#F98400","#5BBCD6")
dat.use=dat.use[1:length(cols), ]# 4.仅显示不超过n=5个基因
n=6 #最多保留的基因个数
dat.use$Symbols2=sapply(dat.use$Symbols, function(x){arr=strsplit(x, ",")[[1]]len=ifelse(length(arr)>n, n, length(arr));arr=arr[1:len]paste0(arr, collapse = ",")
}) |> as.character()# 5.画图
library(ggplot2)
ggplot(dat.use, aes(x=-LogQvalue, y = Description, fill = GroupID)) +#1. barplot of GO Q valuegeom_bar(stat ="identity", width =0.5) +geom_text(aes(x=0.1/5, #文字和y轴的缝隙y=Description, label=Description), size=4, #fontface="bold",hjust=0) +scale_fill_manual(values = cols)+ #bar plot fill colorscale_x_continuous(expand = c(0,0))+ #bar和y轴无间隔#2. add gene listgeom_text(data = dat.use,aes(x =0.1/5, #文字和y轴的缝隙y = Description, label = Symbols2, #基因列表color = GroupID),size =3.5,fontface ='italic',hjust =0,vjust =2.3) +scale_color_manual(values=cols) + #gene list text colors#3. theme and styletheme_classic(base_size = 14)+theme(axis.text.y = element_blank(), #no y title, ticks, textaxis.title.y = element_blank(),axis.ticks.y = element_blank(),axis.line = element_line(colour ='black', linewidth =1),axis.text.x = element_text(colour ='black', size =12),axis.ticks.x = element_line(colour ='black', linewidth = 1),axis.title.x = element_text(colour ='black', size =12),legend.position ="none")+ #no legendscale_y_discrete( #expand = c(0.2, 0), #为bar下的字符留空间，缺点是上面也有空间了expand=expansion(mult = c(0.2, 0)), #ggplot 3.5.1limits=rev( dat.use$Description) #设置bar的顺序) + labs(x="-Log10(Qvalue)", title="Enrichment of xx")
Ref
- https://mp.weixin.qq.com/s/h_x2Iz7FQdZWiT0WwY-9Eg
)
)
