【CV】GAN代码解析： networks.py

import torch
import torch.nn as nn
from torch.nn import init
import functools
from torch.optim import lr_scheduler###############################################################################
# Helper Functions
###############################################################################class Identity(nn.Module):# 恒等映射层：前向直接返回输入，用于占位（例如 norm_type='none' 时）def forward(self, x):return xdef get_norm_layer(norm_type='instance'):
# 这个方法用于构造归一化层，根据norm_type返回一个归一化层,默认的norm_type是instance"""Return a normalization layerParameters:norm_type (str) -- the name of the normalization layer: batch | instance | noneFor BatchNorm, we use learnable affine parameters and track running statistics (mean/stddev).For InstanceNorm, we do not use learnable affine parameters. We do not track running statistics."""# 这里用 functools.partial 保存构造参数（affine/track_running_stats），方便后续直接调用 norm_layer(num_features)if norm_type == 'batch':norm_layer = functools.partial(nn.BatchNorm2d, affine=True, track_running_stats=True)  # BN：可学习仿射 + 跟踪均值方差elif norm_type == 'instance':norm_layer = functools.partial(nn.InstanceNorm2d, affine=False, track_running_stats=False)  # IN：无仿射 + 不跟踪统计量elif norm_type == 'none':# 若不使用归一化层，则返回一个函数，构造时放置 Identity()def norm_layer(x):return Identity()else:# 未知类型时报错raise NotImplementedError('normalization layer [%s] is not found' % norm_type)return norm_layerdef get_scheduler(optimizer, opt):
# 根据 命令行参数的opt.lr_policy 创建学习率调度器
# 此方法会返回一个调度器对象"""Return a learning rate schedulerParameters:optimizer          -- the optimizer of the networkopt (option class) -- stores all the experiment flags; needs to be a subclass of BaseOptions．　opt.lr_policy is the name of learning rate policy: linear | step | plateau | cosineFor 'linear', we keep the same learning rate for the first <opt.n_epochs> epochsand linearly decay the rate to zero over the next <opt.n_epochs_decay> epochs.For other schedulers (step, plateau, and cosine), we use the default PyTorch schedulers.See https://pytorch.org/docs/stable/optim.html for more details."""if opt.lr_policy == 'linear':# 线性衰减：前 n_epochs 维持初始 lr，之后在 n_epochs_decay 内线性衰减到 0def lambda_rule(epoch):lr_l = 1.0 - max(0, epoch + opt.epoch_count - opt.n_epochs) / float(opt.n_epochs_decay + 1)return lr_lscheduler = lr_scheduler.LambdaLR(optimizer, lr_lambda=lambda_rule)elif opt.lr_policy == 'step':# 固定步长衰减：每 lr_decay_iters 个 epoch 将 lr 乘以 0.1scheduler = lr_scheduler.StepLR(optimizer, step_size=opt.lr_decay_iters, gamma=0.1)elif opt.lr_policy == 'plateau':# 监控指标停滞时衰减：factor=0.2, patience=5scheduler = lr_scheduler.ReduceLROnPlateau(optimizer, mode='min', factor=0.2, threshold=0.01, patience=5)elif opt.lr_policy == 'cosine':# 余弦退火：在 T_max=n_epochs 内从初始 lr 退火到 eta_min=0scheduler = lr_scheduler.CosineAnnealingLR(optimizer, T_max=opt.n_epochs, eta_min=0)else:# 注意：这里返回了一个 NotImplementedError 对象而非抛出，一般应当 `raise NotImplementedError(...)`return NotImplementedError('learning rate policy [%s] is not implemented', opt.lr_policy)return schedulerdef init_weights(net, init_type='normal', init_gain=0.02):
# 遍历模块，对 Conv/Linear/BatchNorm2d 等层的参数进行特定初始化"""Initialize network weights.Parameters:net (network)   -- network to be initializedinit_type (str) -- the name of an initialization method: normal | xavier | kaiming | orthogonalinit_gain (float)    -- scaling factor for normal, xavier and orthogonal.We use 'normal' in the original pix2pix and CycleGAN paper. But xavier and kaiming mightwork better for some applications. Feel free to try yourself."""def init_func(m):  # define the initialization functionclassname = m.__class__.__name__# 若层包含 weight，且是卷积或全连接层if hasattr(m, 'weight') and (classname.find('Conv') != -1 or classname.find('Linear') != -1):# 按 init_type 选择初始化方法if init_type == 'normal':init.normal_(m.weight.data, 0.0, init_gain)elif init_type == 'xavier':init.xavier_normal_(m.weight.data, gain=init_gain)elif init_type == 'kaiming':init.kaiming_normal_(m.weight.data, a=0, mode='fan_in')elif init_type == 'orthogonal':init.orthogonal_(m.weight.data, gain=init_gain)else:raise NotImplementedError('initialization method [%s] is not implemented' % init_type)# 若存在偏置，置零if hasattr(m, 'bias') and m.bias is not None:init.constant_(m.bias.data, 0.0)# 对 BatchNorm2d：权重 ~ N(1, init_gain)，偏置=0elif classname.find('BatchNorm2d') != -1:  # BatchNorm Layer's weight is not a matrix; only normal distribution applies.init.normal_(m.weight.data, 1.0, init_gain)init.constant_(m.bias.data, 0.0)print('initialize network with %s' % init_type)net.apply(init_func)  # 递归应用到子模块def init_net(net, init_type='normal', init_gain=0.02, gpu_ids=[]):
# 调用上面定义的几个方法，对整个网络进行初始化"""Initialize a network: 1. register CPU/GPU device (with multi-GPU support); 2. initialize the network weightsParameters:net (network)      -- the network to be initializedinit_type (str)    -- the name of an initialization method: normal | xavier | kaiming | orthogonalgain (float)       -- scaling factor for normal, xavier and orthogonal.gpu_ids (int list) -- which GPUs the network runs on: e.g., 0,1,2Return an initialized network."""# 若指定了 gpu_ids，则将网络放到首个 GPU，并使用 DataParallel 多卡并行if len(gpu_ids) > 0:assert(torch.cuda.is_available())net.to(gpu_ids[0])  # 注意：这里直接传入 int（如 0），在新版本里更推荐传 torch.device('cuda:0')net = torch.nn.DataParallel(net, gpu_ids)  # multi-GPUs# 初始化网络权重init_weights(net, init_type, init_gain=init_gain)return netdef define_G(input_nc, output_nc, ngf, netG, norm='batch', use_dropout=False, init_type='normal', init_gain=0.02, gpu_ids=[]):
# 根据各个参数，构造一个生成器对象（就是一个net对象）
# 方法各参数解析：
# input_nc, output_nc 输入和输出通道数
# ngf 最后一层卷积层的滤波器个数
# netG 生成器结构的名字 resnet_9blocks | resnet_6blocks | unet_256 | unet_128
# norm='batch' 归一化层的类别以及默认值
# use_dropout=False 是否使用权重随机丢弃
# init_type='normal' net对象初始化类型
# gpu_ids：gpu设备号
#     为了把生成器放到正确的设备上并（可选）做多卡并行。
#     networks.define_G(..., gpu_ids=...) 会把参数传给 init_net"""Create a generatorParameters:input_nc (int) -- the number of channels in input imagesoutput_nc (int) -- the number of channels in output imagesngf (int) -- the number of filters in the last conv layernetG (str) -- the architecture's name: resnet_9blocks | resnet_6blocks | unet_256 | unet_128norm (str) -- the name of normalization layers used in the network: batch | instance | noneuse_dropout (bool) -- if use dropout layers.init_type (str)    -- the name of our initialization method.init_gain (float)  -- scaling factor for normal, xavier and orthogonal.gpu_ids (int list) -- which GPUs the network runs on: e.g., 0,1,2Returns a generatorOur current implementation provides two types of generators:U-Net: [unet_128] (for 128x128 input images) and [unet_256] (for 256x256 input images)The original U-Net paper: https://arxiv.org/abs/1505.04597Resnet-based generator: [resnet_6blocks] (with 6 Resnet blocks) and [resnet_9blocks] (with 9 Resnet blocks)Resnet-based generator consists of several Resnet blocks between a few downsampling/upsampling operations.We adapt Torch code from Justin Johnson's neural style transfer project (https://github.com/jcjohnson/fast-neural-style).The generator has been initialized by <init_net>. It uses RELU for non-linearity."""net = Nonenorm_layer = get_norm_layer(norm_type=norm)  # 根据 norm 获得归一化层构造器# 根据 netG 选择具体生成器结构并构造if netG == 'resnet_9blocks':net = ResnetGenerator(input_nc, output_nc, ngf, norm_layer=norm_layer, use_dropout=use_dropout, n_blocks=9)elif netG == 'resnet_6blocks':net = ResnetGenerator(input_nc, output_nc, ngf, norm_layer=norm_layer, use_dropout=use_dropout, n_blocks=6)elif netG == 'unet_128':net = UnetGenerator(input_nc, output_nc, 7, ngf, norm_layer=norm_layer, use_dropout=use_dropout)elif netG == 'unet_256':net = UnetGenerator(input_nc, output_nc, 8, ngf, norm_layer=norm_layer, use_dropout=use_dropout)else:raise NotImplementedError('Generator model name [%s] is not recognized' % netG)return init_net(net, init_type, init_gain, gpu_ids)  # 放设备 + 初始化权重 + （可选）多卡def define_D(input_nc, ndf, netD, n_layers_D=3, norm='batch', init_type='normal', init_gain=0.02, gpu_ids=[]):
# 用同样的逻辑，构造判别器"""Create a discriminatorParameters:input_nc (int)     -- the number of channels in input imagesndf (int)          -- the number of filters in the first conv layernetD (str)         -- the architecture's name: basic | n_layers | pixeln_layers_D (int)   -- the number of conv layers in the discriminator; effective when netD=='n_layers'norm (str)         -- the type of normalization layers used in the network.init_type (str)    -- the name of the initialization method.init_gain (float)  -- scaling factor for normal, xavier and orthogonal.gpu_ids (int list) -- which GPUs the network runs on: e.g., 0,1,2Returns a discriminatorOur current implementation provides three types of discriminators:[basic]: 'PatchGAN' classifier described in the original pix2pix paper.It can classify whether 70×70 overlapping patches are real or fake.Such a patch-level discriminator architecture has fewer parametersthan a full-image discriminator and can work on arbitrarily-sized imagesin a fully convolutional fashion.[n_layers]: With this mode, you can specify the number of conv layers in the discriminatorwith the parameter <n_layers_D> (default=3 as used in [basic] (PatchGAN).)[pixel]: 1x1 PixelGAN discriminator can classify whether a pixel is real or not.It encourages greater color diversity but has no effect on spatial statistics.The discriminator has been initialized by <init_net>. It uses Leakly RELU for non-linearity."""net = Nonenorm_layer = get_norm_layer(norm_type=norm)  # 归一化层构造器# 选择判别器结构if netD == 'basic':  # default PatchGAN classifiernet = NLayerDiscriminator(input_nc, ndf, n_layers=3, norm_layer=norm_layer)elif netD == 'n_layers':  # more optionsnet = NLayerDiscriminator(input_nc, ndf, n_layers_D, norm_layer=norm_layer)elif netD == 'pixel':     # classify if each pixel is real or fakenet = PixelDiscriminator(input_nc, ndf, norm_layer=norm_layer)else:raise NotImplementedError('Discriminator model name [%s] is not recognized' % netD)return init_net(net, init_type, init_gain, gpu_ids)  # 放设备 + 初始化权重 + （可选）多卡##############################################################################
# Classes
##############################################################################
class GANLoss(nn.Module):
# 定义损失函数"""Define different GAN objectives.The GANLoss class abstracts away the need to create the target label tensorthat has the same size as the input."""def __init__(self, gan_mode, target_real_label=1.0, target_fake_label=0.0):""" Initialize the GANLoss class.Parameters:gan_mode (str) - - the type of GAN objective. It currently supports vanilla, lsgan, and wgangp.target_real_label (bool) - - label for a real imagetarget_fake_label (bool) - - label of a fake imageNote: Do not use sigmoid as the last layer of Discriminator.LSGAN needs no sigmoid. vanilla GANs will handle it with BCEWithLogitsLoss."""super(GANLoss, self).__init__()# 将真实/伪造标签注册为 buffer（随模型保存/加载，且不会被优化）self.register_buffer('real_label', torch.tensor(target_real_label))self.register_buffer('fake_label', torch.tensor(target_fake_label))self.gan_mode = gan_mode# 根据 gan_mode 选择损失形式if gan_mode == 'lsgan':self.loss = nn.MSELoss()  # LSGAN 用 MSEelif gan_mode == 'vanilla':self.loss = nn.BCEWithLogitsLoss()  # 原始 GAN：结合 Sigmoid 的 BCE（更稳定，内部带logits）elif gan_mode in ['wgangp']:self.loss = None  # WGAN-GP 不使用显式目标张量else:raise NotImplementedError('gan mode %s not implemented' % gan_mode)def get_target_tensor(self, prediction, target_is_real):"""Create label tensors with the same size as the input.Parameters:prediction (tensor) - - tpyically the prediction from a discriminatortarget_is_real (bool) - - if the ground truth label is for real images or fake imagesReturns:A label tensor filled with ground truth label, and with the size of the input"""# 生成与预测同形状的标签张量（展开 broadcast）if target_is_real:target_tensor = self.real_labelelse:target_tensor = self.fake_labelreturn target_tensor.expand_as(prediction)def __call__(self, prediction, target_is_real):"""Calculate loss given Discriminator's output and grount truth labels.Parameters:prediction (tensor) - - tpyically the prediction output from a discriminatortarget_is_real (bool) - - if the ground truth label is for real images or fake imagesReturns:the calculated loss."""# 计算不同 GAN 模式下的损失if self.gan_mode in ['lsgan', 'vanilla']:target_tensor = self.get_target_tensor(prediction, target_is_real)loss = self.loss(prediction, target_tensor)elif self.gan_mode == 'wgangp':# WGAN-GP：真实取 -mean，伪造取 +meanif target_is_real:loss = -prediction.mean()else:loss = prediction.mean()return loss
# 后面这几个是不同类型的损失函数需要用到的一些方法，先不看了

# 这里也没看懂是什么，写的是WGAN-GP的梯度惩罚项，应该是这种损失函数里的一个正则化项
def cal_gradient_penalty(netD, real_data, fake_data, device, type='mixed', constant=1.0, lambda_gp=10.0):"""Calculate the gradient penalty loss, used in WGAN-GP paper https://arxiv.org/abs/1704.00028Arguments:netD (network)              -- discriminator networkreal_data (tensor array)    -- real imagesfake_data (tensor array)    -- generated images from the generatordevice (str)                -- GPU / CPU: from torch.device('cuda:{}'.format(self.gpu_ids[0])) if self.gpu_ids else torch.device('cpu')type (str)                  -- if we mix real and fake data or not [real | fake | mixed].constant (float)            -- the constant used in formula ( ||gradient||_2 - constant)^2lambda_gp (float)           -- weight for this lossReturns the gradient penalty loss"""# 计算 WGAN-GP 的梯度惩罚项（可在真实/伪造/混合样本上）if lambda_gp > 0.0:if type == 'real':   # 使用真实样本interpolatesv = real_dataelif type == 'fake':  # 使用伪造样本interpolatesv = fake_dataelif type == 'mixed':  # 使用线性插值的混合样本alpha = torch.rand(real_data.shape[0], 1, device=device)# 扩展到与 real_data 同形状：按 batch 展开alpha = alpha.expand(real_data.shape[0], real_data.nelement() // real_data.shape[0]).contiguous().view(*real_data.shape)interpolatesv = alpha * real_data + ((1 - alpha) * fake_data)else:raise NotImplementedError('{} not implemented'.format(type))interpolatesv.requires_grad_(True)# 判别器对插值样本的输出disc_interpolates = netD(interpolatesv)# 计算输出对输入的梯度gradients = torch.autograd.grad(outputs=disc_interpolates, inputs=interpolatesv,grad_outputs=torch.ones(disc_interpolates.size()).to(device),create_graph=True, retain_graph=True, only_inputs=True)gradients = gradients[0].view(real_data.size(0), -1)  # 展平到 (B, -1)# 计算惩罚项：((||g||_2 - constant)^2).mean() * lambda_gp，加上微小 eps 防止数值问题gradient_penalty = (((gradients + 1e-16).norm(2, dim=1) - constant) ** 2).mean() * lambda_gp        # added epsreturn gradient_penalty, gradientselse:return 0.0, None

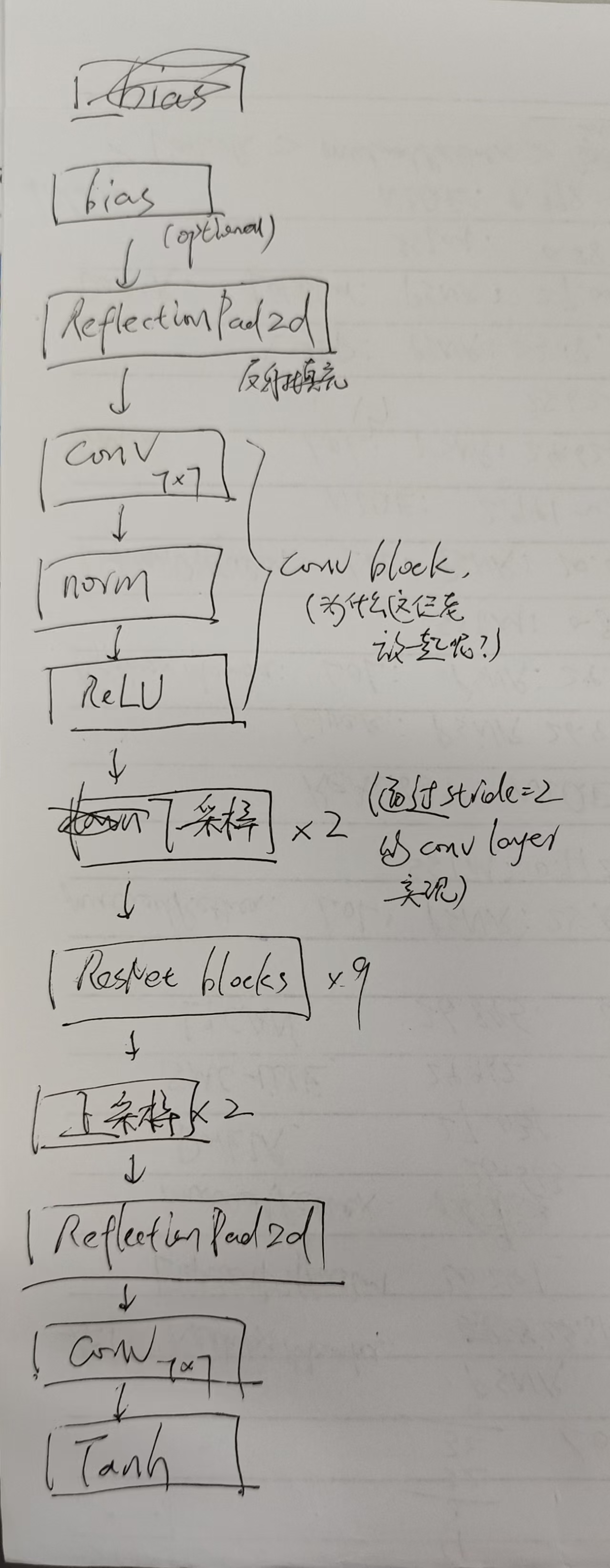

接下来这部分比较重要，定义了ResNet 9 blocks类型的生成器的基本结构

class ResnetGenerator(nn.Module):"""Resnet-based generator that consists of Resnet blocks between a few downsampling/upsampling operations.We adapt Torch code and idea from Justin Johnson's neural style transfer project(https://github.com/jcjohnson/fast-neural-style)"""def __init__(self, input_nc, output_nc, ngf=64, norm_layer=nn.BatchNorm2d, use_dropout=False, n_blocks=6, padding_type='reflect'):"""Construct a Resnet-based generatorParameters:input_nc (int)      -- the number of channels in input imagesoutput_nc (int)     -- the number of channels in output imagesngf (int)           -- the number of filters in the last conv layernorm_layer          -- normalization layeruse_dropout (bool)  -- if use dropout layersn_blocks (int)      -- the number of ResNet blockspadding_type (str)  -- the name of padding layer in conv layers: reflect | replicate | zero"""assert(n_blocks >= 0)super(ResnetGenerator, self).__init__()# 判断是否需要卷积层 bias：IN 通常需要 bias，BN 通常不需要if type(norm_layer) == functools.partial:use_bias = norm_layer.func == nn.InstanceNorm2delse:use_bias = norm_layer == nn.InstanceNorm2d# 头部：反射填充 3，7x7 Conv，Norm，ReLUmodel = [nn.ReflectionPad2d(3),nn.Conv2d(input_nc, ngf, kernel_size=7, padding=0, bias=use_bias),norm_layer(ngf),nn.ReLU(True)]# 下采样 2 次：每次通道数 *2，stride=2 的 3x3 Convn_downsampling = 2for i in range(n_downsampling):  # add downsampling layersmult = 2 ** imodel += [nn.Conv2d(ngf * mult, ngf * mult * 2, kernel_size=3, stride=2, padding=1, bias=use_bias),norm_layer(ngf * mult * 2),nn.ReLU(True)]# 中间堆叠 ResNet blocks（保持分辨率与通道不变）mult = 2 ** n_downsampling# 这里的n_blocks是参数，代表一共堆叠多少层resnetfor i in range(n_blocks):       # add ResNet blocksmodel += [ResnetBlock(ngf * mult, padding_type=padding_type, norm_layer=norm_layer, use_dropout=use_dropout, use_bias=use_bias)]# for循环构造resnetBlock类，这个类在下面有定义# 上采样 2 次：ConvTranspose2d 反卷积 + Norm + ReLUfor i in range(n_downsampling):  # add upsampling layersmult = 2 ** (n_downsampling - i)model += [nn.ConvTranspose2d(ngf * mult, int(ngf * mult / 2),kernel_size=3, stride=2,padding=1, output_padding=1,bias=use_bias),norm_layer(int(ngf * mult / 2)),nn.ReLU(True)]# 尾部：反射填充 + 7x7 Conv + Tanh 输出到 [-1,1]model += [nn.ReflectionPad2d(3)]model += [nn.Conv2d(ngf, output_nc, kernel_size=7, padding=0)]model += [nn.Tanh()]self.model = nn.Sequential(*model)def forward(self, input):"""Standard forward"""return self.model(input)

定义resnet blocks类

class ResnetBlock(nn.Module):"""Define a Resnet block"""def __init__(self, dim, padding_type, norm_layer, use_dropout, use_bias):"""Initialize the Resnet blockA resnet block is a conv block with skip connectionsWe construct a conv block with build_conv_block function,and implement skip connections in <forward> function.Original Resnet paper: https://arxiv.org/pdf/1512.03385.pdf"""super(ResnetBlock, self).__init__()# 构建“Conv-Norm-ReLU-(Dropout)-Conv-Norm”的子序列self.conv_block = self.build_conv_block(dim, padding_type, norm_layer, use_dropout, use_bias)def build_conv_block(self, dim, padding_type, norm_layer, use_dropout, use_bias):# 构造conv block（注意不是简单的conv层）"""Construct a convolutional block.Parameters:dim (int)           -- the number of channels in the conv layer.padding_type (str)  -- the name of padding layer: reflect | replicate | zeronorm_layer          -- normalization layeruse_dropout (bool)  -- if use dropout layers.use_bias (bool)     -- if the conv layer uses bias or notReturns a conv block (with a conv layer, a normalization layer, and a non-linearity layer (ReLU))"""# 包含卷积层，归一化层，ReLU非线性层conv_block = []# 定义一个列表变量p = 0# 第一层的“等效 padding”：可用反射/复制 padding 模块，或使用 zero padding（p=1）if padding_type == 'reflect':conv_block += [nn.ReflectionPad2d(1)]elif padding_type == 'replicate':conv_block += [nn.ReplicationPad2d(1)]elif padding_type == 'zero':p = 1else:raise NotImplementedError('padding [%s] is not implemented' % padding_type)# Conv + Norm + ReLUconv_block += [nn.Conv2d(dim, dim, kernel_size=3, padding=p, bias=use_bias), norm_layer(dim), nn.ReLU(True)]if use_dropout:conv_block += [nn.Dropout(0.5)]# 第二层前的 padding 选择与第一层一致p = 0if padding_type == 'reflect':conv_block += [nn.ReflectionPad2d(1)]elif padding_type == 'replicate':conv_block += [nn.ReplicationPad2d(1)]elif padding_type == 'zero':p = 1else:raise NotImplementedError('padding [%s] is not implemented' % padding_type)# Conv + Norm（无激活，便于残差相加前保留线性变换）conv_block += [nn.Conv2d(dim, dim, kernel_size=3, padding=p, bias=use_bias), norm_layer(dim)]return nn.Sequential(*conv_block)def forward(self, x):"""Forward function (with skip connections)"""out = x + self.conv_block(x)  # 残差连接：F(x) + xreturn out

uNet架构的生成器
可以看出，在uNet架构生成器里，ngf（尾部卷积层滤波器个数）对于网络结构有很大用处

class UnetGenerator(nn.Module):"""Create a Unet-based generator"""def __init__(self, input_nc, output_nc, num_downs, ngf=64, norm_layer=nn.BatchNorm2d, use_dropout=False):"""Construct a Unet generatorParameters:input_nc (int)  -- the number of channels in input imagesoutput_nc (int) -- the number of channels in output imagesnum_downs (int) -- the number of downsamplings in UNet. For example, # if |num_downs| == 7,image of size 128x128 will become of size 1x1 # at the bottleneckngf (int)       -- the number of filters in the last conv layernorm_layer      -- normalization layerWe construct the U-Net from the innermost layer to the outermost layer.It is a recursive process."""super(UnetGenerator, self).__init__()# 自底向上地搭建 U-Net（先最内层，再逐层包裹），最后外层接 Tanh 输出# 最内层 block（innermost=True）unet_block = UnetSkipConnectionBlock(ngf * 8, ngf * 8, input_nc=None, submodule=None, norm_layer=norm_layer, innermost=True)  # add the innermost layer# 若 num_downs 较大，中间堆叠多个（通道 ngf*8 不变），可选 dropoutfor i in range(num_downs - 5):          # add intermediate layers with ngf * 8 filtersunet_block = UnetSkipConnectionBlock(ngf * 8, ngf * 8, input_nc=None, submodule=unet_block, norm_layer=norm_layer, use_dropout=use_dropout)# 逐步减小通道：ngf*8 → ngf*4 → ngf*2 → ngfunet_block = UnetSkipConnectionBlock(ngf * 4, ngf * 8, input_nc=None, submodule=unet_block, norm_layer=norm_layer)unet_block = UnetSkipConnectionBlock(ngf * 2, ngf * 4, input_nc=None, submodule=unet_block, norm_layer=norm_layer)unet_block = UnetSkipConnectionBlock(ngf, ngf * 2, input_nc=None, submodule=unet_block, norm_layer=norm_layer)
# 这里是一个逐渐递归的构建过程，以上一层的基础再往上加新的层
# 构建过程通过UnetSkipConnectionBlock类的构造函数实现
# 这里用到的UnetSkipConnectionBlock类再后面有定义# 最外层：指定 input_nc / output_nc，并且 outermost=True（最后接 Tanh）self.model = UnetSkipConnectionBlock(output_nc, ngf, input_nc=input_nc, submodule=unet_block, outermost=True, norm_layer=norm_layer)  # add the outermost layerdef forward(self, input):"""Standard forward"""return self.model(input)class UnetSkipConnectionBlock(nn.Module):"""Defines the Unet submodule with skip connection.X -------------------identity----------------------|-- downsampling -- |submodule| -- upsampling --|"""def __init__(self, outer_nc, inner_nc, input_nc=None,submodule=None, outermost=False, innermost=False, norm_layer=nn.BatchNorm2d, use_dropout=False):"""Construct a Unet submodule with skip connections.Parameters:outer_nc (int) -- the number of filters in the outer conv layerinner_nc (int) -- the number of filters in the inner conv layerinput_nc (int) -- the number of channels in input images/featuressubmodule (UnetSkipConnectionBlock) -- previously defined submodulesoutermost (bool)    -- if this module is the outermost moduleinnermost (bool)    -- if this module is the innermost modulenorm_layer          -- normalization layeruse_dropout (bool)  -- if use dropout layers."""super(UnetSkipConnectionBlock, self).__init__()self.outermost = outermost  # 记录是否为最外层（影响 forward 合并方式）# 确定是否需要 bias（与 IN/BN 选择相关）if type(norm_layer) == functools.partial:use_bias = norm_layer.func == nn.InstanceNorm2delse:use_bias = norm_layer == nn.InstanceNorm2d# 若未显式给 input_nc，则默认与 outer_nc 相同（便于递归堆叠）if input_nc is None:input_nc = outer_nc# 下采样：4x4/stride=2 的卷积downconv = nn.Conv2d(input_nc, inner_nc, kernel_size=4,stride=2, padding=1, bias=use_bias)# 基本组件：LeakyReLU/BN/ReLU 等downrelu = nn.LeakyReLU(0.2, True)downnorm = norm_layer(inner_nc)uprelu = nn.ReLU(True)upnorm = norm_layer(outer_nc)if outermost:# 最外层：上采样不接 BN，最后接 Tanh 输出到 [-1,1]upconv = nn.ConvTranspose2d(inner_nc * 2, outer_nc,kernel_size=4, stride=2,padding=1)down = [downconv]up = [uprelu, upconv, nn.Tanh()]model = down + [submodule] + upelif innermost:# 最内层：下采样后直接上采样并接 BN（无子模块）upconv = nn.ConvTranspose2d(inner_nc, outer_nc,kernel_size=4, stride=2,padding=1, bias=use_bias)down = [downrelu, downconv]up = [uprelu, upconv, upnorm]model = down + upelse:# 中间层：下采样 + 子模块 + 上采样，可能附加 Dropoutupconv = nn.ConvTranspose2d(inner_nc * 2, outer_nc,kernel_size=4, stride=2,padding=1, bias=use_bias)down = [downrelu, downconv, downnorm]up = [uprelu, upconv, upnorm]if use_dropout:model = down + [submodule] + up + [nn.Dropout(0.5)]else:model = down + [submodule] + upself.model = nn.Sequential(*model)def forward(self, x):if self.outermost:# 最外层：不做 skip 相加/拼接，直接返回return self.model(x)else:   # add skip connections# 其它层：与输入在通道维度拼接，实现 U-Net 的跳接（cat([x, F(x)], dim=1)）return torch.cat([x, self.model(x)], 1)

NLayerDiscriminator类定义patchGAN类型的判别器结构

class NLayerDiscriminator(nn.Module):"""Defines a PatchGAN discriminator"""def __init__(self, input_nc, ndf=64, n_layers=3, norm_layer=nn.BatchNorm2d):"""Construct a PatchGAN discriminatorParameters:input_nc (int)  -- the number of channels in input imagesndf (int)       -- the number of filters in the last conv layern_layers (int)  -- the number of conv layers in the discriminatornorm_layer      -- normalization layer"""super(NLayerDiscriminator, self).__init__()# 与上文相同逻辑：IN 时使用 bias，BN 时不使用if type(norm_layer) == functools.partial:  # no need to use bias as BatchNorm2d has affine parametersuse_bias = norm_layer.func == nn.InstanceNorm2delse:use_bias = norm_layer == nn.InstanceNorm2dkw = 4      # 卷积核大小 4x4padw = 1    # padding=1 保持特定空间尺寸变化# 第一层：不接 BN（经验上判别器首层不加 BN）sequence = [nn.Conv2d(input_nc, ndf, kernel_size=kw, stride=2, padding=padw), nn.LeakyReLU(0.2, True)]nf_mult = 1nf_mult_prev = 1# 中间层：逐层通道倍增（最多到 *8），stride=2 下采样for n in range(1, n_layers):  # gradually increase the number of filtersnf_mult_prev = nf_multnf_mult = min(2 ** n, 8)sequence += [nn.Conv2d(ndf * nf_mult_prev, ndf * nf_mult, kernel_size=kw, stride=2, padding=padw, bias=use_bias),norm_layer(ndf * nf_mult),nn.LeakyReLU(0.2, True)]# 倒数第二层：stride=1，进一步提取局部判别特征nf_mult_prev = nf_multnf_mult = min(2 ** n_layers, 8)sequence += [nn.Conv2d(ndf * nf_mult_prev, ndf * nf_mult, kernel_size=kw, stride=1, padding=padw, bias=use_bias),norm_layer(ndf * nf_mult),nn.LeakyReLU(0.2, True)]# 最后一层：输出 1 通道的“Patch 级”真伪图（无需 Sigmoid，交由损失函数处理）sequence += [nn.Conv2d(ndf * nf_mult, 1, kernel_size=kw, stride=1, padding=padw)]  # output 1 channel prediction mapself.model = nn.Sequential(*sequence)def forward(self, input):"""Standard forward."""return self.model(input)

定义一个像素级别的判别器
根据上面的定义可以知道，patchGAN最终的判别图的尺寸有很多种
当判别图尺寸为1×1时，即为像素级别的判别器

class PixelDiscriminator(nn.Module):"""Defines a 1x1 PatchGAN discriminator (pixelGAN)"""def __init__(self, input_nc, ndf=64, norm_layer=nn.BatchNorm2d):"""Construct a 1x1 PatchGAN discriminatorParameters:input_nc (int)  -- the number of channels in input imagesndf (int)       -- the number of filters in the last conv layernorm_layer      -- normalization layer"""super(PixelDiscriminator, self).__init__()# 同样的 bias 逻辑（取决于是否使用 IN）if type(norm_layer) == functools.partial:  # no need to use bias as BatchNorm2d has affine parametersuse_bias = norm_layer.func == nn.InstanceNorm2delse:use_bias = norm_layer == nn.InstanceNorm2d# PixelGAN：全使用 1x1 卷积，仅对颜色分布进行逐像素判别（不建模空间结构）self.net = [nn.Conv2d(input_nc, ndf, kernel_size=1, stride=1, padding=0),nn.LeakyReLU(0.2, True),nn.Conv2d(ndf, ndf * 2, kernel_size=1, stride=1, padding=0, bias=use_bias),norm_layer(ndf * 2),nn.LeakyReLU(0.2, True),nn.Conv2d(ndf * 2, 1, kernel_size=1, stride=1, padding=0, bias=use_bias)]self.net = nn.Sequential(*self.net)# 备注：PixelDiscriminator 鼓励颜色多样性，但不对空间统计（纹理/结构）建模def forward(self, input):"""Standard forward."""return self.net(input)
