Hibernate Collection Cache如何工作

介绍

之前，我描述了Hibernate用于存储实体的二级缓存条目结构。除了实体，Hibernate还可以存储实体关联，本文将阐明集合缓存的内部工作原理。

领域模型

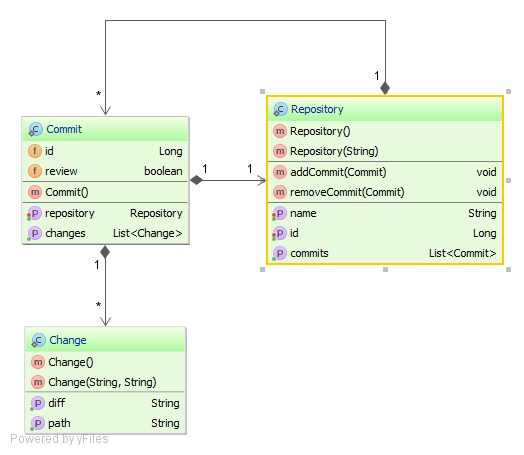

对于即将进行的测试，我们将使用以下实体模型：

collectioncacherepositorycommitchange

存储库具有一组Commit实体：

@org.hibernate.annotations.Cache(usage = CacheConcurrencyStrategy.READ_WRITE
)
@OneToMany(mappedBy = "repository", cascade = CascadeType.ALL, orphanRemoval = true)
private List<Commit> commits = new ArrayList<>();

每个Commit实体都有一组Change可嵌入元素。

@ElementCollection
@CollectionTable(name="commit_change",joinColumns = @JoinColumn(name="commit_id")
)
@org.hibernate.annotations.Cache(usage = CacheConcurrencyStrategy.READ_WRITE
)
@OrderColumn(name = "index_id")
private List<Change> changes = new ArrayList<>();

现在，我们将插入一些测试数据：

doInTransaction(session -> {Repository repository = new Repository("Hibernate-Master-Class");session.persist(repository);Commit commit1 = new Commit();commit1.getChanges().add(new Change("README.txt", "0a1,5..."));commit1.getChanges().add(new Change("web.xml", "17c17..."));Commit commit2 = new Commit();commit2.getChanges().add(new Change("README.txt", "0b2,5..."));repository.addCommit(commit1);repository.addCommit(commit2);session.persist(commit1);
});

直读缓存

集合缓存采用了一种通读同步策略：

doInTransaction(session -> {Repository repository = (Repository) session.get(Repository.class, 1L);for (Commit commit : repository.getCommits()) {assertFalse(commit.getChanges().isEmpty());}
});

并且首次访问集合时将对其进行缓存：

selectcollection0_.id as id1_0_0_,collection0_.name as name2_0_0_
fromRepository collection0_
wherecollection0_.id=1  selectcommits0_.repository_id as reposito3_0_0_,commits0_.id as id1_1_0_,commits0_.id as id1_1_1_,commits0_.repository_id as reposito3_1_1_,commits0_.review as review2_1_1_
fromcommit commits0_
wherecommits0_.r  selectchanges0_.commit_id as commit_i1_1_0_,changes0_.diff as diff2_2_0_,changes0_.path as path3_2_0_,changes0_.index_id as index_id4_0_
fromcommit_change changes0_
wherechanges0_.commit_id=1  selectchanges0_.commit_id as commit_i1_1_0_,changes0_.diff as diff2_2_0_,changes0_.path as path3_2_0_,changes0_.index_id as index_id4_0_
fromcommit_change changes0_
wherechanges0_.commit_id=2

在缓存存储库及其关联的提交之后，由于所有实体及其关联都由第二级缓存提供服务，因此加载存储库并遍历“ 提交和更改”集合将不会访问数据库：

LOGGER.info("Load collections from cache");
doInTransaction(session -> {Repository repository = (Repository) session.get(Repository.class, 1L);assertEquals(2, repository.getCommits().size());
});

运行先前的测试用例时，没有执行SQL SELECT语句：

CollectionCacheTest - Load collections from cache
JdbcTransaction - committed JDBC Connection

集合缓存条目结构

对于实体集合，Hibernate仅存储实体标识符，因此也需要缓存实体：

key = {org.hibernate.cache.spi.CacheKey@3981}key = {java.lang.Long@3597} "1"type = {org.hibernate.type.LongType@3598} entityOrRoleName = {java.lang.String@3599} "com.vladmihalcea.hibernate.masterclass.laboratory.cache.CollectionCacheTest$Repository.commits"tenantId = nullhashCode = 31
value = {org.hibernate.cache.ehcache.internal.strategy.AbstractReadWriteEhcacheAccessStrategy$Item@3982} value = {org.hibernate.cache.spi.entry.CollectionCacheEntry@3986} "CollectionCacheEntry[1,2]"version = nulltimestamp = 5858841154416640

CollectionCacheEntry存储与给定存储库实体关联的提交标识符。

由于元素类型没有标识符，因此Hibernate会存储其脱水状态。更改可嵌入的内容缓存如下：

key = {org.hibernate.cache.spi.CacheKey@3970} "com.vladmihalcea.hibernate.masterclass.laboratory.cache.CollectionCacheTest$Commit.changes#1"key = {java.lang.Long@3974} "1"type = {org.hibernate.type.LongType@3975} entityOrRoleName = {java.lang.String@3976} "com.vladmihalcea.hibernate.masterclass.laboratory.cache.CollectionCacheTest$Commit.changes"tenantId = nullhashCode = 31
value = {org.hibernate.cache.ehcache.internal.strategy.AbstractReadWriteEhcacheAccessStrategy$Item@3971} value = {org.hibernate.cache.spi.entry.CollectionCacheEntry@3978}state = {java.io.Serializable[2]@3980} 0 = {java.lang.Object[2]@3981} 0 = {java.lang.String@3985} "0a1,5..."1 = {java.lang.String@3986} "README.txt"1 = {java.lang.Object[2]@3982} 0 = {java.lang.String@3983} "17c17..."1 = {java.lang.String@3984} "web.xml"version = nulltimestamp = 5858843026345984

集合缓存一致性模型

在使用缓存时，一致性是最大的问题，因此我们需要了解Hibernate Collection Cache如何处理实体状态更改。

CollectionUpdateAction负责所有Collection的修改，并且只要集合发生更改，就会将关联的缓存条目逐出：

protected final void evict() throws CacheException {if ( persister.hasCache() ) {final CacheKey ck = session.generateCacheKey(key, persister.getKeyType(), persister.getRole());persister.getCacheAccessStrategy().remove( ck );}
}

CollectionRegionAccessStrategy规范也记录了此行为：

对于缓存的收集数据，所有修改操作实际上只会使条目无效。

根据当前的并发策略，收回集合缓存条目：

在提交当前事务之前，用于CacheConcurrencyStrategy.NONSTRICT_READ_WRITE
立即提交当前事务后，用于CacheConcurrencyStrategy.READ_WRITE
对于CacheConcurrencyStrategy.TRANSACTIONAL ， 确切地在何时提交当前事务

添加新的收藏夹条目

以下测试案例向我们的存储库添加了一个新的Commit实体：

LOGGER.info("Adding invalidates Collection Cache");
doInTransaction(session -> {Repository repository = (Repository) session.get(Repository.class, 1L);assertEquals(2, repository.getCommits().size());Commit commit = new Commit();commit.getChanges().add(new Change("Main.java", "0b3,17..."));repository.addCommit(commit);
});
doInTransaction(session -> {Repository repository = (Repository) session.get(Repository.class, 1L);assertEquals(3, repository.getCommits().size());
});

运行此测试将生成以下输出：

--Adding invalidates Collection Cacheinsert
intocommit(id, repository_id, review)
values(default, 1, false)insert
intocommit_change(commit_id, index_id, diff, path)
values(3, 0, '0b3,17...', 'Main.java')--committed JDBC Connectionselectcommits0_.repository_id as reposito3_0_0_,commits0_.id as id1_1_0_,commits0_.id as id11_1_1_,commits0_.repository_id as reposito3_1_1_,commits0_.review as review2_1_1_
fromcommit commits0_
wherecommits0_.repository_id=1--committed JDBC Connection

保留新的Commit实体后，将清除Repository.commits集合缓存，并从数据库中获取关联的Commits实体（下次访问该集合）。

删除现有的集合条目

删除Collection元素遵循相同的模式：

LOGGER.info("Removing invalidates Collection Cache");
doInTransaction(session -> {Repository repository = (Repository) session.get(Repository.class, 1L);assertEquals(2, repository.getCommits().size());Commit removable = repository.getCommits().get(0);repository.removeCommit(removable);
});
doInTransaction(session -> {Repository repository = (Repository) session.get(Repository.class, 1L);assertEquals(1, repository.getCommits().size());
});

生成以下输出：

--Removing invalidates Collection Cachedelete
fromcommit_change
wherecommit_id=1delete
fromcommit
whereid=1--committed JDBC Connectionselectcommits0_.repository_id as reposito3_0_0_,commits0_.id as id1_1_0_,commits0_.id as id1_1_1_,commits0_.repository_id as reposito3_1_1_,commits0_.review as review2_1_1_
fromcommit commits0_
wherecommits0_.repository_id=1--committed JDBC Connection

一旦更改其结构，便会收回集合缓存。

直接删除集合元素

只要Hibernate知道目标缓存集合要进行的所有更改，它就可以确保缓存的一致性。 Hibernate使用其自己的Collection类型（例如PersistentBag ， PersistentSet ）来允许延迟加载或检测脏状态。

如果删除内部Collection元素而不更新Collection状态，则Hibernate将无法使当前缓存的Collection条目无效：

LOGGER.info("Removing Child causes inconsistencies");
doInTransaction(session -> {Commit commit = (Commit) session.get(Commit.class, 1L);session.delete(commit);
});
try {doInTransaction(session -> {Repository repository = (Repository) session.get(Repository.class, 1L);assertEquals(1, repository.getCommits().size());});
} catch (ObjectNotFoundException e) {LOGGER.warn("Object not found", e);
}

--Removing Child causes inconsistenciesdelete
fromcommit_change
wherecommit_id=1delete
fromcommit
whereid=1-committed JDBC Connectionselectcollection0_.id as id1_1_0_,collection0_.repository_id as reposito3_1_0_,collection0_.review as review2_1_0_
fromcommit collection0_
wherecollection0_.id=1--No row with the given identifier exists:
-- [CollectionCacheTest$Commit#1]--rolled JDBC Connection

当Commit实体被删除时，Hibernate不知道它必须更新所有关联的Collection Cache。下次加载Commit集合时，Hibernate将意识到某些实体不再存在，并且将引发异常。

使用HQL更新Collection元素

通过HQL执行批量更新时，Hibernate可以保持缓存一致性：

LOGGER.info("Updating Child entities using HQL");
doInTransaction(session -> {Repository repository = (Repository)session.get(Repository.class, 1L);for (Commit commit : repository.getCommits()) {assertFalse(commit.review);}
});
doInTransaction(session -> {session.createQuery("update Commit c " +"set c.review = true ").executeUpdate();
});
doInTransaction(session -> {Repository repository = (Repository)session.get(Repository.class, 1L);for(Commit commit : repository.getCommits()) {assertTrue(commit.review);}
});

运行此测试用例将生成以下SQL：

--Updating Child entities using HQL--committed JDBC Connectionupdatecommit
setreview=true--committed JDBC Connectionselectcommits0_.repository_id as reposito3_0_0_,commits0_.id as id1_1_0_,commits0_.id as id1_1_1_,commits0_.repository_id as reposito3_1_1_,commits0_.review as review2_1_1_
fromcommit commits0_
wherecommits0_.repository_id=1--committed JDBC Connection

第一个事务不需要命中数据库，仅依赖于第二级缓存。 HQL UPDATE清除了集合缓存，因此，在随后访问集合时，Hibernate将不得不从数据库中重新加载它。

使用SQL更新Collection元素

Hibernate还可以使批量SQL UPDATE语句的缓存条目无效：

LOGGER.info("Updating Child entities using SQL");
doInTransaction(session -> {Repository repository = (Repository) session.get(Repository.class, 1L);for (Commit commit : repository.getCommits()) {assertFalse(commit.review);}
});
doInTransaction(session -> {session.createSQLQuery("update Commit c " +"set c.review = true ").addSynchronizedEntityClass(Commit.class).executeUpdate();
});
doInTransaction(session -> {Repository repository = (Repository) session.get(Repository.class, 1L);for(Commit commit : repository.getCommits()) {assertTrue(commit.review);}
});

生成以下输出：

--Updating Child entities using SQL--committed JDBC Connectionupdatecommit
setreview=true--committed JDBC Connectionselectcommits0_.repository_id as reposito3_0_0_,commits0_.id as id1_1_0_,commits0_.id as id1_1_1_,commits0_.repository_id as reposito3_1_1_,commits0_.review as review2_1_1_
fromcommit commits0_
wherecommits0_.repository_id=1  --committed JDBC Connection

BulkOperationCleanupAction负责清理大容量DML语句上的二级缓存。尽管Hibernate在执行HQL语句时可以检测到受影响的缓存区域，但是对于本机查询，您需要指示Hibernate该语句应使哪些区域无效。如果您未指定任何此类区域，则Hibernate将清除所有第二级缓存区域。

结论

集合缓存是一项非常有用的功能，是对第二级实体缓存的补充。这样，我们可以存储整个实体图，从而减少了只读应用程序中的数据库查询工作量。像使用AUTO刷新一样，Hibernate在执行本机查询时无法自省受影响的表空间。为了避免一致性问题（使用AUTO刷新时）或缓存未命中（二级缓存），每当我们需要运行本机查询时，我们都必须显式声明目标表，因此Hibernate可以采取适当的措施（例如刷新或使缓存无效）地区）。
