使用Spring编写和使用SOAP Web服务

在RESTful Web服务时代，我有机会使用SOAP Web Service。为此，我选择了Spring ，这是因为我们已经在项目中使用Spring作为后端框架，其次它提供了一种直观的方式来与具有明确定义的边界的服务进行交互，以通过WebServiceTemplate促进可重用性和可移植性。

假设您已经了解SOAP Web服务，让我们开始创建在端口9999上运行的hello-world soap服务，并使用下面的步骤来使用相同的客户端：

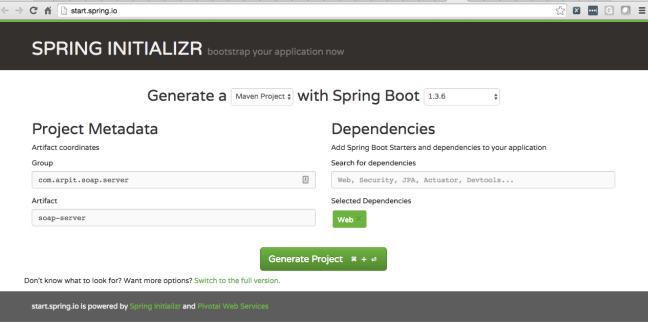

步骤1 ：根据以下图像，转到start.spring.io并创建一个添加Web启动器的新项目soap-server ：

肥皂服务器

步骤2：编辑SoapServerApplication.java，以在端点发布hello-world服务-http：// localhost：9999 / service / hello-world ，如下所示：

package com.arpit.soap.server.main;import javax.xml.ws.Endpoint;import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;import com.arpit.soap.server.service.impl.HelloWorldServiceImpl;@SpringBootApplication
public class SoapServerApplication implements CommandLineRunner {@Value("${service.port}")private String servicePort;@Overridepublic void run(String... args) throws Exception {Endpoint.publish("http://localhost:" + servicePort+ "/service/hello-world", new HelloWorldServiceImpl());}public static void main(String[] args) {SpringApplication.run(SoapServerApplication.class, args);}
}

步骤3：编辑application.properties，以指定hello-world服务的应用程序名称，端口和端口号，如下所示：

server.port=9000
spring.application.name=soap-server## Soap Service Port
service.port=9999

步骤4：创建其他包com.arpit.soap.server.service和com.arpit.soap.server.service.impl来定义Web Service及其实现，如下所示：

HelloWorldService.java

package com.arpit.soap.server.service;import javax.jws.WebMethod;
import javax.jws.WebParam;
import javax.jws.WebService;import com.arpit.soap.server.model.ApplicationCredentials;@WebService
public interface HelloWorldService {@WebMethod(operationName = "helloWorld", action = "https://aggarwalarpit.wordpress.com/hello-world/helloWorld")String helloWorld(final String name,@WebParam(header = true) final ApplicationCredentials credential);}

上面指定的@WebService将Java类标记为实现Web服务，或者将Java接口标记为定义Web Service接口。

上面指定的@WebMethod将Java方法标记为Web Service操作。

上面指定的@WebParam自定义单个参数到Web服务消息部分和XML元素的映射。

HelloWorldServiceImpl.java

package com.arpit.soap.server.service.impl;import javax.jws.WebService;import com.arpit.soap.server.model.ApplicationCredentials;
import com.arpit.soap.server.service.HelloWorldService;@WebService(endpointInterface = "com.arpit.soap.server.service.HelloWorldService")
public class HelloWorldServiceImpl implements HelloWorldService {@Overridepublic String helloWorld(final String name,final ApplicationCredentials credential) {return "Hello World from " + name;}
}

步骤5：移至soap-server目录并运行命令： mvn spring-boot：run 。运行后，打开http：// localhost：9999 / service / hello-world？wsdl以查看hello-world服务的WSDL。

接下来，我们将创建soap-client ，它将使用我们新创建的hello-world服务。

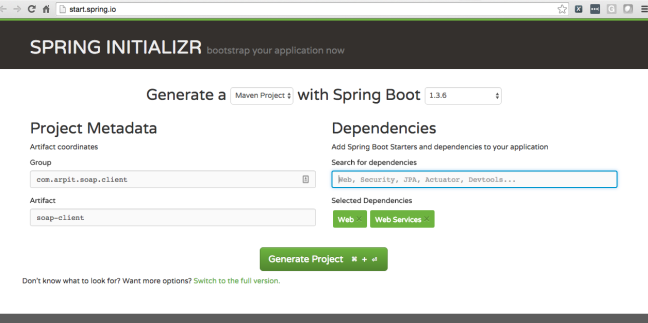

步骤6：转到start.spring.io并基于下图创建一个新的项目soap-client，添加Web，Web Services启动程序：

肥皂客户

步骤7：编辑SoapClientApplication.java以创建一个向hello-world Web服务的请求，将该请求连同标头一起发送到soap-server并从中获取响应，如下所示：

package com.arpit.soap.client.main;import java.io.IOException;
import java.io.StringWriter;import javax.xml.bind.JAXBElement;
import javax.xml.transform.Transformer;
import javax.xml.transform.TransformerException;
import javax.xml.transform.TransformerFactory;
import javax.xml.transform.stream.StreamResult;import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.ws.WebServiceMessage;
import org.springframework.ws.client.core.WebServiceMessageCallback;
import org.springframework.ws.client.core.WebServiceTemplate;
import org.springframework.ws.soap.SoapMessage;
import org.springframework.xml.transform.StringSource;import com.arpit.soap.server.service.ApplicationCredentials;
import com.arpit.soap.server.service.HelloWorld;
import com.arpit.soap.server.service.HelloWorldResponse;
import com.arpit.soap.server.service.ObjectFactory;@SpringBootApplication
@ComponentScan("com.arpit.soap.client.config")
public class SoapClientApplication implements CommandLineRunner {@Autowired@Qualifier("webServiceTemplate")private WebServiceTemplate webServiceTemplate;@Value("#{'${service.soap.action}'}")private String serviceSoapAction;@Value("#{'${service.user.id}'}")private String serviceUserId;@Value("#{'${service.user.password}'}")private String serviceUserPassword;public static void main(String[] args) {SpringApplication.run(SoapClientApplication.class, args);System.exit(0);}public void run(String... args) throws Exception {final HelloWorld helloWorld = createHelloWorldRequest();@SuppressWarnings("unchecked")final JAXBElement<HelloWorldResponse> jaxbElement = (JAXBElement<HelloWorldResponse>) sendAndRecieve(helloWorld);final HelloWorldResponse helloWorldResponse = jaxbElement.getValue();System.out.println(helloWorldResponse.getReturn());}private Object sendAndRecieve(HelloWorld seatMapRequestType) {return webServiceTemplate.marshalSendAndReceive(seatMapRequestType,new WebServiceMessageCallback() {public void doWithMessage(WebServiceMessage message)throws IOException, TransformerException {SoapMessage soapMessage = (SoapMessage) message;soapMessage.setSoapAction(serviceSoapAction);org.springframework.ws.soap.SoapHeader soapheader = soapMessage.getSoapHeader();final StringWriter out = new StringWriter();webServiceTemplate.getMarshaller().marshal(getHeader(serviceUserId, serviceUserPassword),new StreamResult(out));Transformer transformer = TransformerFactory.newInstance().newTransformer();transformer.transform(new StringSource(out.toString()),soapheader.getResult());}});}private Object getHeader(final String userId, final String password) {final https.aggarwalarpit_wordpress.ObjectFactory headerObjectFactory = new https.aggarwalarpit_wordpress.ObjectFactory();final ApplicationCredentials applicationCredentials = new ApplicationCredentials();applicationCredentials.setUserId(userId);applicationCredentials.setPassword(password);final JAXBElement<ApplicationCredentials> header = headerObjectFactory.createApplicationCredentials(applicationCredentials);return header;}private HelloWorld createHelloWorldRequest() {final ObjectFactory objectFactory = new ObjectFactory();final HelloWorld helloWorld = objectFactory.createHelloWorld();helloWorld.setArg0("Arpit");return helloWorld;}}

步骤8：接下来，创建其他包com.arpit.soap.client.config来配置WebServiceTemplate ，如下所示：

ApplicationConfig.java

package com.arpit.soap.client.config;import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.support.PropertySourcesPlaceholderConfigurer;
import org.springframework.oxm.jaxb.Jaxb2Marshaller;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;
import org.springframework.ws.client.core.WebServiceTemplate;
import org.springframework.ws.soap.saaj.SaajSoapMessageFactory;
import org.springframework.ws.transport.http.HttpComponentsMessageSender;@Configuration
@EnableWebMvc
public class ApplicationConfig extends WebMvcConfigurerAdapter {@Value("#{'${service.endpoint}'}")private String serviceEndpoint;@Value("#{'${marshaller.packages.to.scan}'}")private String marshallerPackagesToScan;@Value("#{'${unmarshaller.packages.to.scan}'}")private String unmarshallerPackagesToScan;@Beanpublic static PropertySourcesPlaceholderConfigurer propertySourcesPlaceholderConfigurer() {return new PropertySourcesPlaceholderConfigurer();}@Beanpublic SaajSoapMessageFactory messageFactory() {SaajSoapMessageFactory messageFactory = new SaajSoapMessageFactory();messageFactory.afterPropertiesSet();return messageFactory;}@Beanpublic Jaxb2Marshaller marshaller() {Jaxb2Marshaller marshaller = new Jaxb2Marshaller();marshaller.setPackagesToScan(marshallerPackagesToScan.split(","));return marshaller;}@Beanpublic Jaxb2Marshaller unmarshaller() {Jaxb2Marshaller unmarshaller = new Jaxb2Marshaller();unmarshaller.setPackagesToScan(unmarshallerPackagesToScan.split(","));return unmarshaller;}@Beanpublic WebServiceTemplate webServiceTemplate() {WebServiceTemplate webServiceTemplate = new WebServiceTemplate(messageFactory());webServiceTemplate.setMarshaller(marshaller());webServiceTemplate.setUnmarshaller(unmarshaller());webServiceTemplate.setMessageSender(messageSender());webServiceTemplate.setDefaultUri(serviceEndpoint);return webServiceTemplate;}@Beanpublic HttpComponentsMessageSender messageSender() {HttpComponentsMessageSender httpComponentsMessageSender = new HttpComponentsMessageSender();return httpComponentsMessageSender;}
}

步骤9：编辑application.properties以指定应用程序名称，端口和hello-world soap Web服务配置，如下所示：

server.port=9000
spring.application.name=soap-client## Soap Service Configurationservice.endpoint=http://localhost:9999/service/hello-world
service.soap.action=https://aggarwalarpit.wordpress.com/hello-world/helloWorld
service.user.id=arpit
service.user.password=arpit
marshaller.packages.to.scan=com.arpit.soap.server.service
unmarshaller.packages.to.scan=com.arpit.soap.server.service

上面指定的service.endpoint是提供给服务用户以调用服务提供者公开的服务的URL。

service.soap.action指定服务请求者发送请求时需要调用哪个进程或程序，还定义了进程/程序的相对路径。

marshaller.packages.to.scan指定在将请求发送到服务器之前在编组时要扫描的软件包。

unmarshaller.packages.to.scan指定从服务器收到请求后在解组时要扫描的软件包。

现在，我们将使用wsimport从WSDL生成Java对象，并将其复制到在终端上执行以下命令的soap-client项目：

wsimport -keep -verbose http://localhost:9999/service/hello-world?wsdl

步骤10：移至soap-client目录并运行命令： mvn spring-boot：run 。命令完成后，我们将在控制台上看到“来自Arpit的Hello World”作为hello-world soap服务的响应。

在运行时，如果遇到以下错误，则– 由于缺少@XmlRootElement批注，因此无法封送键入“ com.arpit.soap.server.service.HelloWorld”作为元素，然后添加@XmlRootElement（name =“ helloWorld”，命名空间= “ http://service.server.soap.arpit.com/ ”到com.arpit.soap.server.service.HelloWorld ，其中名称空间应与在肥皂信封中定义的xmlns：ser相匹配，如下所示：

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://service.server.soap.arpit.com/"><soapenv:Header><ser:arg1><userId>arpit</userId><password>arpit</password></ser:arg1></soapenv:Header><soapenv:Body><ser:helloWorld><!--Optional:--><arg0>Arpit</arg0></ser:helloWorld></soapenv:Body>
</soapenv:Envelope>

完整的源代码托管在github上。
