一.说明

SpringSecurity是一个用于Java 企业级应用程序的安全框架,主要包含用户认证和用户授权两个方面.相比较Shiro而言,Security功能更加的强大,它可以很容易地扩展以满足更多安全控制方面的需求,但也相对它的学习成本会更高,两种框架各有利弊.实际开发中还是要根据业务和项目的需求来决定使用哪一种.

JWT是在Web应用中安全传递信息的规范,从本质上来说是Token的演变,是一种生成加密用户身份信息的Token,特别适用于分布式单点登陆的场景,无需在服务端保存用户的认证信息,而是直接对Token进行校验获取用户信息,使单点登录更为简单灵活.

二.项目环境

SpringBoot版本:2.1.6
SpringSecurity版本: 5.1.5
MyBatis-Plus版本: 3.1.0
JDK版本:1.8

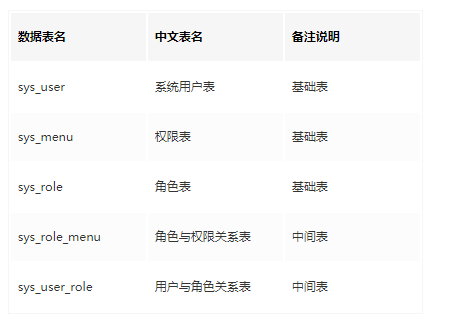

数据表(SQL文件在项目中):数据库中测试号的密码进行了加密,密码皆为123456

Maven依赖如下：

<dependencies>        <dependency>            <groupId>org.springframework.bootgroupId>            <artifactId>spring-boot-starter-webartifactId>        dependency>        <dependency>            <groupId>mysqlgroupId>            <artifactId>mysql-connector-javaartifactId>            <scope>runtimescope>        dependency>        <dependency>            <groupId>org.projectlombokgroupId>            <artifactId>lombokartifactId>            <optional>trueoptional>        dependency>        <dependency>            <groupId>org.springframework.bootgroupId>            <artifactId>spring-boot-starter-testartifactId>            <scope>testscope>        dependency>                <dependency>            <groupId>org.springframework.bootgroupId>            <artifactId>spring-boot-starter-securityartifactId>        dependency>                <dependency>            <groupId>com.baomidougroupId>            <artifactId>mybatis-plus-boot-starterartifactId>            <version>3.1.0version>        dependency>                <dependency>            <groupId>com.alibabagroupId>            <artifactId>druidartifactId>            <version>1.1.6version>        dependency>                <dependency>            <groupId>org.apache.commonsgroupId>            <artifactId>commons-lang3artifactId>            <version>3.5version>        dependency>                <dependency>            <groupId>com.alibabagroupId>            <artifactId>fastjsonartifactId>            <version>1.2.45version>        dependency>                <dependency>            <groupId>org.springframework.securitygroupId>            <artifactId>spring-security-jwtartifactId>            <version>1.0.9.RELEASEversion>        dependency>        <dependency>            <groupId>io.jsonwebtokengroupId>            <artifactId>jjwtartifactId>            <version>0.9.0version>        dependency>dependencies>

配置如下:

# 配置端口server:  port: 8764spring:  # 配置数据源  datasource:    driver-class-name: com.mysql.cj.jdbc.Driver    url: jdbc:mysql://localhost:3306/sans_security?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false    username: root    password: 123456    type: com.alibaba.druid.pool.DruidDataSource# JWT配置jwt:  # 密匙KEY  secret: JWTSecret  # HeaderKEY  tokenHeader: Authorization  # Token前缀字符  tokenPrefix: Sans-  # 过期时间 单位秒 1天后过期=86400 7天后过期=604800  expiration: 86400  # 配置不需要认证的接口  antMatchers: /index,/login/**,/favicon.ico# Mybatis-plus相关配置mybatis-plus:  # xml扫描，多个目录用逗号或者分号分隔(告诉 Mapper 所对应的 XML 文件位置)  mapper-locations: classpath:mapper/*.xml  # 以下配置均有默认值,可以不设置  global-config:    db-config:      #主键类型 AUTO:"数据库ID自增" INPUT:"用户输入ID",ID_WORKER:"全局唯一ID (数字类型唯一ID)", UUID:"全局唯一ID UUID";      id-type: AUTO      #字段策略 IGNORED:"忽略判断"  NOT_NULL:"非 NULL 判断")  NOT_EMPTY:"非空判断"      field-strategy: NOT_EMPTY      #数据库类型      db-type: MYSQL  configuration:    # 是否开启自动驼峰命名规则映射:从数据库列名到Java属性驼峰命名的类似映射    map-underscore-to-camel-case: true    # 返回map时true:当查询数据为空时字段返回为null,false:不加这个查询数据为空时，字段将被隐藏    call-setters-on-nulls: true    # 这个配置会将执行的sql打印出来，在开发或测试的时候可以用    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

三.编写项目基础类

Entity,Dao,Service,及等SpringSecurity用户的Entity,Service类等在这里省略,请参考源码

编写JWT工具类

/** * JWT工具类 * @Author Sans * @CreateTime 2019/10/2 7:42 */@Slf4jpublic class JWTTokenUtil {    /**     * 生成Token     * @Author Sans     * @CreateTime 2019/10/2 12:16     * @Param  selfUserEntity 用户安全实体     * @Return Token     */    public static String createAccessToken(SelfUserEntity selfUserEntity){        // 登陆成功生成JWT        String token = Jwts.builder()                // 放入用户名和用户ID                .setId(selfUserEntity.getUserId()+"")                // 主题                .setSubject(selfUserEntity.getUsername())                // 签发时间                .setIssuedAt(new Date())                // 签发者                .setIssuer("sans")                // 自定义属性 放入用户拥有权限                .claim("authorities", JSON.toJSONString(selfUserEntity.getAuthorities()))                // 失效时间                .setExpiration(new Date(System.currentTimeMillis() + JWTConfig.expiration))                // 签名算法和密钥                .signWith(SignatureAlgorithm.HS512, JWTConfig.secret)                .compact();        return token;    }}

编写暂无权限处理类

/** * @Description 暂无权限处理类 * @Author Sans * @CreateTime 2019/10/3 8:39 */@Componentpublic class UserAuthAccessDeniedHandler implements AccessDeniedHandler{    /**     * 暂无权限返回结果     * @Author Sans     * @CreateTime 2019/10/3 8:41     */    @Override    public void handle(HttpServletRequest request, HttpServletResponse response, AccessDeniedException exception){        ResultUtil.responseJson(response,ResultUtil.resultCode(403,"未授权"));    }}

编写用户未登录处理类

/** * 用户未登录处理类 * @Author Sans * @CreateTime 2019/10/3 8:55 */@Componentpublic class UserAuthenticationEntryPointHandler implements AuthenticationEntryPoint {    /**     * 用户未登录返回结果     * @Author Sans     * @CreateTime 2019/10/3 9:01     */    @Override    public void commence(HttpServletRequest request, HttpServletResponse response, AuthenticationException exception){        ResultUtil.responseJson(response,ResultUtil.resultCode(401,"未登录"));    }}

编写登录失败处理类

/** * @Description 登录失败处理类 * @Author Sans * @CreateTime 2019/10/3 9:06 */@Slf4j@Componentpublic class UserLoginFailureHandler implements AuthenticationFailureHandler {    /**     * 登录失败返回结果     * @Author Sans     * @CreateTime 2019/10/3 9:12     */    @Override    public void onAuthenticationFailure(HttpServletRequest request, HttpServletResponse response, AuthenticationException exception){        // 这些对于操作的处理类可以根据不同异常进行不同处理        if (exception instanceof UsernameNotFoundException){            log.info("【登录失败】"+exception.getMessage());            ResultUtil.responseJson(response,ResultUtil.resultCode(500,"用户名不存在"));        }        if (exception instanceof LockedException){            log.info("【登录失败】"+exception.getMessage());            ResultUtil.responseJson(response,ResultUtil.resultCode(500,"用户被冻结"));        }        if (exception instanceof BadCredentialsException){            log.info("【登录失败】"+exception.getMessage());            ResultUtil.responseJson(response,ResultUtil.resultCode(500,"用户名密码不正确"));        }        ResultUtil.responseJson(response,ResultUtil.resultCode(500,"登录失败"));    }}

编写登录成功处理类

/** * @Description 登录成功处理类 * @Author Sans * @CreateTime 2019/10/3 9:13 */@Slf4j@Componentpublic class UserLoginSuccessHandler implements AuthenticationSuccessHandler {    /**     * 登录成功返回结果     * @Author Sans     * @CreateTime 2019/10/3 9:27     */    @Override    public void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response, Authentication authentication){        // 组装JWT        SelfUserEntity selfUserEntity =  (SelfUserEntity) authentication.getPrincipal();        String token = JWTTokenUtil.createAccessToken(selfUserEntity);        token = JWTConfig.tokenPrefix + token;        // 封装返回参数        Map resultData = new HashMap<>();        resultData.put("code","200");        resultData.put("msg", "登录成功");        resultData.put("token",token);        ResultUtil.responseJson(response,resultData);    }}

编写登出成功处理类

/** * 用户登出类 * @Author Sans * @CreateTime 2019/10/3 9:42 */@Componentpublic class UserLogoutSuccessHandler implements LogoutSuccessHandler {    /**     * 用户登出返回结果     * 这里应该让前端清除掉Token     * @Author Sans     * @CreateTime 2019/10/3 9:50     */    @Override    public void onLogoutSuccess(HttpServletRequest request, HttpServletResponse response, Authentication authentication){        Map resultData = new HashMap<>();        resultData.put("code","200");        resultData.put("msg", "登出成功");        SecurityContextHolder.clearContext();        ResultUtil.responseJson(response,ResultUtil.resultSuccess(resultData));    }}

四.编写Security核心类

编写自定义登录验证类

/** * 自定义登录验证 * @Author Sans * @CreateTime 2019/10/1 19:11 */@Componentpublic class UserAuthenticationProvider implements AuthenticationProvider {    @Autowired    private SelfUserDetailsService selfUserDetailsService;    @Autowired    private SysUserService sysUserService;    @Override    public Authentication authenticate(Authentication authentication) throws AuthenticationException {        // 获取表单输入中返回的用户名        String userName = (String) authentication.getPrincipal();        // 获取表单中输入的密码        String password = (String) authentication.getCredentials();        // 查询用户是否存在        SelfUserEntity userInfo = selfUserDetailsService.loadUserByUsername(userName);        if (userInfo == null) {            throw new UsernameNotFoundException("用户名不存在");        }        // 我们还要判断密码是否正确，这里我们的密码使用BCryptPasswordEncoder进行加密的        if (!new BCryptPasswordEncoder().matches(password, userInfo.getPassword())) {            throw new BadCredentialsException("密码不正确");        }        // 还可以加一些其他信息的判断，比如用户账号已停用等判断        if (userInfo.getStatus().equals("PROHIBIT")){            throw new LockedException("该用户已被冻结");        }        // 角色集合        Set authorities = new HashSet<>();        // 查询用户角色        List sysRoleEntityList = sysUserService.selectSysRoleByUserId(userInfo.getUserId());        for (SysRoleEntity sysRoleEntity: sysRoleEntityList){            authorities.add(new SimpleGrantedAuthority("ROLE_" + sysRoleEntity.getRoleName()));        }        userInfo.setAuthorities(authorities);        // 进行登录        return new UsernamePasswordAuthenticationToken(userInfo, password, authorities);    }    @Override    public boolean supports(Class> authentication) {        return true;    }}

编写自定义PermissionEvaluator注解验证

/** * 自定义权限注解验证 * @Author Sans * @CreateTime 2019/10/6 13:31 */@Componentpublic class UserPermissionEvaluator implements PermissionEvaluator {    @Autowired    private SysUserService sysUserService;    /**     * hasPermission鉴权方法     * 这里仅仅判断PreAuthorize注解中的权限表达式     * 实际中可以根据业务需求设计数据库通过targetUrl和permission做更复杂鉴权     * @Author Sans     * @CreateTime 2019/10/6 18:25     * @Param  authentication  用户身份     * @Param  targetUrl  请求路径     * @Param  permission 请求路径权限     * @Return boolean 是否通过     */    @Override    public boolean hasPermission(Authentication authentication, Object targetUrl, Object permission) {        // 获取用户信息        SelfUserEntity selfUserEntity =(SelfUserEntity) authentication.getPrincipal();        // 查询用户权限(这里可以将权限放入缓存中提升效率)        Set permissions = new HashSet<>();        List sysMenuEntityList = sysUserService.selectSysMenuByUserId(selfUserEntity.getUserId());        for (SysMenuEntity sysMenuEntity:sysMenuEntityList) {            permissions.add(sysMenuEntity.getPermission());        }        // 权限对比        if (permissions.contains(permission.toString())){            return true;        }        return false;    }    @Override    public boolean hasPermission(Authentication authentication, Serializable targetId, String targetType, Object permission) {        return false;    }}

编写SpringSecurity核心配置类

/** * SpringSecurity核心配置类 * @Author Sans * @CreateTime 2019/10/1 9:40 */@Configuration@EnableWebSecurity@EnableGlobalMethodSecurity(prePostEnabled = true) //开启权限注解,默认是关闭的public class SecurityConfig extends WebSecurityConfigurerAdapter {    /**     * 自定义登录成功处理器     */    @Autowired    private UserLoginSuccessHandler userLoginSuccessHandler;    /**     * 自定义登录失败处理器     */    @Autowired    private UserLoginFailureHandler userLoginFailureHandler;    /**     * 自定义注销成功处理器     */    @Autowired    private UserLogoutSuccessHandler userLogoutSuccessHandler;    /**     * 自定义暂无权限处理器     */    @Autowired    private UserAuthAccessDeniedHandler userAuthAccessDeniedHandler;    /**     * 自定义未登录的处理器     */    @Autowired    private UserAuthenticationEntryPointHandler userAuthenticationEntryPointHandler;    /**     * 自定义登录逻辑验证器     */    @Autowired    private UserAuthenticationProvider userAuthenticationProvider;    /**     * 加密方式     * @Author Sans     * @CreateTime 2019/10/1 14:00     */    @Bean    public BCryptPasswordEncoder bCryptPasswordEncoder(){        return new BCryptPasswordEncoder();    }    /**     * 注入自定义PermissionEvaluator     */    @Bean    public DefaultWebSecurityExpressionHandler userSecurityExpressionHandler(){        DefaultWebSecurityExpressionHandler handler = new DefaultWebSecurityExpressionHandler();        handler.setPermissionEvaluator(new UserPermissionEvaluator());        return handler;    }    /**     * 配置登录验证逻辑     */    @Override    protected void configure(AuthenticationManagerBuilder auth){        //这里可启用我们自己的登陆验证逻辑        auth.authenticationProvider(userAuthenticationProvider);    }    /**     * 配置security的控制逻辑     * @Author Sans     * @CreateTime 2019/10/1 16:56     * @Param  http 请求     */    @Override    protected void configure(HttpSecurity http) throws Exception {        http.authorizeRequests()                //不进行权限验证的请求或资源(从配置文件中读取)               .antMatchers(JWTConfig.antMatchers.split(",")).permitAll()                //其他的需要登陆后才能访问                .anyRequest().authenticated()                .and()                //配置未登录自定义处理类                .httpBasic().authenticationEntryPoint(userAuthenticationEntryPointHandler)                .and()                //配置登录地址                .formLogin()                .loginProcessingUrl("/login/userLogin")                //配置登录成功自定义处理类                .successHandler(userLoginSuccessHandler)                //配置登录失败自定义处理类                .failureHandler(userLoginFailureHandler)                .and()                //配置登出地址                .logout()                .logoutUrl("/login/userLogout")                //配置用户登出自定义处理类                .logoutSuccessHandler(userLogoutSuccessHandler)                .and()                //配置没有权限自定义处理类                .exceptionHandling().accessDeniedHandler(userAuthAccessDeniedHandler)                .and()                // 开启跨域                .cors()                .and()                // 取消跨站请求伪造防护                .csrf().disable();        // 基于Token不需要session        http.sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS);        // 禁用缓存        http.headers().cacheControl();        // 添加JWT过滤器        http.addFilter(new JWTAuthenticationTokenFilter(authenticationManager()));    }}

五.编写JWT拦截类

编写JWT接口请求校验拦截器

/** * JWT接口请求校验拦截器 * 请求接口时会进入这里验证Token是否合法和过期 * @Author Sans * @CreateTime 2019/10/5 16:41 */@Slf4jpublic class JWTAuthenticationTokenFilter extends BasicAuthenticationFilter {    public JWTAuthenticationTokenFilter(AuthenticationManager authenticationManager) {        super(authenticationManager);    }    @Override    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {        // 获取请求头中JWT的Token        String tokenHeader = request.getHeader(JWTConfig.tokenHeader);        if (null!=tokenHeader && tokenHeader.startsWith(JWTConfig.tokenPrefix)) {            try {                // 截取JWT前缀                String token = tokenHeader.replace(JWTConfig.tokenPrefix, "");                // 解析JWT                Claims claims = Jwts.parser()                        .setSigningKey(JWTConfig.secret)                        .parseClaimsJws(token)                        .getBody();                // 获取用户名                String username = claims.getSubject();                String userId=claims.getId();                if(!StringUtils.isEmpty(username)&&!StringUtils.isEmpty(userId)) {                    // 获取角色                    List authorities = new ArrayList<>();                    String authority = claims.get("authorities").toString();                    if(!StringUtils.isEmpty(authority)){                        ListString,                        for(Map<String,String> role : authorityMap){                            if(!StringUtils.isEmpty(role)) {                                authorities.add(new SimpleGrantedAuthority(role.get("authority")));                            }                        }                    }                    //组装参数                    SelfUserEntity selfUserEntity = new SelfUserEntity();                    selfUserEntity.setUsername(claims.getSubject());                    selfUserEntity.setUserId(Long.parseLong(claims.getId()));                    selfUserEntity.setAuthorities(authorities);                    UsernamePasswordAuthenticationToken authentication = new UsernamePasswordAuthenticationToken(selfUserEntity, userId, authorities);                    SecurityContextHolder.getContext().setAuthentication(authentication);                }            } catch (ExpiredJwtException e){                log.info("Token过期");            } catch (Exception e) {                log.info("Token无效");            }        }        filterChain.doFilter(request, response);        return;    }}

六.权限注解和hasPermission权限扩展

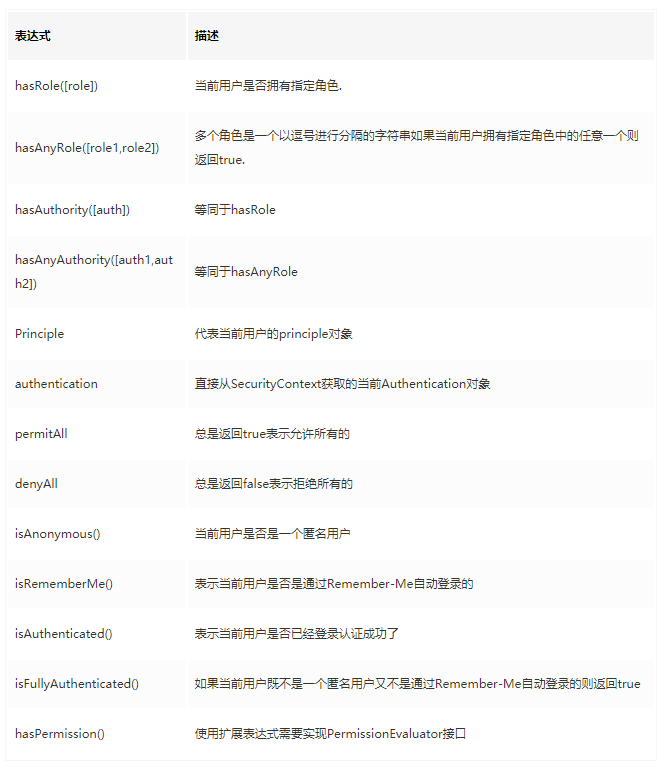

Security允许我们在定义URL方法访问所应有的注解权限时使用SpringEL表达式,在定义所需的访问权限时如果对应的表达式返回结果为true则表示拥有对应的权限,反之则没有权限,会进入到我们配置的UserAuthAccessDeniedHandler(暂无权限处理类)中进行处理.这里举一些例子,代码中注释有对应的描述.

    /**     * 管理端信息     * @Author Sans     * @CreateTime 2019/10/2 14:22     * @Return Map 返回数据MAP     */    @PreAuthorize("hasRole('ADMIN')")    @RequestMapping(value = "/info",method = RequestMethod.GET)    public Map<String,Object> userLogin(){        Map<String,Object> result = new HashMap<>();        SelfUserEntity userDetails = SecurityUtil.getUserInfo();        result.put("title","管理端信息");        result.put("data",userDetails);        return ResultUtil.resultSuccess(result);    }    /**     * 拥有ADMIN或者USER角色可以访问     * @Author Sans     * @CreateTime 2019/10/2 14:22     * @Return Map 返回数据MAP     */    @PreAuthorize("hasAnyRole('ADMIN','USER')")    @RequestMapping(value = "/list",method = RequestMethod.GET)    public Map<String,Object> list(){        Map<String,Object> result = new HashMap<>();        List sysUserEntityList = sysUserService.list();        result.put("title","拥有用户或者管理员角色都可以查看");        result.put("data",sysUserEntityList);        return ResultUtil.resultSuccess(result);    }    /**     * 拥有ADMIN和USER角色可以访问     * @Author Sans     * @CreateTime 2019/10/2 14:22     * @Return Map 返回数据MAP     */    @PreAuthorize("hasRole('ADMIN') and hasRole('USER')")    @RequestMapping(value = "/menuList",method = RequestMethod.GET)    public Map<String,Object> menuList(){        Map<String,Object> result = new HashMap<>();        List sysMenuEntityList = sysMenuService.list();        result.put("title","拥有用户和管理员角色都可以查看");        result.put("data",sysMenuEntityList);        return ResultUtil.resultSuccess(result);    }

通常情况下使用hasRole和hasAnyRole基本可以满足大部分鉴权需求,但是有时候面对更复杂的场景上述常规表示式无法完成权限认证,Security也为我们提供了解决方案.通过hasPermission()来扩展表达式.使用hasPermission()首先要实现PermissionEvaluator接口

/** * 自定义权限注解验证 * @Author Sans * @CreateTime 2019/10/6 13:31 */@Componentpublic class UserPermissionEvaluator implements PermissionEvaluator {    @Autowired    private SysUserService sysUserService;    /**     * hasPermission鉴权方法     * 这里仅仅判断PreAuthorize注解中的权限表达式     * 实际中可以根据业务需求设计数据库通过targetUrl和permission做更复杂鉴权     * 当然targetUrl不一定是URL可以是数据Id还可以是管理员标识等,这里根据需求自行设计     * @Author Sans     * @CreateTime 2019/10/6 18:25     * @Param  authentication  用户身份(在使用hasPermission表达式时Authentication参数默认会自动带上)     * @Param  targetUrl  请求路径     * @Param  permission 请求路径权限     * @Return boolean 是否通过     */    @Override    public boolean hasPermission(Authentication authentication, Object targetUrl, Object permission) {        // 获取用户信息        SelfUserEntity selfUserEntity =(SelfUserEntity) authentication.getPrincipal();        // 查询用户权限(这里可以将权限放入缓存中提升效率)        Set permissions = new HashSet<>();        List sysMenuEntityList = sysUserService.selectSysMenuByUserId(selfUserEntity.getUserId());        for (SysMenuEntity sysMenuEntity:sysMenuEntityList) {            permissions.add(sysMenuEntity.getPermission());        }        // 权限对比        if (permissions.contains(permission.toString())){            return true;        }        return false;    }    @Override    public boolean hasPermission(Authentication authentication, Serializable targetId, String targetType, Object permission) {        return false;    }}

在请求方法上添加hasPermission示例

    /**     * 拥有sys:user:info权限可以访问     * hasPermission 第一个参数是请求路径 第二个参数是权限表达式     * @Author Sans     * @CreateTime 2019/10/2 14:22     * @Return Map 返回数据MAP     */    @PreAuthorize("hasPermission('/admin/userList','sys:user:info')")    @RequestMapping(value = "/userList",method = RequestMethod.GET)    public Map<String,Object> userList(){        Map<String,Object> result = new HashMap<>();        List sysUserEntityList = sysUserService.list();        result.put("title","拥有sys:user:info权限都可以查看");        result.put("data",sysUserEntityList);        return ResultUtil.resultSuccess(result);    }

hasPermission可以也可以和其他表达式联合使用

    /**     * 拥有ADMIN角色和sys:role:info权限可以访问     * @Author Sans     * @CreateTime 2019/10/2 14:22     * @Return Map 返回数据MAP     */    @PreAuthorize("hasRole('ADMIN') and hasPermission('/admin/adminRoleList','sys:role:info')")    @RequestMapping(value = "/adminRoleList",method = RequestMethod.GET)    public Map<String,Object> adminRoleList(){        Map<String,Object> result = new HashMap<>();        List sysRoleEntityList = sysRoleService.list();        result.put("title","拥有ADMIN角色和sys:role:info权限可以访问");        result.put("data",sysRoleEntityList);        return ResultUtil.resultSuccess(result);    }

七.测试

创建账户这里用户加密使用了Security推荐的bCryptPasswordEncoder方法

   /**     * 注册用户     */    @Test    public void contextLoads() {        // 注册用户        SysUserEntity sysUserEntity = new SysUserEntity();        sysUserEntity.setUsername("sans");        sysUserEntity.setPassword(bCryptPasswordEncoder.encode("123456"));        // 设置用户状态        sysUserEntity.setStatus("NORMAL");        sysUserService.save(sysUserEntity);        // 分配角色 1:ADMIN 2:USER        SysUserRoleEntity sysUserRoleEntity = new SysUserRoleEntity();        sysUserRoleEntity.setRoleId(2L);        sysUserRoleEntity.setUserId(sysUserEntity.getUserId());        sysUserRoleService.save(sysUserRoleEntity);    }

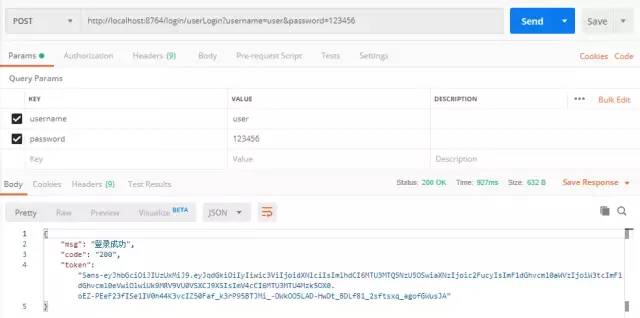

登录USER角色账号,登录成功后我们会获取到身份认证的Token
