【0】README
0.0）本文部分描述转自“深入剖析tomcat”，旨在学习 tomcat(10)安全性 的基本知识；
0.1）servlet技术支持通过配置部署描述器（web.xml）文件来对这些内容进行访问控制；（干货——web.xml又名 配置部署描述器）
0.2）servlet容器是通过一个名为验证器的阀来支持安全限制的，该阀会被添加到Context的管道中，并且会先于 Wrapper阀的调用；（干货——引入了验证器阀）
0.3）调用验证器阀：
case1）用户输入了正确的username 和 pwd：验证器阀会调用后续的阀；case2）用户输入错误：验证器阀会返回，不会调用后续的阀；
0.4）验证器阀会调用Context容器的领域对象的 authenticate()方法，传入用户输入的username 和 pwd，来对用户进行身份验证；（干货——引入了领域对象）
0.5）for source code , please visit https://github.com/pacosonTang/HowTomcatWorks/tree/master/chapter10
【1】领域（Realm，用来对用户进行身份验证的组件）
1）intro to 领域对象：该对象用来对用户进行身份验证的组件；
1.1）领域对象通常与一个Context容器相关联（setRealm方法来将领域对象与Context容器相关联）；
1.2）领域对象如何验证用户身份呢？它保存了所有有效用户的username 和 pwd对，或者它会访问存储这些dta的存储器；（在tomcat中，有效info 存储在tomcat-user.xml文件中，现在你知道tomcat-user.xml文件的作用是什么了吧）
private void createUserDatabase() {// SimpleRealm.createUserDatabase() 创建了users 列表；User user1 = new User("ken", "blackcomb");user1.addRole("manager");user1.addRole("programmer");User user2 = new User("cindy", "bamboo");user2.addRole("programmer");users.add(user1);users.add(user2);}2）领域对象：是 org.apache.catalina.Realm 接口的实例，该接口的 authenticate方法最为重要，方法签名如下：
public Principal authenticate (String username, String credentials); // generally used
public Principal authenticate (String username, byte[] credentials);
public Principal authenticate (String username, String digest, String nonce, String nc, String cnonce, String qop, String realm, String md5a2);
public Principal authenticate (X509Certificate cents[]);;

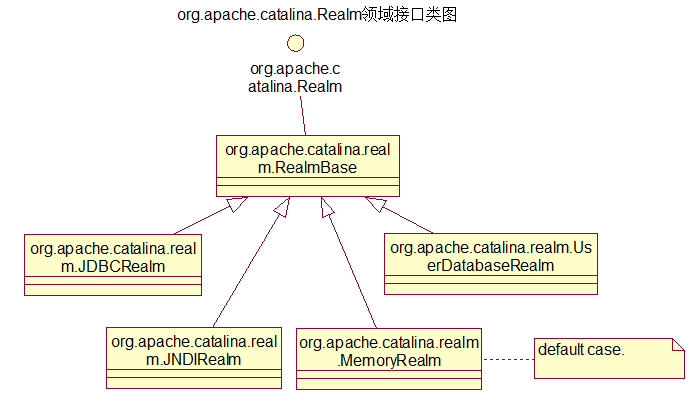

3.1）default case：会使用 MemoryRealm 类的实例作为验证用的领域对象；（干货——MemoryRealm 类的实例作
为验证默认用的领域对象）
3.2）当第一次调用 MemoryRealm实例时，它会读取 tomcat-user.xml 文档的内容；
Attention）在catalina中， 验证器阀会调用附加到其中的领域对象的 authenticate()方法来验证用户身份；
【2】GenericPrincipal类（实现接口 java.security.Principal）
public class GenericPrincipal implements Principal { //org.apache.catalina.realm.GenericPrincipal，代表一个用户（封装了username,password,role,realm）public GenericPrincipal(Realm realm, String name, String password) {this(realm, name, password, null);}public GenericPrincipal(Realm realm, String name, String password,List roles) {super();this.realm = realm;this.name = name;this.password = password;if (roles != null) {this.roles = new String[roles.size()];this.roles = (String[]) roles.toArray(this.roles);if (this.roles.length > 0)Arrays.sort(this.roles);}}protected String name = null;public String getName() {return (this.name);}protected String password = null; public String getPassword() {return (this.password);}protected Realm realm = null; public Realm getRealm() {return (this.realm);}protected String roles[] = new String[0]; public String[] getRoles() {return (this.roles);}public boolean hasRole(String role) { // highlight line.if (role == null)return (false);return (Arrays.binarySearch(roles, role) >= 0);}public String toString() {StringBuffer sb = new StringBuffer("GenericPrincipal[");sb.append(this.name);sb.append("]");return (sb.toString());}
}1）intro to GenericPrincipal：
1.1）GenericPrincipal实例：必须始终与一个领域对象相关联；
1.2）GenericPrincipal实例：必须有一个用户名和密码对；且，该用户名和密码对所对应的角色列表是可选的；
1.3）调用hasRole()方法：传入1个字符串形式的角色名来检查该主体对象是否拥有该指定角色；
【3】LoginConfig类（org.apache.catalina.deploy.LoginConfig）
1）intro to LoginConfig：登录配置是 LoginConfig类的实例，其中包含一个领域对象的名字，其实例封装了领域对象名和所要使用的身份验证方法；（getRealmName()方法用来获取领域对象的名字）；
2）getAuthName()方法获取身份验证方法的名字：名字范围是，BASIC, DIGEST, FORM 或 CLIENT-CERT；
3）实际部署中：tomcat在启动时需要读取 web.xml 文件的内容；
step1）如果web.xml 文件包含 login-config 元素的配置，则tomcat会创建一个 LoginConfig对象，并设置其相应属性；（干货——tomcat创建一个 LoginConfig对象的条件）step2）验证器阀会调用 LoginConfig.getRealmName() 获取领域对象名，并将领域对象名发送到 browser，显示在登录对话框中；case2.1）如果getReamlName()方法的返回值是null，则会将服务器名和相应端口发送给 browser；

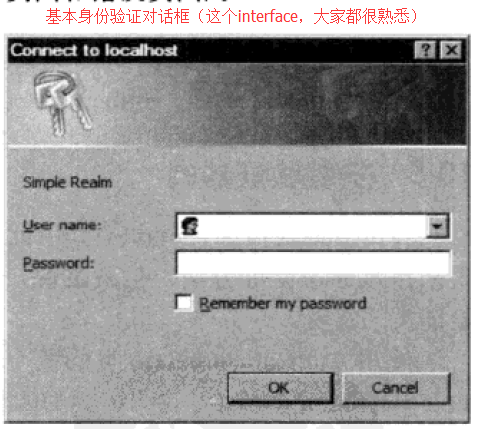

看个荔枝）下图展示了 XP 系统中使用 IE6 进行基本身份验证的登录对话框
public final class LoginConfig { //org.apache.catalina.deploy.LoginConfigpublic LoginConfig() {super();} public LoginConfig(String authMethod, String realmName,String loginPage, String errorPage) {super();setAuthMethod(authMethod);setRealmName(realmName);setLoginPage(loginPage);setErrorPage(errorPage);}// ------------------------------------------------------------- Properties private String authMethod = null;public String getAuthMethod() {return (this.authMethod);}public void setAuthMethod(String authMethod) {this.authMethod = authMethod;}private String errorPage = null;public String getErrorPage() {return (this.errorPage);}public void setErrorPage(String errorPage) { this.errorPage = RequestUtil.URLDecode(errorPage);} private String loginPage = null;public String getLoginPage() {return (this.loginPage);}public void setLoginPage(String loginPage) { this.loginPage = RequestUtil.URLDecode(loginPage);} private String realmName = null;public String getRealmName() {return (this.realmName);}public void setRealmName(String realmName) {this.realmName = realmName;} public String toString() {StringBuffer sb = new StringBuffer("LoginConfig[");sb.append("authMethod=");sb.append(authMethod);if (realmName != null) {sb.append(", realmName=");sb.append(realmName);}if (loginPage != null) {sb.append(", loginPage=");sb.append(loginPage);}if (errorPage != null) {sb.append(", errorPage=");sb.append(errorPage);}sb.append("]");return (sb.toString());}
}【4】Authenticator接口（org.apache.catalina.Authenticator）
1）intro to Authenticator：验证器接口只是起到了标记作用，这样其他组件就可以使用 instanceof 来检查某个组件是否是一个验证器；（干货——验证器接口只是起到了标记作用）

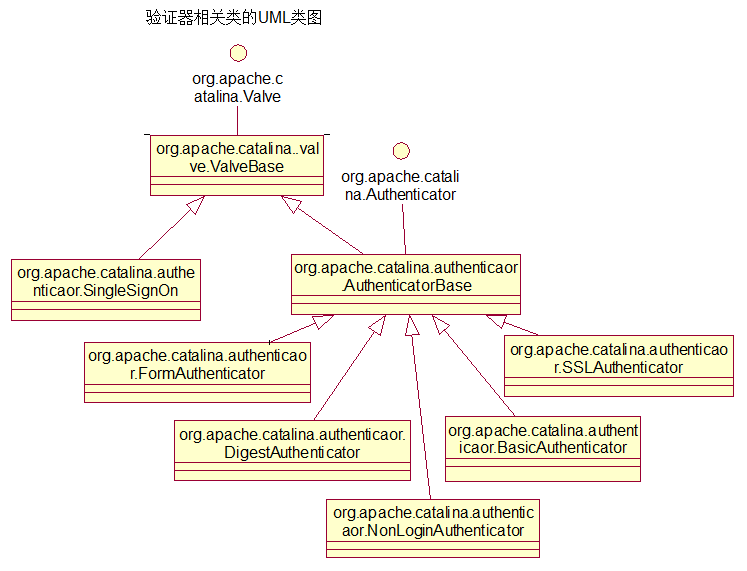

2）org.apache.catalina.Authenticator的UML类图如下：
对上图的分析（Analysis）：
A1）BasicAuthenticator：用来支持基本的身份验证；A2）FormAuthenticator：提供了基于表单的身份验证；A3）DigestAuthenticator：提供了基于信息摘要的身份验证；A4）SSLAuthenticator：用于对SSL 进行身份验证；A5）当tomcat 用户没有指定验证方法名时，NonLoginAuthenticator类用于对来访者的身份进行验证。NonLoginAuthenticator类实现的验证器只会检查安全限制，而不会涉及用户身份的验证；
Attention）
A1）验证器的重要工作：是对用户进行身份验证；（干货——验证器的重要工作是对用户进行身份验证）A2）当看到 AuthenticatorBase.invoke() 方法调用 authenticate() 抽象方法时：后者的实现依赖于子类；（而authenticate()方法会使用基本身份验证来验证用户的身份信息）；
public class BasicAuthenticator extends AuthenticatorBase { <span style="font-family: SimSun;">//org.apache.catalina.authenticator.BasicAuthenticator，这里仅以BasicAuthenticator 为例po出 source code.</span>// ----------------------------------------------------- Instance Variables protected static final Base64 base64Helper = new Base64(); protected static final String info ="org.apache.catalina.authenticator.BasicAuthenticator/1.0"; public String getInfo() {return (this.info);}public boolean authenticate(HttpRequest request,HttpResponse response,LoginConfig config)throws IOException {// Have we already authenticated someone?Principal principal =((HttpServletRequest) request.getRequest()).getUserPrincipal();String ssoId = (String) request.getNote(Constants.REQ_SSOID_NOTE);if (principal != null) {if (debug >= 1)log("Already authenticated '" + principal.getName() + "'");// Associate the session with any existing SSO sessionif (ssoId != null)associate(ssoId, getSession(request, true));return (true);}// Is there an SSO session against which we can try to reauthenticate?if (ssoId != null) {if (debug >= 1)log("SSO Id " + ssoId + " set; attempting reauthentication"); if (reauthenticateFromSSO(ssoId, request))return true;}// Validate any credentials already included with this requestHttpServletRequest hreq =(HttpServletRequest) request.getRequest();HttpServletResponse hres =(HttpServletResponse) response.getResponse();String authorization = request.getAuthorization();String username = parseUsername(authorization);String password = parsePassword(authorization);principal = context.getRealm().authenticate(username, password);if (principal != null) {register(request, response, principal, Constants.BASIC_METHOD,username, password);return (true);}// Send an "unauthorized" response and an appropriate challengeString realmName = config.getRealmName();if (realmName == null)realmName = hreq.getServerName() + ":" + hreq.getServerPort(); hres.setHeader("WWW-Authenticate","Basic realm=\"" + realmName + "\"");hres.setStatus(HttpServletResponse.SC_UNAUTHORIZED);// hres.flushBuffer();return (false);}// ------------------------------------------------------ Protected Methodsprotected String parseUsername(String authorization) {if (authorization == null)return (null);if (!authorization.toLowerCase().startsWith("basic "))return (null);authorization = authorization.substring(6).trim();// Decode and parse the authorization credentialsString unencoded =new String(base64Helper.decode(authorization.getBytes()));int colon = unencoded.indexOf(':');if (colon < 0)return (null);String username = unencoded.substring(0, colon);// String password = unencoded.substring(colon + 1).trim();return (username);}protected String parsePassword(String authorization) {if (authorization == null)return (null);if (!authorization.startsWith("Basic "))return (null);authorization = authorization.substring(6).trim();// Decode and parse the authorization credentialsString unencoded =new String(base64Helper.decode(authorization.getBytes()));int colon = unencoded.indexOf(':');if (colon < 0)return (null);// String username = unencoded.substring(0, colon).trim();String password = unencoded.substring(colon + 1);return (password);}
}【5】安装验证器阀
1）一个Context实例：只能有一个 LoginConfig实例和利用一个验证类的实现；
2）也就是说：在部署描述器（tomcat-user.xml）中，login-config元素只出现一次；login-config元素包含一个auth-method 元素来指定身份验证方法；
3）使用AuthenticatorBase类的哪个子类作为Context实例中的验证器阀：依赖于 部署描述器中 auth-method元素；

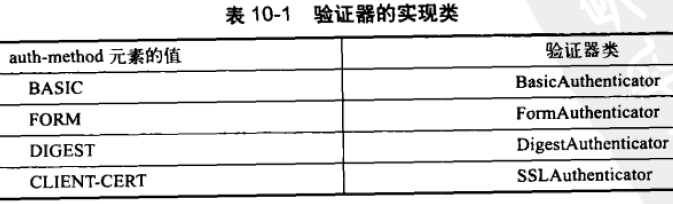

4）下表给出了 auth-method 元素的值和对应的验证器的类名：
对上表的分析（Analysis）：
A1）若没有设置 auth-method元素：则 LoginConfig 对象 的 atuh-method属性的值默认为 NONE，使用 NonLoginAuthenticator 进行安全验证；A2）由于使用的验证器类是在运行时才确定的，故该类是动态载入的；A3）StandardContext容器使用 org.apahce.catalina.startup.ContextConfig类来对 StandardContext 实例的属性进行设置：这些设置包括 实例化一个验证器类，并将该实例与Context实例相关联；
【6】应用程序
【6.1】SimpleContextConfig类
1）intro：public class SimpleContextConfig implements LifecycleListener ,仅仅是个监听器而已，不要惊慌；
2）SimpleContextConfig.authenticatorConfig()方法：该方法实例化BasicAuthenticator类，并将其作为阀添加到 StandardContext实例的管道中；（干货——注意其实例化BasicAuthenticator类的技巧）
// Identify the class name of the Valve we should configureString authenticatorName = "org.apache.catalina.authenticator.BasicAuthenticator";// Instantiate and install an Authenticator of the requested classValve authenticator = null;try {Class authenticatorClass = Class.forName(authenticatorName);authenticator = (Valve) authenticatorClass.newInstance();((StandardContext) context).addValve(authenticator);System.out.println("Added authenticator valve to Context");}catch (Throwable t) {}3）下面对SimpleContextConfig.authenticatorConfig()方法的调用过程 进行 detailed analysis:
step1）先检查在相关联的Context容器是否有安全限制，若没有直接返回，而不会安装验证器；// Does this Context require an Authenticator?SecurityConstraint constraints[] = context.findConstraints();if ((constraints == null) || (constraints.length == 0))return;
step2）若当前Context容器有一个或多个安全限制，authenticatorConfig() 方法会检查该Context实例是否有 LoginConfig对象。若没有，则它会创建一个新的 LoginConfig实例：LoginConfig loginConfig = context.getLoginConfig();if (loginConfig == null) {loginConfig = new LoginConfig("NONE", null, null, null);context.setLoginConfig(loginConfig);}
step3）检查管道中的基础阀或附加阀是否是验证器。因为一个Context实例只能有一个验证器，所以当发现某个阀是验证器后，直接返回：// Has an authenticator been configured already?Pipeline pipeline = ((StandardContext) context).getPipeline();if (pipeline != null) {Valve basic = pipeline.getBasic();if ((basic != null) && (basic instanceof Authenticator))return;Valve valves[] = pipeline.getValves();for (int i = 0; i < valves.length; i++) {if (valves[i] instanceof Authenticator)return;}}else { // no Pipeline, cannot install authenticator valvereturn;}
step4）查找当前Context实例是否有与之关联的领域对象（Realm）。如果没有领域对象，就不需要安装验证器了，因为用户是无法通过身份验证的；// Has a Realm been configured for us to authenticate against?if (context.getRealm() == null) {return;}
step5）若找到了领域对象，则会动态载入 BasicAuthenticator类，创建该类的一个实例，并将其作为阀添加到 StandardContext实例中；// Identify the class name of the Valve we should configureString authenticatorName = "org.apache.catalina.authenticator.BasicAuthenticator";// Instantiate and install an Authenticator of the requested classValve authenticator = null;try {Class authenticatorClass = Class.forName(authenticatorName);authenticator = (Valve) authenticatorClass.newInstance();((StandardContext) context).addValve(authenticator);System.out.println("Added authenticator valve to Context");}catch (Throwable t) {}}
【6.2】SimpleRealm类（简单领域对象，领域对象是用来对用户身份验证的组件）
1）SimpleRealm类实现了Realm接口；
2）在构造函数中，它调用了createUserDatabase()方法创建两个用户，并将这两个用户添加到users中；（干货——创建用户，并设置角色，功能同tomcat-users.xml 的内容）
public class SimpleRealm implements Realm {public SimpleRealm() {createUserDatabase(); //highlight line.}private void createUserDatabase() { // there are 2 roles.User user1 = new User("ken", "blackcomb");user1.addRole("manager"); // manager role.user1.addRole("programmer"); // programmer role.User user2 = new User("cindy", "bamboo");user2.addRole("programmer");users.add(user1);users.add(user2);// private ArrayList users = new ArrayList();}
}3）再看其 authenticate() 验证方法：该方法由验证器调用，若用户提供的用户名或密码无效，则返回null，否则返回一个代表该用户的 Principal对象；
public Principal authenticate(String username, String credentials) {System.out.println("SimpleRealm.authenticate()");if (username==null || credentials==null)return null;User user = getUser(username, credentials);if (user==null)return null;return new GenericPrincipal(this, user.username, user.password, user.getRoles()); // highlight line.}public class GenericPrincipal implements Principal { // 该类封装了用户的一些信息，如username，pass，role，realm等info；public GenericPrincipal(Realm realm, String name, String password) { this(realm, name, password, null);} public GenericPrincipal(Realm realm, String name, String password,List roles) {super();this.realm = realm;this.name = name;this.password = password;if (roles != null) {this.roles = new String[roles.size()];this.roles = (String[]) roles.toArray(this.roles);if (this.roles.length > 0)Arrays.sort(this.roles);}}protected String name = null;public String getName() {return (this.name);}protected String password = null;public String getPassword() {return (this.password);}protected Realm realm = null;public Realm getRealm() {return (this.realm);}protected String roles[] = new String[0];public String[] getRoles() {return (this.roles);} public boolean hasRole(String role) {if (role == null)return (false);return (Arrays.binarySearch(roles, role) >= 0);} public String toString() {StringBuffer sb = new StringBuffer("GenericPrincipal[");sb.append(this.name);sb.append("]");return (sb.toString());}
}【6.3】SimpleUserDatabaseRealm（它是SimpleRealm的变体类）
1）intro：SimpleUserDatabaseRealm类表示一个复杂一点的领域对象，它并不将用户列表存储到对象自身中。相反，它会读取conf 目录下的 tomcat-users.xml文件，将内容载入内存，然后依据该列表进行身份验证。（干货——读取conf 目录下的 tomcat-users.xml文件，将内容载入内存，然后依据该列表进行身份验证）
// tomcat-users.xml 的源码如下：
<?xml version='1.0' encoding='utf-8'?>
<tomcat-users><role rolename="tomcat"/><role rolename="role1"/><role rolename="manager"/><role rolename="admin"/><user username="tomcat" password="tomcat" roles="tomcat"/><user username="role1" password="tomcat" roles="role1"/><user username="both" password="tomcat" roles="tomcat,role1"/><user username="admin" password="admin" roles="admin,manager"/>
</tomcat-users>2）在实例化SimpleUserDatabaseRealm类后， 必须调用它的 createDatabase()方法，并向包含用户列表的xml 文档传递路径。
// 以下代码是 Bootstrap2.java 中的源码Realm realm = new SimpleUserDatabaseRealm();String filedir = new File(System.getProperty("user.dir")).getParent() + File.separator +"conf" + File.separator + "tomcat-users.xml";((SimpleUserDatabaseRealm) realm).createDatabase(filedir); // highlight line.public void createDatabase(String path) { // SimpleUserDatabaseRealm.createDatabase().database = new MemoryUserDatabase(name);((MemoryUserDatabase) database).setPathname(path);try {database.open(); // highlight line.}catch (Exception e) {}}public void open() throws Exception { // org.apache.catalina.users.MemoryUserDatabase.open().synchronized (groups) {synchronized (users) {// Erase any previous groups and usersusers.clear();groups.clear();roles.clear();// Construct a reader for the XML input file (if it exists)File file = new File(pathname);if (!file.isAbsolute()) {file = new File(System.getProperty("catalina.base"),pathname);}if (!file.exists()) {return;}FileInputStream fis = new FileInputStream(file);// Construct a digester to read the XML input fileDigester digester = new Digester();digester.addFactoryCreate("tomcat-users/group",new MemoryGroupCreationFactory(this));digester.addFactoryCreate("tomcat-users/role",new MemoryRoleCreationFactory(this));digester.addFactoryCreate("tomcat-users/user",new MemoryUserCreationFactory(this));// Parse the XML input file to load this databasetry {digester.parse(fis);fis.close();} catch (Exception e) {try {fis.close();} catch (Throwable t) {;}throw e;} } } }【6.4】Bootstrap1.java（应用程序1）
1）Bootstrap1.java 的源代码
public final class Bootstrap1 {public static void main(String[] args) {//invoke: http://localhost:8080/Modern or http://localhost:8080/PrimitiveSystem.setProperty("catalina.base", System.getProperty("user.dir"));System.out.println("user.dir = " + System.getProperty("user.dir"));Connector connector = new HttpConnector();Wrapper wrapper1 = new SimpleWrapper();wrapper1.setName("Primitive");wrapper1.setServletClass("servlet.PrimitiveServlet");Wrapper wrapper2 = new SimpleWrapper();wrapper2.setName("Modern");wrapper2.setServletClass("servlet.ModernServlet");Context context = new StandardContext(); // highlight line.// StandardContext's start method adds a default mappercontext.setPath("/myApp");context.setDocBase("myApp");LifecycleListener listener = new SimpleContextConfig();// highlight line.((Lifecycle) context).addLifecycleListener(listener);context.addChild(wrapper1);context.addChild(wrapper2);// for simplicity, we don't add a valve, but you can add// valves to context or wrapper just as you did in Chapter 6Loader loader = new WebappLoader();context.setLoader(loader);// context.addServletMapping(pattern, name);context.addServletMapping("/Primitive", "Primitive");context.addServletMapping("/Modern", "Modern");// add ContextConfig. This listener is important because it configures// StandardContext (sets configured to true), otherwise StandardContext// won't start// add constraintSecurityCollection securityCollection = new SecurityCollection();// highlight line.securityCollection.addPattern("/");// highlight line.securityCollection.addMethod("GET");// highlight line.SecurityConstraint constraint = new SecurityConstraint();// highlight line.constraint.addCollection(securityCollection);// highlight line.constraint.addAuthRole("manager");// highlight line.LoginConfig loginConfig = new LoginConfig();// highlight line.loginConfig.setRealmName("Simple Realm");// add realmRealm realm = new SimpleRealm();// highlight line.context.setRealm(realm);// highlight line.context.addConstraint(constraint);// highlight line.context.setLoginConfig(loginConfig);// highlight line.connector.setContainer(context);// add a ManagerManager manager = new StandardManager();context.setManager(manager);try {connector.initialize();((Lifecycle) connector).start();((Lifecycle) context).start();// make the application wait until we press a key.System.in.read();((Lifecycle) context).stop();}catch (Exception e) {e.printStackTrace();}}
}对以上代码的分析（Analysis）
A1）创建StandardContext对象：设置其path属性和 documentBase属性，并添加一个 SimpleContextConfig 类的监听器。该监听器会把一个 BasicAuthenticator 对象安装到 StandardContext 对象中；A2）创建SecurityColleciton对象：并调用其addPattern和 addMethod方法，addPattern方法指定某个url 要遵循哪个安全限制， 而addMethod方法会指定该安全限制要使用哪种验证方法；在addMethod()方法中设置为GET， 则使用GET 方法提交的http 请求会遵循安全限制；A3）创建 SecurityManager对象：并将其添加到 安全限制集合中，且还设置了哪种角色可以访问这些受限资源。A4）创建LoginConfig对象 和 SimpleRealm对象；A5）将领域对象，安全限制对象，登录配置对象 与 StandardContext实例相关联；A6）接着，启动Context实例。。。。。。。
Supplement-补充）

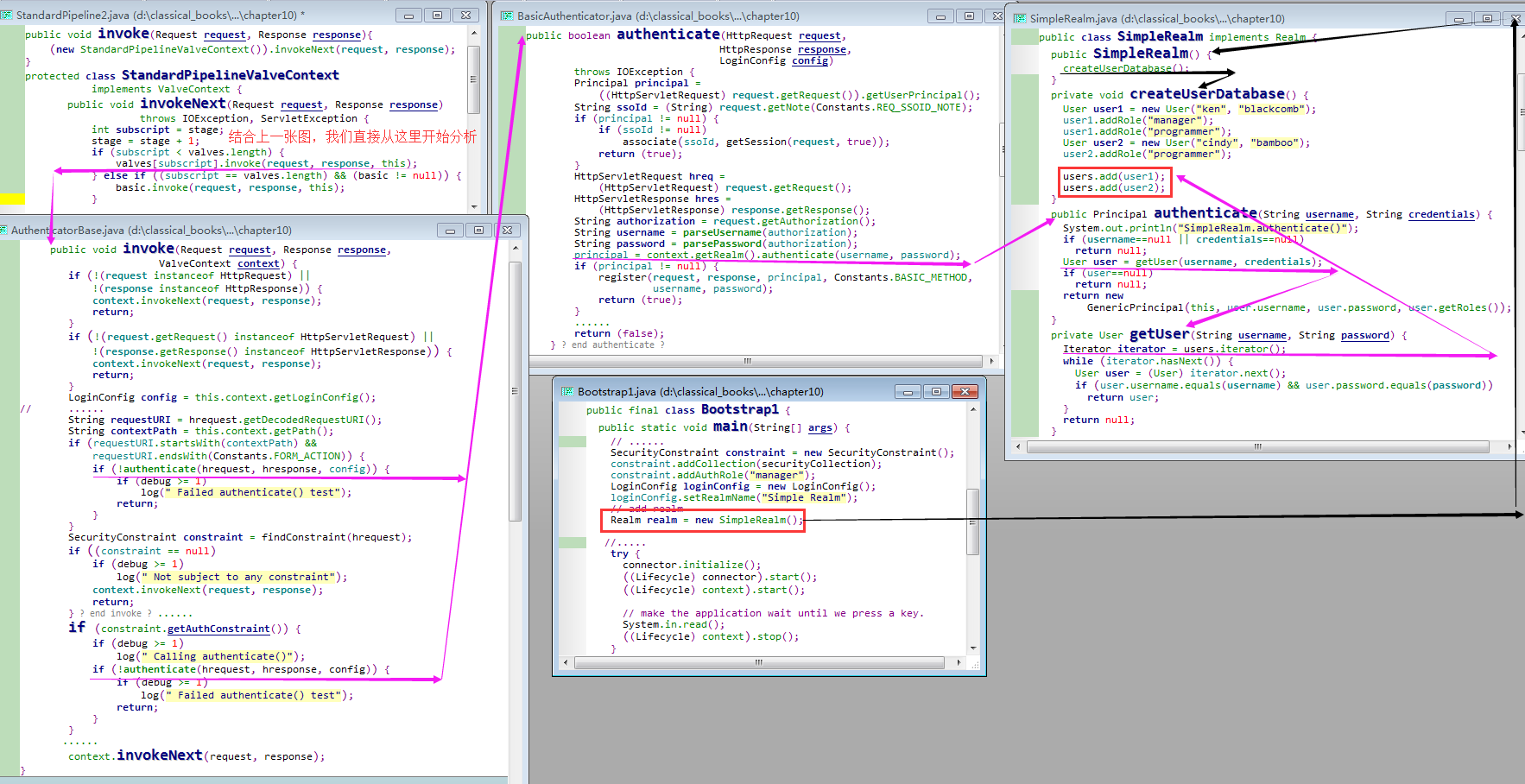

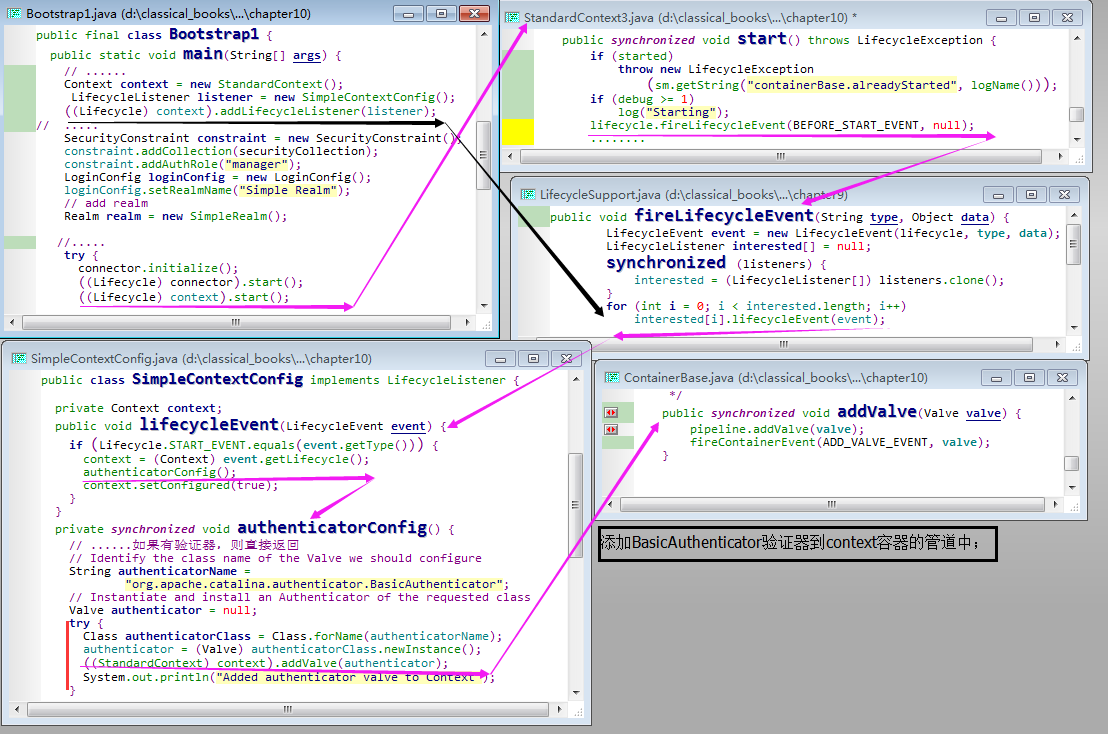

S1）本文还是给出了如何验证用户合法性的调用过程

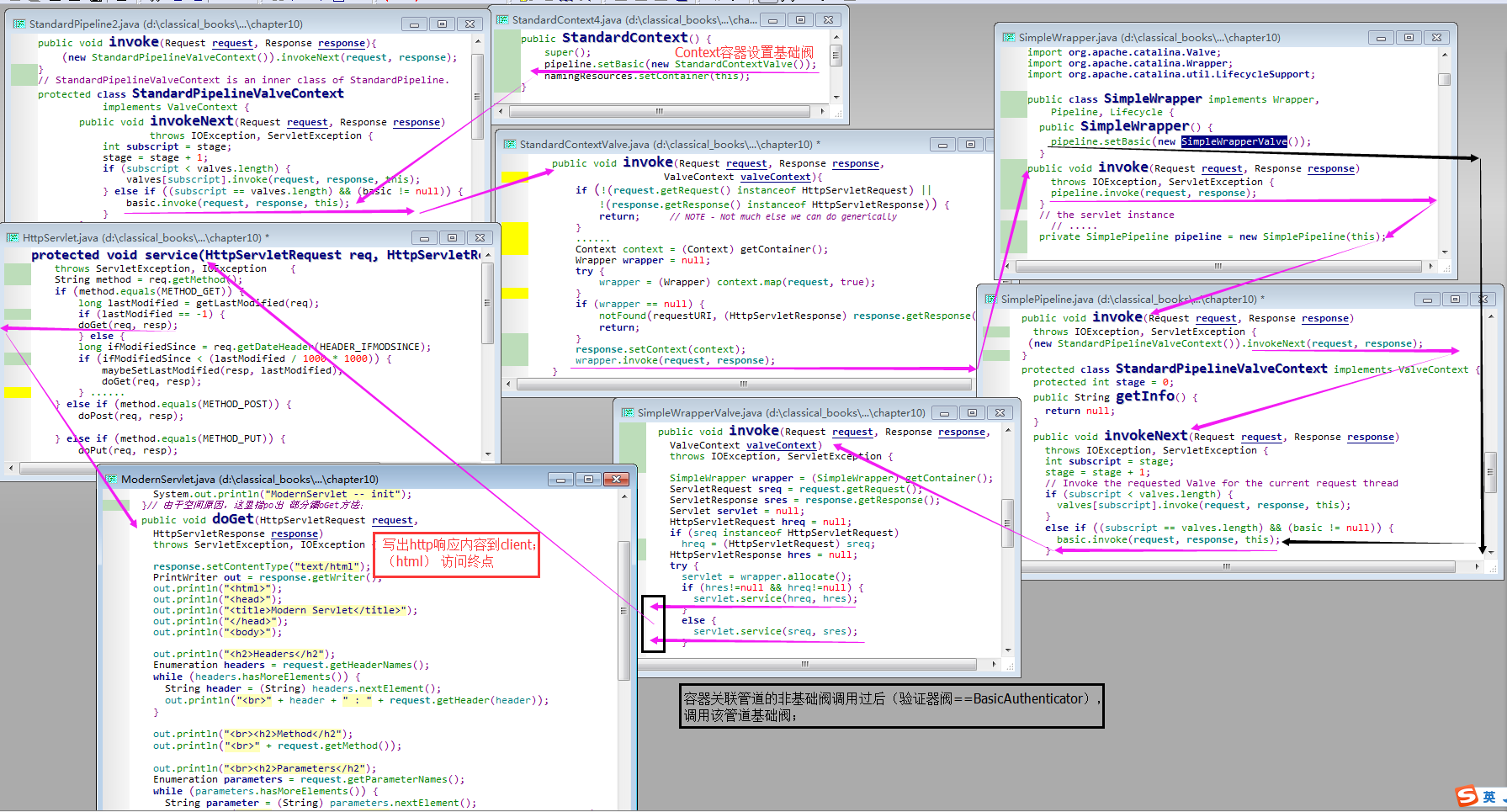

S2）结合S1中的第一张图，本文关联性地给出了 server处理http 客户端请求的调用过程

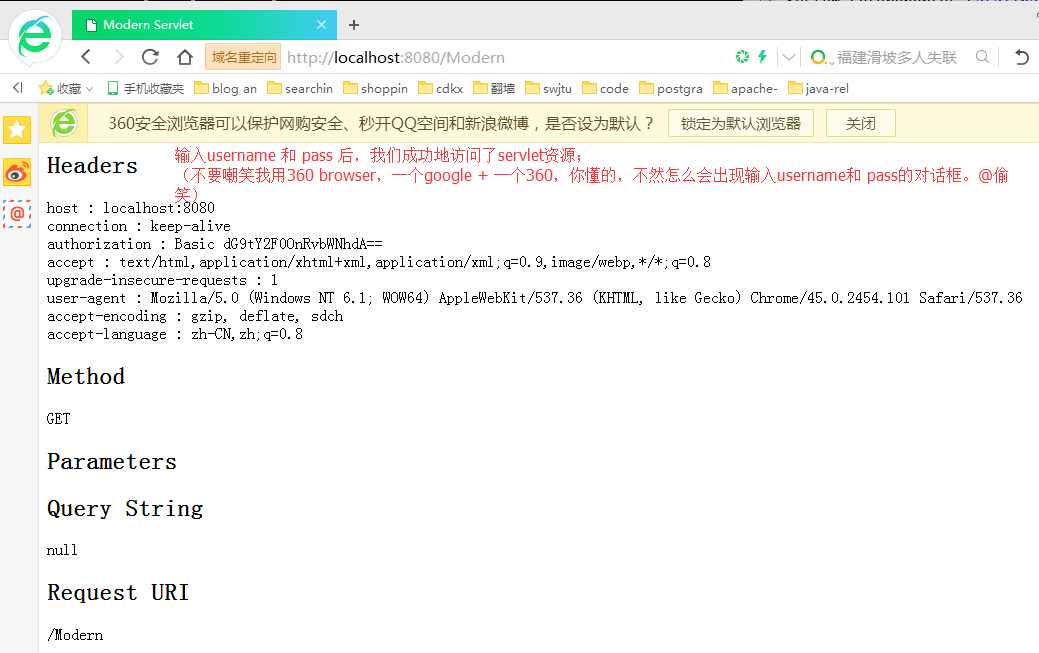

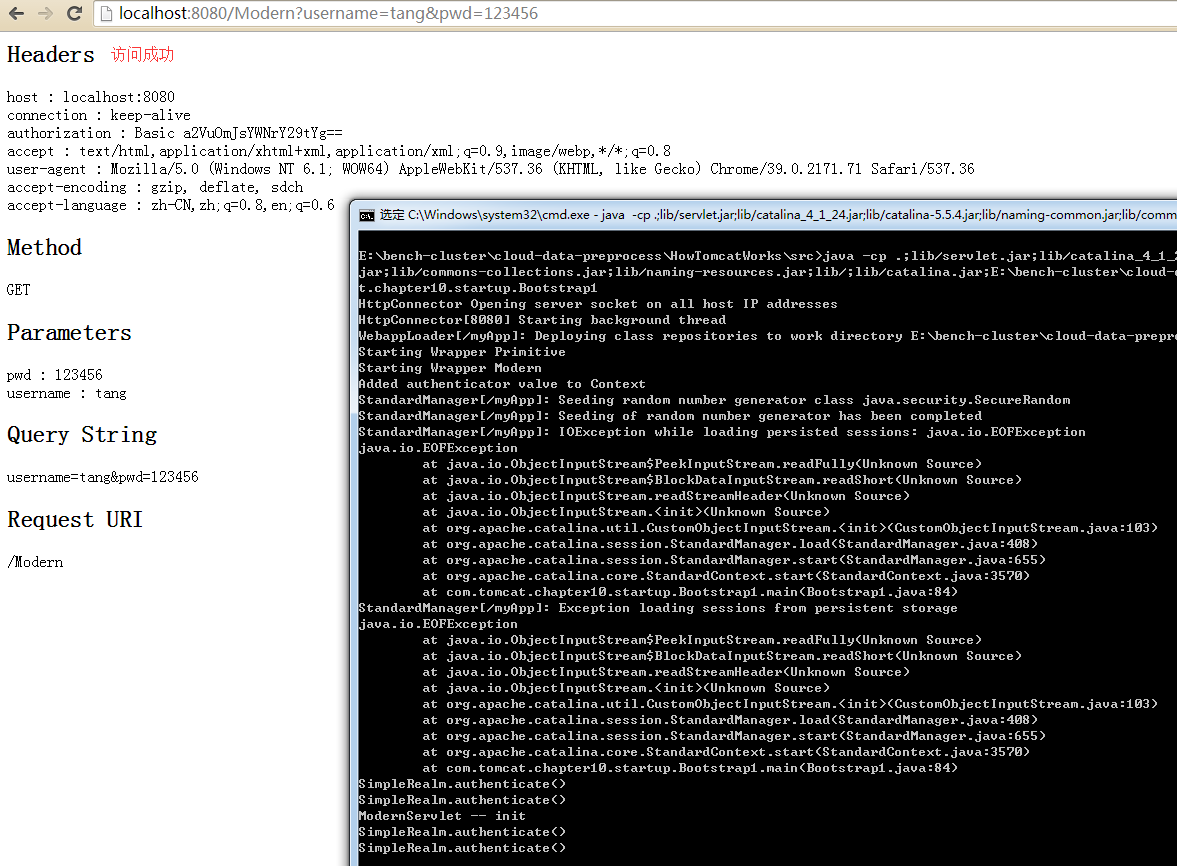

2）打印结果
<pre name="code" class="java">E:\bench-cluster\cloud-data-preprocess\HowTomcatWorks\src>java -cp .;lib/servlet.jar;lib/catalina_4_1_24.jar;lib/catalina-5.5.4.jar;lib/naming-common
jar;lib/commons-collections.jar;lib/naming-resources.jar;lib/;lib/catalina.jar;E:\bench-cluster\cloud-data-preprocess\HowTomcatWorks\webroot com.tomc
t.chapter10.startup.Bootstrap1
HttpConnector Opening server socket on all host IP addresses
HttpConnector[8080] Starting background thread
WebappLoader[/myApp]: Deploying class repositories to work directory E:\bench-cluster\cloud-data-preprocess\HowTomcatWorks\src\work\_\_\myApp
Starting Wrapper Primitive
Starting Wrapper Modern
Added authenticator valve to Context
StandardManager[/myApp]: Seeding random number generator class java.security.SecureRandom
StandardManager[/myApp]: Seeding of random number generator has been completed
StandardManager[/myApp]: IOException while loading persisted sessions: java.io.EOFException
// 这是从文件中加载 session对象到内存，由于没有相关文件，所以加载失败，抛出异常，但这不会影响我们访问servlet，大家不要惊慌；
java.io.EOFExceptionat java.io.ObjectInputStream$PeekInputStream.readFully(Unknown Source)at java.io.ObjectInputStream$BlockDataInputStream.readShort(Unknown Source)at java.io.ObjectInputStream.readStreamHeader(Unknown Source)at java.io.ObjectInputStream.<init>(Unknown Source)at org.apache.catalina.util.CustomObjectInputStream.<init>(CustomObjectInputStream.java:103)at org.apache.catalina.session.StandardManager.load(StandardManager.java:408)at org.apache.catalina.session.StandardManager.start(StandardManager.java:655)at org.apache.catalina.core.StandardContext.start(StandardContext.java:3570)at com.tomcat.chapter10.startup.Bootstrap1.main(Bootstrap1.java:84)
StandardManager[/myApp]: Exception loading sessions from persistent storage
java.io.EOFExceptionat java.io.ObjectInputStream$PeekInputStream.readFully(Unknown Source)at java.io.ObjectInputStream$BlockDataInputStream.readShort(Unknown Source)at java.io.ObjectInputStream.readStreamHeader(Unknown Source)at java.io.ObjectInputStream.<init>(Unknown Source)at org.apache.catalina.util.CustomObjectInputStream.<init>(CustomObjectInputStream.java:103)at org.apache.catalina.session.StandardManager.load(StandardManager.java:408)at org.apache.catalina.session.StandardManager.start(StandardManager.java:655)at org.apache.catalina.core.StandardContext.start(StandardContext.java:3570)at com.tomcat.chapter10.startup.Bootstrap1.main(Bootstrap1.java:84)
SimpleRealm.authenticate()
SimpleRealm.authenticate()
ModernServlet -- init
SimpleRealm.authenticate()
SimpleRealm.authenticate()
SimpleRealm.authenticate()
SimpleRealm.authenticate()
SimpleRealm.authenticate()
SimpleRealm.authenticate()
init
SimpleRealm.authenticate()
from service
from service

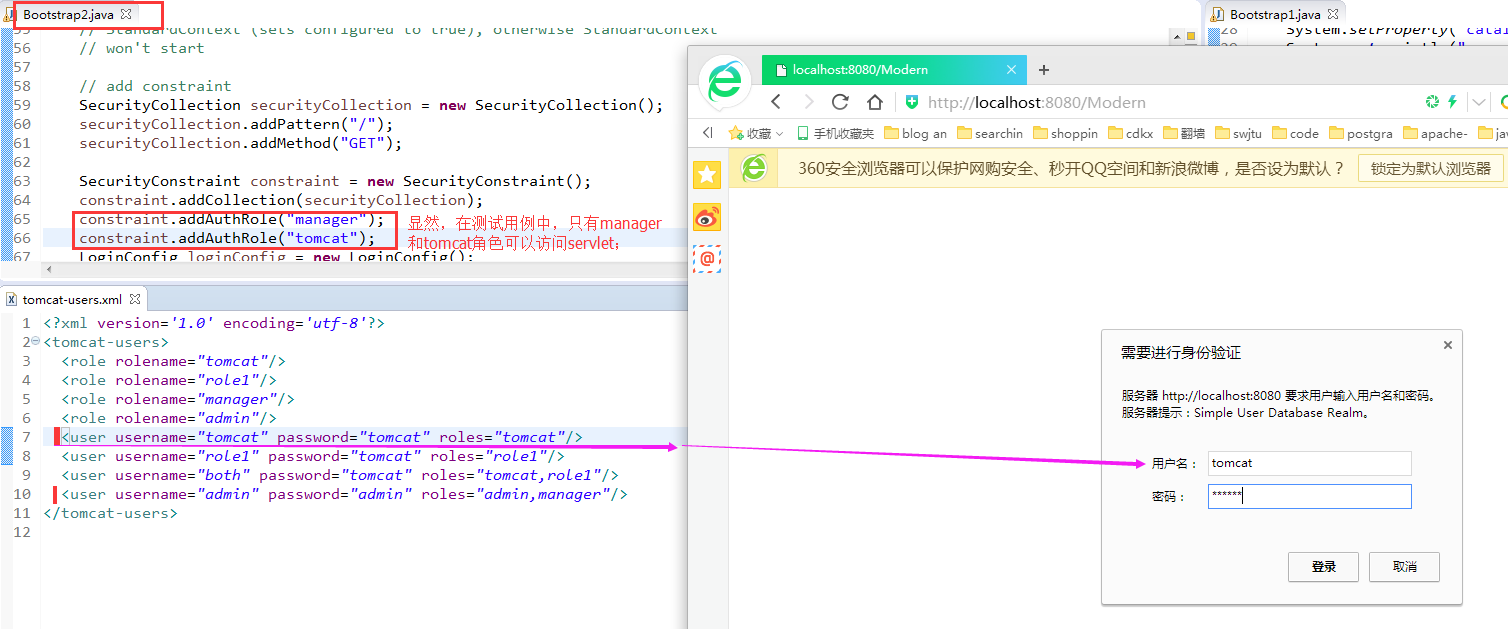

【6.5】Bootstrap2.java（应用程序2）
1）Bootstrap2的源程序和 Bootstrap1.java 的源程序差不多；
public final class Bootstrap2 {public static void main(String[] args) {//invoke: http://localhost:8080/Modern or http://localhost:8080/PrimitiveSystem.setProperty("catalina.base", System.getProperty("user.dir"));Connector connector = new HttpConnector();Wrapper wrapper1 = new SimpleWrapper();wrapper1.setName("Primitive");wrapper1.setServletClass("servlet.PrimitiveServlet");Wrapper wrapper2 = new SimpleWrapper();wrapper2.setName("Modern");wrapper2.setServletClass("servlet.ModernServlet");Context context = new StandardContext(); // highlight line.// StandardContext's start method adds a default mappercontext.setPath("/myApp");context.setDocBase("myApp");LifecycleListener listener = new SimpleContextConfig();// highlight line.((Lifecycle) context).addLifecycleListener(listener);context.addChild(wrapper1);context.addChild(wrapper2);// for simplicity, we don't add a valve, but you can add// valves to context or wrapper just as you did in Chapter 6Loader loader = new WebappLoader();context.setLoader(loader);// context.addServletMapping(pattern, name);context.addServletMapping("/Primitive", "Primitive");context.addServletMapping("/Modern", "Modern");// add ContextConfig. This listener is important because it configures// StandardContext (sets configured to true), otherwise StandardContext// won't start// add constraintSecurityCollection securityCollection = new SecurityCollection();// highlight line.securityCollection.addPattern("/");// highlight line.securityCollection.addMethod("GET");// highlight line.SecurityConstraint constraint = new SecurityConstraint();// highlight line.constraint.addCollection(securityCollection);// highlight line.constraint.addAuthRole("manager");// highlight line.constraint.addAuthRole("tomcat");// highlight line.注意这里的角色，必要要和tomcat-users.xml 中的users 列表相对应，如果要设置某个用户有权限访问servlet资源，则需要添加其所属的角色；LoginConfig loginConfig = new LoginConfig();// highlight line.loginConfig.setRealmName("Simple User Database Realm");// add realmRealm realm = new SimpleUserDatabaseRealm();// highlight line.String filedir = new File(System.getProperty("user.dir")).getParent() + File.separator + "conf" + File.separator + "tomcat-users.xml"; ((SimpleUserDatabaseRealm) realm).createDatabase(filedir); // highlight line.设置tomcat-users.xml 的文件路径 以载入其内容到内存进行身份验证工作；context.setRealm(realm);// highlight line.context.addConstraint(constraint);// highlight line.context.setLoginConfig(loginConfig);// highlight line.connector.setContainer(context);try {connector.initialize();((Lifecycle) connector).start();((Lifecycle) context).start();// make the application wait until we press a key.System.in.read();((Lifecycle) context).stop();}catch (Exception e) {e.printStackTrace();}}}// tomcat-users.xml 的源码如下：
<?xml version='1.0' encoding='utf-8'?>
<tomcat-users><role rolename="tomcat"/><role rolename="role1"/><role rolename="manager"/><role rolename="admin"/><user username="tomcat" password="tomcat" roles="tomcat"/><user username="role1" password="tomcat" roles="role1"/><user username="both" password="tomcat" roles="tomcat,role1"/><user username="admin" password="admin" roles="admin,manager"/>
</tomcat-users>2）它们唯一的差别在于以不同的方式获取用户列表：Bootstrap1.java 是在对象中创建用户列表保存在 ArrayList中；而Bootstrap2.java 通过读取conf目录下的 tomcat-users.xml文件，将其内容载入到内存中；（干货——Bootstrap1.java 和 Bootstrap2.java的唯一差别）（干货——你现在知道 tomcat-users.xml 的作用了，以及如何利用它进行安全性访问的限制）
E:\bench-cluster\cloud-data-preprocess\HowTomcatWorks\src>java -cp .;lib/servlet.jar;lib/catalina_4_1_24.jar;lib/catalina-5.5.4.jar;lib/naming-common.
jar;lib/commons-collections.jar;lib/naming-resources.jar;lib/;lib/catalina.jar;lib\commons-digester.jar;lib\commons-logging.jar;E:\bench-cluster\cloud
-data-preprocess\HowTomcatWorks\webroot com/tomcat/chapter10/startup/Bootstrap2
HttpConnector Opening server socket on all host IP addresses
HttpConnector[8080] Starting background thread
WebappLoader[/myApp]: Deploying class repositories to work directory E:\bench-cluster\cloud-data-preprocess\HowTomcatWorks\src\work\_\_\myApp
Starting Wrapper Primitive
Starting Wrapper Modern
Added authenticator valve to Context
StandardManager[/myApp]: Seeding random number generator class java.security.SecureRandom
StandardManager[/myApp]: Seeding of random number generator has been completed
StandardManager[/myApp]: IOException while loading persisted sessions: java.io.EOFException // 这是从文件中加载 session对象到内存，由于没有相关文件，所以加载失败，抛出异常，但这不会影响我们访问servlet，大家不要惊慌；
java.io.EOFExceptionat java.io.ObjectInputStream$PeekInputStream.readFully(Unknown Source)at java.io.ObjectInputStream$BlockDataInputStream.readShort(Unknown Source)at java.io.ObjectInputStream.readStreamHeader(Unknown Source)at java.io.ObjectInputStream.<init>(Unknown Source)at org.apache.catalina.util.CustomObjectInputStream.<init>(CustomObjectInputStream.java:103)at org.apache.catalina.session.StandardManager.load(StandardManager.java:408)at org.apache.catalina.session.StandardManager.start(StandardManager.java:655)at org.apache.catalina.core.StandardContext.start(StandardContext.java:3570)at com.tomcat.chapter10.startup.Bootstrap2.main(Bootstrap2.java:84)
StandardManager[/myApp]: Exception loading sessions from persistent storage
java.io.EOFException at java.io.ObjectInputStream$PeekInputStream.readFully(Unknown Source)at java.io.ObjectInputStream$BlockDataInputStream.readShort(Unknown Source)at java.io.ObjectInputStream.readStreamHeader(Unknown Source)at java.io.ObjectInputStream.<init>(Unknown Source)at org.apache.catalina.util.CustomObjectInputStream.<init>(CustomObjectInputStream.java:103)at org.apache.catalina.session.StandardManager.load(StandardManager.java:408)at org.apache.catalina.session.StandardManager.start(StandardManager.java:655)at org.apache.catalina.core.StandardContext.start(StandardContext.java:3570)at com.tomcat.chapter10.startup.Bootstrap2.main(Bootstrap2.java:84)
ModernServlet -- init
3）打印结果
