import openfire4.0.2 source code in eclipse

【0】README

1）本文旨在给出导入 openfire4.0.2 源码到 eclipse的具体 steps；

2）小生我导入该version 的 openfire 用了近2 天时间，比较心酸，究其原因是源码引入的 jar 包不够全面，或引入路径错误，下面我会给出解决方法；

3）本文参考了如下post（不过按照他们的steps ，我一直没有导入成功）：http://blog.csdn.net/lovexieyuan520/article/details/37743433 + https://308681282.gitbooks.io/openfire/content/di_si_zhang_openfire_yuan_ma_dao_ru_yi_ji_kai_fa.html

4）要知道，原作者的 eclipse 项目对jar 包导入的不够全面，但是它们都全部存在项目中，只不过没有全部添加到项目的 build path 中；所以有些 post（包括上述两篇 post）提出要 down 相应 jar 并添加到该项目中，这样做是不行的，因为 jar 包的版本不匹配（至少我没有执行正确），而且源码中并不是缺少jar 包，而是jar包的导入路径错误而已；

5）jdk 要求：jdk1.7 以上（包括1.7，项目根目录/build/build.xml 中有声明）

【1】import steps

step1)download source code from http://www.igniterealtime.org/downloads/source.jsp(this is our target link) , download installation release from http://www.igniterealtime.org/downloads/, also you can download source code from github via https://github.com/igniterealtime, and also you can checkout the openfire source code history releases from https://github.com/igniterealtime/Openfire/releases

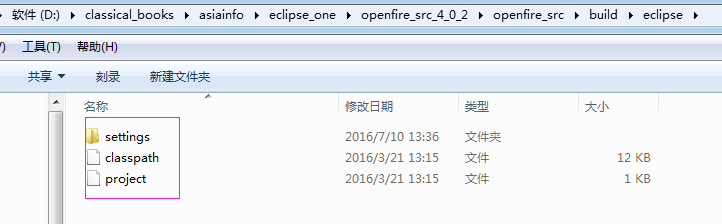

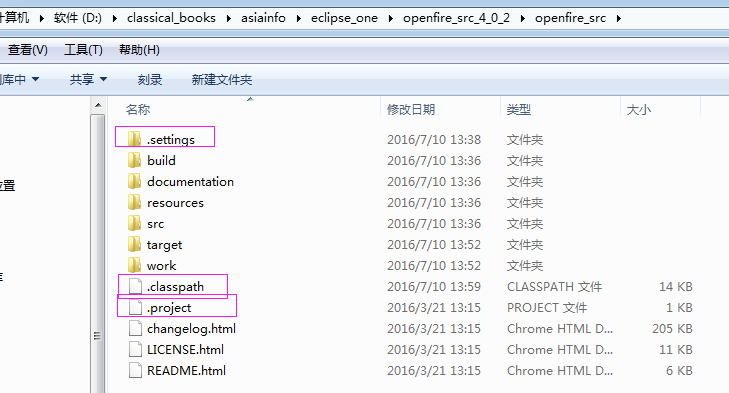

step2)将该 source code zip 文件解压到某个文件夹下，如 eclipse_one 文件夹下；拷贝 eclipse_one\openfire_src_4_0_2\openfire_src\build\eclipse 中的所有文件到 eclipse_one\openfire_src_4_0_2\openfire_src 目录下，重命名它们的文件名，加上前缀 . 即可（这需要在win 命令行下通过 rename 完成）（注意，下载下来的 openfire 源码没有 target 和 work 两个文件夹，这两个文件夹是ant 编译后生成的，这在后面会讲到）

Attention）本文 README 已经说到了， github作者源码中的 jar 包有些导入的不够全面，这些jar 的导入声明在 .classpath 文件中；当我们在 eclipse中添加 jar 文件到 build path 的时候，实际上是在修改这个 .classpath 文件中的 jar 包声明；（由于其jar 导入的不够全面，本文会在下面给出解决方法）

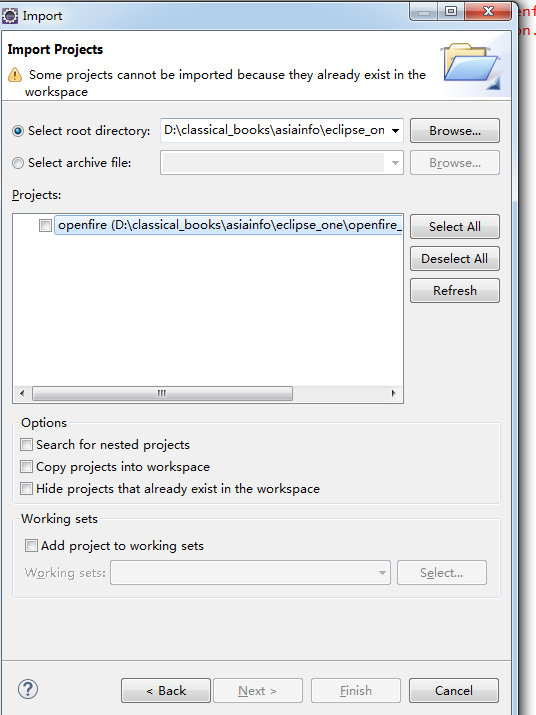

step3）然后打开Eclipse，选择 File –> Import… –> Existing Projects into Workspace, copy D:\classical_books\asiainfo\eclipse_one\openfire_src_4_0_2\openfire_src 到 select root directory（当然，这里我之前导入过，所以不能再次导入，只是为了说明这个 case，截图而已）

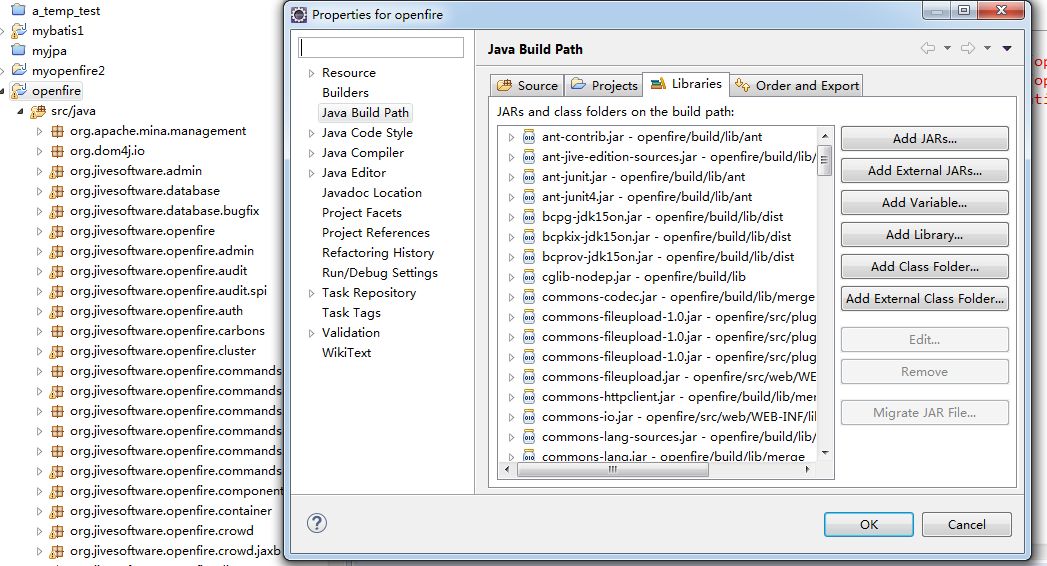

step4）导入后，你会发现，项目会出现红色的感叹号，这说明，我们的 build path 中的jar 导入路径有问题；光标到项目->右键->build path -> Libraries （我这里的项目没有红色感叹号，是因为我理清了 jar 包的导入路径，下面会给出导入全部 jar的正确方式）；

【2】proble+solutions（对的，这里有两种解决方法）

1）problem：正如README 所说，github raw source code 中的jar导入路径不够全面（即 .classpath 文件中声明导入jar 的导入路径有问题，或其根本就不存在）；

2）solutions

2.1）solution1:你可以直接下载我的 .classpath 并覆盖你项目下的 .classpath，重启 eclipse 即可（因为，我已经理清了 jar 包的导入路径，所以你只需要将其正确的导入路径描述（.classpaht）覆盖原来的 .classpath 即可）；（down site https://github.com/pacosonTang/core-java-volume/blob/master/openfire_supplement/.classpath）

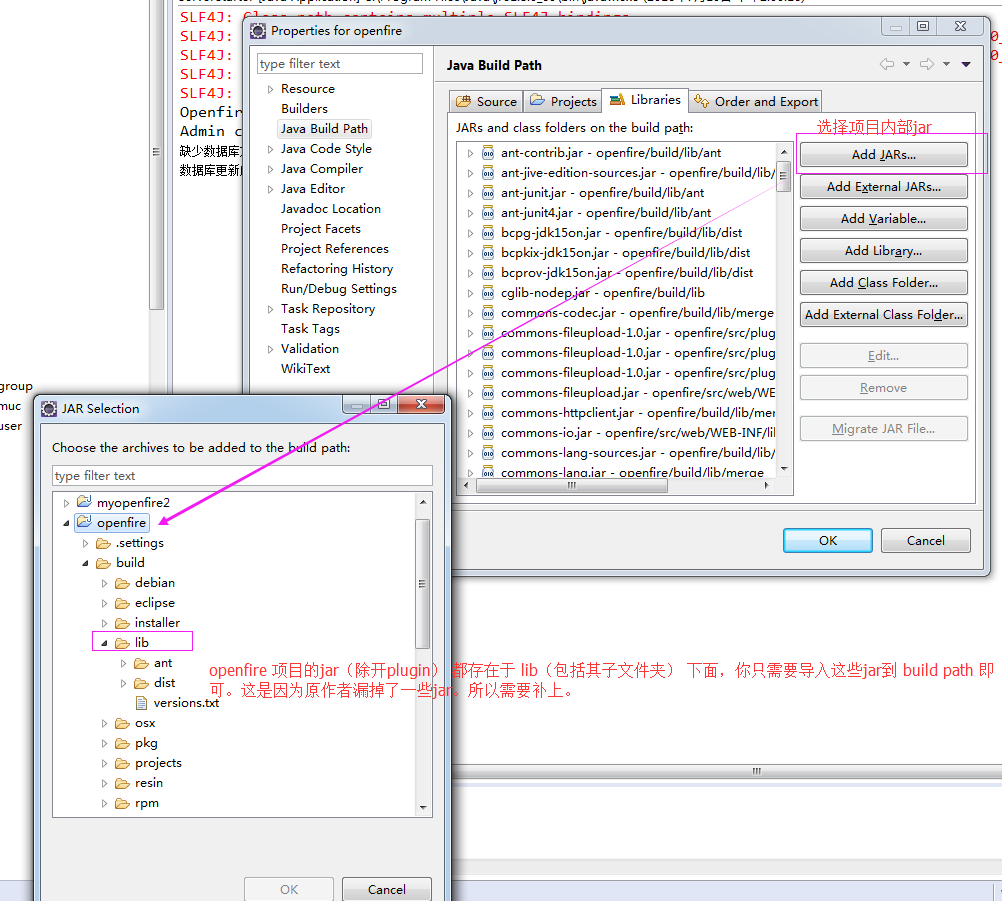

2.2）solution2：手动理清 jar包的导入路径；首先，需要在 java build path 中将缺少的 jar 全部移除，然后添加项目中的没有导入的jar包到 build path；

Supplement）通过分析 .classpath　文件，你会发现， openfire 中的jar 存在于 build/lib 及其子文件夹下面和存在于各个plugins 文件夹下面；其代码（.classpath）声明如下：（这就是为什么我们需要添加原作者遗漏的本应该导入jar 的原因）

<?xml version="1.0" encoding="UTF-8"?>
<classpath><classpathentry kind="src" path="src/java"/><classpathentry kind="src" path="src/i18n"/><classpathentry kind="src" path="build/lib/dist"/><classpathentry kind="src" path="src/resources/jar"/><classpathentry kind="src" output="work/plugins-dev/broadcast/target/classes" path="src/plugins/broadcast/src/java"/><classpathentry kind="src" output="work/plugins-dev/clientControl/target/classes" path="src/plugins/clientControl/src/java"/><classpathentry kind="src" output="work/plugins-dev/contentFilter/target/classes" path="src/plugins/contentFilter/src/java"/><classpathentry kind="src" output="work/plugins-dev/dbaccess/target/classes" path="src/plugins/dbaccess/src/java"/><classpathentry kind="src" output="work/plugins-dev/emailListener/target/classes" path="src/plugins/emailListener/src/java"/><classpathentry kind="src" output="work/plugins-dev/fastpath/target/classes" path="src/plugins/fastpath/src/java"/><classpathentry kind="src" output="work/plugins-dev/gojara/target/classes" path="src/plugins/gojara/src/java"/><classpathentry kind="src" output="work/plugins-dev/jingleNodes/target/classes" path="src/plugins/jingleNodes/src/java"/><classpathentry kind="src" output="work/plugins-dev/justmarried/target/classes" path="src/plugins/justmarried/src/java"/><classpathentry kind="src" output="work/plugins-dev/kraken/target/classes" path="src/plugins/kraken/src/java"/><classpathentry kind="src" output="work/plugins-dev/loadStats/target/classes" path="src/plugins/loadStats/src/java"/><classpathentry kind="src" output="work/plugins-dev/monitoring/target/classes" path="src/plugins/monitoring/src/java"/><classpathentry kind="src" output="work/plugins-dev/motd/target/classes" path="src/plugins/motd/src/java"/><classpathentry kind="src" output="work/plugins-dev/nodejs/target/classes" path="src/plugins/nodejs/src/java"/><classpathentry kind="src" output="work/plugins-dev/packetFilter/target/classes" path="src/plugins/packetFilter/src/java"/><classpathentry kind="src" output="work/plugins-dev/presence/target/classes" path="src/plugins/presence/src/java"/><classpathentry kind="src" output="work/plugins-dev/registration/target/classes" path="src/plugins/registration/src/java"/><classpathentry kind="src" output="work/plugins-dev/search/target/classes" path="src/plugins/search/src/java"/><classpathentry kind="src" output="work/plugins-dev/stunserver/target/classes" path="src/plugins/stunserver/src/java"/><classpathentry kind="src" output="work/plugins-dev/subscription/target/classes" path="src/plugins/subscription/src/java"/><classpathentry kind="src" output="work/plugins-dev/userCreation/target/classes" path="src/plugins/userCreation/src/java"/><classpathentry kind="src" output="work/plugins-dev/userImportExport/target/classes" path="src/plugins/userImportExport/src/java"/><classpathentry kind="src" output="work/plugins-dev/userservice/target/classes" path="src/plugins/userservice/src/java"/><classpathentry kind="src" output="work/plugins-dev/xmldebugger/target/classes" path="src/plugins/xmldebugger/src/java"/><classpathentry kind="src" path="src/test/java"/><classpathentry kind="src" path="src/test/throttletest/src"/><classpathentry kind="lib" path="build/lib/ant/ant-contrib.jar"/><classpathentry kind="lib" path="build/lib/cglib-nodep.jar"/><classpathentry kind="lib" path="build/lib/dist/hsqldb.jar"/><classpathentry kind="lib" path="build/lib/dist/jtds.jar"/><classpathentry kind="lib" path="build/lib/dist/mail.jar"/><classpathentry kind="lib" path="build/lib/dist/mysql.jar"/><classpathentry kind="lib" path="build/lib/dist/postgres.jar"/><classpathentry kind="lib" path="build/lib/dist/slf4j-log4j12.jar"/><classpathentry kind="lib" path="build/lib/i4jruntime.jar"/><classpathentry kind="lib" path="build/lib/jmock-junit4.jar"/><classpathentry kind="lib" path="build/lib/jmock-legacy.jar"/><classpathentry kind="lib" path="build/lib/jmock.jar"/><classpathentry kind="lib" path="build/lib/junit.jar"/><classpathentry kind="lib" path="build/lib/merge/commons-codec.jar"/><classpathentry kind="lib" path="build/lib/merge/commons-httpclient.jar"/><classpathentry kind="lib" path="build/lib/merge/commons-lang.jar"/><classpathentry kind="lib" path="build/lib/merge/commons-logging.jar"/><classpathentry kind="lib" path="build/lib/merge/concurrentlinkedhashmap-lru-1.0_jdk5.jar"/><classpathentry kind="lib" path="build/lib/merge/dbutil.jar"/><classpathentry kind="lib" path="build/lib/merge/dom4j.jar"/><classpathentry kind="lib" path="build/lib/merge/jaxen.jar"/><classpathentry kind="lib" path="build/lib/merge/jdom.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-continuation.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-http.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-io.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-security.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-server.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-servlet.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-util.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-webapp.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-xml.jar"/><classpathentry kind="lib" path="build/lib/merge/jmdns.jar"/><classpathentry kind="lib" path="build/lib/merge/jzlib.jar"/><classpathentry kind="lib" path="build/lib/merge/libidn.jar"/><classpathentry kind="lib" path="build/lib/merge/log4j.jar"/><classpathentry kind="lib" path="build/lib/merge/mina-core.jar"/><classpathentry kind="lib" path="build/lib/merge/mina-filter-compression.jar"/><classpathentry kind="lib" path="build/lib/merge/proxool.jar"/><classpathentry kind="lib" path="build/lib/merge/rome-fetcher.jar"/><classpathentry kind="lib" path="build/lib/merge/rome.jar"/><classpathentry kind="lib" path="build/lib/merge/shaj.jar"/><classpathentry kind="lib" path="build/lib/merge/sitemesh.jar"/><classpathentry kind="lib" path="build/lib/merge/slf4j-api.jar"/><classpathentry kind="lib" path="build/lib/merge/standard.jar"/><classpathentry kind="lib" path="build/lib/merge/stringprep.jar"/><classpathentry kind="lib" path="build/lib/merge/tinder.jar"/><classpathentry kind="lib" path="build/lib/merge/xpp3.jar"/><classpathentry kind="lib" path="build/lib/objenesis.jar"/><classpathentry kind="lib" path="build/lib/src/commons-lang-sources.jar"/><classpathentry kind="lib" path="build/lib/ant/xmltask.jar"/><classpathentry kind="lib" path="src/plugins/clientControl/lib/commons-fileupload-1.0.jar"/><classpathentry kind="lib" path="src/plugins/fastpath/lib/commons-fileupload-1.0.jar"/><classpathentry kind="lib" path="src/plugins/fastpath/lib/lucene.jar"/><classpathentry kind="lib" path="src/plugins/fastpath/lib/xstream.jar"/><classpathentry kind="lib" path="src/plugins/gojara/lib/json.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/concurrent.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/dwr.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/httpclient.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/httpcore.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/jainsipapi.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/jainsipri.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/jakarta-regexp.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/jcip-annotations.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/jggapi.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/jml.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/joscar-common.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/joscar-protocol.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/jqql.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/jsocks.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/json.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/martyr.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/msim.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/openymsg.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/smack.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/smackx.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/stcomm.jar"/><classpathentry kind="lib" path="src/plugins/kraken/lib/xmlrpc.jar"/><classpathentry kind="lib" path="src/plugins/jingleNodes/lib/jnsapi.jar"/><classpathentry kind="lib" path="src/plugins/monitoring/lib/dwr.jar"/><classpathentry kind="lib" path="src/plugins/monitoring/lib/itext.jar"/><classpathentry kind="lib" path="src/plugins/monitoring/lib/jcommon.jar"/><classpathentry kind="lib" path="src/plugins/monitoring/lib/jfreechart.jar"/><classpathentry kind="lib" path="src/plugins/monitoring/lib/jrobin.jar"/><classpathentry kind="lib" path="src/plugins/monitoring/lib/lucene.jar"/><classpathentry kind="lib" path="src/plugins/monitoring/lib/picocontainer.jar"/><classpathentry kind="lib" path="src/plugins/registration/lib/recaptcha4j.jar"/><classpathentry kind="lib" path="src/plugins/sip/lib/JainSipApi1.1.jar"/><classpathentry kind="lib" path="src/plugins/sip/lib/nist-sip-1.2.jar"/><classpathentry kind="lib" path="src/plugins/userImportExport/lib/commons-fileupload-1.0.jar"/><classpathentry kind="lib" path="src/plugins/userImportExport/lib/isorelax.jar"/><classpathentry kind="lib" path="src/plugins/userImportExport/lib/msv.jar"/><classpathentry kind="lib" path="src/plugins/userImportExport/lib/relaxngDatatype.jar"/><classpathentry kind="lib" path="src/plugins/userImportExport/lib/xsdlib.jar"/><classpathentry kind="lib" path="src/test/throttletest/build/lib/smack.jar"/><classpathentry kind="lib" path="src/test/throttletest/build/lib/smackx.jar"/><classpathentry kind="lib" path="src/web/WEB-INF/lib/commons-fileupload.jar"/><classpathentry kind="lib" path="src/web/WEB-INF/lib/commons-io.jar"/><classpathentry kind="lib" path="src/web/WEB-INF/lib/dwr.jar"/><classpathentry kind="lib" path="build/lib/merge/servlet-api.jar"/><classpathentry kind="lib" path="build/lib/ant/ant-junit.jar"/><classpathentry kind="lib" path="build/lib/ant/ant-junit4.jar"/><classpathentry kind="con" path="org.eclipse.jdt.launching.JRE_CONTAINER/org.eclipse.jdt.internal.debug.ui.launcher.StandardVMType/JavaSE-1.7"/><classpathentry kind="lib" path="src/plugins/stunserver/lib/jstun-0.6.1.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-jmx.jar"/><classpathentry kind="lib" path="build/lib/merge/mina-integration-jmx.jar"/><classpathentry kind="lib" path="build/lib/dist/bcpg-jdk15on.jar"/><classpathentry kind="lib" path="build/lib/dist/bcpkix-jdk15on.jar"/><classpathentry kind="lib" path="build/lib/dist/bcprov-jdk15on.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-servlets.jar"/><classpathentry kind="lib" path="build/lib/merge/spdy-client.jar"/><classpathentry kind="lib" path="build/lib/merge/spdy-core.jar"/><classpathentry kind="lib" path="build/lib/merge/spdy-http-common.jar"/><classpathentry kind="lib" path="build/lib/merge/spdy-http-server.jar"/><classpathentry kind="lib" path="build/lib/merge/spdy-server.jar"/><classpathentry kind="lib" path="build/lib/merge/javax-websocket-client-impl.jar"/><classpathentry kind="lib" path="build/lib/merge/javax-websocket-server-impl.jar"/><classpathentry kind="lib" path="src/plugins/callbackOnOffline/lib/javax.ws.rs-api-2.0.1.jar"/><classpathentry kind="lib" path="src/plugins/userservice/lib/jersey-bundle-1.18.jar"/><classpathentry kind="lib" path="build/lib/hamcrest-core.jar"/><classpathentry kind="lib" path="build/lib/jaxb-api.jar"/><classpathentry kind="lib" path="build/lib/ant/jugbbant-1.7.jar"/><classpathentry kind="lib" path="build/lib/ant/slf4j-simple.jar"/><classpathentry kind="lib" path="build/lib/ant/xalan.jar"/><classpathentry kind="lib" path="build/lib/dist/javax.websocket-api.jar"/><classpathentry kind="lib" path="build/lib/dist/npn-boot.jar"/><classpathentry kind="lib" path="build/lib/merge/javassist.jar"/><classpathentry kind="lib" path="build/lib/merge/javax.websocket-api.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-plus.jar"/><classpathentry kind="lib" path="build/lib/merge/jetty-schemas.jar"/><classpathentry kind="lib" path="build/lib/merge/mina-integration-beans.jar"/><classpathentry kind="lib" path="build/lib/merge/mina-integration-ognl.jar"/><classpathentry kind="lib" path="build/lib/merge/ognl.jar"/><classpathentry kind="lib" path="build/lib/merge/org.apache.taglibs.taglibs-standard-impl.jar"/><classpathentry kind="lib" path="build/lib/merge/org.apache.taglibs.taglibs-standard-spec.jar"/><classpathentry kind="lib" path="build/lib/merge/org.eclipse.jetty.apache-jsp.jar"/><classpathentry kind="lib" path="build/lib/merge/org.eclipse.jetty.orbit.org.eclipse.jdt.core.jar"/><classpathentry kind="lib" path="build/lib/merge/org.mortbay.jasper.apache-el.jar"/><classpathentry kind="lib" path="build/lib/merge/org.mortbay.jasper.apache-jsp.jar"/><classpathentry kind="lib" path="build/lib/merge/websocket-api.jar"/><classpathentry kind="lib" path="build/lib/merge/websocket-client.jar"/><classpathentry kind="lib" path="build/lib/merge/websocket-common.jar"/><classpathentry kind="lib" path="build/lib/merge/websocket-server.jar"/><classpathentry kind="lib" path="build/lib/merge/websocket-servlet.jar"/><classpathentry kind="lib" path="build/lib/src/ant-jive-edition-sources.jar"/><classpathentry kind="lib" path="build/lib/src/slf4j-api-sources.jar"/><classpathentry kind="lib" path="build/lib/src/slf4j-log4j12-sources.jar"/><classpathentry kind="output" path="work/classes"/>
</classpath>

【3】利用 ant 编译openfire 源码

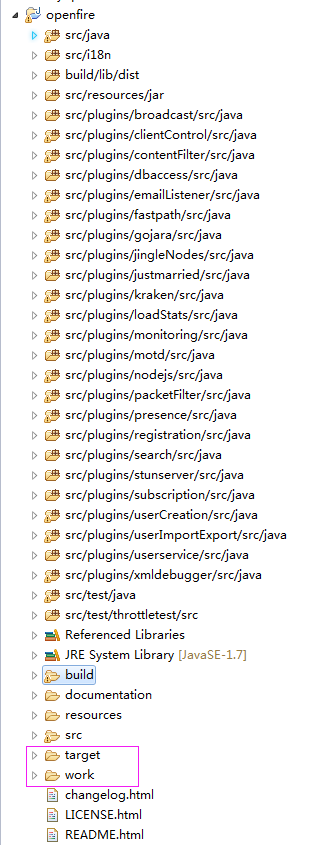

step5） ant 编译项目： build/build.xml ->run as -> ant build -> 执行ant编译源码；编程成功后，会在项目根目录下生成两个新的文件夹：target 和 work 。

【4】运行 openfire 项目

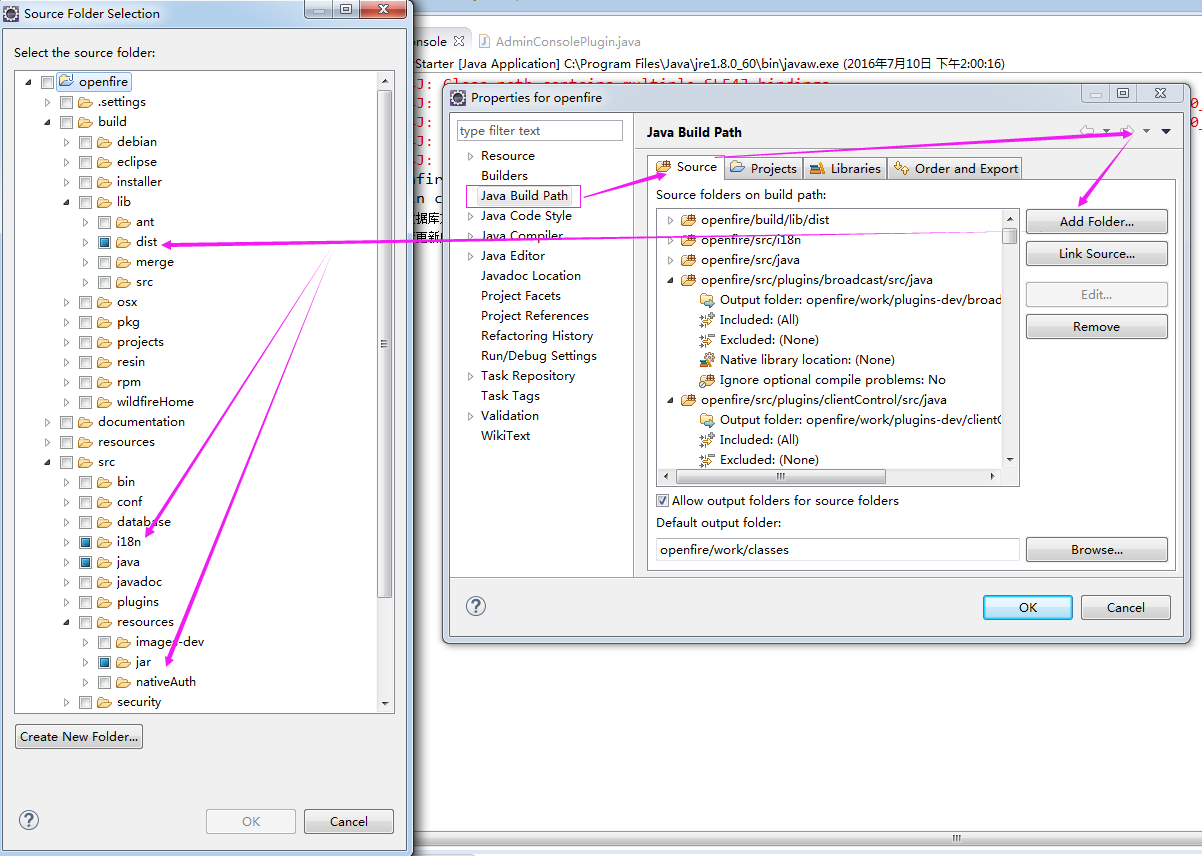

step6）Build Path配置中把 /openfirec/src/i18n 、/openfire/src/resources/jar 、/openfire/build/lib/dist 文件夹添加到 Source 中

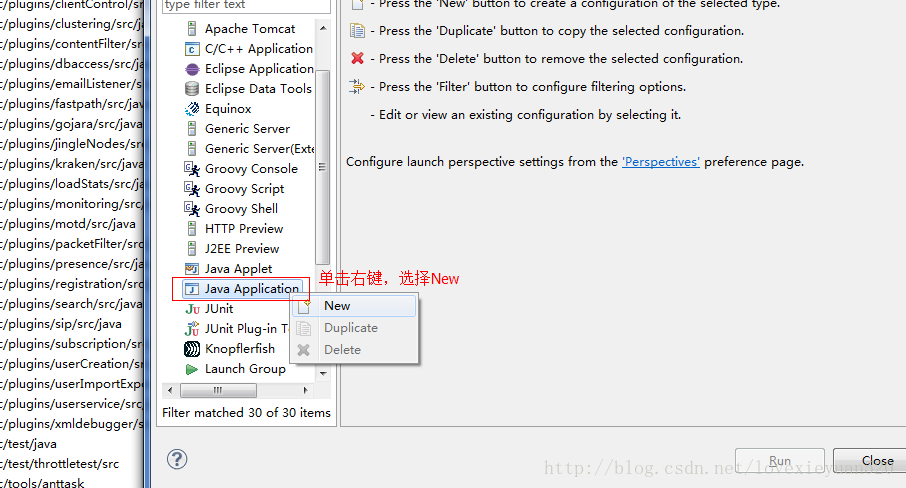

step7）配置启动参数： run ->run configurations

把默认name：New_configuration 修改成：ServerStarter。

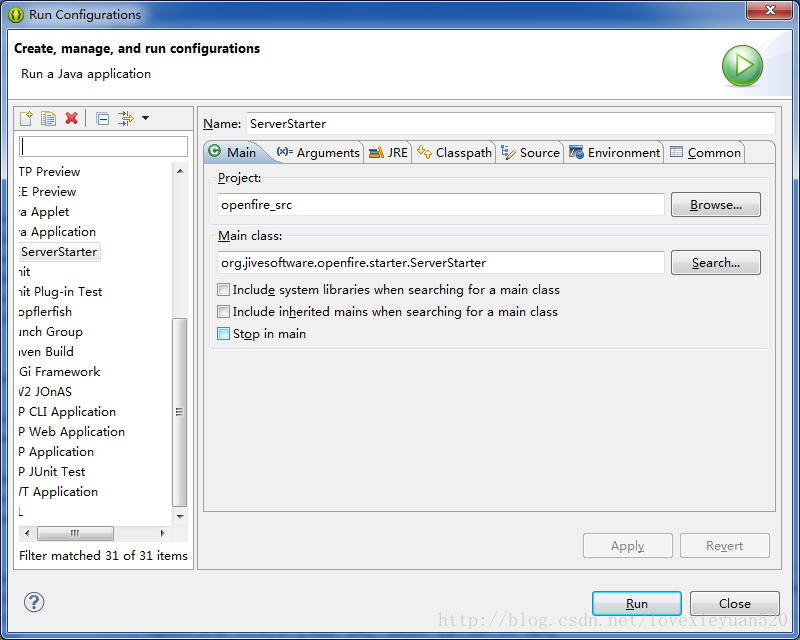

选中Main选项卡，点击Browse按钮选择 openfire_src 项目;单击Search 按钮输入：ServerStarter 自动过滤后选择：ServerStarter – org.jivesoftware.openfire.starter：

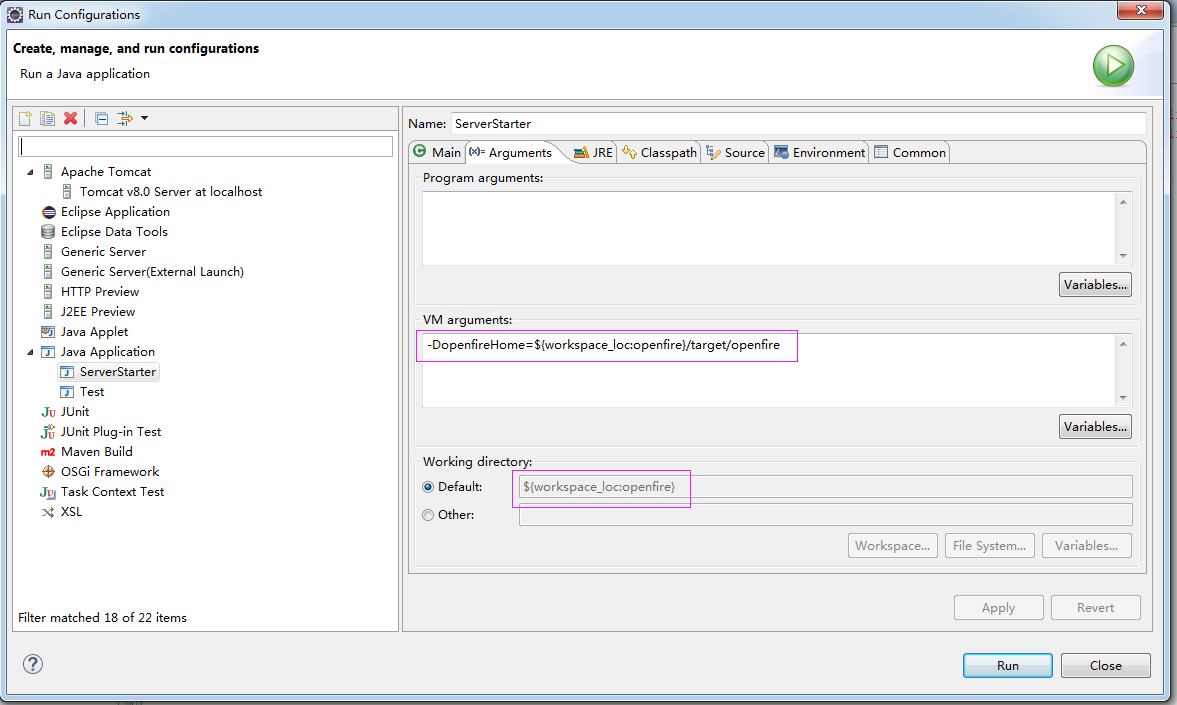

选中Arguments选项卡，在VM arguments中填入：

-DopenfireHome=${workspace_loc:openfire}/target/openfire

注意：项目路径 ${workspace_loc:openfire}

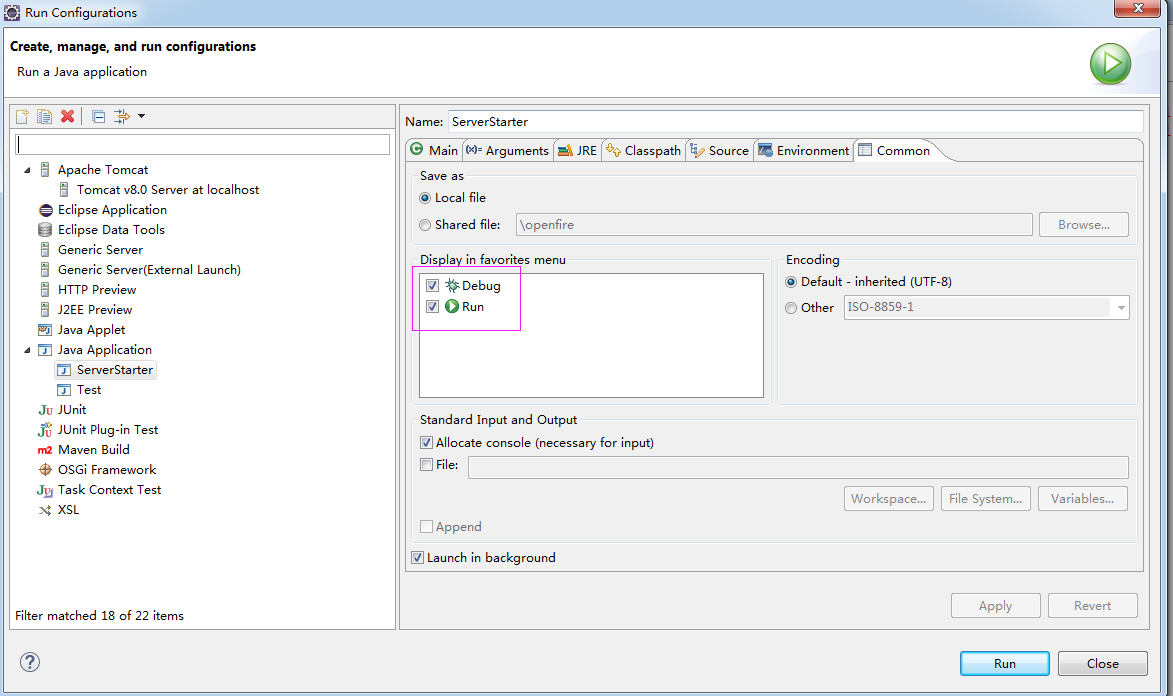

选中Common选项卡，将Debug和Run打钩（方便之后快速启动），然后点击apply，再点击run：

【5】运行结果

SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/D:/classical_books/asiainfo/eclipse_one/openfire_src_4_0_2/openfire_src/build/lib/dist/slf4j-log4j12.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/D:/classical_books/asiainfo/eclipse_one/openfire_src_4_0_2/openfire_src/build/lib/ant/slf4j-simple.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
Openfire 4.0.2 [Jul 10, 2016 2:00:17 PM]
Admin console listening at http://lenovo-pc:9090 //（表明管理器控制台 正在监听9090 端口）

最后：　接着输入 http://localhost:9090 ，进入控制台进行 openfire 的相关配置，（就到这里了，接下来的steps 都比较简单了）
