DeepSeek智能时空数据分析（八）：NL2SQL绘制河流-轨迹缓冲区如何生成

序言：时空数据分析很有用，但是GIS/时空数据库技术门槛太高

时空数据分析在优化业务运营中至关重要，然而，三大挑战仍制约其发展：技术门槛高，需融合GIS理论、SQL开发与时空数据库等多领域知识；空间数据缺乏直观可视化工具，导致分析结果难以高效传达；现有产品成本高昂，限制了中小企业应用。

本系列文章将借助DeepSeek等大模型的能力，通过NL2SQL等免费/低成本 AI GIS智能体能力，帮助不熟悉SQL、GIS但是有空间数据分析需求的读者实现最常用的分析功能。

前序文章

《DeepSeek智能时空数据分析（一）：筛选特定空间范围内的POI数据》

《DeepSeek智能时空数据分析（二）：3秒对话式搞定“等时圈”绘制》

《DeepSeek智能时空数据分析（三）：专业级地理数据可视化赏析-《杭州市国土空间总体规划（2021-2035年）》》

《DeepSeek智能时空数据分析（四）：绘制行政区域并定制样式
》

《DeepSeek智能时空数据分析（五）：基于区域人口数量绘制地图散点-大模型搜集数据NL2SQL加工数据》

《DeepSeek智能时空数据分析（六）：大模型NL2SQL绘制城市之间连线》

《DeepSeek智能时空数据分析（七）：4326和3857两种坐标系有什么区别？各自用途是什么？》

参考地理数据可视化案例

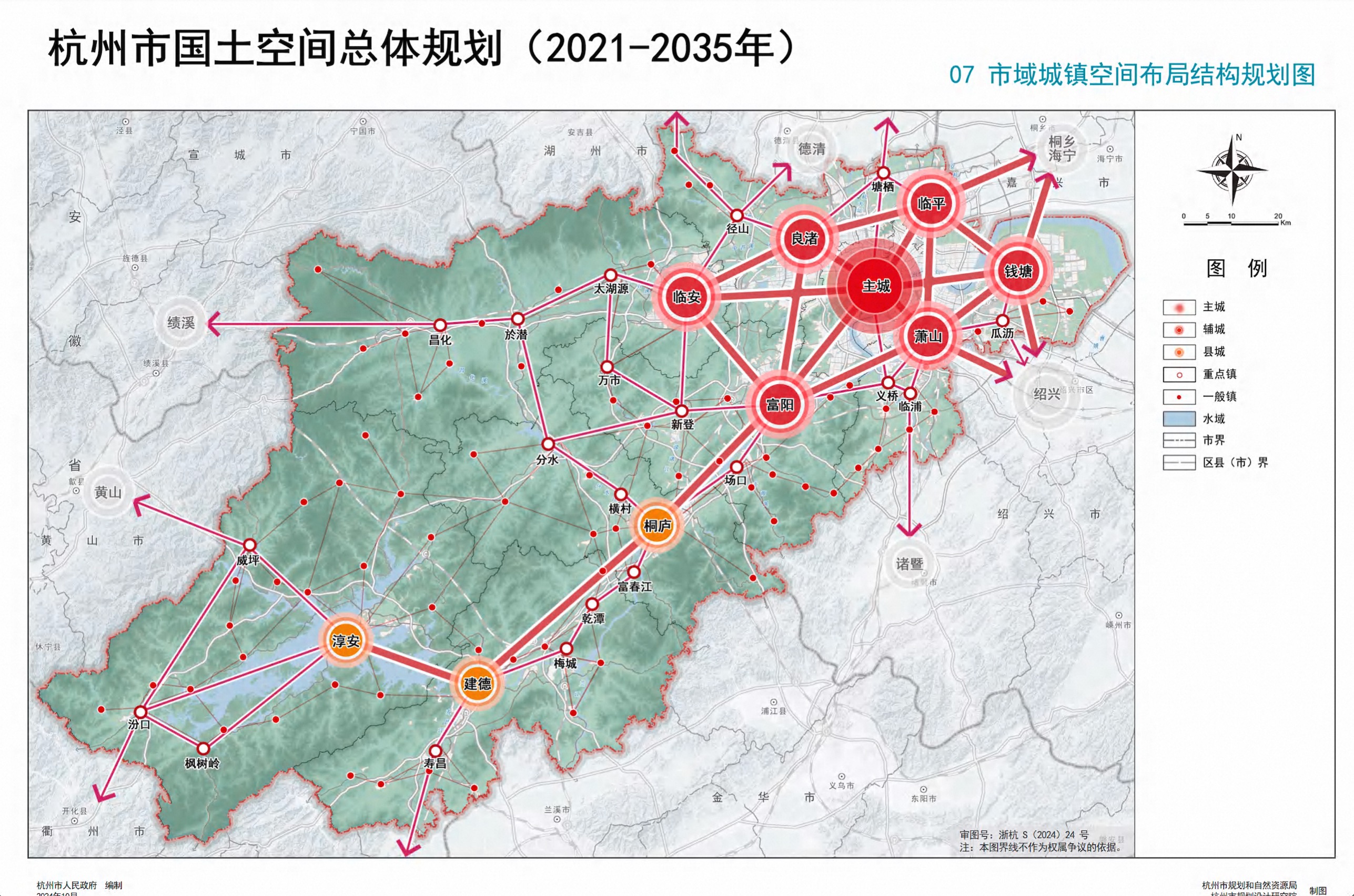

前文所述《杭州市国土空间总体规划（2021-2035年）》（公开稿），有很多经典的行政区域绘制案例，例如：
在这里插入图片描述

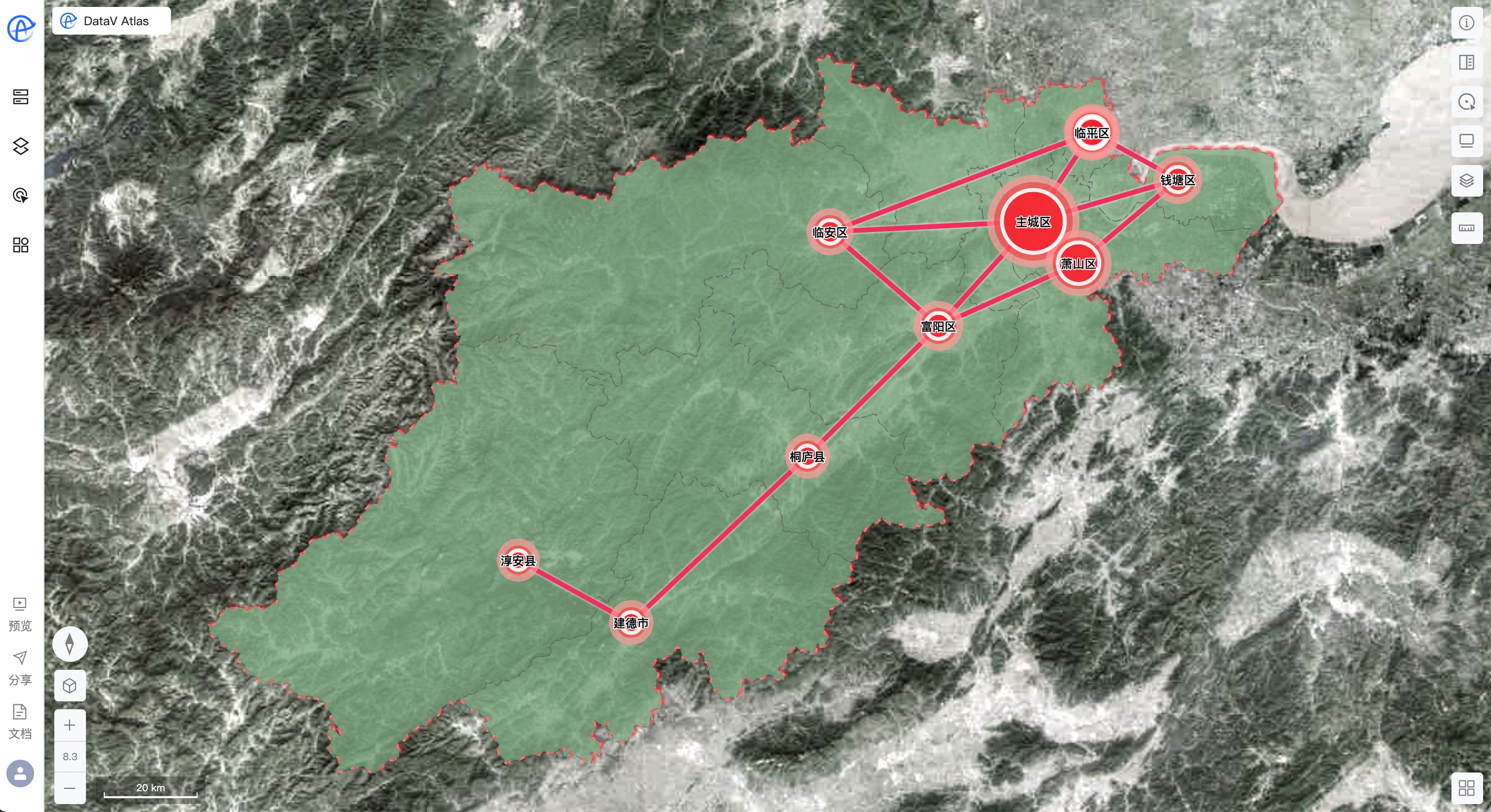

参考这个区域空间布局结构规划图，前序分享文章《DeepSeek智能时空数据分析（六）：大模型NL2SQL绘制城市之间连线》已经完成了大部分要素通过大模型NL2SQL进行了绘制，效果如下：

在此基础上，本文将参考《杭州市国土空间总体规划（2021-2035年）》-生态空间格局规划图中的河流要素，添加到之前的项目中：
在这里插入图片描述

第一步：导入河流空间数据

按参考案例所示，我们需要导入一段钱塘江的流域数据，可以参考以下样本：（复制后另存为geojson格式文件）

{"features":[{"type":"Feature","id":537369,"properties":{"_draw_type":"line","adcode":"杭州一江"},"geometry":{"type":"LineString","coordinates":[[120.70486134,30.37530722],[120.64186193,30.38938129],[120.55931467,30.38817742],[120.5081997,30.3891033],[120.498346,30.38890378],[120.45547341,30.38136755],[120.44328333,30.37701348],[120.43782048,30.3720213],[120.40371044,30.29406466],[120.38689286,30.26833862],[120.37928981,30.25918249],[120.36733753,30.25353329],[120.35266683,30.25075066],[120.34445826,30.25166549],[120.32375937,30.27115218],[120.31066872,30.28075607],[120.30036669,30.28585279],[120.29242056,30.2883326],[120.27902848,30.28655634],[120.26694757,30.28301832],[120.25033424,30.27422939],[120.24479477,30.26901648],[120.21834372,30.23502326],[120.20034281,30.21860956],[120.18805934,30.21063584],[120.17407879,30.20418767],[120.15436646,30.1975695],[120.13375484,30.19021174],[120.12881178,30.18526395],[120.12567496,30.17915667],[120.12487846,30.16982935],[120.12616887,30.15988996],[120.13240885,30.1477843],[120.15857185,30.12732023],[120.17709146,30.11657745],[120.17958548,30.11314837],[120.18071033,30.1088561],[120.17966882,30.10501712],[120.17589264,30.10259065],[120.15693573,30.09943558],[120.14741363,30.09747859],[120.1363332,30.0940736],[120.12649975,30.09048564],[120.10885708,30.07727781],[120.08501035,30.06362153],[120.07315958,30.05742704],[120.0642676,30.05284841],[120.06065276,30.04932857],[120.05135384,30.04110807],[120.04710499,30.03909052],[120.04381036,30.03753477],[120.03849451,30.03696977],[120.02836394,30.03796053],[120.00357389,30.04191457],[119.98393788,30.04411247],[119.96923775,30.04380813],[119.9618212,30.04288489],[119.95649897,30.04055451],[119.95288368,30.03693575],[119.94921449,30.03012279],[119.94428718,30.0166823],[119.93665499,30.00481442],[119.93225464,29.99765014],[119.92459894,29.98438572],[119.9099833,29.96688419],[119.90274671,29.96154984],[119.89482513,29.95491901],[119.88740273,29.95067936],[119.87968465,29.9487632],[119.87307771,29.94685125],[119.86774616,29.94534418],[119.86350761,29.94287853],[119.86043513,29.93980222],[119.8577417,29.93491649],[119.85285551,29.92592033],[119.84508706,29.91407883],[119.83790256,29.90481547],[119.83007963,29.89766783],[119.82247587,29.89285656],[119.80686175,29.8861082],[119.79734806,29.88135799],[119.78958148,29.87804084],[119.78019822,29.87602848],[119.76558988,29.8708237],[119.75551719,29.86516953],[119.75172239,29.86054374],[119.74786631,29.85269159],[119.74211605,29.84358161],[119.73597007,29.83770564],[119.73010162,29.83392936],[119.7240081,29.82771932],[119.7197494,29.8235223],[119.71505822,29.8191677],[119.70446029,29.8150533],[119.69430958,29.8103082],[119.68742266,29.80594029],[119.67868863,29.79785539],[119.66779602,29.78363756],[119.66149155,29.77596575],[119.65835427,29.76930853],[119.6548051,29.76041781],[119.65324185,29.75147186],[119.65073763,29.73804233],[119.65045659,29.73191658],[119.65156968,29.72732807],[119.65500652,29.72033849],[119.65607743,29.71524952],[119.6579476,29.70668799],[119.66049097,29.70194821],[119.66177224,29.69777704],[119.66071406,29.69417564],[119.65888015,29.69184734],[119.6562053,29.68947213],[119.65154503,29.68509769],[119.64808612,29.68104599],[119.64627626,29.67750665],[119.64503666,29.67435743],[119.6442006,29.67100037],[119.64443401,29.66708868],[119.64607717,29.66327997],[119.64817881,29.65912725],[119.64925463,29.6557141],[119.64857207,29.65273295],[119.64703875,29.65065043],[119.64426634,29.64805309],[119.63872787,29.64630189],[119.63585049,29.6440479],[119.63310011,29.64095854],[119.62821082,29.63623632],[119.62270027,29.63072835],[119.61847298,29.62795018],[119.61380732,29.62506324],[119.60789716,29.62269839],[119.60448241,29.62136363],[119.60127159,29.61911291],[119.59787982,29.61586507],[119.59480384,29.61140428],[119.59208533,29.60689257],[119.58817233,29.60223913],[119.58490955,29.59874091],[119.58039589,29.59499529],[119.57705556,29.59219253],[119.57519761,29.59010575],[119.57369369,29.5876262],[119.57259234,29.58460291],[119.57158318,29.57984776],[119.57048819,29.57203506],[119.56930397,29.56611117],[119.56752498,29.56305229],[119.55852414,29.55477935],[119.55134489,29.54655135],[119.54422549,29.540373],[119.53821381,29.53694944],[119.52945473,29.53348736],[119.52225448,29.53312046],[119.50979034,29.5333871],[119.49314942,29.53514013],[119.48420697,29.53599347],[119.47423671,29.53496018],[119.46267382,29.53552887],[119.45289972,29.53645593],[119.44469325,29.5364747],[119.43010638,29.53619142],[119.42136986,29.53487687],[119.41511691,29.53282646],[119.40850257,29.53067148],[119.40348775,29.52750527],[119.40103156,29.52149258],[119.39706656,29.51279722],[119.39368314,29.50546164],[119.39073961,29.50123976],[119.38642989,29.4970812],[119.38184218,29.49478164],[119.37721769,29.49327161],[119.37242307,29.49292334],[119.36911175,29.49327375],[119.36604708,29.49435612],[119.3640347,29.49596642],[119.36278628,29.49893772],[119.36393371,29.50245562],[119.36953305,29.5092999],[119.37388789,29.51547337],[119.37565807,29.51875092],[119.37571007,29.52148221],[119.37463523,29.52327173],[119.37247965,29.52389128],[119.36895108,29.52345563],[119.36407698,29.52168574],[119.35400173,29.51625426],[119.34687154,29.51335855],[119.34290559,29.51240567],[119.33915784,29.51166658],[119.33344037,29.50990118],[119.3299579,29.50929137],[119.32433997,29.50907714],[119.32175043,29.50904855],[119.31932762,29.50838796],[119.31476395,29.50535334],[119.30986441,29.5011002],[119.30634177,29.49791771],[119.30374148,29.49507101],[119.30345023,29.49324216],[119.30330904,29.48965353],[119.3035258,29.48642374],[119.30442659,29.48394168],[119.30714266,29.47955323],[119.30748734,29.47644584],[119.3067474,29.47386917],[119.30544405,29.471733],[119.30317177,29.4697509],[119.30041552,29.46772009],[119.29768281,29.46580409],[119.29390909,29.46588392],[119.29043399,29.46620112],[119.28627976,29.46722957],[119.28252074,29.46799417],[119.27639335,29.46859313],[119.26802505,29.46981365],[119.26338196401315,29.471342961480637],[119.25932072915582,29.47280294941451],[119.25507621,29.47337687],[119.25206108,29.47390781],[119.24801809,29.47485387],[119.24494892,29.47525513],[119.24219154,29.47505345],[119.24005551,29.47437705],[119.2379748,29.47432325],[119.23540652,29.47474658],[119.23341685,29.47516251],[119.23002294,29.47557762],[119.22702853,29.47563029],[119.2247343,29.47523193],[119.22285454,29.47481682],[119.22153154,29.4751145],[119.22031974,29.47608519],[119.21935938,29.47801721],[119.21894543,29.47974559],[119.21855441,29.48293763],[119.21844021,29.49224606],[119.21785492,29.49860777],[119.21704452,29.50403594],[119.21497521,29.50724452],[119.21135321,29.50869519],[119.20124288,29.51109908],[118.94839117,29.61872337],[118.94228923,29.6235479],[118.93918722,29.63321314],[118.93837056,29.64062284],[118.9366411,29.64620311],[118.9332475,29.65015074],[118.92768282,29.65249032],[118.92081774,29.65172633],[118.91583871,29.64792339],[118.91069399,29.64243353],[118.9059144,29.63827139],[118.90172039,29.6359083],[118.8977356,29.63610665],[118.89400498,29.63738524],[118.8897428,29.64107139],[118.88327645,29.6482938],[118.87848553,29.65145417],[118.87150596,29.65354659],[118.86281103,29.65332327],[118.85393919,29.65244421],[118.8479104,29.65375188],[118.8431785,29.65670277],[118.83667782,29.66092881],[118.83252379,29.66389108],[118.82338156,29.66713759],[118.8179552,29.66984589],[118.81329419,29.67228323],[118.81028889,29.67435813],[118.80583639,29.67974255],[118.80112478,29.68331823],[118.79484323,29.68728084],[118.7903248,29.69056806],[118.78437606,29.69250471],[118.77849824,29.69403022],[118.7714801,29.69613394],[118.76624194,29.69824189],[118.76395076,29.70031258],[118.75887618,29.70595723],[118.75288383,29.7136964],[118.75008707,29.71788104],[118.74717445,29.72147035],[118.74465576,29.72349729],[118.74146504,29.72501066],[118.72124457,29.73363079]],"modify_uid":"2"},"bbox":[118.72124457,29.46580409,120.70486134,30.38938129]}],"type":"FeatureCollection"}

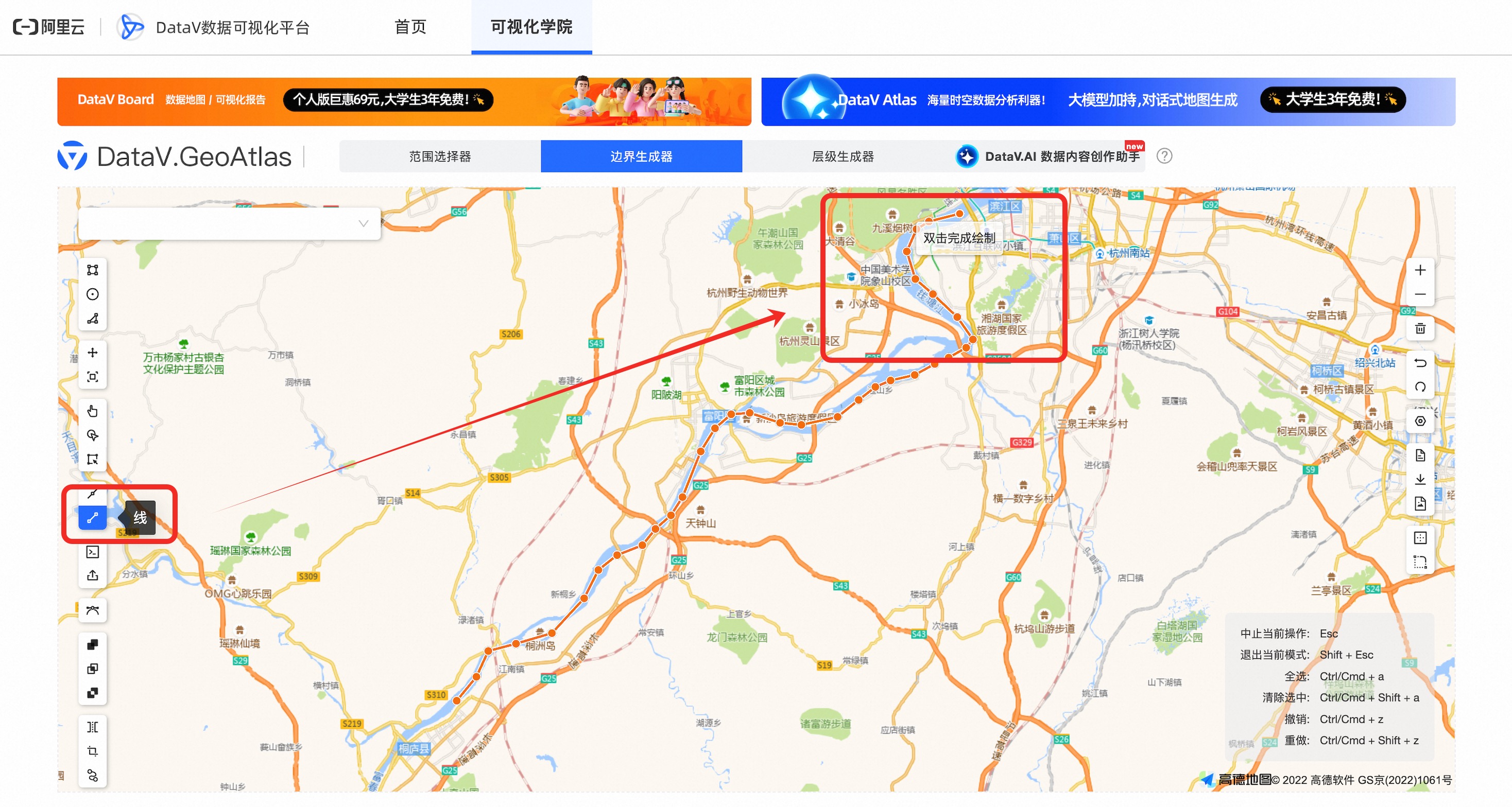

或者利用GeoAtlas工具，利用画线工具自行手工标绘一份河流数据：
在这里插入图片描述

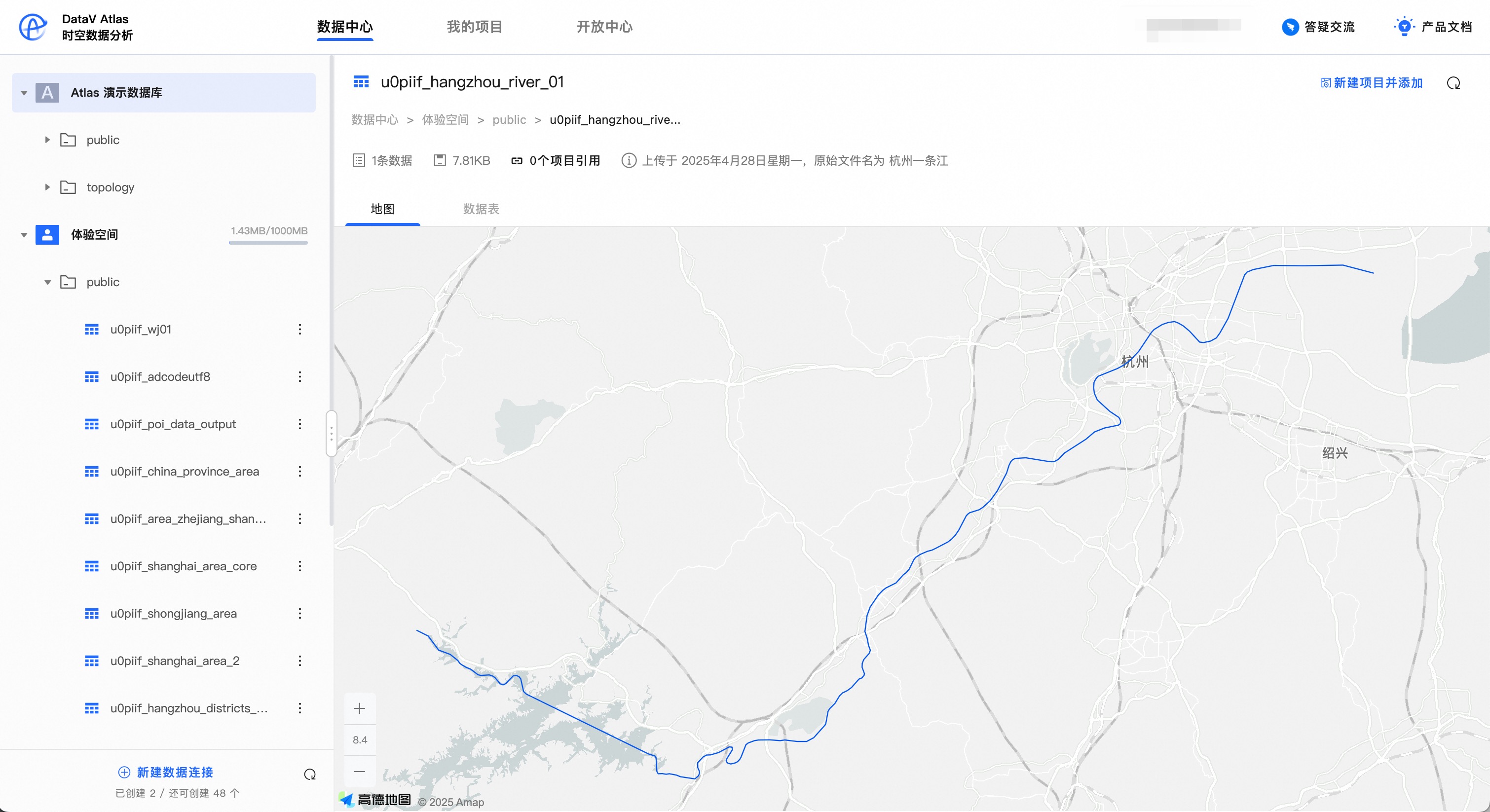

获得河流空间数据之后，导入DataV Atlas数据中心：

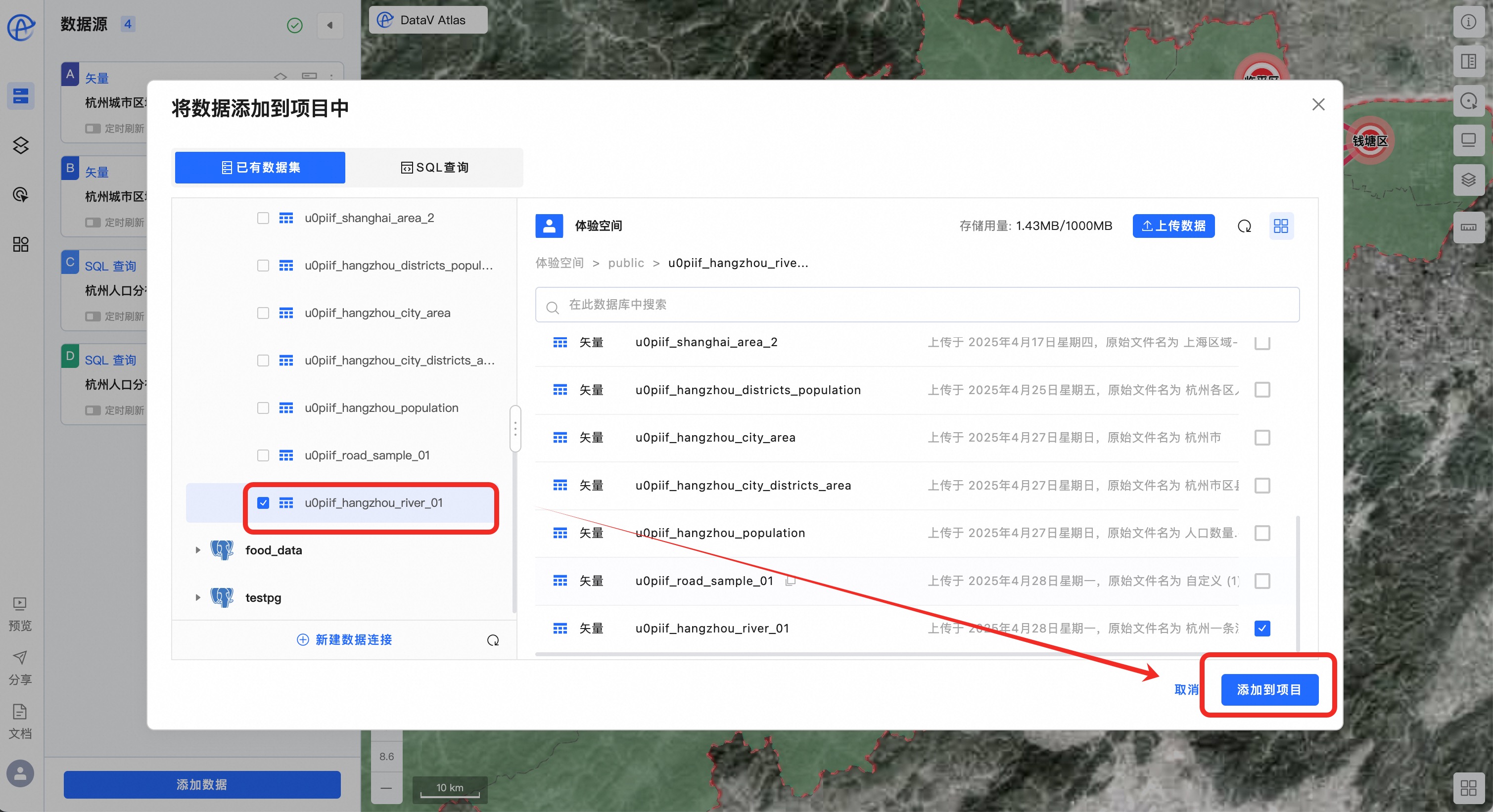

导入数据中心之后，将河流数据加入到之前项目中：

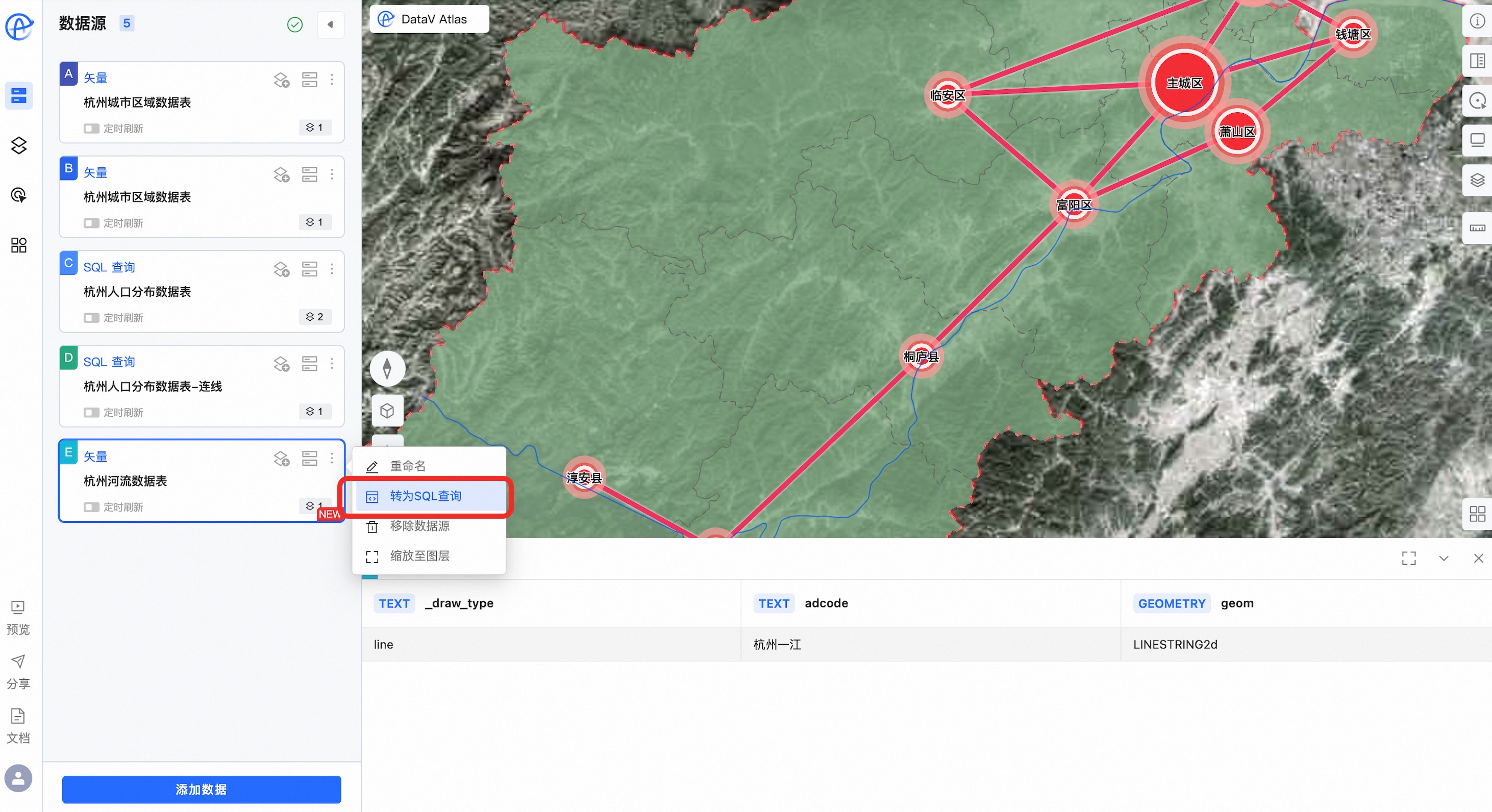

导入完毕后，在河流数据源选择“转为sql查询”，便于下一步NL2SQL处理：

第二步：大模型NL2SQL生成河流缓冲区

空间数据一般存储用4326，显示用3857，具体可以参考前序文章《DeepSeek智能时空数据分析（七）：4326和3857两种坐标系有什么区别？各自用途是什么？》

因此，在平面地图上绘制河流要素需要完成以下两步：

将几何对象从4326坐标系转换到3857坐标系；
使用缓冲区函数ST_Buffer生成以几何对象为中心、半径为2000米的缓冲区；

所幸我们有大模型的帮助，不需要撰写复杂的空间数据处理SQL；
打开DataV Atlas AI助手，输入以下提示词：

“在3857坐标系下，以这条线为中心，生成2000米为buffer的缓冲区”

在这里插入图片描述
大模型正确理解了我们的意图，并输出sql代码：

SELECT "_draw_type", "adcode", ST_Buffer(ST_Transform("geom", 3857), 1500) AS buffer_geom
FROM "public"."u0piif_hangzhou_river_01";

sql代码含义如下：

ST_Transform(“geom”, 3857)：将geom字段的几何对象从原始坐标系（4326）转换到目标坐标系（3857）。
ST_Buffer(…, 200)：在3857坐标系下，以转换后的几何对象为中心，生成半径为200米的缓冲区。
buffer_geom：为生成的缓冲区几何对象定义别名。
