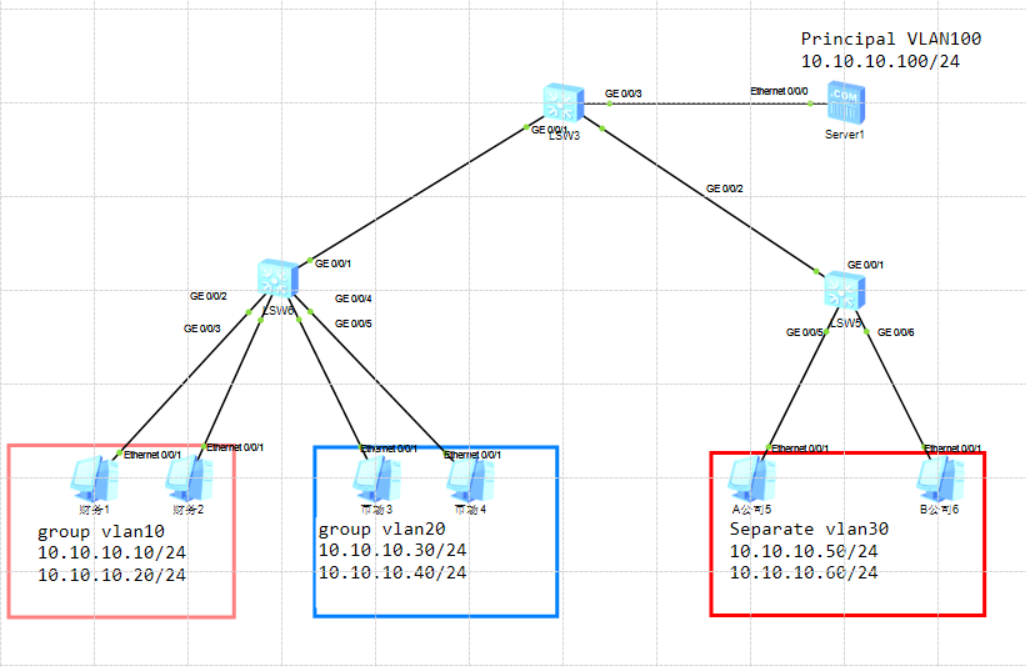

1.top配置

2.各个交换机设置

sw3交换机的

sysname swb
#
undo info-center enable
#
vlan batch 10 20 30 100
#
vlan 10description financial vlan
vlan 20description marketing vlan
vlan 30description client vlan
vlan 100description principal  vlanmux-vlansubordinate separate 30subordinate group 10 20
#
interface GigabitEthernet0/0/1port link-type trunkport trunk allow-pass vlan 10 20 30 100
#
interface GigabitEthernet0/0/2port link-type trunkport trunk allow-pass vlan 10 20 30 100
#
interface GigabitEthernet0/0/3port link-type accessport default vlan 100port mux-vlan enable

 sw6交换机的

sysname swc
#
undo info-center enable
#
vlan batch 10 20 30 100
#
vlan 10description Financial VLAN
vlan 20description Marketing VLAN
vlan 30description Cilent VLAN
vlan 100description Principal VLANmux-vlansubordinate separate 30subordinate group 10 20
#
interface GigabitEthernet0/0/1port link-type trunkport trunk allow-pass vlan 10 20 30 100
#
interface GigabitEthernet0/0/2port link-type accessport default vlan 10port mux-vlan enable
#
interface GigabitEthernet0/0/3port link-type accessport default vlan 10port mux-vlan enable
#
interface GigabitEthernet0/0/4port link-type accessport default vlan 20port mux-vlan enable
#
interface GigabitEthernet0/0/5port link-type accessport default vlan 20port mux-vlan enable
#

sw5交换机的

#
sysname swd
#
undo info-center enable
#
vlan batch 10 20 30 40 100
#
vlan 10description Financial VLAN
vlan 20description Marketing VLAN
vlan 30description Client VLAN
vlan 100description Principal VLANmux-vlansubordinate separate 30subordinate group 10 20
#
interface GigabitEthernet0/0/1port link-type trunkport trunk allow-pass vlan 10 20 30 100
#
interface GigabitEthernet0/0/5port link-type accessport default vlan 30port mux-vlan enable
#
interface GigabitEthernet0/0/6port link-type accessport default vlan 30port mux-vlan enable



3.验证

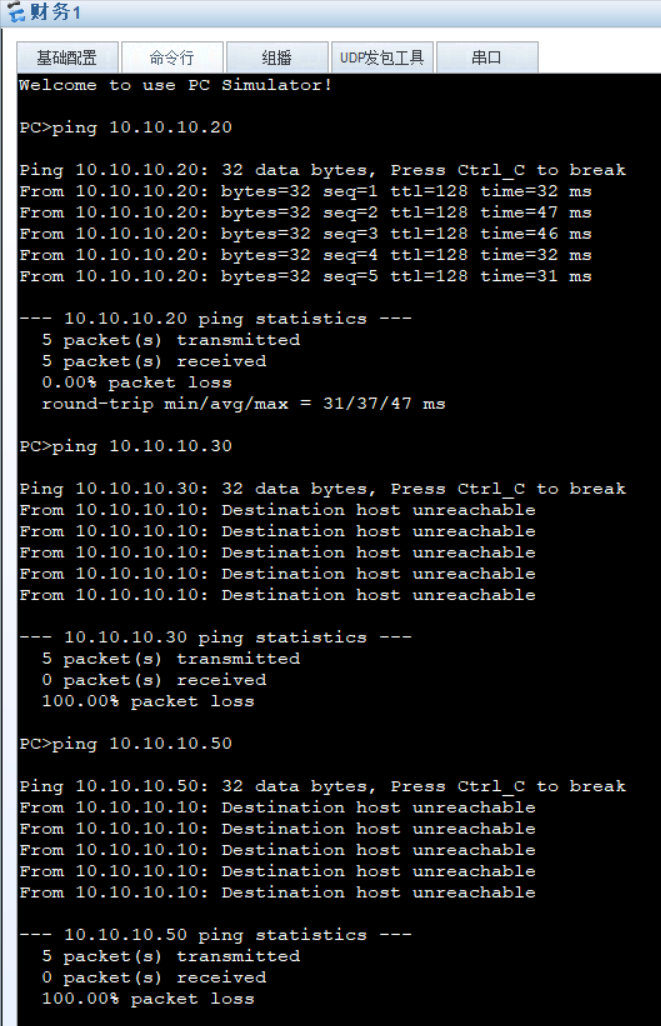

group同vlan互ping

separate相同vlan的ping
